Here you will find all available parts and drawings of the 'Bosch 3601B22100 (GGS8CE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

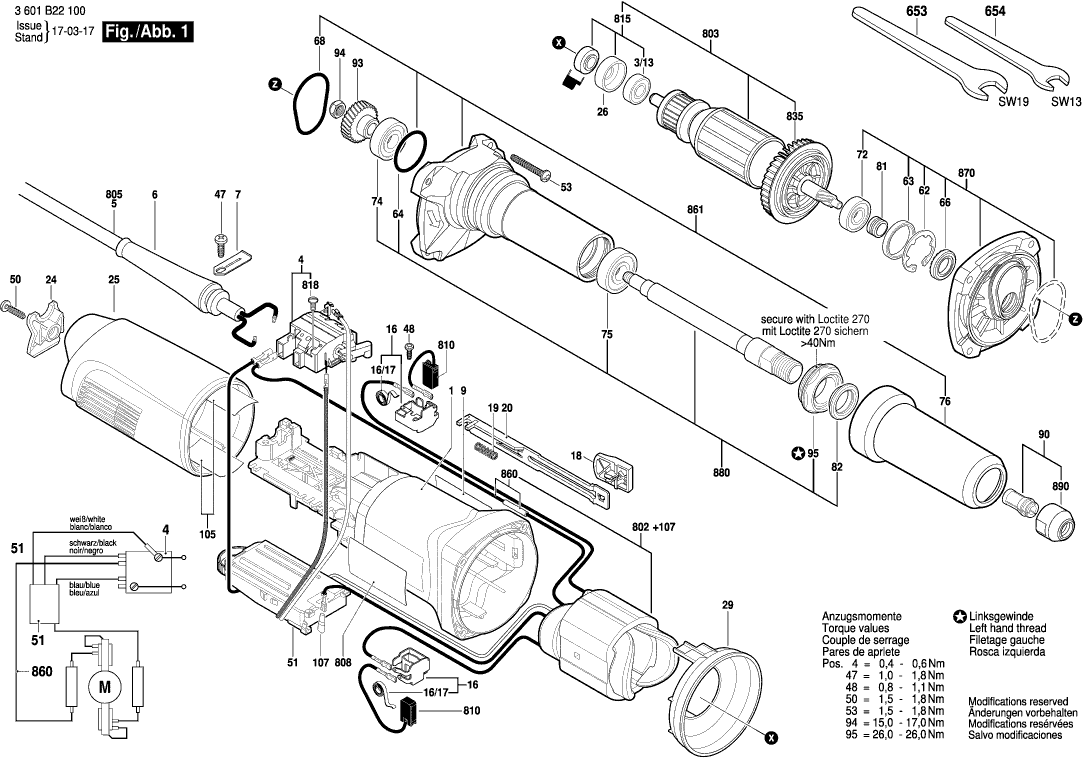

Technical drawing of model Bosch 3601B22100 (GGS8CE)
Spare parts list of model Bosch 3601B22100 (GGS8CE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605108224 | 8.48 | 10.26 | |
| Ball Bearing | ||||
| 3/13 | 2600905032 | 4.94 | 5.98 | |
| Switch | ||||
| 4 | 1607200199 | 14.94 | 18.08 | |
| Grommet | ||||
| 6 | 1600703040 | 2.08 | 2.52 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 3601110538 | 4.18 | 5.06 | |
| Brush Holder | ||||
| 16 | 1601323023 | 3.44 | 4.16 | |
| Brush Holder | ||||
| 16 | 1601323025 | 3.44 | 4.16 | |
| Spiral Spring | ||||
| 16/17 | 1604652013 | 1.49 | 1.80 | |
| Spiral Spring | ||||
| 16/17 | 2604652009 | 1.49 | 1.80 | |
| Switch Handle | ||||
| 18 | 1602026088 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 19 | 1619P09932 | 1.28 | 1.55 | |
| Compression Spring | ||||
| 19 | 1604611026 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 20 | 1602319010 | 1.49 | 1.80 | |
| Cover | ||||
| 24 | 1605500227 | 2.08 | 2.52 | |
| Housing Cover | ||||
| 25 | 1605500251 | 7.46 | 9.03 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 2.40 | 2.90 | |
| Torx Oval-Head Screw | ||||
| 47 | 2603490021 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 48 | 1613435034 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 2603490023 | 1.00 | 1.21 | |
| Speed governor | ||||
| 51 | 1607233495 | 52.45 | 63.46 | |
| Torx Oval-Head Screw | ||||
| 53 | 2603490025 | 1.00 | 1.21 | |
| Lens Head Screw | ||||
| 53 | 2603490026 | 1.00 | 1.21 | |
| Retaining clip | ||||
| 62 | 1600119011 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 63 | 1600206025 | 2.08 | 2.52 | |
| O-Ring | ||||
| 64 | 1610210101 | 2.86 | 3.46 | |
| Rotary shaft lip seal | ||||
| 66 | 1600290016 | 2.40 | 2.90 | |
| O-Ring | ||||
| 68 | 2600210019 | 1.49 | 1.80 | |
| groove ball bearing | ||||
| 72 | 1600905032 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 74 | 3600905156 | 11.37 | 13.76 | |
| groove ball bearing | ||||
| 75 | 3600905157 | 11.37 | 13.76 | |
| Protective Sleeve | ||||
| 76 | 3605500194 | 11.37 | 13.76 | |
| Sleeve | ||||
| 81 | 3600400035 | 4.94 | 5.98 | |
| Sealing disk | ||||
| 82 | 3600103020 | 4.94 | 5.98 | |
| Clamping Unit | ||||
| 90 | 3607030474 | 21.30 | 25.77 | |
| Cylindrical Gear | ||||
| 93 | 3606312004 | 14.94 | 18.08 | |
| Hex Nut | ||||
| 94 | 1603300016 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 94 | 1619P17544 | 1.00 | 1.21 | |
| Flange | ||||
| 95 | 3600328043 | 23.90 | 28.92 | |
| Insulating Plate | ||||
| 105 | 1601008005 | 4.94 | 5.98 | |
| Insulating Part | ||||
| 107 | 1600712030 | 1.49 | 1.80 | |
| Single-Head Eng. Wrench | ||||
| 653 | 3607950024 | 8.35 | 10.10 | |
| Single-Head Eng. Wrench | ||||
| 654 | 3607950025 | 7.46 | 9.03 | |
| Field | ||||
| 802 | 3607031669 | 52.45 | 63.46 | |
| Armature assembly | ||||
| 803 | 3607031670 | 98.18 | 118.80 | |
| Power supply cord | ||||
| 805 | 1607000392 | 21.30 | 25.77 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607000482 | 110.30 | 133.46 | |
| Carbon-Brush Set | ||||
| 810 | 1607014176 | 12.82 | 15.51 | |
| Parts Set | ||||
| 815 | 1607000378 | 6.73 | 8.14 | |
| Pan head screw | ||||
| 818 | 2910110048 | 1.00 | 1.21 | |
| Fan | ||||
| 835 | 1616B00064 | 2.08 | 2.52 | |
| Fan | ||||
| 835 | 1606610132 | 2.08 | 2.52 | |
| Connecting Cable | ||||
| 860 | 1604448023 | 1.49 | 1.80 | |
| Spindle Housing | ||||
| 861 | 3607031673 | 80.26 | 97.11 | |
| Intermediate Flange | ||||
| 870 | 3607031672 | 47.53 | 57.51 | |
| Grinding Spindle | ||||
| 880 | 3607031671 | 122.80 | 148.59 | |
| Round Nut | ||||
| 890 | 3603313006 | 9.67 | 11.70 | |
