Here you will find all available parts and drawings of the 'Bosch 0601214103 ( GGS6S )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

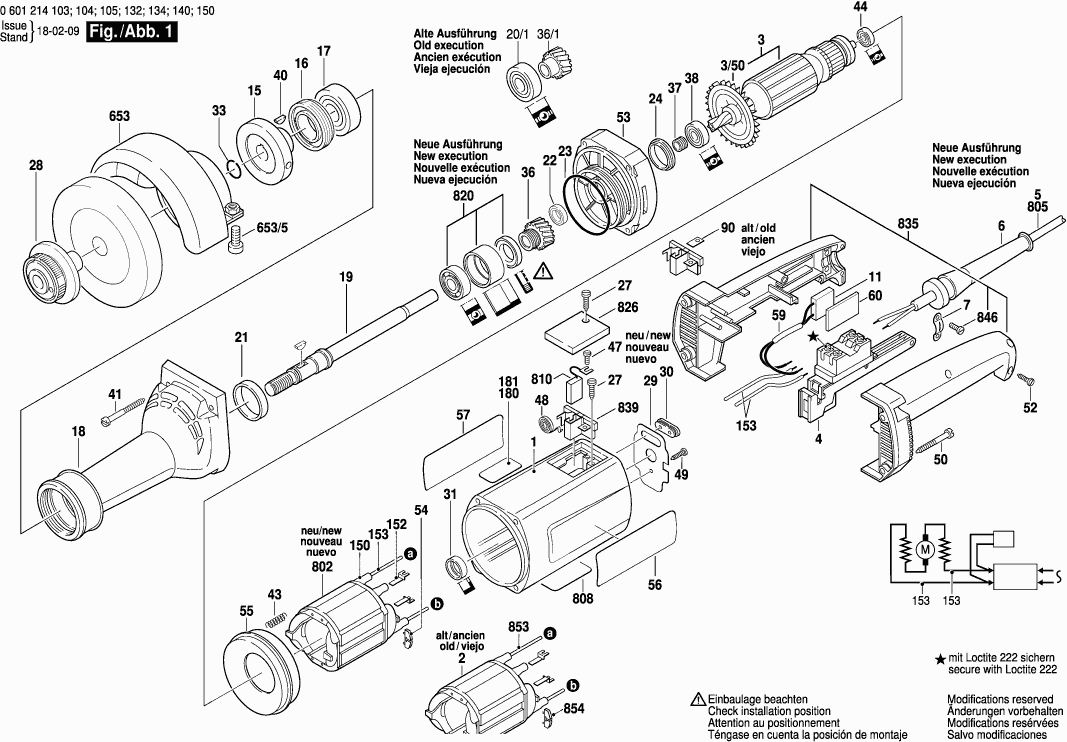

Technical drawing of model Bosch 0601214103 ( GGS6S )

Spare parts list of model Bosch 0601214103 ( GGS6S )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 3605108092 23.75 28.74
Armature
3 1619P13611 36.85 44.59
Fan
3/50 1606610122 2.24 2.71
Switch
4 1607200064 36.85 44.59
Grommet Ø9,2-Ø12x120 MM
6 3600703011 2.24 2.71
Fastening Clamp
7 1601302014 1.18 1.43
Suppression Filter
11 3607328000 4.10 4.96
No longer available, no replacement
15 1605703065
Threaded Ring
16 1603344005 23.75 28.74
groove ball bearing 17x47x14
17 1900900352 23.75 28.74
Spindle Bearing
18 3605806084 148.65 179.87
Grinding Spindle M14
19 3603160000 67.25 81.37
Rubber Ring Ø41xØ37x7,5 MM
21 1600206029 1.94 2.35
Rotary shaft lip seal
22 1600290016 1.94 2.35
O-Ring 57,0x1,5 MM
23 1600210031 0.83 1.00
Intermediate Ring
24 1600221003 1.18 1.43
Tapping Screw DIN 7971-ST3,9x16-F
27 2910211019 0.83 1.00
Fast Locking Flange
28 3603301010 130.32 157.69
Cover Plate
29 3601038049 1.18 1.43
Grommet
30 1600306001 1.94 2.35
Intermediate Ring
31 1600502011 1.94 2.35
Retaining ring 16 DIN 9045
33 2916600009 0.83 1.00
Cylindrical Gear Z=25
36 3606320015 60.65 73.39
Intermediate Ring
37 1600300090 2.71 3.28
groove ball bearing 9x26x8
38 3600905131 8.45 10.22
Woodruff Key DIN 6888-4x5-ST60-2
40 1900023006 1.94 2.35
Torx Oval-Head Screw
41 3603435057 1.18 1.43
Compression Spring
43 1604613006 1.18 1.43
Ball Bearing 7x19x6
44 2600905032 4.10 4.96
Socket head cap screw DIN 84-AM4x8-8.8
47 2910021118 0.83 1.00
Spiral Spring
48 1604652006 1.18 1.43
Tapping Screw DIN 7971-BZ3,5x13
49 2910211011 0.83 1.00
Torx Oval-Head Screw
50 2914201531 0.83 1.00
Torx Oval-Head Screw
52 2914201508 0.83 1.00
Intermediate Bearing
53 3605820045 81.47 98.58
Wire Guide
54 3601025003 1.18 1.43
Air-Deflector Ring
55 1600502019 2.71 3.28
Manufacturer's nameplate
56 3601110488 3.31 4.01
Manufacturer's nameplate
56 3601110491 3.31 4.01
Manufacturer's nameplate
57 3601110491 3.31 4.01
PVC Hose
59 1600712026 1.18 1.43
Insulating Plate 20x20x50 MM
60 1602381006 1.18 1.43
Tab Washer
90 1601030022 1.18 1.43
Shrinkable Tube
150 3600707022 2.71 3.28
Blade terminal
152 1604477001 1.18 1.43
Connecting Cable
153 3604438029 7.58 9.17
Pin-Type Face-Wrench
650/1 F000632033 1.94 2.35
Holding Pin
650/2 3603101005 4.10 4.96
Offset Screwdriver DIN 911;SW6
650/3 1907950007 4.10 4.96
No information available, not orderable
650/4 1603345034
Protective Cover Ø 125 MM
653 3605510030 23.75 28.74
Hex Socket Head Cap Screw DIN 912-M8x20-8.8
653/5 2910141242 1.18 1.43
Field 220-230V
802 3604220134 44.82 54.23
Power supply cord
805 1607000391 13.93 16.86
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 3607014012 20.42 24.71
Cartridge bearing
820 3604441011 26.84 32.48
Sealing cap BLUE
826 3605500063 3.31 4.01
Housing Section
835 3607031661 29.75 36.00
Brush Holder
839 3604336012 4.70 5.69
Set of screws
846 3607031662 12.41 15.02
Connecting Cable L=220 MM WHITE
853 3604438001 5.83 7.05
Wire Guide
854 1601025001 1.10 1.33
