Here you will find all available parts and drawings of the 'Bosch 0601210003 ( GGS27 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

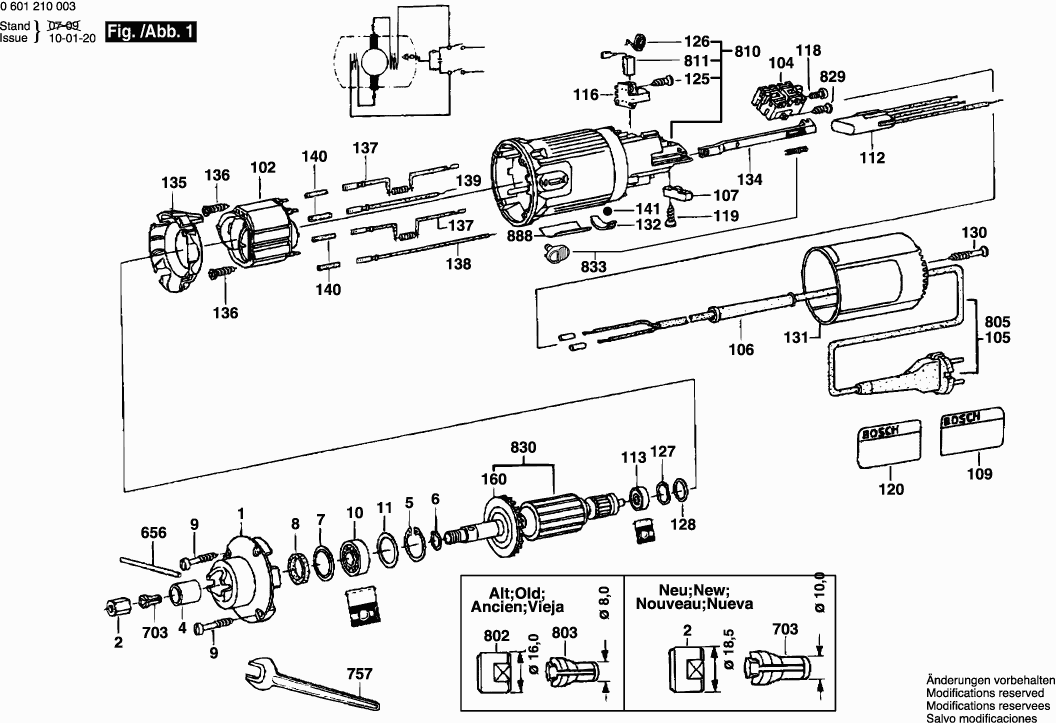

Technical drawing of model Bosch 0601210003 ( GGS27 )
Spare parts list of model Bosch 0601210003 ( GGS27 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spindle Housing BLUE | ||||
| 1 | 2605806375 | 15.71 | 19.01 | |
| Union Nut SW 17, Ø 18,5 MM | ||||
| 2 | 2603312006 | 5.33 | 6.45 | |
| Seal Bushing | ||||
| 4 | 2600300073 | 5.33 | 6.45 | |
| Retaining clip DIN 472-32x1,2 MM | ||||
| 5 | 2916660013 | 1.70 | 2.06 | |
| Retaining clip DIN 471-15x1-FSt | ||||
| 6 | 2916650006 | 1.18 | 1.43 | |
| Cupped Washer | ||||
| 7 | 2600500033 | 1.94 | 2.35 | |
| Felt Washer | ||||
| 8 | 2600108033 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x20 | ||||
| 9 | 2603490023 | 0.83 | 1.00 | |
| groove ball bearing 15x32x9 | ||||
| 10 | 2600905017 | 7.58 | 9.17 | |
| Shim 0,1 MM THICK | ||||
| 11 | 1600102626 | 1.70 | 2.06 | |
| Field 220-230V | ||||
| 102 | 2604220445 | 23.75 | 28.74 | |
| Switch | ||||
| 104 | 2607200674 | 12.41 | 15.02 | |
| Grommet Ø8,3-Ø9,4x95 MM | ||||
| 106 | 2600703011 | 2.24 | 2.71 | |
| Cable Clip | ||||
| 107 | 2601035001 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 109 | 2601116670 | 2.71 | 3.28 | |
| Suppression Filter | ||||
| 112 | 2607329118 | 2.71 | 3.28 | |
| groove ball bearing | ||||
| 113 | 2600905088 | 5.83 | 7.05 | |
| Brush Holder | ||||
| 116 | 1600A003G4 | 2.71 | 3.28 | |
| Socket head cap screw M3x6,5-4.8 | ||||
| 118 | 2603410001 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 119 | 2603490022 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 120 | 2601116671 | 2.24 | 2.71 | |
| Torx Oval-Head Screw 3x10 | ||||
| 125 | 2603490017 | 1.70 | 2.06 | |
| Spiral Spring | ||||
| 126 | 2604652009 | 1.18 | 1.43 | |
| Shim | ||||
| 127 | 2600150033 | 1.70 | 2.06 | |
| Shim washer 0,3 MM | ||||
| 128 | 2600101027 | 1.18 | 1.43 | |
| Shim washer 0,2 MM | ||||
| 128 | 2600101665 | 1.18 | 1.43 | |
| Shim washer 0,5 MM | ||||
| 128 | 2600101667 | 1.18 | 1.43 | |
| Tapping Screw DIN 7982-ST3,9x22C-H | ||||
| 130 | 2910601321 | 1.18 | 1.43 | |
| Housing Cover BLUE | ||||
| 131 | 2600508036 | 7.58 | 9.17 | |
| Intermediate Piece BLUE | ||||
| 132 | 1600026000 | 0.83 | 1.00 | |
| Adjusting Slide BLUE | ||||
| 134 | 2602319005 | 1.18 | 1.43 | |
| Cover Disc | ||||
| 135 | 2601328045 | 1.70 | 2.06 | |
| Tapping Screw | ||||
| 136 | 2603435086 | 1.18 | 1.43 | |
| Suppression Filter | ||||
| 137 | 2604465049 | 2.71 | 3.28 | |
| Connecting Cable L=119MM WHITE | ||||
| 138 | 2604448078 | 1.18 | 1.43 | |
| Connecting Cable L=86MM WHITE | ||||
| 139 | 2604448044 | 0.83 | 1.00 | |
| Shrinkable Tube | ||||
| 140 | 1610712034 | 0.83 | 1.00 | |
| Ball BLACK | ||||
| 141 | 2603230002 | 1.18 | 1.43 | |
| Fan | ||||
| 160 | 2606610050 | 3.31 | 4.01 | |
| Straight Pin 4x60 MM | ||||
| 656 | 2603101035 | 2.24 | 2.71 | |
| No information available, not orderable | ||||
| 703 | 2608570049 | |||
| No information available, not orderable | ||||
| 757 | 1607950525 | |||
| No longer available, no replacement | ||||
| 802 | 2603312001 | |||
| No longer available, no replacement | ||||
| 803 | 2608570065 | |||
| Power supply cord EU 2,6m 2 x 1,0 mm | ||||
| 805 | 1607000385 | 11.88 | 14.37 | |
| No longer available, no replacement | ||||
| 810 | 2605108904 | |||
| Carbon-Brush Set | ||||
| 811 | 2604320912 | 7.58 | 9.17 | |
| Tapping Screw DIN 7981-ST2,9x13-C-H | ||||
| 829 | 2910611006 | 1.18 | 1.43 | |
| Armature 220-230V | ||||
| 830 | 2604010915 | 91.56 | 110.79 | |
| No longer available, no replacement | ||||
| 833 | 2602026910 | |||
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
