Here you will find all available parts and drawings of the 'Bosch 0601215050 (GGS27L)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

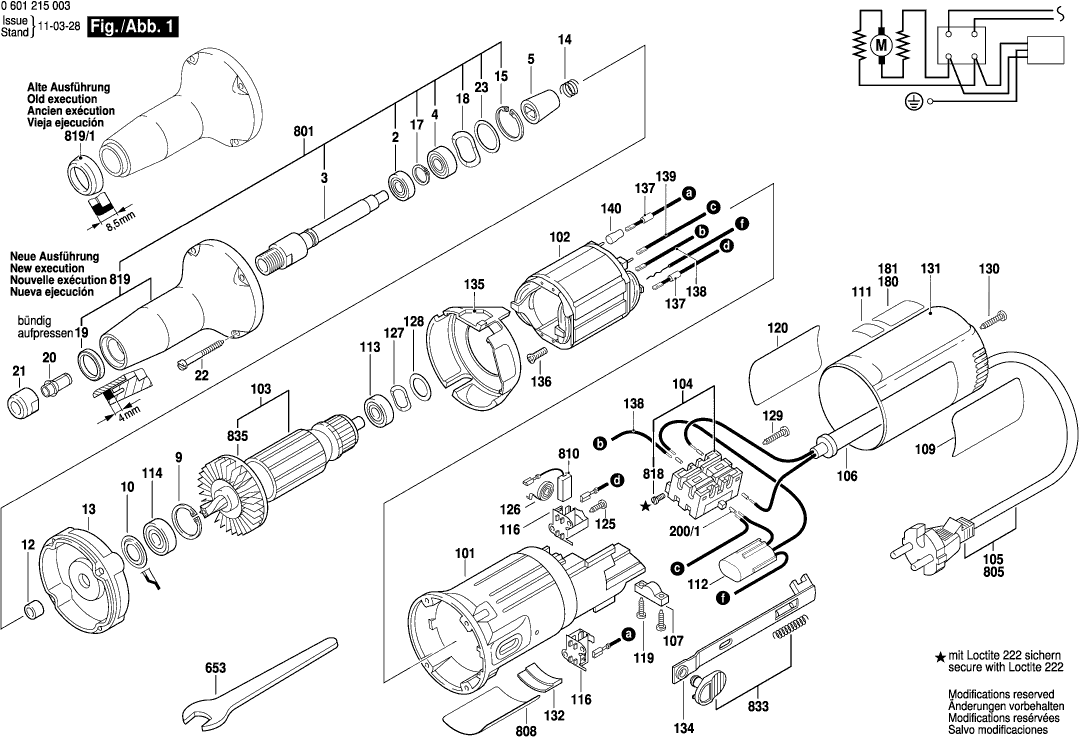

Technical drawing of model Bosch 0601215050 (GGS27L)
Spare parts list of model Bosch 0601215050 (GGS27L)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| groove ball bearing | ||||
| 2 | 3600900020 | 12.82 | 15.51 | |
| Grinding Spindle | ||||
| 3 | 3603523008 | 98.18 | 118.80 | |
| groove ball bearing | ||||
| 4 | 3600900021 | 18.94 | 22.92 | |
| Coupling Half | ||||
| 5 | 2606446002 | 8.35 | 10.10 | |
| Spring retaining ring | ||||
| 9 | 2916660008 | 2.08 | 2.52 | |
| Cupped Washer | ||||
| 10 | 2600500002 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 12 | 2600400008 | |||
| Intermediate Flange | ||||
| 13 | 2605700215 | 47.53 | 57.51 | |
| Compression Spring | ||||
| 14 | 2604630001 | 2.08 | 2.52 | |
| Spring retaining ring | ||||
| 15 | 2916660010 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 17 | 2916650903 | 1.49 | 1.80 | |
| Shim | ||||
| 18 | 3600150011 | 1.49 | 1.80 | |
| Cover Ring | ||||
| 19 | 3600300074 | 14.94 | 18.08 | |
| Collet | ||||
| 20 | 2608570077 | 21.30 | 25.77 | |
| Round Nut | ||||
| 21 | 3603342009 | 13.13 | 15.89 | |
| Tapping Screw | ||||
| 22 | 2910211093 | 1.49 | 1.80 | |
| Shim | ||||
| 23 | 1710102601 | 1.49 | 1.80 | |
| Motor Housing | ||||
| 101 | 2605108051 | 18.94 | 22.92 | |
| Field 220-230V | ||||
| 102 | 2604220438 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 103 | 2604010639 | |||
| Switch | ||||
| 104 | 2607200674 | 14.94 | 18.08 | |
| Power supply cord I/BR 2,65m 2 x 1,0mm H05 VV-F | ||||
| 105 | 2604460277 | 11.37 | 13.76 | |
| Grommet | ||||
| 106 | 2600703012 | 2.86 | 3.46 | |
| Cable Clip | ||||
| 107 | 2601035001 | 1.49 | 1.80 | |
| Sticker | ||||
| 109 | 3601110353 | 3.04 | 3.68 | |
| Suppression Filter | ||||
| 112 | 2607329104 | 9.67 | 11.70 | |
| Ball Bearing | ||||
| 113 | 1900905018 | 16.79 | 20.32 | |
| Ball Bearing | ||||
| 114 | 2600905095 | 11.37 | 13.76 | |
| Brush Holder | ||||
| 116 | 1600A003G4 | 3.44 | 4.16 | |
| Screw | ||||
| 119 | 2603490022 | 1.00 | 1.21 | |
| Sticker WORKING INSTRUCTIONS | ||||
| 120 | 3601110375 | 3.04 | 3.68 | |
| Lens Head Screw | ||||
| 125 | 1613435034 | 1.00 | 1.21 | |
| Spiral Spring | ||||
| 126 | 2604652009 | 1.49 | 1.80 | |
| Shim | ||||
| 127 | 2600150004 | 2.08 | 2.52 | |
| Shim | ||||
| 128 | 2600101020 | 1.49 | 1.80 | |
| Shim | ||||
| 128 | 2600101022 | 1.49 | 1.80 | |
| Shim | ||||
| 128 | 2600101023 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 129 | 2910211007 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 130 | 2910601321 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 131 | 2600508036 | 9.67 | 11.70 | |
| Intermediate Piece | ||||
| 132 | 1600026000 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 134 | 2602319005 | 1.49 | 1.80 | |
| Cover Disc | ||||
| 135 | 2601328045 | 2.08 | 2.52 | |
| Cross Recessed-Head Screw | ||||
| 136 | 2603435015 | 2.08 | 2.52 | |
| Suppression Filter | ||||
| 137 | 1619P15513 | 2.18 | 2.64 | |
| Connecting Cable | ||||
| 138 | 2604448040 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 139 | 2604448039 | 2.08 | 2.52 | |
| Shrinkable Tube | ||||
| 140 | 2600409014 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 653 | 2607950511 | |||
| Grinding Spindle | ||||
| 801 | 3607031168 | 244.89 | 296.32 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 810 | 3607031630 | |||
| Socket head cap screw | ||||
| 818 | 2603410001 | 1.49 | 1.80 | |
| Spindle Bearing | ||||
| 819 | 3607030418 | 64.67 | 78.25 | |
| Cover Ring | ||||
| 819/1 | 2600501001 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 833 | 2602026910 | |||
| Fan | ||||
| 835 | 2606610050 | 4.18 | 5.06 | |
