Here you will find all available parts and drawings of the 'Bosch 0601210708 ( GGS27C )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

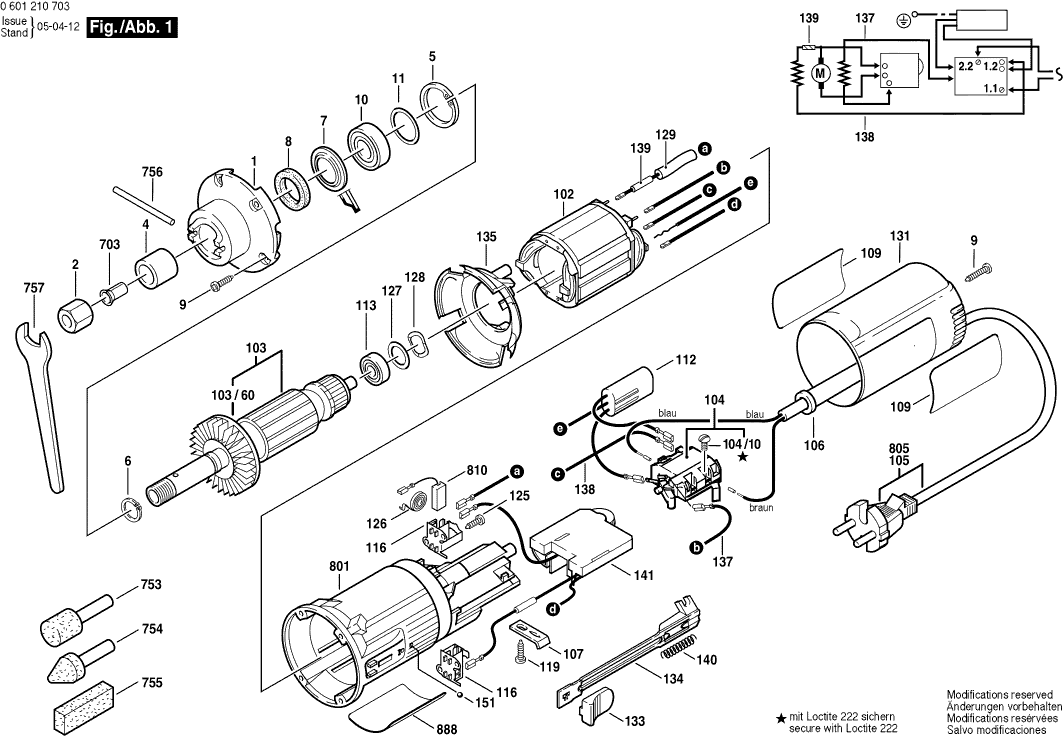

Technical drawing of model Bosch 0601210708 ( GGS27C )
Spare parts list of model Bosch 0601210708 ( GGS27C )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spindle Housing BLUE | ||||
| 1 | 2605806375 | 15.71 | 19.01 | |
| Union Nut SW 17, Ø 18,5 MM | ||||
| 2 | 2603312006 | 5.33 | 6.45 | |
| Seal Bushing | ||||
| 4 | 2600300073 | 5.33 | 6.45 | |
| Retaining clip DIN 472-32x1,2 MM | ||||
| 5 | 2916660013 | 1.70 | 2.06 | |
| Retaining clip DIN 471-15x1-FSt | ||||
| 6 | 2916650006 | 1.18 | 1.43 | |
| Cupped Washer | ||||
| 7 | 2600500033 | 1.94 | 2.35 | |
| Felt Washer | ||||
| 8 | 2600108033 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x20 | ||||
| 9 | 2603490023 | 0.83 | 1.00 | |
| groove ball bearing 15x32x9 | ||||
| 10 | 2600905017 | 7.58 | 9.17 | |
| Shim 0,1 MM THICK | ||||
| 11 | 1600102626 | 1.70 | 2.06 | |
| Field 220-230V | ||||
| 102 | 2604220491 | 18.19 | 22.01 | |
| Armature 220-230V | ||||
| 103 | 2604010769 | 60.65 | 73.39 | |
| Fan | ||||
| 103/60 | 2606610029 | 1.94 | 2.35 | |
| On-Off Switch | ||||
| 104 | 1607200086 | 8.45 | 10.22 | |
| Pan head screw DIN 85-AM3x6-CUZN | ||||
| 104/10 | 2910110048 | 0.83 | 1.00 | |
| Grommet Ø6,5-Ø6,9x95 MM | ||||
| 106 | 2600703012 | 2.24 | 2.71 | |
| Fastening Clamp | ||||
| 107 | 1601302017 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 109 | 2601116672 | 2.71 | 3.28 | |
| Suppression Filter | ||||
| 112 | 2607329124 | 7.58 | 9.17 | |
| groove ball bearing | ||||
| 113 | 2600905088 | 5.83 | 7.05 | |
| Brush Holder | ||||
| 116 | 1600A003G4 | 2.71 | 3.28 | |
| Brush Holder | ||||
| 116 | 2601323022 | 2.24 | 2.71 | |
| Torx Oval-Head Screw 4x12 | ||||
| 119 | 2603490021 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 3x10 | ||||
| 125 | 2603490017 | 1.70 | 2.06 | |
| Spiral Spring | ||||
| 126 | 2604652009 | 1.18 | 1.43 | |
| Shim | ||||
| 127 | 2600150033 | 1.70 | 2.06 | |
| Shim washer 0,3 MM | ||||
| 128 | 2600101027 | 1.18 | 1.43 | |
| Shim washer 0,2 MM | ||||
| 128 | 2600101665 | 1.18 | 1.43 | |
| Shim washer 0,5 MM | ||||
| 128 | 2600101667 | 1.18 | 1.43 | |
| Shrinkable Tube | ||||
| 129 | 1610712034 | 0.83 | 1.00 | |
| Housing Cover BLUE | ||||
| 131 | 1600508011 | 6.54 | 7.91 | |
| Ratchet Cap | ||||
| 133 | F016F05700 | 1.00 | 1.21 | |
| Adjusting Slide | ||||
| 134 | 1602319002 | 1.94 | 2.35 | |
| Cover Disc | ||||
| 135 | 2601328045 | 1.70 | 2.06 | |
| Connecting Cable L=52MM WHITE | ||||
| 137 | 2604448016 | 1.18 | 1.43 | |
| Cable | ||||
| 138 | 2604448149 | 1.18 | 1.43 | |
| Suppression Filter | ||||
| 139 | 2604465096 | 4.10 | 4.96 | |
| Compression Spring | ||||
| 140 | 1604611026 | 0.83 | 1.00 | |
| Speed governor 230V | ||||
| 141 | 2607230013 | 49.56 | 59.97 | |
| Ball BLACK | ||||
| 151 | 2603230002 | 1.18 | 1.43 | |
| No information available, not orderable | ||||
| 703 | 2608570049 | |||
| No longer available, no replacement | ||||
| 753 | 2608620013 | |||
| No longer available, no replacement | ||||
| 754 | 2608620015 | |||
| No longer available, no replacement | ||||
| 755 | 1607929000 | |||
| Straight Pin 4x60 MM | ||||
| 756 | 2603101035 | 2.24 | 2.71 | |
| No information available, not orderable | ||||
| 757 | 1607950525 | |||
| No longer available, no replacement | ||||
| 801 | 2605108908 | |||
| Power supply cord EU 2,6m 2 x 1,0 mm | ||||
| 805 | 1607000385 | 11.88 | 14.37 | |
| Carbon-Brush Set | ||||
| 810 | 2604320910 | 7.58 | 9.17 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
