Here you will find all available parts and drawings of the 'Bosch 0601209103 (GGS16)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

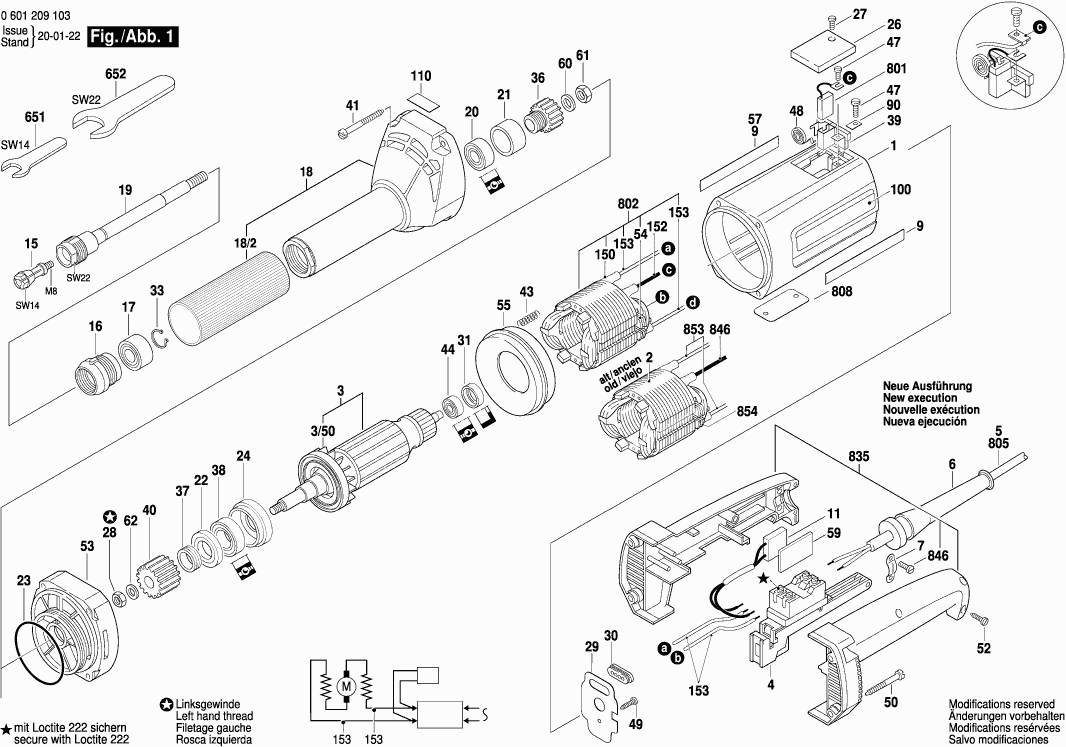

Technical drawing of model Bosch 0601209103 (GGS16)
Spare parts list of model Bosch 0601209103 (GGS16)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 3605108145 | 27.81 | 33.65 | |
| No longer available, no replacement | ||||
| 3 | 1619P13607 | |||
| Fan | ||||
| 3/50 | 1606610122 | 2.86 | 3.46 | |
| Switch | ||||
| 4 | 1607200064 | 43.12 | 52.18 | |
| Grommet | ||||
| 6 | 3600703011 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302014 | 2.18 | 2.64 | |
| Manufacturer's nameplate | ||||
| 9 | 3601119416 | 2.18 | 2.64 | |
| Suppression Filter | ||||
| 11 | 3607328000 | 4.12 | 4.99 | |
| Collet | ||||
| 15 | 2608570009 | 43.12 | 52.18 | |
| Threaded Bushing | ||||
| 16 | 1600362018 | 80.26 | 97.11 | |
| groove ball bearing | ||||
| 17 | 3600905019 | 52.45 | 63.46 | |
| Spindle Bearing | ||||
| 18 | 3605806054 | 219.55 | 265.66 | |
| Shrinkable Tube | ||||
| 18/2 | 3600707043 | 18.94 | 22.92 | |
| Grinding Spindle | ||||
| 19 | 3603124010 | 136.48 | 165.14 | |
| groove ball bearing | ||||
| 20 | 1600905007 | 10.90 | 13.19 | |
| Rubber Ring | ||||
| 21 | 3600206004 | 4.18 | 5.06 | |
| Rotary shaft lip seal | ||||
| 22 | 3600290083 | 2.86 | 3.46 | |
| Rotary shaft lip seal | ||||
| 22 | 1600290016 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 22/1 | 3600290083 | 2.86 | 3.46 | |
| O-Ring | ||||
| 23 | 1600210031 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 24 | 1600221003 | 2.40 | 2.90 | |
| Sealing cap | ||||
| 26 | 3605500063 | 4.21 | 5.09 | |
| Sealing cap | ||||
| 26 | 3605500060 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 27 | 2910211019 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 28 | 3603300004 | 1.49 | 1.80 | |
| Cover Plate | ||||
| 29 | 3601038049 | 1.24 | 1.50 | |
| Grommet | ||||
| 30 | 1600306001 | 2.40 | 2.90 | |
| Intermediate Ring | ||||
| 31 | 1600502011 | 2.40 | 2.90 | |
| Spring retaining ring | ||||
| 33 | 2916650008 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 36 | 3606320011 | 43.12 | 52.18 | |
| Intermediate Ring | ||||
| 37 | 1600300090 | 3.44 | 4.16 | |
| groove ball bearing | ||||
| 38 | 3600905131 | 10.90 | 13.19 | |
| Brush Holder | ||||
| 39 | 1604336017 | 7.46 | 9.03 | |
| Cylindrical Gear | ||||
| 40 | 1600A01L6F | 27.81 | 33.65 | |
| Torx Oval-Head Screw | ||||
| 41 | 3603435057 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 43 | 1604613006 | 1.49 | 1.80 | |
| Ball Bearing | ||||
| 44 | 2600905032 | 4.94 | 5.98 | |
| Socket head cap screw | ||||
| 47 | 2910021118 | 1.00 | 1.21 | |
| Spiral Spring | ||||
| 48 | 1604652006 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 49 | 2910211011 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 50 | 2914201531 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 52 | 2914201508 | 1.00 | 1.21 | |
| Intermediate Bearing | ||||
| 53 | 3605820045 | 91.33 | 110.51 | |
| Intermediate Bearing | ||||
| 53 | 1607000FF6 | 64.67 | 78.25 | |
| Wire Guide | ||||
| 54 | 3601025003 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 55 | 1600502019 | 3.44 | 4.16 | |
| Manufacturer's nameplate | ||||
| 57 | 3601119417 | 2.52 | 3.05 | |
| Insulating Plate | ||||
| 59 | 1602381006 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 60 | 2916010016 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 61 | 2915050107 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 62 | 2916011014 | 1.00 | 1.21 | |
| Tab Washer | ||||
| 90 | 1601030022 | 1.49 | 1.80 | |
| Shrinkable Tube | ||||
| 150 | 3600707022 | 3.44 | 4.16 | |
| Blade terminal | ||||
| 152 | 1604477001 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 153 | 3604438029 | 8.48 | 10.26 | |
| Connecting Cable | ||||
| 153 | 3604438001 | 6.53 | 7.90 | |
| Single-Head Eng. Wrench | ||||
| 651 | 1907950508 | 13.13 | 15.89 | |
| Single-Head Eng. Wrench | ||||
| 652 | 1607950505 | 14.94 | 18.08 | |
| Carbon-Brush Set | ||||
| 801 | 1607014126 | 14.94 | 18.08 | |
| Field | ||||
| 802 | 3604220131 | 61.93 | 74.94 | |
| Handle | ||||
| 803 | 3605132048 | 71.68 | 86.73 | |
| No longer available, no replacement | ||||
| 804 | 1607000034 | |||
| Pan head screw | ||||
| 804/10 | 2910091120 | 1.00 | 1.21 | |
| Power supply cord | ||||
| 805 | 1607000391 | 18.94 | 22.92 | |
| Fastening Clamp | ||||
| 807 | 1601302013 | 1.49 | 1.80 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Control Lever | ||||
| 832 | 1602026030 | 9.67 | 11.70 | |
| Felt Washer | ||||
| 832/80 | 1600205008 | 1.49 | 1.80 | |
| Seal | ||||
| 834 | 1600113013 | 1.49 | 1.80 | |
| Housing Section | ||||
| 835 | 3607031661 | 33.33 | 40.33 | |
| Sealing Cord | ||||
| 845 | 1601014000 | 2.86 | 3.46 | |
| Set of screws | ||||
| 846 | 3607031662 | 13.90 | 16.82 | |
| Plain Washer | ||||
| 851 | 2916011005 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 853 | 3604438001 | 6.53 | 7.90 | |
| Wire Guide | ||||
| 854 | 3601025003 | 1.49 | 1.80 | |
| Wire Guide | ||||
| 854 | 1601025001 | 1.32 | 1.60 | |
