Here you will find all available parts and drawings of the 'Bosch 3601C72200 (GEX18V-125)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

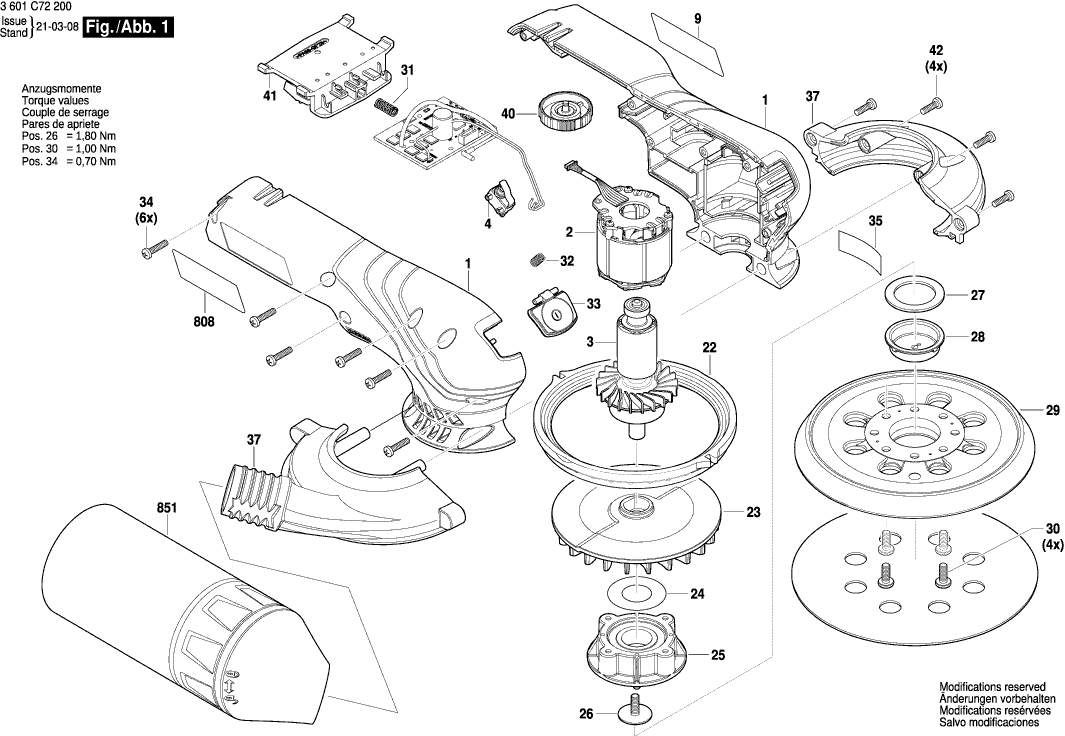

Technical drawing of model Bosch 3601C72200 (GEX18V-125)
Spare parts list of model Bosch 3601C72200 (GEX18V-125)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1619PB5543 | 16.66 | 20.16 | |
| Stator | ||||
| 2 | 1619PB5615 | 33.33 | 40.33 | |
| Armature | ||||
| 3 | 1619PB5546 | 43.12 | 52.18 | |
| Switch | ||||
| 4 | 2607202753 | 7.46 | 9.03 | |
| Label | ||||
| 9 | 6082Y00DG8 | 2.18 | 2.64 | |
| Friction Ring | ||||
| 22 | 1619PB5547 | 3.44 | 4.16 | |
| Fan | ||||
| 23 | 1619PB5548 | 13.02 | 15.75 | |
| Washer | ||||
| 24 | 1619PB5549 | 1.32 | 1.60 | |
| Bearing Flange | ||||
| 25 | 1619PB5550 | 10.68 | 12.92 | |
| Torx Oval-Head Screw | ||||
| 26 | 1619PB5551 | 1.00 | 1.21 | |
| Felt Washer | ||||
| 27 | 1619PB5552 | 1.00 | 1.21 | |
| Cover | ||||
| 28 | 1619PB5553 | 1.32 | 1.60 | |
| Backing Pad | ||||
| 29 | 1619PB5554 | 17.60 | 21.30 | |
| Torx Oval-Head Screw | ||||
| 30 | 1619PB5555 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 31 | 1619PB5556 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 32 | 1619PB5557 | 1.00 | 1.21 | |
| Switch Button | ||||
| 33 | 1619PB5558 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 34 | 1619PB5559 | 1.00 | 1.21 | |
| Sticker | ||||
| 35 | 1619PB5560 | 1.00 | 1.21 | |
| Housing | ||||
| 37 | 1619PB5544 | 26.62 | 32.21 | |
| Speed governor | ||||
| 40 | 1619PB5601 | 5.81 | 7.03 | |
| Contact retainer | ||||
| 41 | 1619PB5616 | 8.35 | 10.10 | |
| Torx Oval-Head Screw | ||||
| 42 | 1619PB5575 | 1.49 | 1.80 | |
| Nameplate | ||||
| 808 | 6082Y00DG3 | 2.18 | 2.64 | |
| Dust container | ||||
| 851 | 1619PB5597 | 16.79 | 20.32 | |
