Here you will find all available parts and drawings of the 'Bosch 0601370308 ( GEX150ACE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

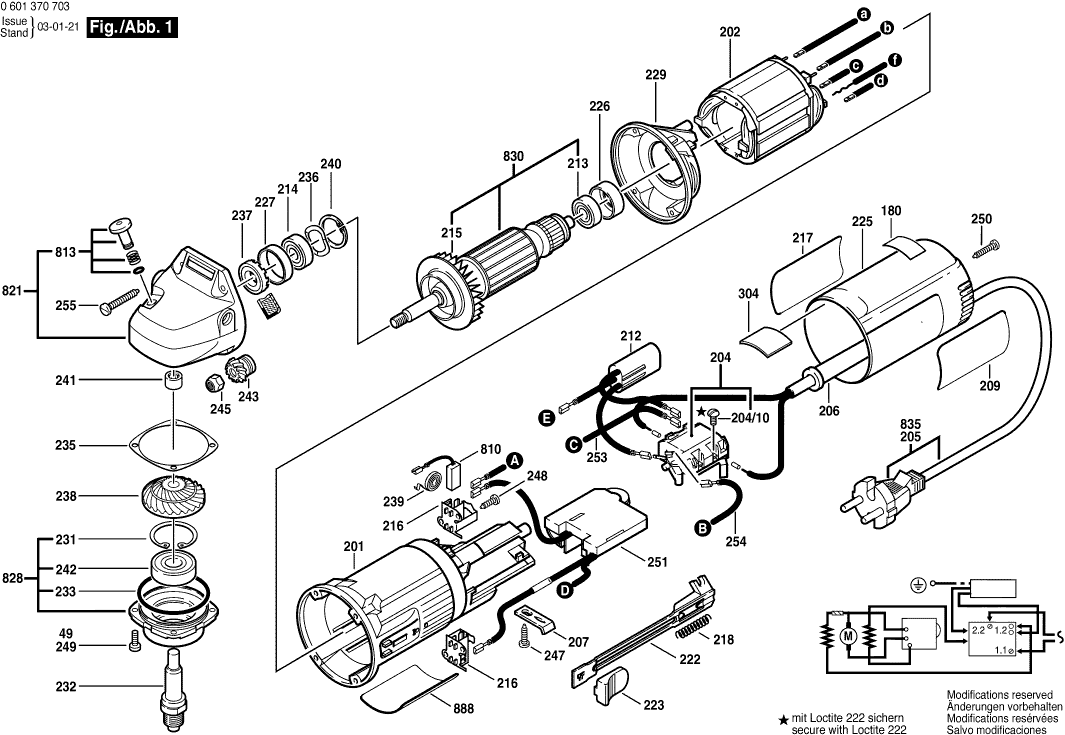

Technical drawing of model Bosch 0601370308 ( GEX150ACE )
Spare parts list of model Bosch 0601370308 ( GEX150ACE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Fan Housing | ||||
| 2 | 3605500076 | 29.75 | 36.00 | |
| No longer available, no replacement | ||||
| 4 | 3608601004 | |||
| No longer available, no replacement | ||||
| 5 | 3606110006 | |||
| No longer available, no replacement | ||||
| 8 | 3605132047 | |||
| Tolerance Ring | ||||
| 9 | 3600290033 | 1.94 | 2.35 | |
| Ball Bearing 7x19x6 | ||||
| 10 | 2600905032 | 4.10 | 4.96 | |
| groove ball bearing 12x28x8 | ||||
| 11 | 1600905031 | 5.33 | 6.45 | |
| Retaining ring 12 DIN 9045 | ||||
| 12 | 2916600007 | 2.24 | 2.71 | |
| Spring retaining ring DIN 472-28x1,2 MM | ||||
| 13 | 2916660011 | 1.18 | 1.43 | |
| Plug 8,0x9 MM | ||||
| 14 | 3603100019 | 1.18 | 1.43 | |
| Hex Socket Head Cap Screw | ||||
| 16 | 3603414017 | 1.70 | 2.06 | |
| Tapping Screw DIN 7971-BZ3,5x13 | ||||
| 17 | 2910211011 | 0.83 | 1.00 | |
| Pan head screw M 10x12 MM | ||||
| 18 | 3603490015 | 3.31 | 4.01 | |
| Offset Screwdriver DIN 911;SW6 | ||||
| 19 | 1907950007 | 4.10 | 4.96 | |
| Ring Ø 88x5,7 MM | ||||
| 25 | 3600290034 | 4.10 | 4.96 | |
| Hex Socket Head Cap Screw DIN 912-M 4x35-8.8 | ||||
| 49 | 2910141136 | 2.24 | 2.71 | |
| No longer available, no replacement | ||||
| 201 | 0601370703 | |||
| No longer available, no replacement | ||||
| 202 | 1604220224 | |||
| On-Off Switch | ||||
| 204 | 1607200086 | 8.45 | 10.22 | |
| Pan head screw DIN 85-AM3x6-CUZN | ||||
| 204/10 | 2910110048 | 0.83 | 1.00 | |
| Grommet Ø7,6-Ø8,2x95 MM | ||||
| 206 | 2600703013 | 1.94 | 2.35 | |
| Fastening Clamp | ||||
| 207 | 1601302017 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 209 | 1601118309 | 2.71 | 3.28 | |
| Suppression Filter | ||||
| 212 | 2607329124 | 7.58 | 9.17 | |
| Ball Bearing 7x19x6 | ||||
| 213 | 2600905032 | 4.10 | 4.96 | |
| groove ball bearing 8x22x7 | ||||
| 214 | 1600905011 | 4.70 | 5.69 | |
| Fan | ||||
| 215 | 1606610121 | 1.18 | 1.43 | |
| Brush Holder | ||||
| 216 | 1600A003G4 | 2.71 | 3.28 | |
| Manufacturer's nameplate | ||||
| 217 | 1601118310 | 2.71 | 3.28 | |
| Compression Spring | ||||
| 218 | 1604611026 | 0.83 | 1.00 | |
| Adjusting Slide | ||||
| 222 | 1602319002 | 1.94 | 2.35 | |
| Ratchet Cap | ||||
| 223 | F016F05700 | 1.00 | 1.21 | |
| Housing Cover BLUE | ||||
| 225 | 1600508011 | 6.54 | 7.91 | |
| Rubber Bushing | ||||
| 226 | 1600502020 | 1.94 | 2.35 | |
| Rubber Ring | ||||
| 227 | 1600206025 | 1.70 | 2.06 | |
| Air-Deflector Ring | ||||
| 229 | 1601328005 | 1.94 | 2.35 | |
| Retaining clip DIN 472-32x1,2 MM | ||||
| 231 | 2916660013 | 1.70 | 2.06 | |
| Grinding Spindle M14, SW17 | ||||
| 232 | 3603523014 | 33.45 | 40.47 | |
| O-Ring 46,0x1,1 MM RED | ||||
| 233 | 3600210124 | 2.24 | 2.71 | |
| Shim 0,2 MM THICK | ||||
| 235 | 1600136010 | 1.94 | 2.35 | |
| Shim 0,3 MM THICK | ||||
| 235 | 1600136011 | 1.70 | 2.06 | |
| Shim 0,1 MM THICK | ||||
| 235 | 1600136012 | 0.83 | 1.00 | |
| Spring Washer | ||||
| 236 | 1600150011 | 0.83 | 1.00 | |
| Rotary shaft lip seal | ||||
| 237 | 1600290016 | 1.94 | 2.35 | |
| Crown Gear Z=36 | ||||
| 238 | 1606333601 | 5.83 | 7.05 | |
| Spiral Spring | ||||
| 239 | 1604652013 | 1.18 | 1.43 | |
| Spring retaining ring DIN 472-25x1,2MM | ||||
| 240 | 2916660009 | 1.70 | 2.06 | |
| Needle bearing Ø8xØ12x8 MM | ||||
| 241 | 1600910018 | 4.10 | 4.96 | |
| groove ball bearing | ||||
| 242 | 3600905069 | 12.41 | 15.02 | |
| Bevel Gear Z=11 | ||||
| 243 | 1606333242 | 44.82 | 54.23 | |
| Hex Nut M7, SW10 | ||||
| 245 | 1603300016 | 1.18 | 1.43 | |
| Tapping Screw DIN 7971-ST3,9x13-F | ||||
| 247 | 2910211018 | 0.83 | 1.00 | |
| Lens Head Screw 3x10 ST | ||||
| 248 | 1613435034 | 0.83 | 1.00 | |
| Thread-forming tap. Screw | ||||
| 249 | 1603435026 | 1.70 | 2.06 | |
| Tapping Screw DIN 7971-ST3,9x22-F | ||||
| 250 | 2910211021 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 251 | 1607233033 | |||
| Connecting Cable L=95 MM WHITE | ||||
| 253 | 1604448005 | 2.24 | 2.71 | |
| Connecting Cable L=40 MM WHITE | ||||
| 254 | 1604448006 | 1.94 | 2.35 | |
| Torx Oval-Head Screw | ||||
| 255 | 2914201508 | 0.83 | 1.00 | |
| Protective Cover | ||||
| 650 | 1600A025XP | 7.58 | 9.17 | |
| Dust Bag | ||||
| 654/10 | 2605411046 | 12.41 | 15.02 | |
| Fitting | ||||
| 654/20 | 2605702009 | 2.24 | 2.71 | |
| O-Ring 20,0x1,5 MM | ||||
| 654/30 | 1610210075 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 706 | 3607031211 | |||
| Backing Pad | ||||
| 751 | 2608601026 | 29.75 | 36.00 | |
| No longer available, no replacement | ||||
| 803 | 3607031209 | |||
| Carbon-Brush Set | ||||
| 810 | 1607014116 | 8.45 | 10.22 | |
| Push-Button BLACK | ||||
| 813 | 1607000253 | 1.70 | 2.06 | |
| Gear Housing | ||||
| 821 | 1605806480 | 44.82 | 54.23 | |
| Assembly Of Service Parts | ||||
| 828 | 1607000938 | 33.45 | 40.47 | |
| No longer available, no replacement | ||||
| 830 | 1604010259 | |||
| Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F | ||||
| 835 | 1607000227 | 20.42 | 24.71 | |
| Nameplate | ||||
| 888 | 160111A3H3 | 1.94 | 2.35 | |
