Here you will find all available parts and drawings of the 'Bosch 0601372003 (GEX125AC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

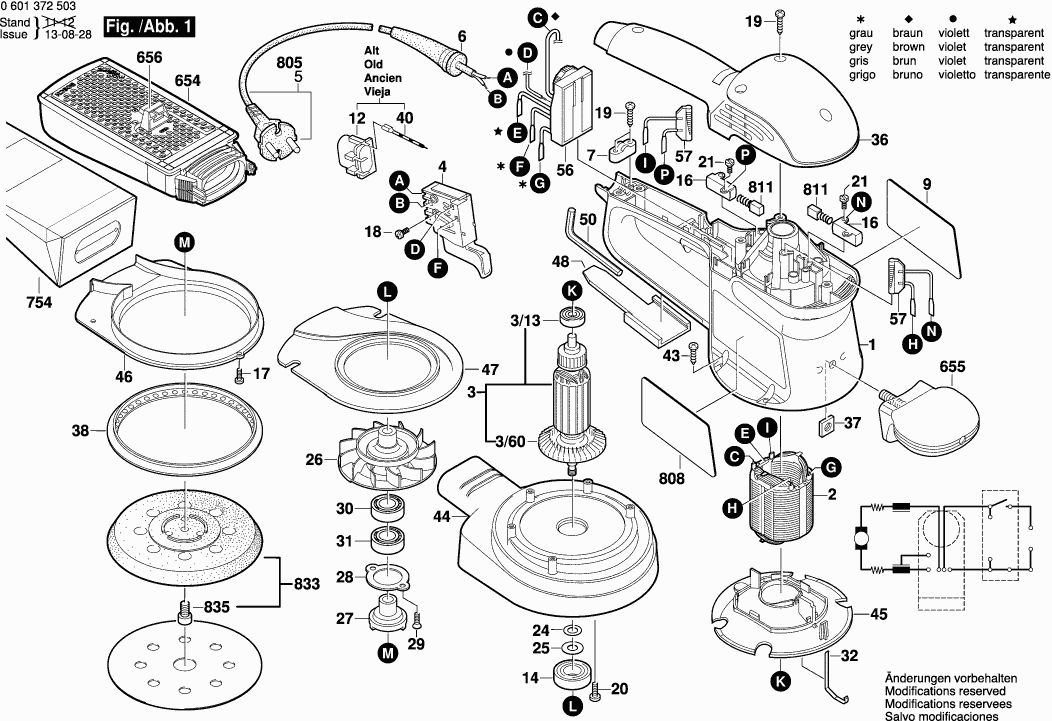

Technical drawing of model Bosch 0601372003 (GEX125AC)
Spare parts list of model Bosch 0601372003 (GEX125AC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section | ||||
| 1 | 2605104410 | 16.79 | 20.32 | |
| Bearing flange | ||||
| 2 | 1617S025JT | 36.00 | 43.56 | |
| Armature | ||||
| 3 | 2604011028 | 61.93 | 74.94 | |
| groove ball bearing | ||||
| 3/13 | 2600905086 | 5.81 | 7.03 | |
| Fan | ||||
| 3/60 | 2606610076 | 3.44 | 4.16 | |
| Switch | ||||
| 4 | 2607200260 | 9.67 | 11.70 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Sticker | ||||
| 9 | 2601118373 | 2.87 | 3.47 | |
| Suppression Capacitor | ||||
| 12 | 2607329141 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 2600905034 | 12.82 | 15.51 | |
| Brush Holder | ||||
| 16 | 2604337016 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 17 | 2603490017 | 2.08 | 2.52 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Special Screw | ||||
| 20 | 1600A00RD6 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 21 | 2603490017 | 2.08 | 2.52 | |
| Shim | ||||
| 24 | 2600101047 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 25 | 2600100041 | 1.49 | 1.80 | |
| Fan | ||||
| 26 | 2606610069 | 14.94 | 18.08 | |
| Carrier | ||||
| 27 | 2600328025 | 9.67 | 11.70 | |
| Tab Washer | ||||
| 28 | 2600190060 | 2.08 | 2.52 | |
| Thread-forming tap. Screw | ||||
| 29 | 3603391003 | 2.08 | 2.52 | |
| groove ball bearing | ||||
| 30 | 2600905047 | 10.90 | 13.19 | |
| groove ball bearing | ||||
| 31 | 2600905048 | 12.82 | 15.51 | |
| Contact Strap | ||||
| 32 | 2601329053 | 1.49 | 1.80 | |
| Backing Pad | ||||
| 33 | 2608601901 | 22.88 | 27.68 | |
| Housing Cover | ||||
| 36 | 2605500125 | 8.48 | 10.26 | |
| Square Nut | ||||
| 37 | 2915121006 | 2.40 | 2.90 | |
| Friction Ring | ||||
| 38 | 1600A00JE7 | 2.40 | 2.90 | |
| Connecting Cable | ||||
| 41 | 2604448133 | 2.52 | 3.05 | |
| Connecting Cable | ||||
| 42 | 2604448004 | 1.49 | 1.80 | |
| Suction Hood | ||||
| 44 | 2600282016 | 9.08 | 10.99 | |
| Air-Deflector Ring | ||||
| 45 | 2601328047 | 2.86 | 3.46 | |
| Suction Piece | ||||
| 46 | 2601328048 | 2.86 | 3.46 | |
| Suction Piece | ||||
| 47 | 2601328049 | 2.86 | 3.46 | |
| Pusher | ||||
| 48 | 2601035002 | 2.08 | 2.52 | |
| Offset Screwdriver | ||||
| 50 | 1907950006 | 3.71 | 4.49 | |
| Hexagon Socket Screw Key | ||||
| 50 | 2610364015 | 3.44 | 4.16 | |
| Suppression Filter | ||||
| 57 | 2604465090 | 7.46 | 9.03 | |
| Dust Bag | ||||
| 654 | 2605411069 | 3.44 | 4.16 | |
| Auxiliary Handle | ||||
| 655 | 2602026069 | 4.94 | 5.98 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Marking Plate | ||||
| 808 | 2601119179 | 2.87 | 3.47 | |
| No longer available, no replacement | ||||
| 811 | 1607014117 | |||
| Hex Socket Head Cap Screw | ||||
| 835 | 2603414062 | 2.08 | 2.52 | |
