Here you will find all available parts and drawings of the 'Bosch 3600J15000 ( GEN230V-1500 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

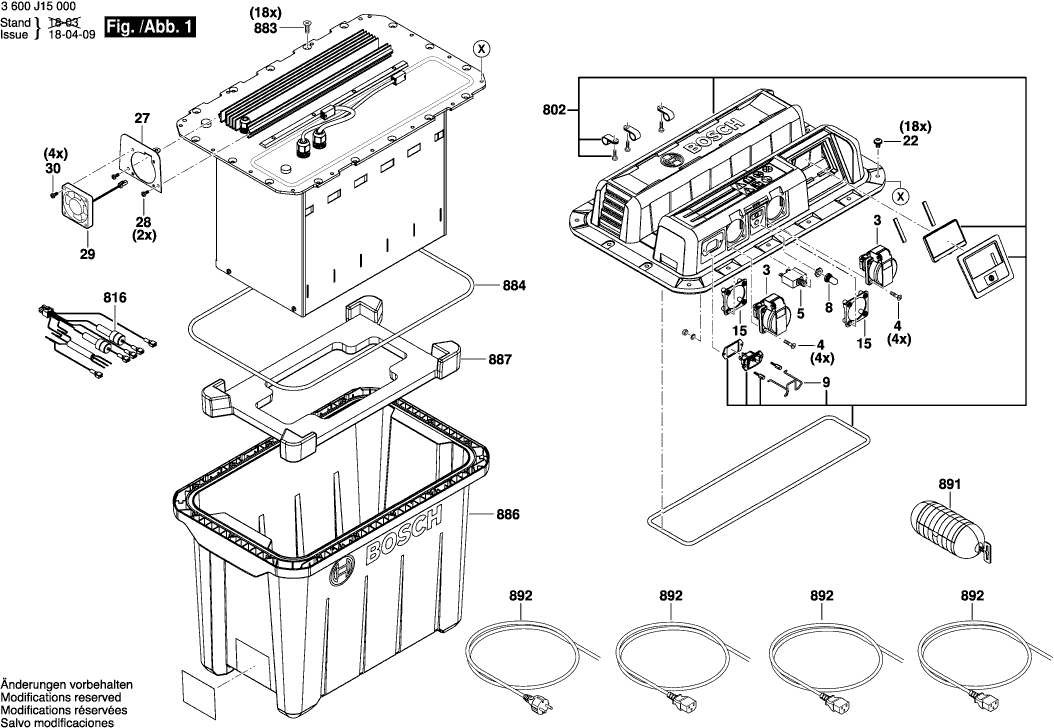

Technical drawing of model Bosch 3600J15000 ( GEN230V-1500 )
Spare parts list of model Bosch 3600J15000 ( GEN230V-1500 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Socket | ||||
| 3 | F016F04761 | 44.82 | 54.23 | |
| Screw | ||||
| 4 | F016L77158 | 1.94 | 2.35 | |
| Circuit breaker | ||||
| 5 | F016F04766 | 23.75 | 28.74 | |
| Switch Cover | ||||
| 8 | F016L77155 | 11.88 | 14.37 | |
| Clip | ||||
| 9 | F016F05067 | 20.42 | 24.71 | |
| Clamping Piece | ||||
| 15 | F016F04762 | 8.45 | 10.22 | |
| Screw | ||||
| 22 | F016F04768 | 1.94 | 2.35 | |
| Frame | ||||
| 24 | F016L77167 | 101.94 | 123.35 | |
| Locking washer | ||||
| 25 | F016L35389 | 0.83 | 1.00 | |
| Screw | ||||
| 26 | 2910149198 | 3.31 | 4.01 | |
| Mounting Bracket | ||||
| 27 | F016F04770 | 15.71 | 19.01 | |
| Thread-forming tap. Screw DIN 7500, M4x10, SR10.2 | ||||
| 28 | 1603435068 | 1.18 | 1.43 | |
| Fan | ||||
| 29 | F016L76915 | 26.84 | 32.48 | |
| Torx Oval-Head Screw 4x12 | ||||
| 30 | 1619P02848 | 1.18 | 1.43 | |
| Packaging | ||||
| 600 | F016F04936 | 33.45 | 40.47 | |
| Handle Bar | ||||
| 800/12 | F016L77191 | 55.25 | 66.85 | |
| Axle | ||||
| 800/2 | F016L77220 | 36.85 | 44.59 | |
| Nut M8 | ||||
| 800/3 | F016L77022 | 2.71 | 3.28 | |
| Axle | ||||
| 800/4 | F016L77221 | 36.85 | 44.59 | |
| Washer | ||||
| 800/5 | F016L77186 | 0.83 | 1.00 | |
| Screw | ||||
| 800/8 | F016L77187 | 3.31 | 4.01 | |
| Screw | ||||
| 800/9 | F016L77226 | 3.31 | 4.01 | |
| Console | ||||
| 802 | F016L76901 | 148.65 | 179.87 | |
| Fuse | ||||
| 816 | F016F04765 | 20.42 | 24.71 | |
| Wheel Set | ||||
| 820 | F016F04935 | 18.19 | 22.01 | |
| Screw | ||||
| 883 | F016L77229 | 1.18 | 1.43 | |
| Gasket | ||||
| 884 | F016L77157 | 11.88 | 14.37 | |
| Housing | ||||
| 886 | F016L76928 | 55.25 | 66.85 | |
| Foam Panel | ||||
| 887 | F016L77349 | 18.19 | 22.01 | |
| Splash Deflector | ||||
| 891 | F016L77446 | 15.71 | 19.01 | |
| Cable UK | ||||
| 892 | F016L77445 | 44.82 | 54.23 | |
| Cable CH | ||||
| 892 | F016L77443 | 20.42 | 24.71 | |
| Cable UK | ||||
| 892 | F016L77444 | 20.42 | 24.71 | |
| Cable EU | ||||
| 892 | F016L77442 | 13.93 | 16.86 | |
