Here you will find all available parts and drawings of the 'Bosch 3601HA8000 (GEF7E)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

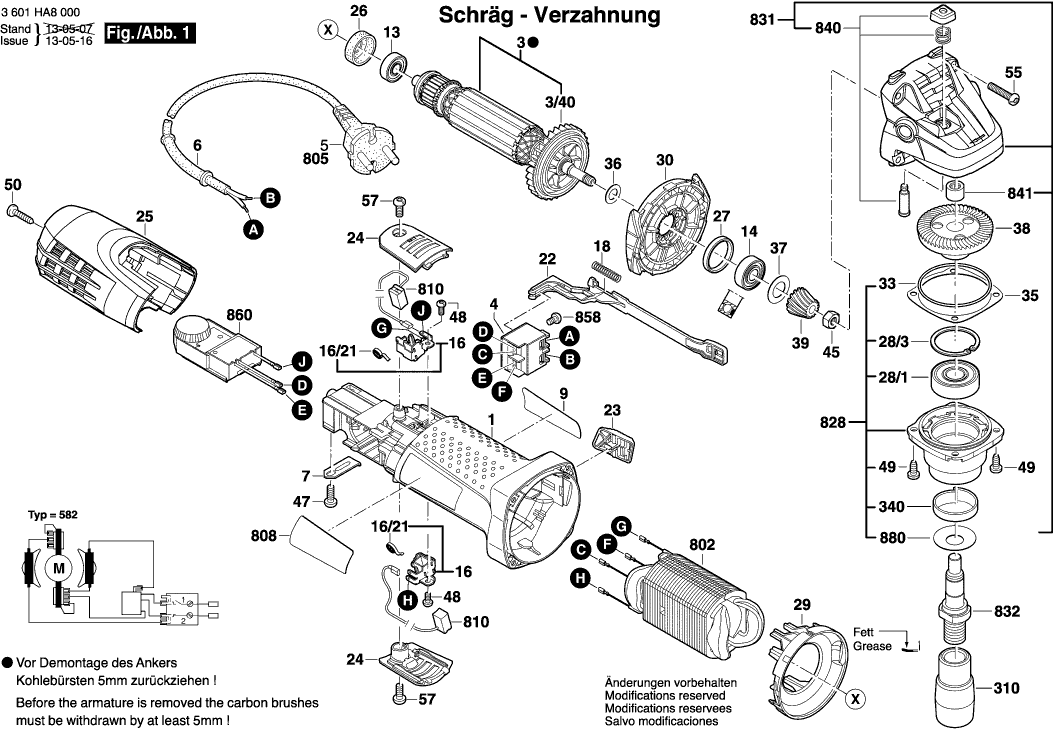

Technical drawing of model Bosch 3601HA8000 (GEF7E)
Spare parts list of model Bosch 3601HA8000 (GEF7E)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619P09415 | 8.35 | 10.10 | |
| Armature | ||||
| 3 | 1604010BK2 | 23.90 | 28.92 | |
| Armature | ||||
| 3 | 1604010BK7 | 22.88 | 27.68 | |
| Fan | ||||
| 3/40 | 1619P02801 | 1.49 | 1.80 | |
| On-Off Switch | ||||
| 4 | 1607200179 | 10.90 | 13.19 | |
| Grommet | ||||
| 6 | 2600703012 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 3601110607 | 2.86 | 3.46 | |
| Ball Bearing | ||||
| 13 | 1619P00456 | 2.86 | 3.46 | |
| Ball Bearing | ||||
| 14 | 1619P00455 | 3.44 | 4.16 | |
| Brush Holder | ||||
| 16 | 1619P02845 | 2.86 | 3.46 | |
| Spiral Spring | ||||
| 16/21 | 1619P02809 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 18 | 1604611031 | 2.52 | 3.05 | |
| Adjusting Slide | ||||
| 22 | 1619P02811 | 1.49 | 1.80 | |
| Switch Button | ||||
| 23 | 1619P10838 | 1.49 | 1.80 | |
| Brush-Cover | ||||
| 24 | 1619P02828 | 1.49 | 1.80 | |
| Housing Cover | ||||
| 25 | 1619P10072 | 3.44 | 4.16 | |
| Intermediate Ring | ||||
| 26 | 1600502023 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Ball Bearing | ||||
| 28/1 | 1619P07440 | 6.73 | 8.14 | |
| Retaining clip | ||||
| 28/3 | 2916660013 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1619P02818 | 1.49 | 1.80 | |
| Air Distributor | ||||
| 30 | 1619P02819 | 1.00 | 1.21 | |
| O-Ring | ||||
| 33 | 1619P02820 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1619P02822 | 1.49 | 1.80 | |
| Shim | ||||
| 35 | 1619P02821 | 1.00 | 1.21 | |
| Washer | ||||
| 36 | 1619P00987 | 1.00 | 1.21 | |
| Cover Disc | ||||
| 37 | 1600100033 | 2.40 | 2.90 | |
| Crown Gear | ||||
| 38 | 1619P02823 | 8.35 | 10.10 | |
| Bevel Gear | ||||
| 39 | 1619P02825 | 4.94 | 5.98 | |
| Hex Nut | ||||
| 45 | 2915011007 | 1.00 | 1.21 | |
| Special Screw | ||||
| 47 | 2609110052 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 48 | 1619P02849 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 49 | 1603435068 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 50 | 1619P00105 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 55 | 1619P01066 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 57 | 1619P02848 | 1.49 | 1.80 | |
| Safety Cover | ||||
| 300/10 | 3600508042 | 52.45 | 63.46 | |
| Drive Roller | ||||
| 310 | 3600300067 | 71.68 | 86.73 | |
| sanding arm | ||||
| 320 | 3602013008 | 136.48 | 165.14 | |
| Sleeve | ||||
| 340 | 3600409012 | 4.94 | 5.98 | |
| sanding arm | ||||
| 650 | 3602013009 | 110.30 | 133.46 | |
| Protective Cover | ||||
| 651 | 1600A025XP | 9.67 | 11.70 | |
| Auxiliary Handle | ||||
| 651 | 160202509T | 3.44 | 4.16 | |
| grinding fixture | ||||
| 800 | 3607031735 | 273.59 | 331.04 | |
| Clamping element | ||||
| 800/13 | 3600700058 | 5.81 | 7.03 | |
| Clamping Lever | ||||
| 800/14 | 3602001008 | 71.68 | 86.73 | |
| Spring | ||||
| 800/3 | 3604613002 | 4.18 | 5.06 | |
| Adjusting Screw | ||||
| 800/5 | 3603435050 | 18.94 | 22.92 | |
| Field | ||||
| 802 | 1619P07239 | 18.94 | 22.92 | |
| Power supply cord | ||||
| 805 | 1607000385 | 13.13 | 15.89 | |
| Nameplate | ||||
| 808 | 160111A4EA | 27.81 | 33.65 | |
| Carbon-Brush Set | ||||
| 810 | 1619P02870 | 7.46 | 9.03 | |
| Slip Coating | ||||
| 820 | 3607031736 | 5.81 | 7.03 | |
| Bearing Flange | ||||
| 828 | 3607031748 | 58.03 | 70.22 | |
| Gear Housing | ||||
| 831 | 1619P02872 | 14.94 | 18.08 | |
| Grinding Spindle | ||||
| 832 | 1607000D6A | 7.46 | 9.03 | |
| Push-Button | ||||
| 840 | 1619P02873 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 841 | 1600910018 | 4.94 | 5.98 | |
| Oval-Head Screw | ||||
| 858 | 2910641081 | 1.00 | 1.21 | |
| Speed governor | ||||
| 860 | 1619P07277 | 27.81 | 33.65 | |
| Cover Disc | ||||
| 880 | 1619P09390 | 2.08 | 2.52 | |
