Here you will find all available parts and drawings of the 'Bosch 3601JG4200 (GDX18V-200C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

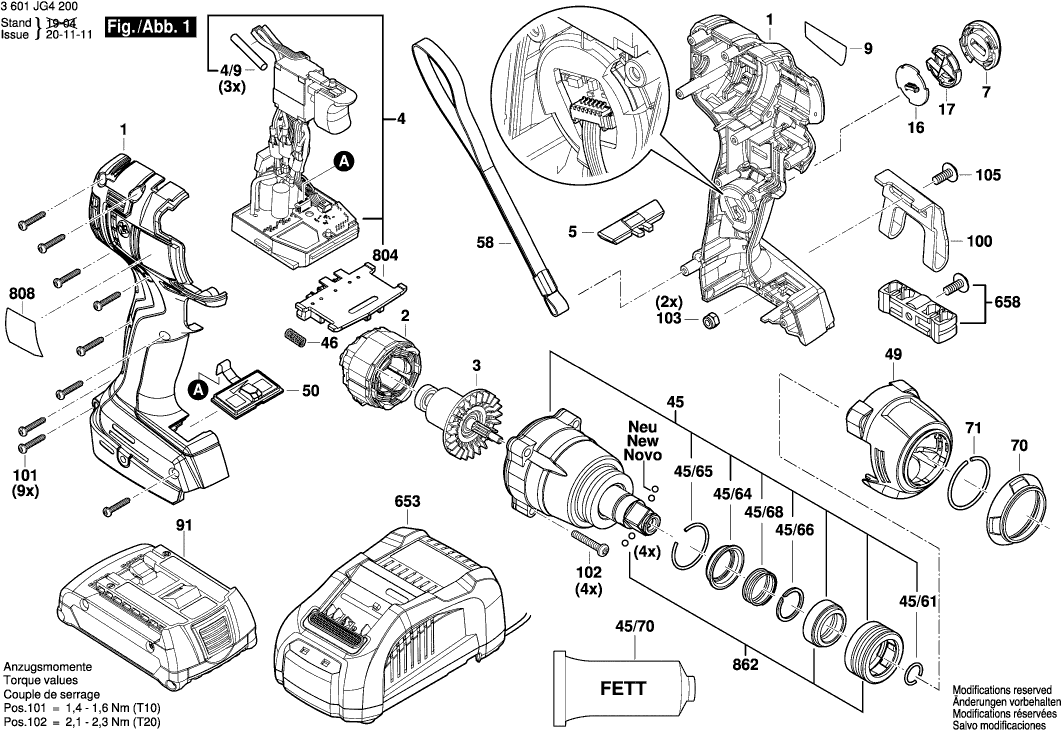

Technical drawing of model Bosch 3601JG4200 (GDX18V-200C)
Spare parts list of model Bosch 3601JG4200 (GDX18V-200C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 16058065CZ | 16.79 | 20.32 | |
| Stator | ||||
| 2 | 1619P14412 | 34.82 | 42.13 | |
| Rotor | ||||
| 3 | 1619P14405 | 31.42 | 38.02 | |
| Electronics Module | ||||
| 4 | 16072335EV | 88.83 | 107.48 | |
| Shrinkable Tube | ||||
| 4/9 | 160071203S | 1.00 | 1.21 | |
| Changeover Lever | ||||
| 5 | 1600A011KN | 1.90 | 2.30 | |
| Cover unit | ||||
| 7 | 1600A00RU8 | 2.08 | 2.52 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C28M | 2.40 | 2.90 | |
| Printed-Board Assembly | ||||
| 16 | 1607503333 | 11.37 | 13.76 | |
| Cover Panel | ||||
| 17 | 1600A00M53 | 1.00 | 1.21 | |
| Gear Box | ||||
| 45 | 1600A01PG3 | 71.68 | 86.73 | |
| Retaining ring | ||||
| 45/61 | 0618800045 | 1.00 | 1.21 | |
| Holding Jacket | ||||
| 45/64 | 1600A00NR9 | 2.40 | 2.90 | |
| Retaining ring | ||||
| 45/65 | 1604601032 | 2.08 | 2.52 | |
| Retaining ring | ||||
| 45/66 | 1604601031 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 45/68 | 0618800047 | 2.08 | 2.52 | |
| Grease Tube 45 ml | ||||
| 45/70 | 1600A002NE | 27.81 | 33.65 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Cover | ||||
| 49 | 1600A00J37 | 7.46 | 9.03 | |
| Keyboard | ||||
| 50 | 1600A013BB | 10.90 | 13.19 | |
| Strap | ||||
| 58 | 2609100301 | 2.40 | 2.90 | |
| Strap | ||||
| 58 | 1600A01902 | 2.18 | 2.64 | |
| Protective Cap | ||||
| 70 | 1600A011DL | 1.49 | 1.80 | |
| Retaining ring | ||||
| 71 | 1604601037 | 1.00 | 1.21 | |
| Battery Pack GBA 18V 6,0Ah M-C | ||||
| 91 | 2607337267 | 189.28 | 229.03 | |
| Battery Pack KOR GBA 18V 4.0Ah ProCore SCM | ||||
| 91 | 1607A350AM | 136.48 | 165.14 | |
| Battery Pack GBA 18V 4.0Ah ProCore SCM | ||||
| 91 | 1607A350AN | 126.98 | 153.65 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 91 | 2607337069 | 114.26 | 138.25 | |
| Battery Pack | ||||
| 91 | 1617S020T2 | 80.26 | 97.11 | |
| Clip | ||||
| 100 | 2609111584 | 3.44 | 4.16 | |
| Torx Flat-Head Screw | ||||
| 101 | 2609110201 | 2.08 | 2.52 | |
| Torx Flat-Head Screw | ||||
| 102 | 061880004W | 1.00 | 1.21 | |
| Nut | ||||
| 103 | 2609110835 | 1.49 | 1.80 | |
| Screw | ||||
| 105 | 2609110834 | 1.49 | 1.80 | |
| Charger | ||||
| 653 | 2607225921 | 165.14 | 199.82 | |
| Charger | ||||
| 653 | 2607225923 | 136.48 | 165.14 | |
| Bit holder | ||||
| 658 | 2609199748 | 2.08 | 2.52 | |
| Contact retainer 18V | ||||
| 804 | 1609280820 | 5.81 | 7.03 | |
| Nameplate | ||||
| 808 | 160111A599 | 2.40 | 2.90 | |
| Sleeve assembly | ||||
| 862 | 1600A01N0V | 5.81 | 7.03 | |
