Here you will find all available parts and drawings of the 'Bosch 3601JG5220 ( GDX180-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

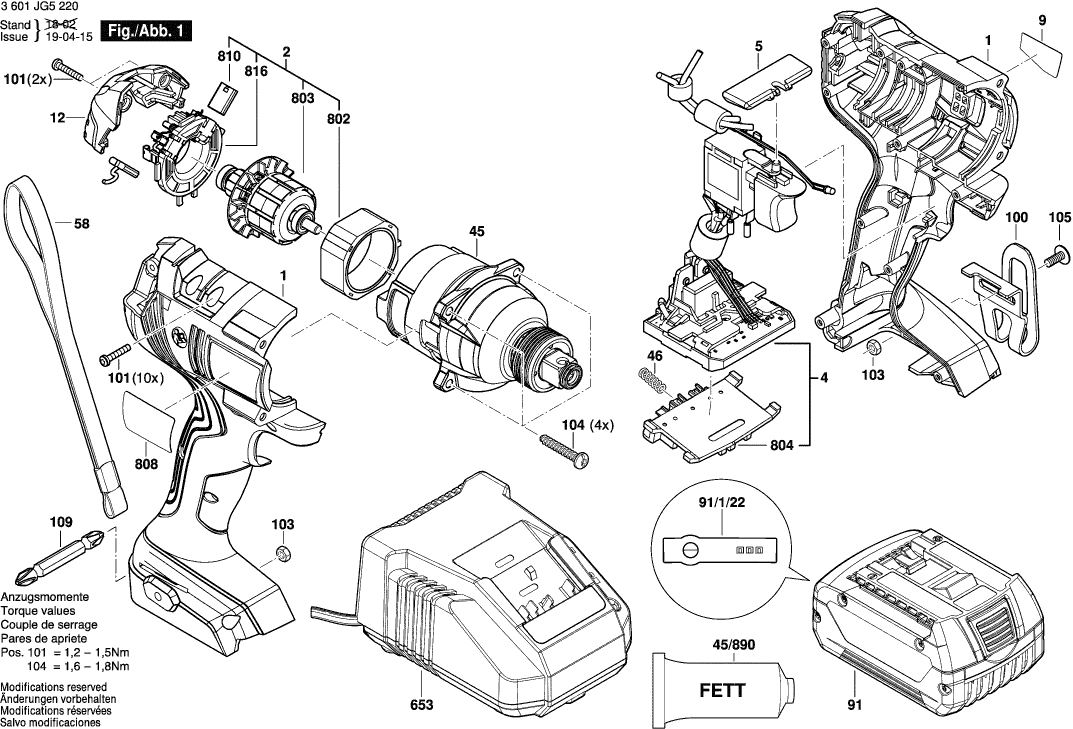

Technical drawing of model Bosch 3601JG5220 ( GDX180-LI )
Spare parts list of model Bosch 3601JG5220 ( GDX180-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 2609101686 | |||
| DC motor | ||||
| 2 | 160702267M | 60.65 | 73.39 | |
| No longer available, no replacement | ||||
| 4 | 1600A011E6 | |||
| Button | ||||
| 5 | 2609100698 | 2.24 | 2.71 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C297 | 1.94 | 2.35 | |
| Cover | ||||
| 12 | 2609101783 | 1.70 | 2.06 | |
| Gear Box | ||||
| 45 | 1600A00N61 | 73.72 | 89.20 | |
| Housing Assembly | ||||
| 45/1 | 1600A01SH6 | 36.85 | 44.59 | |
| Housing Assembly | ||||
| 45/1 | 1600A00N5Z | 5.02 | 6.07 | |
| Pin | ||||
| 45/10 | 2609110808 | 0.83 | 1.00 | |
| Planet Gear | ||||
| 45/11 | 2609111289 | 2.71 | 3.28 | |
| Ring Gear | ||||
| 45/12 | 2609112141 | 1.94 | 2.35 | |
| Housing | ||||
| 45/2 | 2609101670 | 1.70 | 2.06 | |
| Washer | ||||
| 45/30 | 2609110811 | 0.83 | 1.00 | |
| Washer | ||||
| 45/31 | 2609110812 | 0.83 | 1.00 | |
| No information available, not orderable | ||||
| 45/40 | 2609111453 | |||
| Pulley | ||||
| 45/41 | 2609110267 | 3.31 | 4.01 | |
| Retaining ring | ||||
| 45/42 | 2609111264 | 0.83 | 1.00 | |
| Sleeve | ||||
| 45/43 | 2609111452 | 7.13 | 8.63 | |
| Pin | ||||
| 45/44 | 2609111393 | 0.83 | 1.00 | |
| Coupling Half | ||||
| 45/45 | 2609112221 | 13.11 | 15.86 | |
| Rubber Ring | ||||
| 45/46 | 2609170157 | 1.94 | 2.35 | |
| Metal Ring | ||||
| 45/47 | 2609111262 | 2.24 | 2.71 | |
| Sleeve | ||||
| 45/48 | 2609170185 | 2.24 | 2.71 | |
| Ball Bearing | ||||
| 45/5 | 2609110807 | 2.71 | 3.28 | |
| Ball | ||||
| 45/50 | 2609110818 | 0.83 | 1.00 | |
| Striker | ||||
| 45/51 | 2609112142 | 9.53 | 11.53 | |
| Ball | ||||
| 45/52 | 2609110331 | 0.83 | 1.00 | |
| Washer | ||||
| 45/53 | 2609110820 | 0.83 | 1.00 | |
| Washer | ||||
| 45/55 | 2609110821 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 45/56 | 2609112143 | 4.10 | 4.96 | |
| Jack Shaft | ||||
| 45/57 | 2609112144 | 11.88 | 14.37 | |
| O-Ring | ||||
| 45/58 | 160021007H | 0.83 | 1.00 | |
| Grease Tube 45 ml | ||||
| 45/890 | 1600A002NE | 23.75 | 28.74 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Strap | ||||
| 58 | 2609100301 | 1.94 | 2.35 | |
| Slide-In Accu Package 18V, 1,5Ah LI, MS | ||||
| 91 | 2607336803 | 113.29 | 137.08 | |
| Battery Pack GBA 18V 4.0Ah ProCore SCM | ||||
| 91 | 1607A350AN | 113.29 | 137.08 | |
| Battery Pack GBA 18V 4.0Ah | ||||
| 91 | 1607A350M0 | 91.56 | 110.79 | |
| Battery Pack BBS MR 18V, 4,0Ah, 47 S | ||||
| 91 | 2607336815 | 91.56 | 110.79 | |
| Sticker | ||||
| 91/1/22 | 2601115537 | 1.18 | 1.43 | |
| Clip | ||||
| 100 | 2609111584 | 2.71 | 3.28 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Nut | ||||
| 103 | 2609110835 | 1.18 | 1.43 | |
| Torx Oval-Head Screw 4x20 | ||||
| 104 | 2603490023 | 0.83 | 1.00 | |
| Screw | ||||
| 105 | 2609110834 | 1.18 | 1.43 | |
| Screwdriver Blade | ||||
| 109 | 2609110343 | 1.94 | 2.35 | |
| Charger EU GAL 1880 CV 230/14,4-18V | ||||
| 653 | 2607225921 | 101.94 | 123.35 | |
| Fast Charger 10,8V-18V EU | ||||
| 653 | 2607225423 | 63.33 | 76.63 | |
| Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A | ||||
| 653 | 2607226281 | 55.25 | 66.85 | |
| Stator | ||||
| 802 | 1600A003V5 | 18.19 | 22.01 | |
| Rotor | ||||
| 803 | 1600A015UW | 29.75 | 36.00 | |
| Contact retainer | ||||
| 804 | 1609280478 | 9.53 | 11.53 | |
| Nameplate | ||||
| 808 | 160111A5FM | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 160701418R | 6.54 | 7.91 | |
| Brush Holder | ||||
| 816 | 1600A011KB | 11.88 | 14.37 | |
