Here you will find all available parts and drawings of the 'Bosch 0601435103 ( GDS30 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

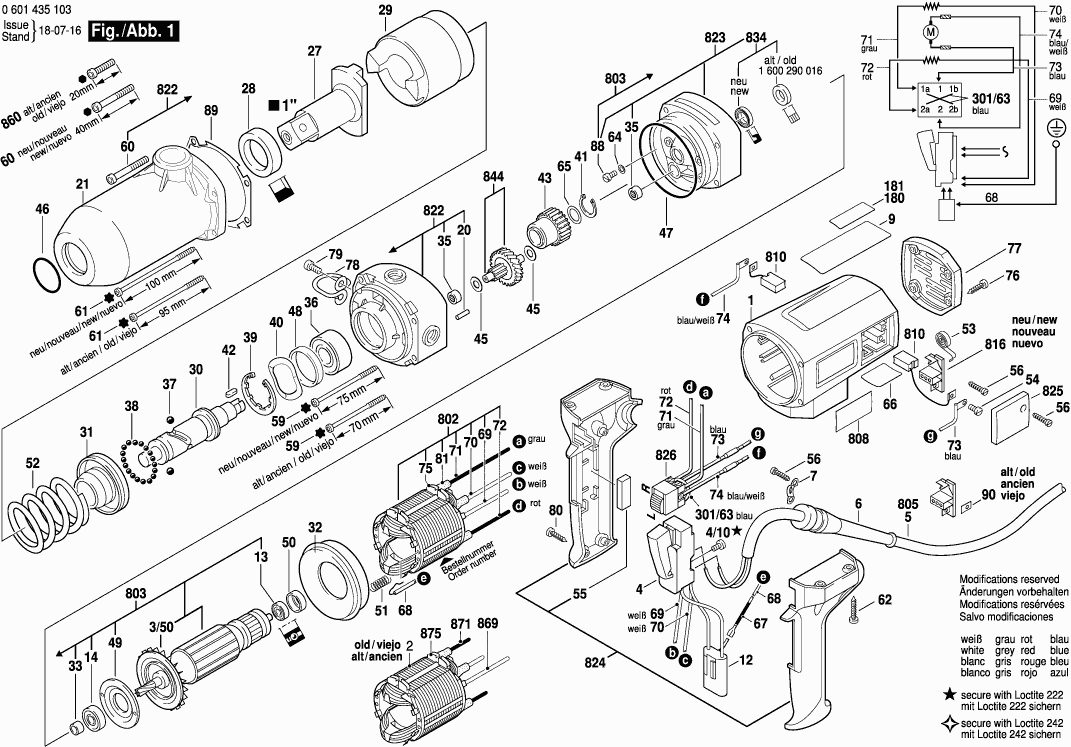

Technical drawing of model Bosch 0601435103 ( GDS30 )

Spare parts list of model Bosch 0601435103 ( GDS30 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing BLUE
1 3605108091 29.75 36.00
Fan
3/50 1606610122 2.24 2.71
Switch
4 1607200079 29.75 36.00
Socket head cap screw DIN 84-AM3,5x6-5.8
4/10 2910011082 0.83 1.00
Grommet Ø9,2-Ø12x120 MM
6 3600703011 2.24 2.71
Fastening Clamp
7 1601302014 1.18 1.43
Sticker
9 3601110614 1.94 2.35
Suppression Filter
12 2607329096 5.83 7.05
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
groove ball bearing 9x26x8
14 3600905131 8.45 10.22
Straight Pin DIN 7-5H8x14
20 2917500119 0.83 1.00
Spindle Bearing
21 3605806222 60.65 73.39
Coupling Half
27 1606455054 187.62 227.02
Spacer Ring
28 3600202019 20.42 24.71
Striker
29 1608710028 233.78 282.87
Drive Shaft
30 1603124106 130.32 157.69
Backup ring
31 3600220019 101.94 123.35
Air-Deflector Ring
32 1600502019 2.71 3.28
Intermediate Ring
33 3600300042 7.58 9.17
Needle bearing Ø8xØ12x8 MM
35 1600910018 4.10 4.96
groove ball bearing 17x40x12
36 1900905281 26.84 32.48
Ball DIN 5401-9 MM III-ST
37 1903230015 1.94 2.35
Ball DIN 5401-5 G28
38 1903230009 0.83 1.00
Spring retaining ring
39 1600119004 2.24 2.71
Spring Washer Ø32,3xØ43,5x0,6 MM
40 1600150009 2.24 2.71
Retaining clip DIN 471-15x1-FSt
41 2916650006 1.18 1.43
Parallel Key DIN 6885-A6X4X14
42 1902300083 0.83 1.00
Cylindrical Gear Z=25
43 3606301006 60.65 73.39
Shim 0,5 MM THICK
45 1600100617 1.18 1.43
O-Ring 35,0x3,0 MM
46 3600210131 2.71 3.28
O-Ring 66,0x3,0 MM
47 1600210005 2.24 2.71
Rubber Ring
48 1600206022 1.70 2.06
Bearing cover
49 3605500043 3.31 4.01
Intermediate Ring
50 1600502011 1.94 2.35
Compression Spring
51 1604613006 1.18 1.43
Compression Spring
52 3604610059 15.71 19.01
Spiral Spring
53 160465202K 1.94 2.35
Socket head cap screw DIN 84-AM4x8-8.8
54 2910021118 0.83 1.00
Insulating Strip
55 3602317025 1.94 2.35
Tapping Screw DIN 7971-ST3,9x16-F
56 2910211019 0.83 1.00
Lens Head Screw
59 3603435040 1.18 1.43
Hex Socket Head Cap Screw DIN 912-BM 5x40-10.9
60 2910151170 1.18 1.43
Lens Head Screw
61 3603435041 1.18 1.43
Tapping Screw 5x30
62 3603435027 0.83 1.00
Plain Washer DIN 7603-A4x8
64 3600120013 0.83 1.00
Shim washer 0,4 MM THICK
65 1600101600 1.18 1.43
Sticker
66 3601110370 2.71 3.28
Shrinkable Tube
67 1600712027 1.18 1.43
Elec. Cable W/Connection L=250 MM WHITE
68 3604448044 2.71 3.28
Connecting Cable L=470 MM WHITE
69 3604438025 5.83 7.05
Connecting Cable L=330 MM WHITE
70 1604438012 5.83 7.05
Connecting Cable L=330 MM
71 3604460135 6.54 7.91
Connecting Cable L=160 MM RED
72 3604438008 6.54 7.91
Suppression Filter L=300 MM WHITE
73 3604503036 4.10 4.96
Suppression Filter L=150 MM BLUE
74 3604503037 4.10 4.96
Wire Guide
75 3601025003 1.18 1.43
Torx Oval-Head Screw
76 2914201527 1.70 2.06
Sealing cap BLACK
77 3605500062 10.73 12.98
Suspension Loop
78 3601310013 18.19 22.01
Hex Socket Head Cap Screw
79 2910131193 0.83 1.00
Torx Oval-Head Screw
80 2914201508 0.83 1.00
Shrinkable Tube
81 3600707022 2.71 3.28
Socket head cap screw
88 3603435045 0.83 1.00
Seal
89 3601023010 5.33 6.45
Tab Washer
90 1601030022 1.18 1.43
Connecting Cable L=60 MM BLUE
301/63 3604412002 5.83 7.05
Auxiliary Handle
650 160202509Z 12.41 15.02
Auxiliary Handle
650 16020250A1 11.88 14.37
No longer available, no replacement
700 0607950926
No longer available, no replacement
712 1608500009
No longer available, no replacement
751 1603527017
Field 220-230V
802 3604220138 73.72 89.20
Armature 220-230V
803 3604010071 148.65 179.87
Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
805 1607000227 20.42 24.71
Nameplate
808 160111A3H3 1.94 2.35
Carbon-Brush Set
810 3607014012 20.42 24.71
Brush Holder
816 3604336012 4.70 5.69
Gear Housing
822 3607031648 113.29 137.08
Intermediate Flange
823 3605806168 73.72 89.20
Handle BLUE
824 3605132064 20.42 24.71
Sealing cap BLUE
825 3605500060 1.18 1.43
Switch
826 3607200000 15.71 19.01
Rotary shaft lip seal
834 3600290070 9.53 11.53
Gear Shaft
844 1607000C6N 81.47 98.58
Retaining Spring
855 3607000094 11.88 14.37
Hex Socket Head Cap Screw
860 3603414028 1.18 1.43
Connecting Cable L=450 MM WHITE
869 3604460009 5.33 6.45
Connecting Cable L=345 MM GRAY
871 1604438013 5.83 7.05
Wire Guide
875 3601025003 1.18 1.43
Wire Guide
875 1601025001 1.10 1.33
