Here you will find all available parts and drawings of the 'Bosch 3601JK4000 (GDS18V-450HC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

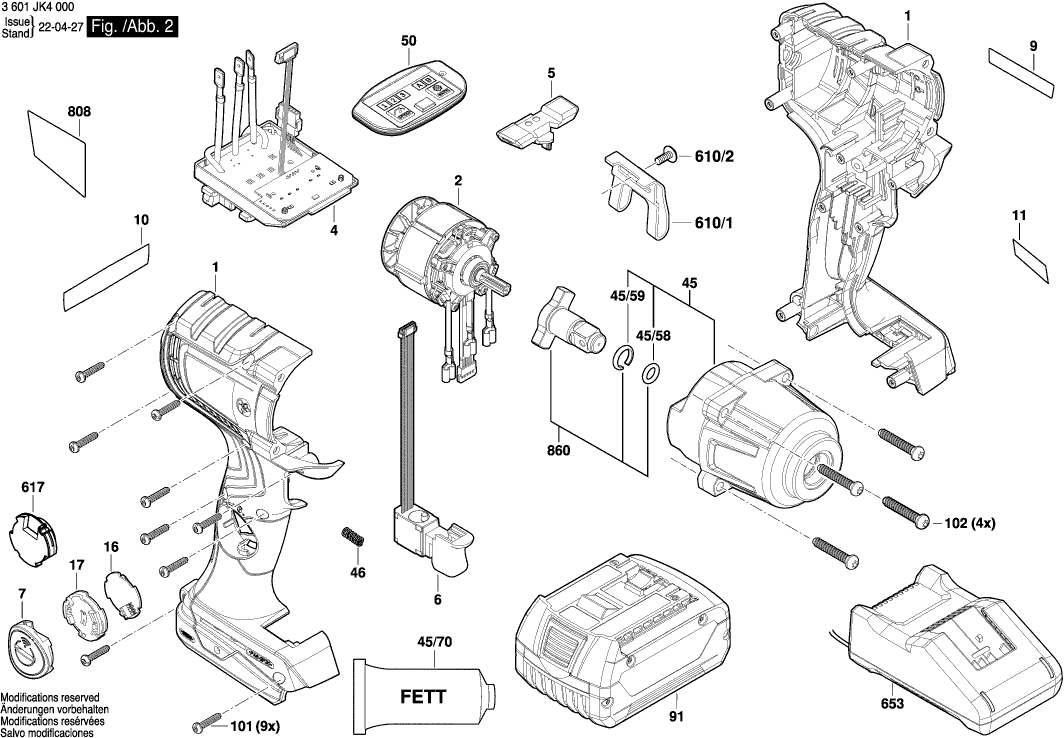

Technical drawing of model Bosch 3601JK4000 (GDS18V-450HC)
Spare parts list of model Bosch 3601JK4000 (GDS18V-450HC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 1605806652 | 14.94 | 18.08 | |
| DC motor | ||||
| 2 | 1607022698 | 80.26 | 97.11 | |
| Electronics Module | ||||
| 4 | 16072335N1 | 122.80 | 148.59 | |
| Changeover Lever | ||||
| 5 | 1600A022N5 | 2.40 | 2.90 | |
| Switch | ||||
| 6 | 2607202501 | 14.94 | 18.08 | |
| Cover unit | ||||
| 7 | 1600A020BX | 8.35 | 10.10 | |
| Manufacturer's nameplate | ||||
| 9 | 160111C4GG | 2.40 | 2.90 | |
| Sticker | ||||
| 10 | 160111C4GE | 1.49 | 1.80 | |
| Sticker | ||||
| 11 | 160111C4GF | 1.49 | 1.80 | |
| Electronics Module | ||||
| 16 | 1600A016CY | 9.67 | 11.70 | |
| Cover Panel | ||||
| 17 | 1600A02KY7 | 2.08 | 2.52 | |
| Gear Box | ||||
| 45 | 1600A01S0E | 98.18 | 118.80 | |
| O-Ring | ||||
| 45/58 | 160021009U | 1.49 | 1.80 | |
| Retaining ring | ||||
| 45/59 | 160460103V | 1.49 | 1.80 | |
| Grease Tube 45 ml | ||||
| 45/70 | 1600A002NE | 27.81 | 33.65 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Separator | ||||
| 50 | 1600A01Z0M | 9.67 | 11.70 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 91 | 2607337069 | 114.26 | 138.25 | |
| Battery Pack | ||||
| 91 | 1617S020T2 | 80.26 | 97.11 | |
| Torx Flat-Head Screw | ||||
| 101 | 2609110201 | 2.08 | 2.52 | |
| Screw | ||||
| 102 | 160343008S | 1.00 | 1.21 | |
| Clip | ||||
| 610/1 | 2609111584 | 3.44 | 4.16 | |
| Screw | ||||
| 610/2 | 2609110834 | 1.49 | 1.80 | |
| Electronics Module | ||||
| 617 | 1600A013WF | 34.82 | 42.13 | |
| No longer available, no replacement | ||||
| 653 | 2607226255 | |||
| Nameplate | ||||
| 808 | 160111AD3K | 64.67 | 78.25 | |
| Nameplate | ||||
| 808 | 160111A8UK | 2.18 | 2.64 | |
| Coupling Half | ||||
| 860 | 1600A02AJ5 | 21.30 | 25.77 | |
