Here you will find all available parts and drawings of the 'Bosch 0601939827 ( GDR90 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

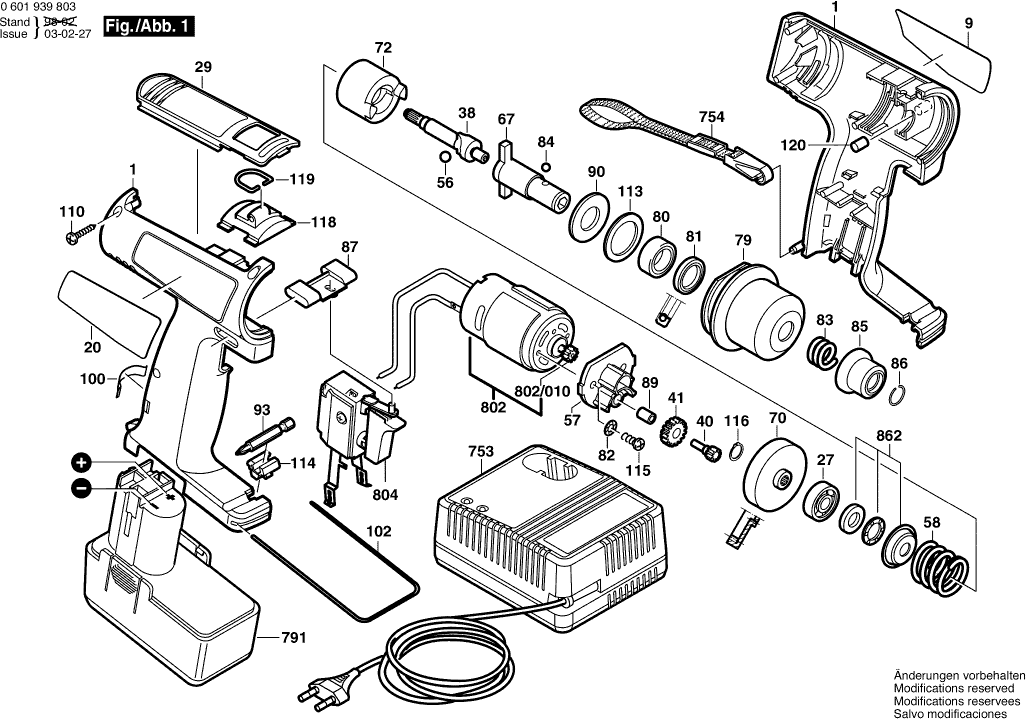

Technical drawing of model Bosch 0601939827 ( GDR90 )

Spare parts list of model Bosch 0601939827 ( GDR90 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Housing Section BLUE
1 2605104474 12.41 15.02
Manufacturer's nameplate SUNNY SIDE
9 2601118642 2.24 2.71
Reference Plate SHADOW SIDE
20 2601118643 2.24 2.71
groove ball bearing 7x22x7
27 1900900224 5.33 6.45
Insert Piece BLACK
29 2605510143 1.94 2.35
Jack Shaft
38 2603000016 20.42 24.71
Toothed Shaft Z= 10
40 2606309045 9.53 11.53
Straight Gear Z=23
41 2606319086 2.71 3.28
Ball DIN 5401-5,5MM-III-ST
56 1903230010 0.83 1.00
Intermediate Flange BLACK
57 2605700231 1.18 1.43
Compression Spring
58 2604610038 2.24 2.71
Coupling Half
67 2606445010 29.75 36.00
Internal Gear Z=46
70 2606319085 9.53 11.53
Striker
72 2600322051 36.85 44.59
Gear Housing SILVER
79 2605806412 10.73 12.98
Plain bearing
80 2605801018 1.18 1.43
Radial Seal
81 2601015062 1.94 2.35
Serrated Lock-Washer A 4,3 DIN 6798-ST
82 2916070006 0.83 1.00
Compression Spring
83 2604619016 2.71 3.28
Ball DIN 5401-3,5-II
84 1903230406 0.83 1.00
Taper Sleeve
85 2600400032 2.24 2.71
Retaining ring 12 DIN 9045
86 2916600007 2.24 2.71
No longer available, no replacement
87 2601099055
Plain bearing
89 2605801019 1.94 2.35
Plain Washer
90 2600100638 1.18 1.43
Screwdriver Blade
93 2607000442 4.10 4.96
Clamp Spring
100 2601322016 1.70 2.06
Retaining Bracket
102 2601329041 1.18 1.43
Torx Oval-Head Screw 3x18
110 2603490018 0.83 1.00
Rubber Disc
113 2600100098 1.94 2.35
Support
114 2608040131 1.70 2.06
Oval-Head Screw DIN 7985-M4x8-4.8-Z
115 2912301118 0.83 1.00
Spring retaining ring DIN 471-6x0,7-FSt
116 2916640003 0.83 1.00
Holding Fixture
118 2605510146 1.94 2.35
Suspension Loop
119 2601310009 2.71 3.28
Damping rubber
120 2603100056 1.18 1.43
Fast Charger EU 230/7,2-24V, 1h
753 2607224425 130.32 157.69
Fast Charger USA 120/7,2-24V, 1h
753 2607224431 130.32 157.69
Fast Charger AUS 240/7,2-14,4V, 30 MIN.
753 2607224705 130.32 157.69
Fast Charger J 100/7,2-24V, 1h
753 2607224435 113.29 137.08
Fast Charger EU 230/7,2-14,4V, 30 MIN.
753 2607224701 101.94 123.35
Fast Charger GB 230/7,2-14,4V, 30 MIN.
753 2607224703 101.94 123.35
Fast Charger J 100/7,2-14,4V, 30 MIN.
753 2607224711 101.94 123.35
Fast Charger GB 230/7,2-24V, 1h
753 2607224427 91.56 110.79
Fast Charger AUS 240/7,2-14,4V, 1h
753 2607224443 81.47 98.58
No longer available, no replacement
754 2601398009
Slide-In Accu Package 9,6V,2,0Ah,NiCd
791 2607335149 113.29 137.08
Slide-In Accu Package 9,6V, 1,5 Ah, NiCd
791 2607336143 101.94 123.35
No information available, not orderable
795 2608572075
DC motor 9,6V
802 2607022934 40.61 49.14
Pinion Z=13
802/010 2606316147 4.70 5.69
No longer available, no replacement
804 2607200351
Ball Cage
862 2600923006 4.10 4.96
No information available, not orderable
899 0601939827
