Here you will find all available parts and drawings of the 'Bosch 0601939789 (GDR50)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

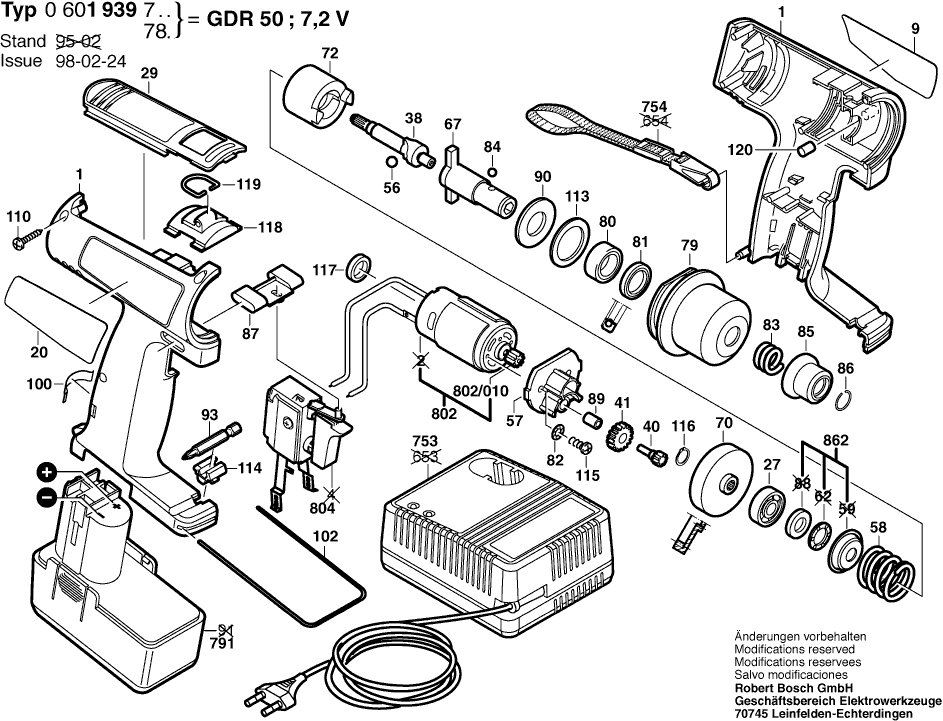

Technical drawing of model Bosch 0601939789 (GDR50)
Spare parts list of model Bosch 0601939789 (GDR50)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104473 | 12.41 | 15.02 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118640 | 0.83 | 1.00 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118641 | 2.24 | 2.71 | |
| groove ball bearing | ||||
| 27 | 1900900224 | 6.73 | 8.14 | |
| Insert Piece | ||||
| 29 | 2605510143 | 2.40 | 2.90 | |
| Jack Shaft | ||||
| 38 | 2603000016 | 23.90 | 28.92 | |
| Pinion Shaft | ||||
| 40 | 2606309045 | 11.37 | 13.76 | |
| Cylindrical Gear | ||||
| 41 | 2606319086 | 3.44 | 4.16 | |
| Ball | ||||
| 56 | 1903230010 | 1.00 | 1.21 | |
| Intermediate Flange BLACK | ||||
| 57 | 2605700236 | 1.94 | 2.35 | |
| Compression Spring | ||||
| 58 | 2604610036 | 2.24 | 2.71 | |
| Coupling Half | ||||
| 67 | 2606445010 | 34.82 | 42.13 | |
| Ring Gear | ||||
| 70 | 2606319085 | 11.37 | 13.76 | |
| Striker | ||||
| 72 | 2600322052 | 36.85 | 44.59 | |
| Gear Housing | ||||
| 79 | 2605806412 | 12.82 | 15.51 | |
| Plain bearing | ||||
| 80 | 2605801018 | 1.49 | 1.80 | |
| Radial Seal | ||||
| 81 | 2601015062 | 2.40 | 2.90 | |
| Serrated Lock-Washer DIN 6798-A3,2-FST | ||||
| 82 | 2916070005 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 83 | 2604619016 | 3.44 | 4.16 | |
| Ball | ||||
| 84 | 1903230406 | 1.00 | 1.21 | |
| Taper Sleeve | ||||
| 85 | 2600400032 | 2.86 | 3.46 | |
| Retaining ring | ||||
| 86 | 2916600007 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 87 | 2601099055 | |||
| Plain bearing | ||||
| 89 | 2605801019 | 2.40 | 2.90 | |
| Plain Washer | ||||
| 90 | 2600100638 | 1.49 | 1.80 | |
| Screwdriver Blade | ||||
| 93 | 2607000442 | 4.94 | 5.98 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 2.08 | 2.52 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 110 | 2603490018 | 1.00 | 1.21 | |
| Rubber Disc | ||||
| 113 | 2600100098 | 2.40 | 2.90 | |
| Support | ||||
| 114 | 2608040131 | 2.08 | 2.52 | |
| Oval-Head Screw DIN 7895-M3x8-4.8-Z | ||||
| 115 | 2912301050 | 0.83 | 1.00 | |
| Spring retaining ring | ||||
| 116 | 2916640003 | 1.00 | 1.21 | |
| Inserted Part Ø 10,2 MM | ||||
| 117 | 2608040092 | 0.83 | 1.00 | |
| Location Piece | ||||
| 118 | 2605510146 | 2.40 | 2.90 | |
| Suspension Loop | ||||
| 119 | 2601310009 | 3.44 | 4.16 | |
| Damping rubber | ||||
| 120 | 2603100056 | 1.49 | 1.80 | |
| Fast Charger | ||||
| 753 | 2607224703 | 122.80 | 148.59 | |
| No longer available, no replacement | ||||
| 754 | 2601398009 | |||
| Slide-In Accu Package 7,2V,1,5Ah,NiCd | ||||
| 791 | 2607336141 | 55.25 | 66.85 | |
| No information available, not orderable | ||||
| 795 | 2608572075 | |||
| DC motor 7,2V | ||||
| 802 | 2607022933 | 20.42 | 24.71 | |
| Pinion Z=13 | ||||
| 802/010 | 2606316145 | 4.70 | 5.69 | |
| No longer available, no replacement | ||||
| 804 | 2607200351 | |||
| Ball Cage | ||||
| 862 | 2600923006 | 4.94 | 5.98 | |
| No information available, not orderable | ||||
| 899 | 0601939723 | |||
