Here you will find all available parts and drawings of the 'Bosch 3601JG4100 (GDR18V-200C)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

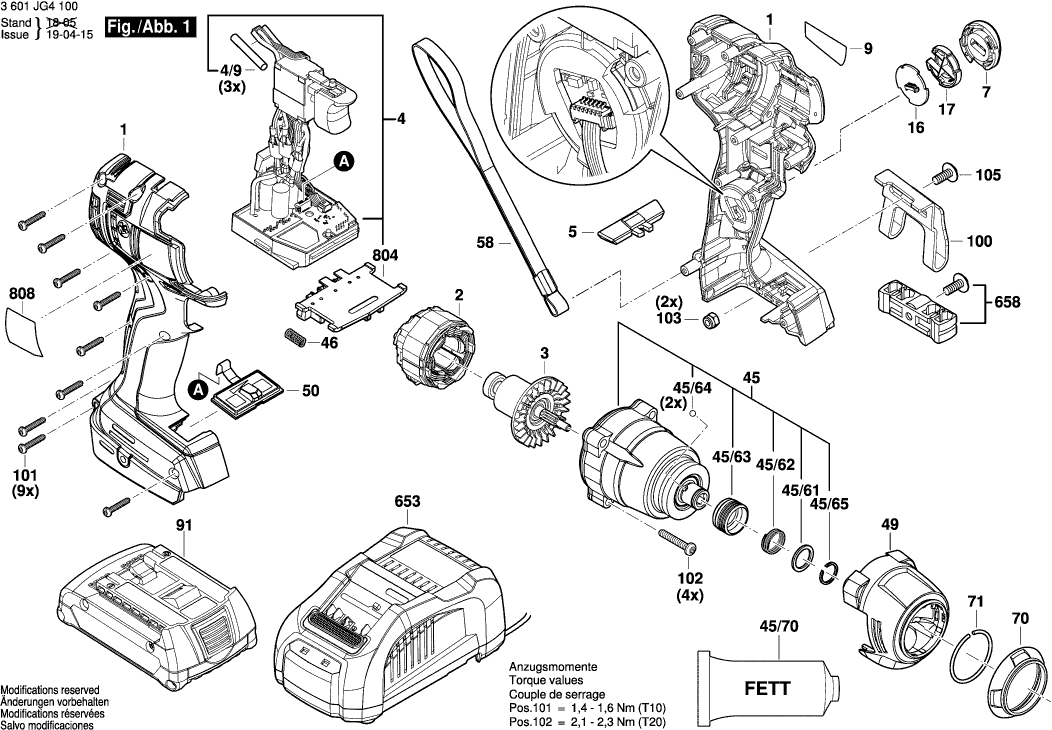

Technical drawing of model Bosch 3601JG4100 (GDR18V-200C)
Spare parts list of model Bosch 3601JG4100 (GDR18V-200C)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 16058065CZ | 16.79 | 20.32 | |
| Stator | ||||
| 2 | 1619P14412 | 34.82 | 42.13 | |
| Rotor | ||||
| 3 | 1619P14405 | 31.42 | 38.02 | |
| Electronics Module | ||||
| 4 | 16072335EV | 88.83 | 107.48 | |
| Shrinkable Tube | ||||
| 4/9 | 160071203S | 1.00 | 1.21 | |
| Changeover Lever | ||||
| 5 | 1600A011KN | 1.90 | 2.30 | |
| Cover unit | ||||
| 7 | 1600A00RU8 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 9 | 160111C28L | |||
| Printed-Board Assembly | ||||
| 16 | 1607503333 | 11.37 | 13.76 | |
| Cover Panel | ||||
| 17 | 1600A00M53 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 45 | 1600A011PP | |||
| Washer | ||||
| 45/61 | 1600A00ZP4 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 45/62 | 061880004V | 1.00 | 1.21 | |
| Sleeve | ||||
| 45/63 | 061880004S | 1.00 | 1.21 | |
| steel ball | ||||
| 45/64 | 1600A00F4A | 1.00 | 1.21 | |
| Retaining ring | ||||
| 45/65 | 061880004U | 1.00 | 1.21 | |
| Grease Tube 45 ml | ||||
| 45/70 | 1600A002NE | 27.81 | 33.65 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Cover | ||||
| 49 | 1600A00J37 | 7.46 | 9.03 | |
| Keyboard | ||||
| 50 | 1600A013BB | 10.90 | 13.19 | |
| Strap | ||||
| 58 | 2609100301 | 2.40 | 2.90 | |
| Strap | ||||
| 58 | 1600A01902 | 2.18 | 2.64 | |
| Protective Cap | ||||
| 70 | 1600A011DL | 1.49 | 1.80 | |
| Retaining ring | ||||
| 71 | 1604601037 | 1.00 | 1.21 | |
| Battery Pack GBA 18V 4.0Ah ProCore SCM | ||||
| 91 | 1607A350AN | 126.98 | 153.65 | |
| Battery Pack BBS MR, 18V, 5,0 Ah 48 S | ||||
| 91 | 2607337069 | 114.26 | 138.25 | |
| Battery Pack | ||||
| 91 | 1617S020T2 | 80.26 | 97.11 | |
| Clip | ||||
| 100 | 2609111584 | 3.44 | 4.16 | |
| Torx Flat-Head Screw | ||||
| 101 | 2609110201 | 2.08 | 2.52 | |
| Torx Flat-Head Screw | ||||
| 102 | 061880004W | 1.00 | 1.21 | |
| Nut | ||||
| 103 | 2609110835 | 1.49 | 1.80 | |
| Screw | ||||
| 105 | 2609110834 | 1.49 | 1.80 | |
| Charger | ||||
| 653 | 2607225921 | 165.14 | 199.82 | |
| Charger | ||||
| 653 | 2607225923 | 136.48 | 165.14 | |
| Bit holder | ||||
| 658 | 2609199748 | 2.08 | 2.52 | |
| Contact retainer 18V | ||||
| 804 | 1609280820 | 5.81 | 7.03 | |
| Nameplate | ||||
| 808 | 160111A59C | 2.40 | 2.90 | |
