Here you will find all available parts and drawings of the 'Bosch 3601JA1407 ( GDR14,4V-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

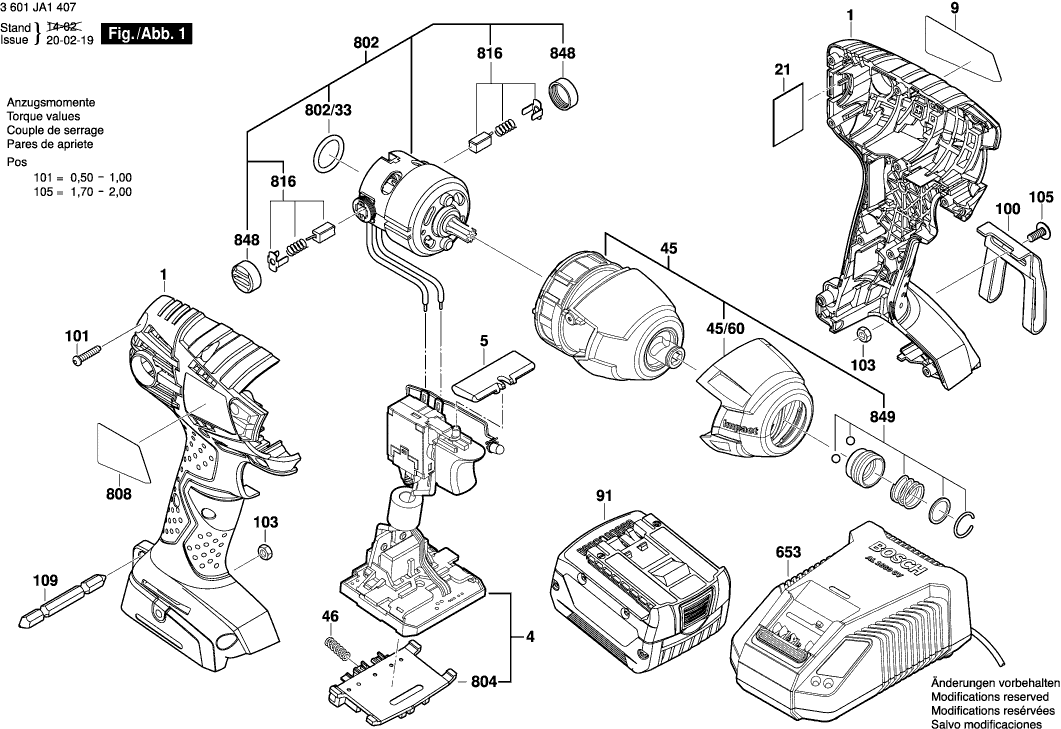

Technical drawing of model Bosch 3601JA1407 ( GDR14,4V-LI )
Spare parts list of model Bosch 3601JA1407 ( GDR14,4V-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101136 | 26.84 | 32.48 | |
| Electronics Module | ||||
| 4 | 1607233479 | 67.25 | 81.37 | |
| Button | ||||
| 5 | 2609100698 | 2.24 | 2.71 | |
| Manufacturer's nameplate GDR 14,4V-LI | ||||
| 9 | 2609132047 | 1.94 | 2.35 | |
| Wire Mesh | ||||
| 21 | 2609111485 | 1.18 | 1.43 | |
| Gear Box | ||||
| 45 | 2609199694 | 81.47 | 98.58 | |
| Cap | ||||
| 45/60 | 2609170128 | 5.83 | 7.05 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.18 | 1.43 | |
| Battery Pack BBS-MR XL-PACK 14,4V, LI, 4,0 Ah | ||||
| 91 | 2607336813 | 91.56 | 110.79 | |
| Clip | ||||
| 100 | 2609110833 | 7.58 | 9.17 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Nut | ||||
| 103 | 2609110835 | 1.18 | 1.43 | |
| Screw | ||||
| 105 | 2609110834 | 1.18 | 1.43 | |
| Screwdriver Blade | ||||
| 109 | 2609110343 | 1.94 | 2.35 | |
| Charger GB 230/10,8-18V, 30 42 S | ||||
| 653 | 2607225923 | 113.29 | 137.08 | |
| Fast Charger 10,8V-18V EU | ||||
| 653 | 2607225423 | 63.33 | 76.63 | |
| Charger EU 230/14,4-18V, 30 40 S | ||||
| 653 | 2607225321 | 55.25 | 66.85 | |
| Fast Charger EU GAL 18V-20 220V-240V 12V-18V 2A | ||||
| 653 | 2607226281 | 55.25 | 66.85 | |
| DC motor 14,4V | ||||
| 802 | 2609199507 | 67.25 | 81.37 | |
| O-Ring | ||||
| 802/33 | 2609170104 | 0.83 | 1.00 | |
| Contact retainer | ||||
| 804 | 1609280474 | 11.88 | 14.37 | |
| Nameplate | ||||
| 808 | 1600A00YL5 | 1.94 | 2.35 | |
| Nameplate | ||||
| 808 | 2609133558 | 1.84 | 2.23 | |
| Carbon-Brush Set | ||||
| 816 | 2609199169 | 7.58 | 9.17 | |
| Brush-Cover | ||||
| 848 | 2609199190 | 2.71 | 3.28 | |
| Bit holder | ||||
| 849 | 2609199223 | 8.45 | 10.22 | |
