Here you will find all available parts and drawings of the 'Bosch 3601JB39E1 (GDR1200-LI)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

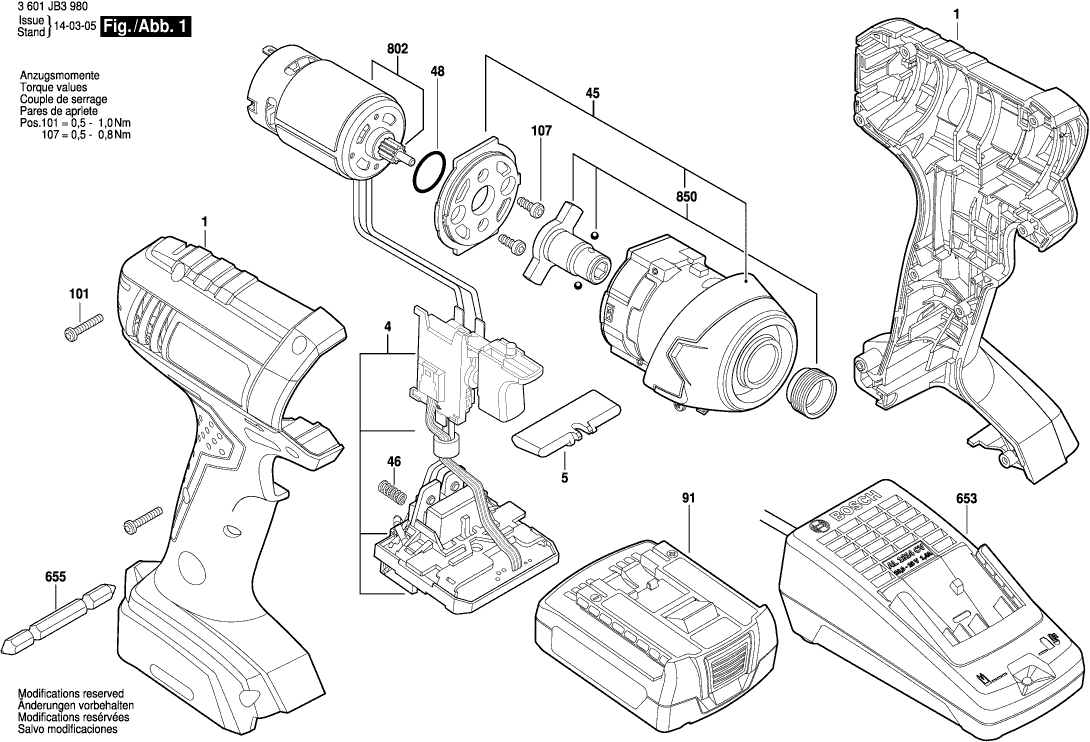

Technical drawing of model Bosch 3601JB39E1 (GDR1200-LI)
Spare parts list of model Bosch 3601JB39E1 (GDR1200-LI)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing | ||||
| 1 | 2609101006 | 16.79 | 20.32 | |
| Electronics Module | ||||
| 4 | 2609199408 | 55.25 | 66.85 | |
| Button | ||||
| 5 | 2609100698 | 2.52 | 3.05 | |
| Gear Box | ||||
| 45 | 2609199364 | 75.38 | 91.21 | |
| Compression Spring | ||||
| 46 | 1609280477 | 1.49 | 1.80 | |
| Seal Ring | ||||
| 48 | 2609170168 | 1.00 | 1.21 | |
| Slide-In Accu Package 10,8V 1,5 Ah LI | ||||
| 91 | 2607336795 | 81.47 | 98.58 | |
| Slide-In Accu Package 12V 1,5Ah LI Alpha | ||||
| 91 | 2607337115 | 40.61 | 49.14 | |
| Torx Flat-Head Screw | ||||
| 101 | 2609110201 | 2.08 | 2.52 | |
| Screw | ||||
| 107 | 2609110560 | 1.00 | 1.21 | |
| Battery Charger BR 127/10,8-18V, 30 MIN | ||||
| 653 | 2607225779 | 61.93 | 74.94 | |
| Fast Charger AL1814CV Brasil 127-220V 10,8-18V | ||||
| 653 | 2607226091 | 61.93 | 74.94 | |
| Fast Charger LAM GAL18V-20 | ||||
| 653 | 2607226289 | 55.56 | 67.23 | |
| Battery Charger AR 230/10,8-18V, 30 MIN | ||||
| 653 | 2607225783 | 55.25 | 66.85 | |
| Screwdriver Blade | ||||
| 655 | 2609110342 | 2.40 | 2.90 | |
| DC motor | ||||
| 802 | 2609199418 | 43.12 | 52.18 | |
| Coupling Half | ||||
| 850 | 2609199319 | 14.94 | 18.08 | |
