Here you will find all available parts and drawings of the 'Bosch 0601909521 ( GDR12V )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

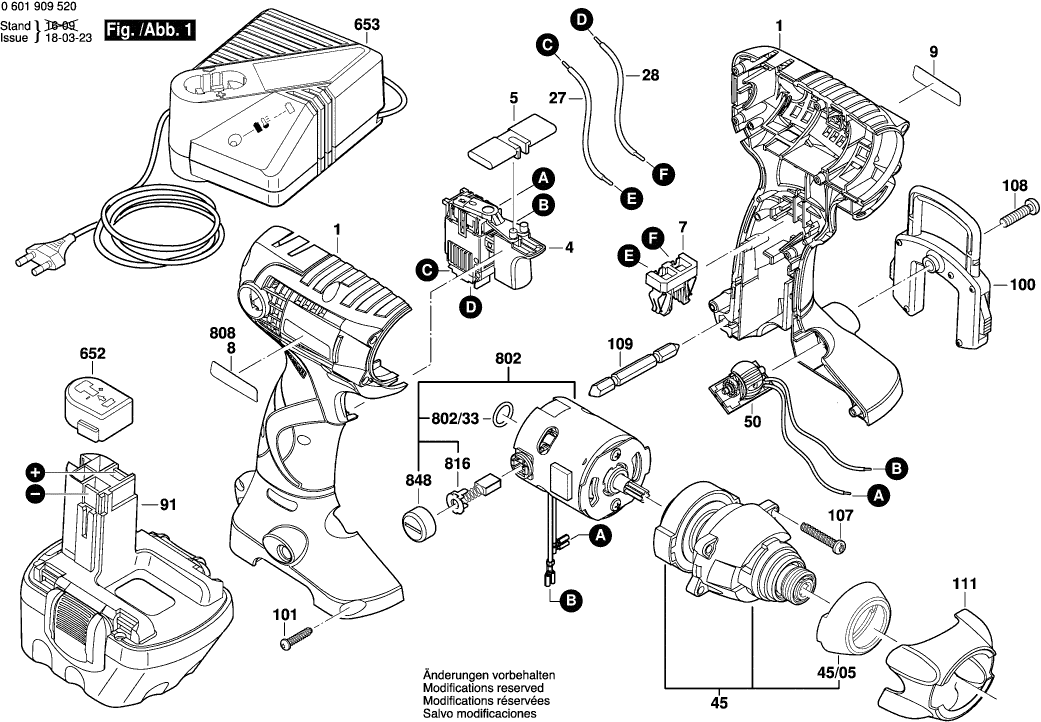

Technical drawing of model Bosch 0601909521 ( GDR12V )
Spare parts list of model Bosch 0601909521 ( GDR12V )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing BLUE | ||||
| 1 | 2609100268 | 26.84 | 32.48 | |
| No longer available, no replacement | ||||
| 4 | 2607200489 | |||
| Button | ||||
| 5 | 2609100273 | 1.94 | 2.35 | |
| Contact retainer | ||||
| 7 | 2609100297 | 7.58 | 9.17 | |
| Nameplate GDR 12V, EU | ||||
| 8 | 2609130815 | 2.71 | 3.28 | |
| Manufacturer's nameplate GDR 12 VN | ||||
| 9 | 2609130895 | 2.71 | 3.28 | |
| Manufacturer's nameplate GDR 12V | ||||
| 9 | 2609130717 | 2.71 | 3.28 | |
| Connecting Cable 50 MM BLACK | ||||
| 27 | 2609120146 | 1.18 | 1.43 | |
| Connecting Cable 60 mm RED | ||||
| 28 | 2609120147 | 1.18 | 1.43 | |
| Gear Box | ||||
| 45 | 2609199195 | 91.56 | 110.79 | |
| Protective Ring | ||||
| 45/05 | 2609170025 | 5.83 | 7.05 | |
| Light-Emitting-Diode | ||||
| 50 | 2609199069 | 12.41 | 15.02 | |
| Slide-In Accu Package 12V,2,6Ah,NiMh | ||||
| 91 | 2607335683 | 168.86 | 204.32 | |
| Slide-In Accu Package 12V, 2,0Ah,NiCd | ||||
| 91 | 2607335741 | 148.65 | 179.87 | |
| Holder | ||||
| 100 | 2609199027 | 6.54 | 7.91 | |
| Torx Flat-Head Screw 3x16 | ||||
| 101 | 2609110201 | 1.70 | 2.06 | |
| Screw | ||||
| 107 | 2609110327 | 1.18 | 1.43 | |
| Screw | ||||
| 108 | 2609110309 | 1.18 | 1.43 | |
| Screwdriver Blade | ||||
| 109 | 2609110342 | 1.94 | 2.35 | |
| Cover Flap BLACK | ||||
| 111 | 2609100298 | 5.33 | 6.45 | |
| Protective Cap | ||||
| 652 | 2609100101 | 3.31 | 4.01 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 653 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger AUS 240/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224705 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224701 | 101.94 | 123.35 | |
| Fast Charger GB 230/7,2-14,4V, 30 MIN. | ||||
| 653 | 2607224703 | 101.94 | 123.35 | |
| Motor 12V | ||||
| 802 | 2609199046 | 55.25 | 66.85 | |
| O-Ring | ||||
| 802/33 | 2609170030 | 1.18 | 1.43 | |
| Carbon-Brush Set | ||||
| 816 | 2609199048 | 7.58 | 9.17 | |
| Sealing cap | ||||
| 848 | 2609199049 | 4.70 | 5.69 | |
