Here you will find all available parts and drawings of the 'Bosch 3601JA6900 ( GDR10,8-LI )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

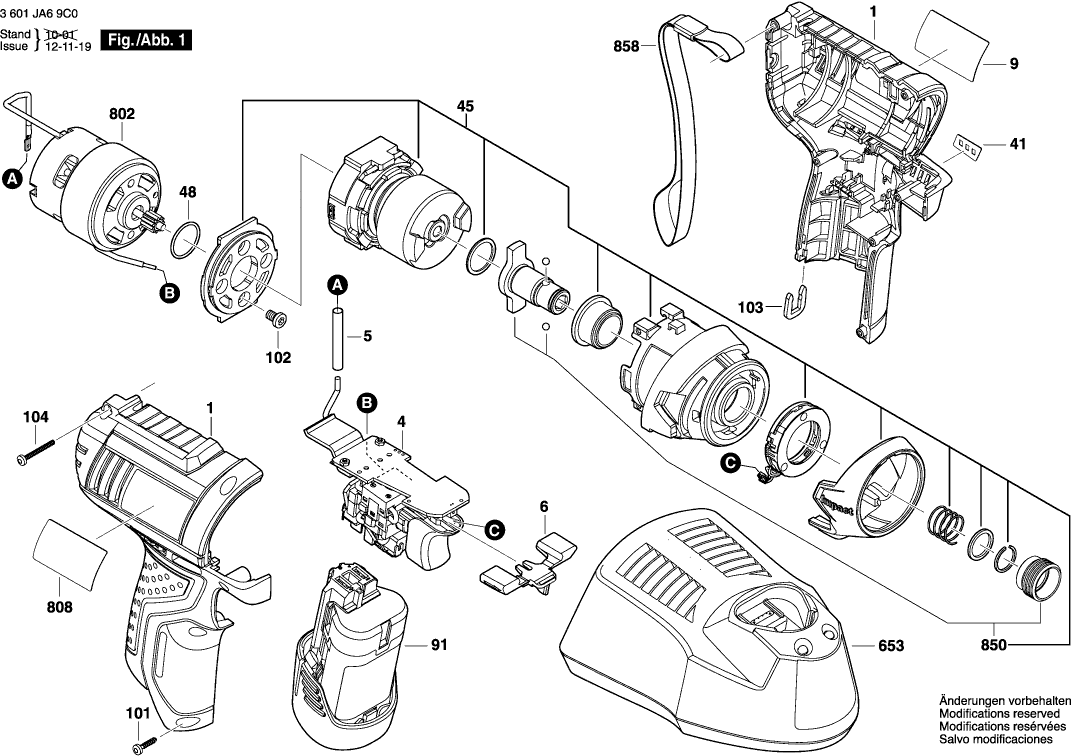

Technical drawing of model Bosch 3601JA6900 ( GDR10,8-LI )
Spare parts list of model Bosch 3601JA6900 ( GDR10,8-LI )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing BLUE | ||||
| 1 | 2609100816 | 12.41 | 15.02 | |
| Electronics Module | ||||
| 4 | 16072335DD | 49.56 | 59.97 | |
| Shrinkable Tube | ||||
| 5 | 2609170134 | 0.83 | 1.00 | |
| Adjusting Slide | ||||
| 6 | 2609100817 | 0.83 | 1.00 | |
| Manufacturer's nameplate GDR 10,8-LI | ||||
| 9 | 2609132462 | 1.94 | 2.35 | |
| Sticker | ||||
| 41 | 2609132846 | 1.94 | 2.35 | |
| Gear Box | ||||
| 45 | 2609199241 | 67.25 | 81.37 | |
| Seal Ring | ||||
| 48 | 2609170121 | 0.83 | 1.00 | |
| Battery Pack GBA 12V 2.0Ah Li SCM | ||||
| 91 | 1607A350C5 | 55.25 | 66.85 | |
| Battery Pack | ||||
| 91 | 1607A350DY | 34.69 | 41.97 | |
| Screw | ||||
| 101 | 2609110883 | 1.70 | 2.06 | |
| Torx Flat-Head Screw | ||||
| 102 | 2609110950 | 0.83 | 1.00 | |
| Clip | ||||
| 103 | 2609110537 | 1.18 | 1.43 | |
| Pan head screw | ||||
| 104 | 2609110991 | 0.83 | 1.00 | |
| Fast Charger UK AL1130CV 230V/12V/3A | ||||
| 653 | 2607225135 | 67.25 | 81.37 | |
| Fast Charger AUS 240/10,8V | ||||
| 653 | 2607225137 | 55.25 | 66.85 | |
| Fast Charger EU GAL 12V-40 | ||||
| 653 | 2607226219 | 46.67 | 56.47 | |
| DC motor 10,8V | ||||
| 802 | 2609199281 | 29.75 | 36.00 | |
| Nameplate | ||||
| 808 | 2609132453 | 0.83 | 1.00 | |
| Coupling Half | ||||
| 850 | 2609199320 | 12.41 | 15.02 | |
| Carrying Loop | ||||
| 858 | 2609170129 | 1.94 | 2.35 | |
