Here you will find all available parts and drawings of the 'Bosch 0601552008 ( GDC42W )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

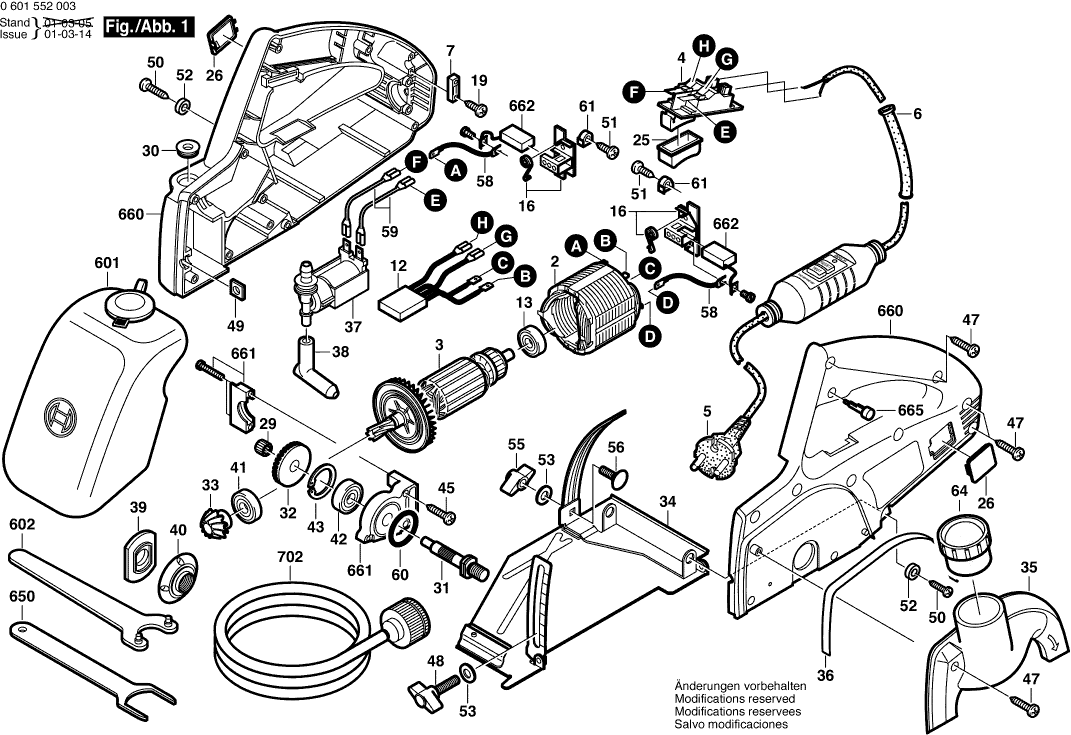

Technical drawing of model Bosch 0601552008 ( GDC42W )
Spare parts list of model Bosch 0601552008 ( GDC42W )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 220-240V | ||||
| 2 | 3604220092 | 29.75 | 36.00 | |
| Armature 220-240V | ||||
| 3 | F000605000 | 81.47 | 98.58 | |
| On-Off Switch | ||||
| 4 | F000600562 | 20.42 | 24.71 | |
| Power supply cord | ||||
| 5 | F000608001 | 113.29 | 137.08 | |
| Grommet Ø8,3-Ø9,4x95 MM | ||||
| 6 | 2600703011 | 2.24 | 2.71 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 12 | F000608007 | |||
| groove ball bearing | ||||
| 13 | 9618089547 | 9.53 | 11.53 | |
| Brush Holder | ||||
| 16 | F000600307 | 1.70 | 2.06 | |
| Screw 4x16 MM | ||||
| 19 | 9618087099 | 1.18 | 1.43 | |
| Protective Cover | ||||
| 25 | 9618089343 | 0.83 | 1.00 | |
| Brush-Cover | ||||
| 26 | 9618089345 | 1.94 | 2.35 | |
| Needle bearing Ø8xØ12x8 MM | ||||
| 29 | 1600910018 | 4.10 | 4.96 | |
| Sealing disk | ||||
| 30 | 9618089846 | 1.70 | 2.06 | |
| Drilling Spindle | ||||
| 31 | 9618089346 | 12.41 | 15.02 | |
| Crown Gear | ||||
| 32 | F000617000 | 36.85 | 44.59 | |
| Bevel Gear | ||||
| 33 | F000618000 | 18.19 | 22.01 | |
| Base Plate | ||||
| 34 | F000600283 | 13.93 | 16.86 | |
| Protective Cover | ||||
| 35 | F000600284 | 5.33 | 6.45 | |
| Housing Cover | ||||
| 36 | 9618089352 | 0.83 | 1.00 | |
| Parts Set | ||||
| 37 | 9618089848 | 10.73 | 12.98 | |
| Adapter | ||||
| 38 | 9618089849 | 1.94 | 2.35 | |
| Supporting Disc | ||||
| 39 | F000613003 | 5.33 | 6.45 | |
| Round Nut | ||||
| 40 | F000616000 | 6.54 | 7.91 | |
| groove ball bearing | ||||
| 41 | 9618089544 | 9.53 | 11.53 | |
| groove ball bearing 12x32x10 | ||||
| 42 | 1600905006 | 9.53 | 11.53 | |
| Retaining clip DIN 472-32x1,2 MM | ||||
| 43 | 2916660013 | 1.70 | 2.06 | |
| Tapping Screw | ||||
| 45 | 9618087101 | 0.83 | 1.00 | |
| Screw 4x16 MM | ||||
| 47 | 9618087099 | 1.18 | 1.43 | |
| Wing Screw | ||||
| 48 | F000600559 | 1.94 | 2.35 | |
| Square Nut | ||||
| 49 | 2915120006 | 1.18 | 1.43 | |
| Thread-forming tap. Screw | ||||
| 50 | 9618089885 | 0.83 | 1.00 | |
| Parts Set | ||||
| 51 | F000600540 | 1.18 | 1.43 | |
| Shim | ||||
| 52 | 9618089353 | 0.83 | 1.00 | |
| Plain Washer DIN 433-6,4-ST 50 | ||||
| 53 | 2916011013 | 0.83 | 1.00 | |
| Hex Nut | ||||
| 55 | 2610387875 | 1.94 | 2.35 | |
| Round-Head Bolt M6x16 MM | ||||
| 56 | 1603434003 | 0.83 | 1.00 | |
| Power supply cord | ||||
| 58 | 9618089858 | 2.24 | 2.71 | |
| Power supply cord | ||||
| 59 | 9618089859 | 2.24 | 2.71 | |
| O-Ring 30x2 MM | ||||
| 60 | 1900210130 | 2.71 | 3.28 | |
| Claw | ||||
| 61 | F000600538 | 1.18 | 1.43 | |
| Air-Intake Cover | ||||
| 64 | F000603000 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 601 | 9618089852 | |||
| Pin-Type Face-Wrench | ||||
| 602 | 1607950052 | 2.71 | 3.28 | |
| No longer available, no replacement | ||||
| 650 | 9618089854 | |||
| No longer available, no replacement | ||||
| 660 | F000600299 | |||
| Parts Set | ||||
| 661 | F000600300 | 15.71 | 19.01 | |
| Carbon-Brush Set | ||||
| 662 | 9618086921 | 11.88 | 14.37 | |
| Parts Set | ||||
| 665 | F000600907 | 23.75 | 28.74 | |
| Parts Set | ||||
| 702 | 9618089316 | 5.83 | 7.05 | |
