Here you will find all available parts and drawings of the 'Bosch 3601A89900 ( GDB350WE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

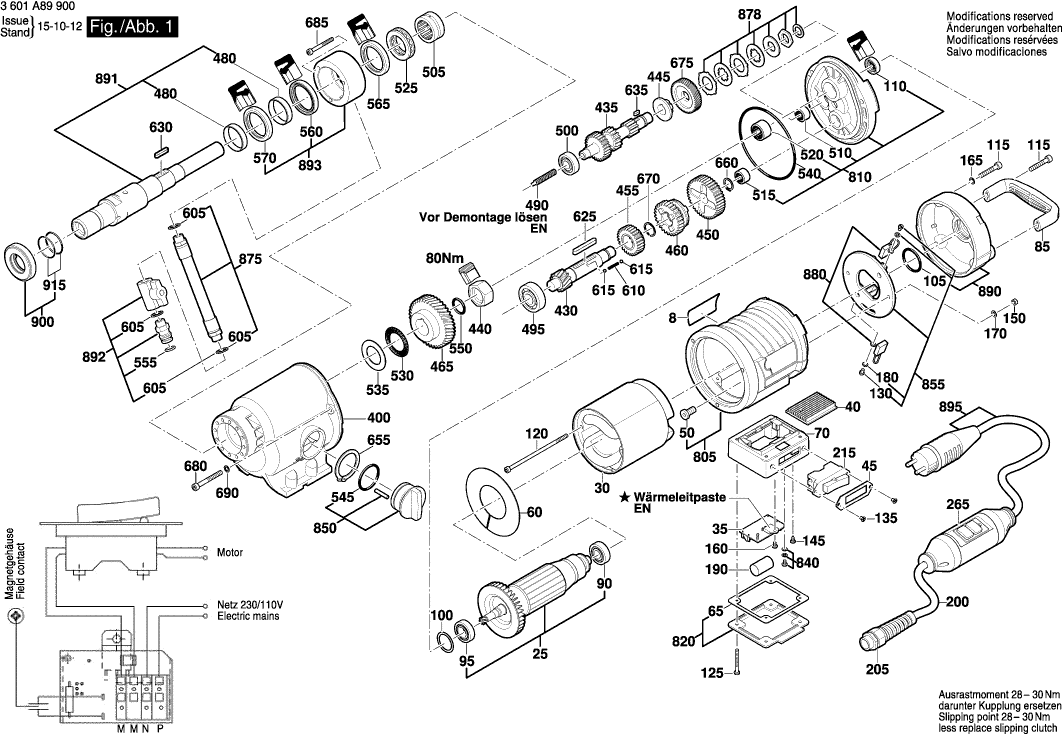

Technical drawing of model Bosch 3601A89900 ( GDB350WE )
Spare parts list of model Bosch 3601A89900 ( GDB350WE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nameplate | ||||
| 8 | 160111A1G5 | 0.83 | 1.00 | |
| Manufacturer's nameplate | ||||
| 9 | 1619PB0396 | 0.83 | 1.00 | |
| Armature With Fan 230V | ||||
| 25 | 1600A0073D | 551.30 | 667.07 | |
| Field 230V | ||||
| 30 | 160422053E | 342.01 | 413.83 | |
| Printed Circuit Board | ||||
| 35 | 1600A01AM1 | 91.56 | 110.79 | |
| Cooling Sheet | ||||
| 40 | 1600A0073F | 36.85 | 44.59 | |
| Seal | ||||
| 45 | 1600A00742 | 9.53 | 11.53 | |
| Insulating Sleeve | ||||
| 50 | 1600325008 | 8.45 | 10.22 | |
| Air-Deflector Ring | ||||
| 60 | 160059105P | 10.73 | 12.98 | |
| Seal | ||||
| 65 | 1600A0073G | 6.54 | 7.91 | |
| Terminal Box | ||||
| 70 | 1600A0073H | 73.72 | 89.20 | |
| Carrying Handle | ||||
| 85 | 1600A0073K | 26.84 | 32.48 | |
| groove ball bearing | ||||
| 90 | 160090004R | 33.45 | 40.47 | |
| groove ball bearing | ||||
| 95 | 160090004S | 33.45 | 40.47 | |
| Shim | ||||
| 100 | 1600A0073L | 4.70 | 5.69 | |
| O-Ring | ||||
| 105 | 1600210067 | 2.71 | 3.28 | |
| Rotary shaft lip seal | ||||
| 110 | 1600A004Y0 | 18.19 | 22.01 | |
| Hex Socket Head Cap Screw | ||||
| 115 | 1600A0073N | 1.70 | 2.06 | |
| Hex Socket Head Cap Screw | ||||
| 120 | 1600A0073P | 9.53 | 11.53 | |
| Socket head cap screw | ||||
| 125 | 160341001D | 1.70 | 2.06 | |
| Socket head cap screw | ||||
| 130 | 160341001E | 1.18 | 1.43 | |
| Countersunk-Head Screw | ||||
| 135 | 1603490A0D | 1.18 | 1.43 | |
| Oval-Head Screw | ||||
| 145 | 1600A019B5 | 1.70 | 2.06 | |
| Hex Nut | ||||
| 150 | 1600A0073S | 0.83 | 1.00 | |
| Oval-Head Screw | ||||
| 160 | 1601A013TB | 1.70 | 2.06 | |
| Locking washer | ||||
| 165 | 1600A0073V | 0.83 | 1.00 | |
| Spring Washer | ||||
| 170 | 1600150021 | 0.83 | 1.00 | |
| Plain Washer | ||||
| 180 | 1600A0073W | 0.83 | 1.00 | |
| Suppression Capacitor | ||||
| 190 | 1600A0073X | 18.19 | 22.01 | |
| Mains Cable | ||||
| 200 | 1600A0073Y | 91.56 | 110.79 | |
| Cable Gland | ||||
| 205 | 1600A0073Z | 15.71 | 19.01 | |
| Mains switch | ||||
| 215 | 1600A00741 | 101.94 | 123.35 | |
| Switch | ||||
| 265 | 1607200329 | 255.50 | 309.16 | |
| Switch | ||||
| 265 | 160720038P | 148.65 | 179.87 | |
| Gear Housing | ||||
| 400 | 160580659Y | 493.58 | 597.23 | |
| Pinion Shaft | ||||
| 430 | 1600A00743 | 233.78 | 282.87 | |
| Gear Shaft | ||||
| 435 | 1600A00744 | 304.19 | 368.07 | |
| Hex Nut | ||||
| 440 | 1600A0077E | 29.75 | 36.00 | |
| Bushing | ||||
| 445 | 160030010H | 44.82 | 54.23 | |
| Cylindrical Gear | ||||
| 450 | 1600A0076R | 168.86 | 204.32 | |
| Cylindrical Gear | ||||
| 455 | 1600A0076S | 130.32 | 157.69 | |
| Cylindrical Gear | ||||
| 460 | 1600A0076T | 233.78 | 282.87 | |
| Cylindrical Gear | ||||
| 465 | 1600A0076U | 130.32 | 157.69 | |
| Protection Sleeve | ||||
| 480 | 1600A00746 | 20.42 | 24.71 | |
| Worm Shaft | ||||
| 490 | 1600A0076V | 40.61 | 49.14 | |
| groove ball bearing | ||||
| 495 | 160090004U | 40.61 | 49.14 | |
| groove ball bearing | ||||
| 500 | 160090004V | 36.85 | 44.59 | |
| Needle-Roller Bearing | ||||
| 505 | 160090004W | 101.94 | 123.35 | |
| Nozzle Socket | ||||
| 510 | 1600A0076W | 40.61 | 49.14 | |
| Needle bearing | ||||
| 515 | 1600A0076X | 33.45 | 40.47 | |
| Needle bearing | ||||
| 520 | 1600A0076Y | 36.85 | 44.59 | |
| Needle Axial Ball Bearing | ||||
| 525 | 1600A0076Z | 81.47 | 98.58 | |
| Thrust Needle Rim | ||||
| 530 | 1600A00770 | 23.75 | 28.74 | |
| Thrust Bearing Disc | ||||
| 535 | 1600A00771 | 9.53 | 11.53 | |
| O-Ring | ||||
| 540 | 1600210068 | 6.54 | 7.91 | |
| O-Ring | ||||
| 545 | 1600210069 | 1.70 | 2.06 | |
| O-Ring | ||||
| 550 | 1600210063 | 1.70 | 2.06 | |
| O-Ring | ||||
| 555 | 1600210064 | 1.70 | 2.06 | |
| Shaft Seal | ||||
| 560 | 1600A00772 | 20.42 | 24.71 | |
| Shaft Seal | ||||
| 565 | 1600A00773 | 20.42 | 24.71 | |
| Shaft Seal | ||||
| 570 | 1600A00774 | 20.42 | 24.71 | |
| Seal Ring | ||||
| 605 | 1600A004YF | 1.18 | 1.43 | |
| Helical Compression Spring | ||||
| 610 | 1600A00777 | 3.31 | 4.01 | |
| Ball | ||||
| 615 | 1600A0077A | 1.18 | 1.43 | |
| Parallel Key | ||||
| 625 | 1600A0077B | 2.71 | 3.28 | |
| Parallel Key | ||||
| 630 | 1600A0077C | 2.24 | 2.71 | |
| Parallel Key | ||||
| 635 | 1600A0077D | 1.94 | 2.35 | |
| Spring retaining ring | ||||
| 655 | 1600150022 | 6.54 | 7.91 | |
| Spring retaining ring | ||||
| 660 | 1600150023 | 1.18 | 1.43 | |
| Retaining ring | ||||
| 670 | 160460102P | 1.18 | 1.43 | |
| Cylindrical Gear | ||||
| 675 | 1600A0079B | 101.94 | 123.35 | |
| Hex Socket Head Cap Screw | ||||
| 680 | 1600A0077G | 1.94 | 2.35 | |
| Hex Socket Head Cap Screw | ||||
| 685 | 1600A0077H | 2.24 | 2.71 | |
| Locking washer | ||||
| 690 | 1600A0073V | 0.83 | 1.00 | |
| Motor Housing | ||||
| 805 | 16051082C1 | 304.19 | 368.07 | |
| Intermediate Flange | ||||
| 810 | 1600A0077L | 342.01 | 413.83 | |
| Cover | ||||
| 820 | 1600A0077M | 36.85 | 44.59 | |
| Threaded Joint | ||||
| 840 | 1600A0077N | 5.83 | 7.05 | |
| Clamp Handle | ||||
| 850 | 1602026102 | 81.47 | 98.58 | |
| Brush Holder | ||||
| 855 | 1600A0077P | 91.56 | 110.79 | |
| Hose | ||||
| 875 | 1600A008WC | 60.65 | 73.39 | |
| Sliding Clutch | ||||
| 878 | 1600A0077R | 113.29 | 137.08 | |
| Carbon-Brush Set | ||||
| 880 | 160701417M | 36.85 | 44.59 | |
| Bearing cover | ||||
| 890 | 160582023B | 101.94 | 123.35 | |
| Drilling Spindle | ||||
| 891 | 1600A0077S | 342.01 | 413.83 | |
| Isolating Valve | ||||
| 892 | 1600A005AY | 67.25 | 81.37 | |
| Water connection | ||||
| 893 | 1600A0077U | 130.32 | 157.69 | |
| Power supply cord | ||||
| 895 | 160446071N | 67.25 | 81.37 | |
| Glide ring | ||||
| 900 | 1600A00780 | 130.32 | 157.69 | |
| O-Ring | ||||
| 915 | 160021006D | 2.24 | 2.71 | |
