Here you will find all available parts and drawings of the 'Bosch 060118A708 ( GDB2200WE )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

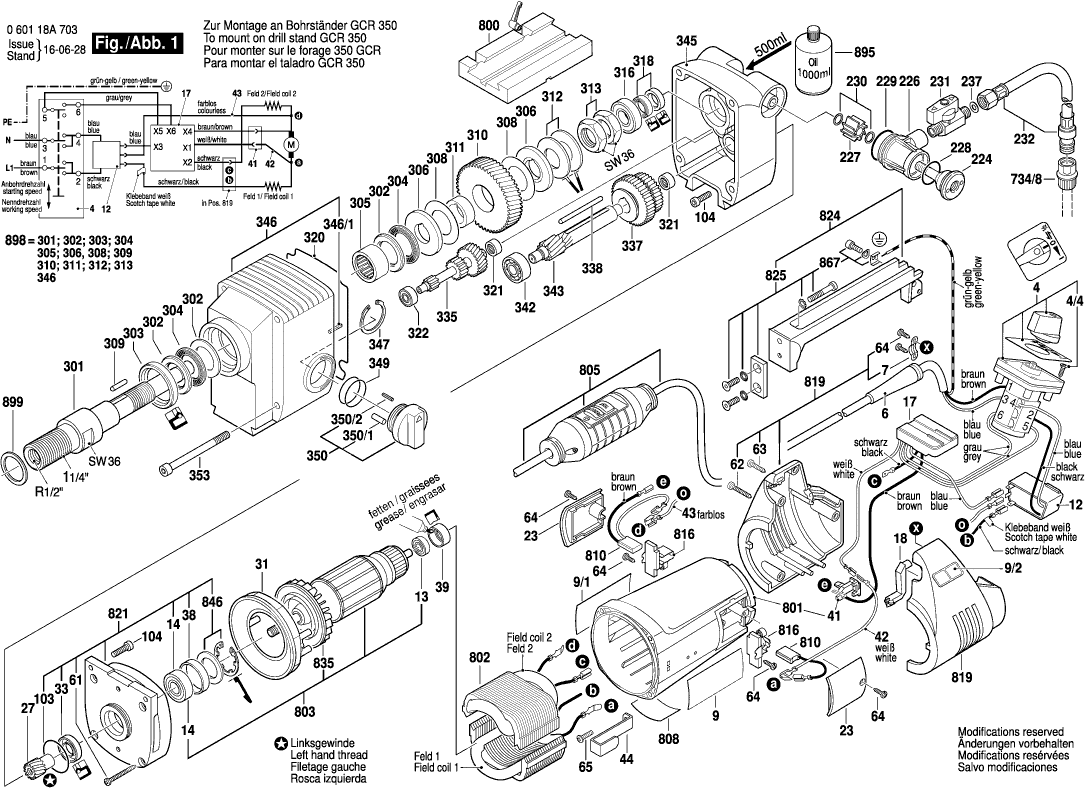

Technical drawing of model Bosch 060118A708 ( GDB2200WE )
Spare parts list of model Bosch 060118A708 ( GDB2200WE )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 4 | 3607031559 | 91.56 | 110.79 | |
| Tapping Screw DIN 7982-ST 4,2x19-C | ||||
| 4/4 | 2910601327 | 4.70 | 5.69 | |
| Grommet Ø8,7-Ø9,6x76 MM | ||||
| 6 | 2600703019 | 1.94 | 2.35 | |
| Fastening Clamp | ||||
| 7 | 1601302013 | 1.18 | 1.43 | |
| Manufacturer's nameplate | ||||
| 9 | 3601119200 | 2.71 | 3.28 | |
| Reference Plate | ||||
| 9/1 | 3601119201 | 2.71 | 3.28 | |
| Reference Plate | ||||
| 9/2 | 3601119441 | 1.94 | 2.35 | |
| No longer available, no replacement | ||||
| 12 | 3607328018 | |||
| groove ball bearing 8x22x7 | ||||
| 13 | 1600905011 | 4.70 | 5.69 | |
| groove ball bearing 10x35x11 | ||||
| 14 | 3600905155 | 9.53 | 11.53 | |
| Speed governor 220-240V | ||||
| 17 | 1607233170 | 60.65 | 73.39 | |
| Light Conductor | ||||
| 18 | 3604420008 | 8.45 | 10.22 | |
| Sealing cap | ||||
| 23 | 1605500206 | 2.80 | 3.39 | |
| Drive Spur Wheel LEFTHAND THREADS | ||||
| 27 | 3606309059 | 91.56 | 110.79 | |
| Air-Deflector Ring | ||||
| 31 | 3600499018 | 36.85 | 44.59 | |
| Rotary shaft lip seal 15X30X7/6 | ||||
| 33 | 3600290065 | 20.42 | 24.71 | |
| Rubber Ring 7 MM WIDE | ||||
| 38 | 1600206020 | 1.18 | 1.43 | |
| Rubber Ring | ||||
| 39 | 1600206030 | 1.18 | 1.43 | |
| Holding Plate | ||||
| 41 | 3602329040 | 1.70 | 2.06 | |
| Holding Plate | ||||
| 41 | 3602329038 | 1.18 | 1.43 | |
| Connecting Cable | ||||
| 42 | 3604441012 | 3.31 | 4.01 | |
| Connecting Cable | ||||
| 43 | 3604441013 | 3.31 | 4.01 | |
| Pickup Clip | ||||
| 44 | 1601334009 | 0.83 | 1.00 | |
| Tapping Screw DIN 7981-ST4,8X45-C-Z | ||||
| 61 | 2912401039 | 1.70 | 2.06 | |
| Tapping Screw 5x30 | ||||
| 62 | 3603435027 | 0.83 | 1.00 | |
| Tapping Screw 5x20 | ||||
| 63 | 3603435028 | 0.83 | 1.00 | |
| Plastic-Cutting Screw St3,9x12 | ||||
| 64 | 1603435042 | 1.18 | 1.43 | |
| Tapping Screw DIN 7981-3,9x19-C-Z-ST | ||||
| 65 | 2912401020 | 0.83 | 1.00 | |
| O-Ring 40,0x1,5 MM | ||||
| 103 | 2600210003 | 1.94 | 2.35 | |
| Hex Socket Head Cap Screw DIN 912-M6x20-8.8 | ||||
| 104 | 2910141201 | 1.94 | 2.35 | |
| Retaining Pin | ||||
| 224 | 3603100037 | 44.82 | 54.23 | |
| Sight Glass | ||||
| 226 | 3600700053 | 10.73 | 12.98 | |
| Impeller Wheel | ||||
| 227 | 3605510041 | 1.70 | 2.06 | |
| O-Ring 25,0x2,65 MM | ||||
| 228 | 3600210112 | 1.18 | 1.43 | |
| O-Ring 33,0x2,5 MM | ||||
| 229 | 3600210114 | 1.18 | 1.43 | |
| Plain Washer | ||||
| 230 | 3600100082 | 1.70 | 2.06 | |
| Isolating Valve | ||||
| 231 | 3602380011 | 20.42 | 24.71 | |
| Flexible Connection | ||||
| 232 | 3600760107 | 40.61 | 49.14 | |
| Sealing Disc | ||||
| 237 | 3600109014 | 2.24 | 2.71 | |
| Drilling Spindle SW36, 1 1/4", R 1/2" | ||||
| 301 | 3609201540 | 304.19 | 368.07 | |
| Contrarotating Disc | ||||
| 302 | 3609201541 | 40.61 | 49.14 | |
| Shaft Seal | ||||
| 303 | 3609201542 | 36.85 | 44.59 | |
| Thrust Needle Bearing | ||||
| 304 | 3609201543 | 23.75 | 28.74 | |
| Needle-Roller Bearing | ||||
| 305 | 3609201544 | 101.94 | 123.35 | |
| Coupling Plate | ||||
| 306 | 3609201545 | 29.75 | 36.00 | |
| Friction Disk | ||||
| 308 | 3609201546 | 13.93 | 16.86 | |
| Straight Pin | ||||
| 309 | 3609201547 | 1.94 | 2.35 | |
| Cylindrical Gear | ||||
| 310 | 3609201548 | 148.65 | 179.87 | |
| Bearing Sleeve | ||||
| 311 | 3609201549 | 40.61 | 49.14 | |
| Disc Spring | ||||
| 312 | 3609201550 | 11.88 | 14.37 | |
| Hex Nut | ||||
| 313 | 3609201551 | 7.58 | 9.17 | |
| groove ball bearing | ||||
| 316 | 3609201552 | 23.75 | 28.74 | |
| Shaft Seal | ||||
| 318 | 3609201553 | 29.75 | 36.00 | |
| Seal | ||||
| 320 | 3609201570 | 13.93 | 16.86 | |
| Needle bearing | ||||
| 321 | 3609201554 | 33.45 | 40.47 | |
| groove ball bearing | ||||
| 322 | 3609201555 | 13.93 | 16.86 | |
| Pinion Shaft | ||||
| 335 | 3609201556 | 187.62 | 227.02 | |
| Sliding Gear | ||||
| 337 | 3609201557 | 187.62 | 227.02 | |
| Straight Pin | ||||
| 338 | 3609201558 | 5.83 | 7.05 | |
| groove ball bearing | ||||
| 342 | 3609201559 | 15.71 | 19.01 | |
| Pinion Shaft | ||||
| 343 | 3609201560 | 209.26 | 253.20 | |
| Upper Housing | ||||
| 345 | 3609201561 | 342.01 | 413.83 | |
| Housing Base | ||||
| 346 | 3609201563 | 388.20 | 469.72 | |
| Coiled Spring Pin | ||||
| 346/1 | 3609201562 | 1.94 | 2.35 | |
| Spring retaining ring | ||||
| 347 | 3609201564 | 1.18 | 1.43 | |
| O-Ring | ||||
| 349 | 3609201565 | 5.33 | 6.45 | |
| Clamp Handle | ||||
| 350 | 3609201566 | 67.25 | 81.37 | |
| Straight Pin | ||||
| 350/1 | 3609201567 | 1.94 | 2.35 | |
| Coiled Spring Pin | ||||
| 350/2 | 3609201568 | 1.70 | 2.06 | |
| Socket head cap screw | ||||
| 353 | 3609201569 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 726 | 0601190025 | |||
| No longer available, no replacement | ||||
| 734/8 | 3603386050 | |||
| No information available, not orderable | ||||
| 758 | 2609390308 | |||
| No longer available, no replacement | ||||
| 759 | 2609390315 | |||
| No information available, not orderable | ||||
| 760 | 1609202230 | |||
| No longer available, no replacement | ||||
| 761 | 0601989108 | |||
| Adapter Plate For GCR 180 and GCR 350 | ||||
| 800 | 1600A009VE | 233.78 | 282.87 | |
| Motor Housing BLUE | ||||
| 801 | 3607031569 | 26.84 | 32.48 | |
| Field 220-240V | ||||
| 802 | 3604220155 | 60.65 | 73.39 | |
| Armature 220-240V | ||||
| 803 | 3604010097 | 209.26 | 253.20 | |
| Power supply cord | ||||
| 805 | 3604460147 | 209.26 | 253.20 | |
| Nameplate | ||||
| 808 | 160111A3H7 | 1.94 | 2.35 | |
| Carbon-Brush Set | ||||
| 810 | 3607014008 | 26.84 | 32.48 | |
| Brush Holder | ||||
| 816 | 1604336048 | 5.33 | 6.45 | |
| Cap-Handle | ||||
| 819 | 3605133026 | 60.65 | 73.39 | |
| End Shield | ||||
| 821 | 3605500168 | 304.19 | 368.07 | |
| Handle | ||||
| 824 | 3607031562 | 209.26 | 253.20 | |
| Connecting Plate | ||||
| 825 | 3607031563 | 55.25 | 66.85 | |
| Fan | ||||
| 835 | 1606610127 | 2.24 | 2.71 | |
| Retaining Washer | ||||
| 846 | 1607000342 | 2.71 | 3.28 | |
| Grounding plate | ||||
| 867 | 3607031560 | 23.75 | 28.74 | |
| Oil Reservoir 1000 ML | ||||
| 895 | 1615430019 | 55.25 | 66.85 | |
| Spindle Bearing | ||||
| 898 | 3609201577 | 1141.55 | 1381.28 | |
| Glide ring Ø32,2xØ41x1 MM | ||||
| 899 | 1600190043 | 5.33 | 6.45 | |
