Here you will find all available parts and drawings of the 'Bosch 060118A703 (GDB2200WE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

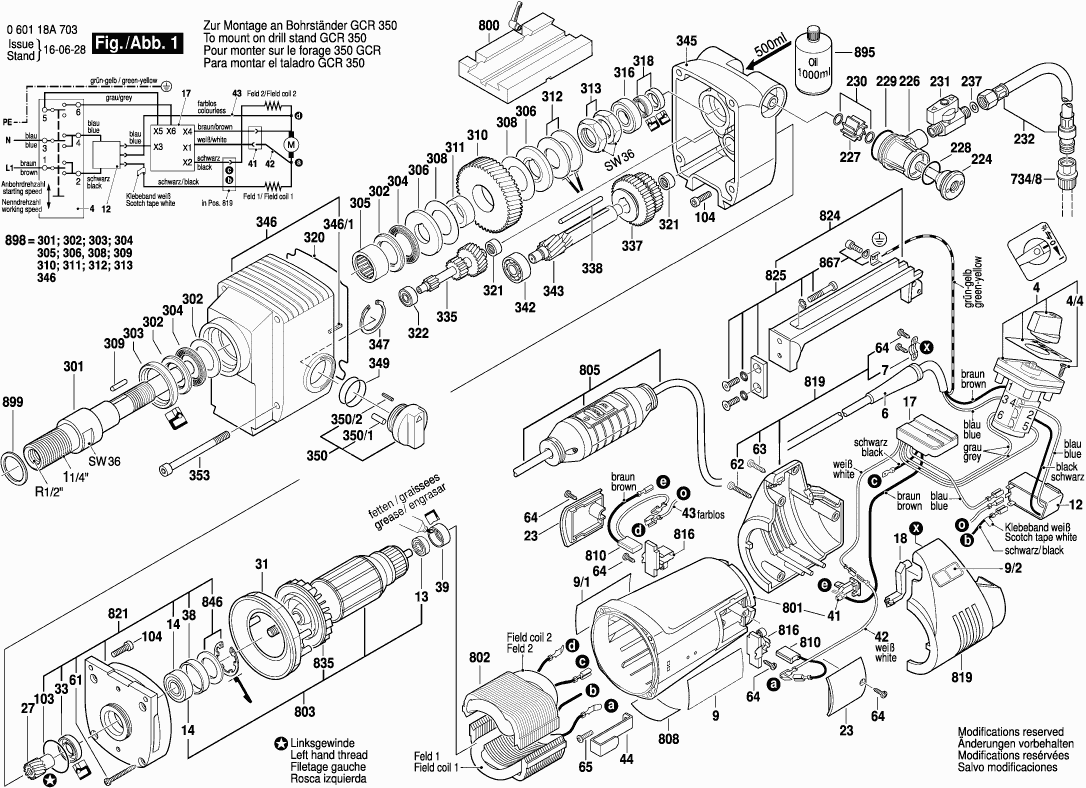

Technical drawing of model Bosch 060118A703 (GDB2200WE)
Spare parts list of model Bosch 060118A703 (GDB2200WE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| 4 | 3607031559 | 102.63 | 124.18 | |
| Tapping Screw | ||||
| 4/4 | 2910601327 | 5.27 | 6.38 | |
| Grommet | ||||
| 6 | 2600703019 | 2.40 | 2.90 | |
| Fastening Clamp | ||||
| 7 | 1601302013 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 3601119200 | 2.87 | 3.47 | |
| Reference Plate | ||||
| 9/1 | 3601119201 | 3.04 | 3.68 | |
| Reference Plate | ||||
| 9/2 | 3601119441 | 2.18 | 2.64 | |
| No longer available, no replacement | ||||
| 12 | 3607328018 | |||
| groove ball bearing | ||||
| 13 | 1600905011 | 5.81 | 7.03 | |
| groove ball bearing | ||||
| 14 | 3600905155 | 10.68 | 12.92 | |
| Speed governor | ||||
| 17 | 1607233170 | 67.98 | 82.26 | |
| Light Conductor | ||||
| 18 | 3604420008 | 9.47 | 11.46 | |
| Sealing cap | ||||
| 23 | 1605500206 | 3.71 | 4.49 | |
| Sealing cap | ||||
| 23 | 1618B00802 | 1.00 | 1.21 | |
| Drive Spur Wheel | ||||
| 27 | 3606309059 | 102.63 | 124.18 | |
| Air-Deflector Ring | ||||
| 31 | 3600499018 | 41.30 | 49.97 | |
| Rotary shaft lip seal | ||||
| 33 | 3600290065 | 22.88 | 27.68 | |
| Rubber Ring | ||||
| 38 | 1600206020 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 39 | 1600206030 | 1.49 | 1.80 | |
| Holding Plate | ||||
| 41 | 3602329040 | 1.90 | 2.30 | |
| Holding Plate | ||||
| 41 | 3602329038 | 1.24 | 1.50 | |
| Connecting Cable | ||||
| 42 | 3604441012 | 3.71 | 4.49 | |
| Connecting Cable | ||||
| 43 | 3604441013 | 3.71 | 4.49 | |
| Pickup Clip | ||||
| 44 | 1601334009 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 61 | 2912401039 | 1.90 | 2.30 | |
| Tapping Screw | ||||
| 62 | 3603435027 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 63 | 3603435028 | 1.00 | 1.21 | |
| Plastic-Cutting Screw | ||||
| 64 | 1603435042 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 65 | 2912401020 | 1.90 | 2.30 | |
| O-Ring | ||||
| 103 | 2600210003 | 2.40 | 2.90 | |
| Hex Socket Head Cap Screw | ||||
| 104 | 2910141201 | 2.40 | 2.90 | |
| Retaining Pin | ||||
| 224 | 3603100037 | 50.23 | 60.78 | |
| Sight Glass | ||||
| 226 | 3600700053 | 11.65 | 14.10 | |
| Impeller Wheel | ||||
| 227 | 3605510041 | 1.90 | 2.30 | |
| O-Ring | ||||
| 228 | 3600210112 | 1.32 | 1.60 | |
| O-Ring | ||||
| 229 | 3600210114 | 1.32 | 1.60 | |
| Plain Washer | ||||
| 230 | 3600100082 | 1.90 | 2.30 | |
| Isolating Valve | ||||
| 231 | 3602380011 | 22.88 | 27.68 | |
| Flexible Connection | ||||
| 232 | 3600760107 | 45.52 | 55.08 | |
| Sealing Disc | ||||
| 237 | 3600109014 | 2.52 | 3.05 | |
| Drilling Spindle | ||||
| 301 | 3609201540 | 340.97 | 412.57 | |
| Contrarotating Disc | ||||
| 302 | 3609201541 | 45.52 | 55.08 | |
| Shaft Seal | ||||
| 303 | 3609201542 | 41.30 | 49.97 | |
| Thrust Needle Bearing | ||||
| 304 | 3609201543 | 26.62 | 32.21 | |
| Needle-Roller Bearing | ||||
| 305 | 3609201544 | 114.26 | 138.25 | |
| Coupling Plate | ||||
| 306 | 3609201545 | 33.33 | 40.33 | |
| Friction Disk | ||||
| 308 | 3609201546 | 17.60 | 21.30 | |
| Straight Pin | ||||
| 309 | 3609201547 | 2.18 | 2.64 | |
| Cylindrical Gear | ||||
| 310 | 3609201548 | 166.62 | 201.61 | |
| Bearing Sleeve | ||||
| 311 | 3609201549 | 45.52 | 55.08 | |
| Disc Spring | ||||
| 312 | 3609201550 | 12.21 | 14.77 | |
| Hex Nut | ||||
| 313 | 3609201551 | 8.48 | 10.26 | |
| groove ball bearing | ||||
| 316 | 3609201552 | 26.62 | 32.21 | |
| Shaft Seal | ||||
| 318 | 3609201553 | 33.33 | 40.33 | |
| Seal | ||||
| 320 | 3609201570 | 15.61 | 18.89 | |
| Needle bearing | ||||
| 321 | 3609201554 | 37.50 | 45.38 | |
| groove ball bearing | ||||
| 322 | 3609201555 | 15.61 | 18.89 | |
| Pinion Shaft | ||||
| 335 | 3609201556 | 210.30 | 254.46 | |
| Sliding Gear | ||||
| 337 | 3609201557 | 210.30 | 254.46 | |
| Straight Pin | ||||
| 338 | 3609201558 | 6.53 | 7.90 | |
| groove ball bearing | ||||
| 342 | 3609201559 | 17.60 | 21.30 | |
| Pinion Shaft | ||||
| 343 | 3609201560 | 234.56 | 283.82 | |
| Upper Housing | ||||
| 345 | 3609201561 | 383.36 | 463.87 | |
| Housing Base | ||||
| 346 | 3609201563 | 435.14 | 526.52 | |
| Coiled Spring Pin | ||||
| 346/1 | 3609201562 | 2.18 | 2.64 | |
| Spring retaining ring | ||||
| 347 | 3609201564 | 1.32 | 1.60 | |
| O-Ring | ||||
| 349 | 3609201565 | 5.96 | 7.21 | |
| Clamp Handle | ||||
| 350 | 3609201566 | 75.38 | 91.21 | |
| Straight Pin | ||||
| 350/1 | 3609201567 | 2.18 | 2.64 | |
| Coiled Spring Pin | ||||
| 350/2 | 3609201568 | 1.90 | 2.30 | |
| Socket head cap screw | ||||
| 353 | 3609201569 | 4.58 | 5.54 | |
| No longer available, no replacement | ||||
| 726 | 0601190025 | |||
| No longer available, no replacement | ||||
| 734/8 | 3603386050 | |||
| Water pressure vessel | ||||
| 758 | 2609390308 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 759 | 2609390315 | |||
| Air Hose | ||||
| 760 | 1609202230 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 761 | 0601989103 | |||
| Adapter Plate | ||||
| 800 | 1600A009VE | 262.05 | 317.08 | |
| Motor Housing | ||||
| 801 | 3607031569 | 30.08 | 36.40 | |
| Field | ||||
| 802 | 3604220155 | 65.16 | 78.84 | |
| Armature | ||||
| 803 | 3604010097 | 234.56 | 283.82 | |
| Power supply cord | ||||
| 805 | 3604460147 | 222.63 | 269.38 | |
| Nameplate | ||||
| 808 | 160111A3H7 | 2.18 | 2.64 | |
| Carbon-Brush Set | ||||
| 810 | 3607014008 | 30.08 | 36.40 | |
| Brush Holder | ||||
| 816 | 1604336048 | 6.53 | 7.90 | |
| Cap-Handle | ||||
| 819 | 3605133026 | 67.98 | 82.26 | |
| End Shield | ||||
| 821 | 3605500168 | 340.97 | 412.57 | |
| Handle | ||||
| 824 | 3607031562 | 222.63 | 269.38 | |
| Connecting Plate | ||||
| 825 | 3607031563 | 61.93 | 74.94 | |
| Fan | ||||
| 835 | 1606610127 | 2.86 | 3.46 | |
| Retaining Washer | ||||
| 846 | 1607000342 | 3.44 | 4.16 | |
| Grounding plate | ||||
| 867 | 3607031560 | 26.62 | 32.21 | |
| Oil Reservoir | ||||
| 895 | 1615430019 | 61.93 | 74.94 | |
| Spindle Bearing | ||||
| 898 | 3609201577 | 1279.58 | 1548.29 | |
| Glide ring | ||||
| 899 | 1600190043 | 6.53 | 7.90 | |
