Here you will find all available parts and drawings of the 'Bosch 3601A89800 (GDB180WE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

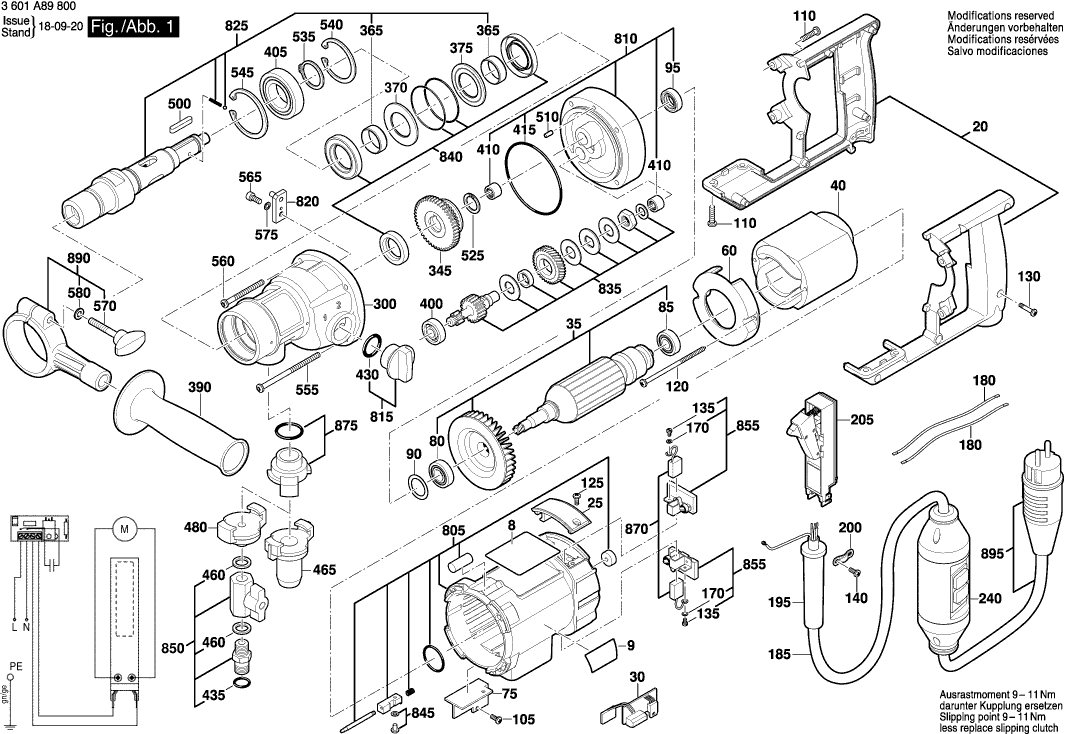

Technical drawing of model Bosch 3601A89800 (GDB180WE)
Spare parts list of model Bosch 3601A89800 (GDB180WE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Nameplate | ||||
| 8 | 1619PB1103 | 3.44 | 4.16 | |
| Manufacturer's nameplate | ||||
| 9 | 1619P31251 | 3.44 | 4.16 | |
| Handle Cover | ||||
| 20 | 1600A004XT | 98.18 | 118.80 | |
| Brush-Cover | ||||
| 25 | 1600A004XU | 21.30 | 25.77 | |
| Printed Circuit Board | ||||
| 30 | 1600A004XV | 126.98 | 153.65 | |
| Printed Circuit Board | ||||
| 30 | 1600A01AM3 | 98.18 | 118.80 | |
| Armature With Fan | ||||
| 35 | 1600A004XW | 314.42 | 380.45 | |
| Field | ||||
| 40 | 1604220538 | 273.59 | 331.04 | |
| Air-Deflector Ring | ||||
| 60 | 160059105K | 18.94 | 22.92 | |
| Cooling Sheet | ||||
| 75 | 1600A004XX | 16.79 | 20.32 | |
| groove ball bearing | ||||
| 80 | 160090004C | 31.42 | 38.02 | |
| groove ball bearing | ||||
| 85 | 160090004D | 31.42 | 38.02 | |
| Shim | ||||
| 90 | 1600A004XY | 3.44 | 4.16 | |
| Rotary shaft lip seal | ||||
| 95 | 1600A004Y0 | 21.30 | 25.77 | |
| Oval-Head Screw | ||||
| 105 | 1600A004Y1 | 2.08 | 2.52 | |
| Plastic-Cutting Screw | ||||
| 110 | 1600A004Y2 | 2.08 | 2.52 | |
| Oval-Head Screw | ||||
| 120 | 1600A004Y3 | 4.18 | 5.06 | |
| Plastic-Cutting Screw | ||||
| 125 | 1600A019B6 | 1.00 | 1.21 | |
| Oval-Head Screw | ||||
| 130 | 1600A004Y5 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 135 | 160341001B | 1.49 | 1.80 | |
| Oval-Head Screw | ||||
| 140 | 1600A004Y4 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 170 | 1600A004Y6 | |||
| Stranded Hook-Up Wire | ||||
| 180 | 1600A004Y7 | 10.90 | 13.19 | |
| Mains Cable | ||||
| 185 | 1600A004Z0 | 80.26 | 97.11 | |
| Cord guard | ||||
| 195 | 160070304B | 10.90 | 13.19 | |
| Fastening Clamp | ||||
| 200 | 1600A004Y8 | 2.86 | 3.46 | |
| Mains switch | ||||
| 205 | 1600A004Y9 | 98.18 | 118.80 | |
| Switch | ||||
| 240 | 1607200329 | 304.15 | 368.02 | |
| Switch | ||||
| 240 | 160720038P | 173.95 | 210.48 | |
| Gear Housing | ||||
| 300 | 160580658Z | 273.59 | 331.04 | |
| Cylindrical Gear | ||||
| 345 | 1600A004YA | 197.62 | 239.12 | |
| Protection Sleeve | ||||
| 365 | 1600A004YB | 16.79 | 20.32 | |
| Protective Washer | ||||
| 370 | 1600A004YC | 39.14 | 47.36 | |
| Protective Washer | ||||
| 375 | 1600A004YD | 39.14 | 47.36 | |
| Auxiliary Handle | ||||
| 390 | 160202507S | 23.90 | 28.92 | |
| groove ball bearing | ||||
| 400 | 160090004E | 18.94 | 22.92 | |
| groove ball bearing | ||||
| 405 | 160090004F | 52.45 | 63.46 | |
| Needle bearing | ||||
| 410 | 1600A004YE | 16.79 | 20.32 | |
| O-Ring | ||||
| 415 | 1600210062 | 4.18 | 5.06 | |
| O-Ring | ||||
| 430 | 1600210063 | 2.08 | 2.52 | |
| O-Ring | ||||
| 435 | 1600210064 | 2.08 | 2.52 | |
| Seal Ring | ||||
| 460 | 1600A004YF | 1.49 | 1.80 | |
| Hose Coupling | ||||
| 465 | 1600A004YG | 43.12 | 52.18 | |
| Threaded Fitting | ||||
| 480 | 1600A004YH | 47.53 | 57.51 | |
| Parallel Key | ||||
| 500 | 1600A004YJ | 2.08 | 2.52 | |
| Straight Pin | ||||
| 510 | 1600A004YK | 1.49 | 1.80 | |
| Spring retaining ring | ||||
| 525 | 160015001P | 4.94 | 5.98 | |
| Spring retaining ring | ||||
| 535 | 160015001R | 3.44 | 4.16 | |
| Spring retaining ring | ||||
| 540 | 160015001S | 6.73 | 8.14 | |
| Spring retaining ring | ||||
| 545 | 160015001T | 4.94 | 5.98 | |
| Screw | ||||
| 555 | 1603430013 | 4.18 | 5.06 | |
| Screw | ||||
| 560 | 1603430015 | 2.86 | 3.46 | |
| Hex Socket Head Cap Screw | ||||
| 565 | 1600A004Z6 | 1.00 | 1.21 | |
| Wing Screw | ||||
| 570 | 1603480025 | 4.94 | 5.98 | |
| Locking washer | ||||
| 575 | 1600A004YM | 1.00 | 1.21 | |
| Plain Washer | ||||
| 580 | 1600A004YL | 1.00 | 1.21 | |
| Motor Housing | ||||
| 805 | 16051082B7 | 273.59 | 331.04 | |
| Intermediate Flange | ||||
| 810 | 1600A005AV | 219.55 | 265.66 | |
| Clamp Handle | ||||
| 815 | 1602026101 | 71.68 | 86.73 | |
| Control Lever | ||||
| 820 | 1600A006FT | 31.42 | 38.02 | |
| Drilling Spindle | ||||
| 825 | 1600A004YV | 244.89 | 296.32 | |
| Gear | ||||
| 835 | 1600A005AW | 244.89 | 296.32 | |
| Fastening set | ||||
| 840 | 1600A005AX | 58.03 | 70.22 | |
| Parts Set | ||||
| 845 | 1600A005B6 | 4.94 | 5.98 | |
| Isolating Valve | ||||
| 850 | 1600A005AY | 80.26 | 97.11 | |
| Brush Holder | ||||
| 855 | 1600A004YP | 71.68 | 86.73 | |
| Carbon-Brush Set | ||||
| 870 | 160701417L | 31.42 | 38.02 | |
| Coupling | ||||
| 875 | 1600A004YU | 34.82 | 42.13 | |
| Support clamp | ||||
| 890 | 1600A004Z7 | 88.83 | 107.48 | |
| Power supply cord | ||||
| 895 | 160446071N | 80.26 | 97.11 | |
