Here you will find all available parts and drawings of the 'Bosch 0601189708 (GDB1600WE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

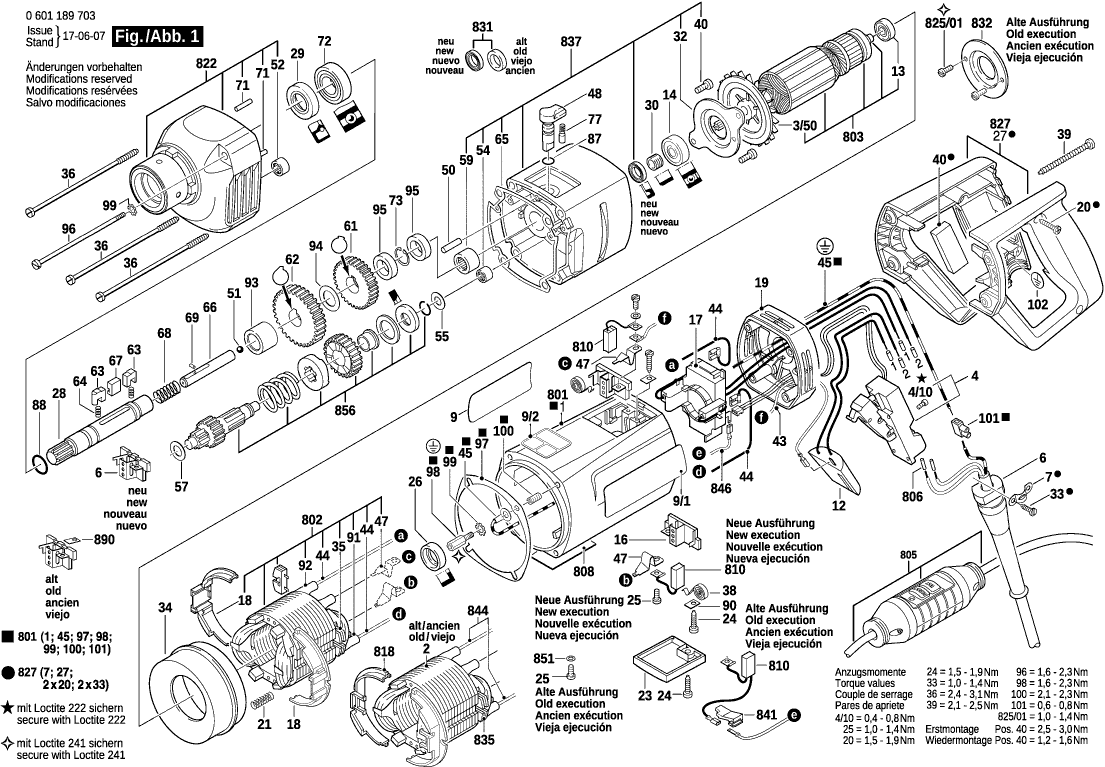

Technical drawing of model Bosch 0601189708 (GDB1600WE)
Spare parts list of model Bosch 0601189708 (GDB1600WE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 3/50 | 3606610002 | |||
| Switch | ||||
| 4 | 3607200074 | 41.30 | 49.97 | |
| Socket head cap screw | ||||
| 4/10 | 2910011082 | 1.00 | 1.21 | |
| Grommet | ||||
| 6 | 3600703011 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302013 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 3601110511 | 1.24 | 1.50 | |
| Reference Plate | ||||
| 9/1 | 3601110434 | 1.73 | 2.09 | |
| Reference Plate | ||||
| 9/2 | 3601110513 | 1.24 | 1.50 | |
| No longer available, no replacement | ||||
| 12 | 3607328013 | |||
| Ball Bearing | ||||
| 13 | 2600905032 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 14 | 1619P00290 | 6.73 | 8.14 | |
| Brush Holder | ||||
| 16 | 3604336012 | 5.81 | 7.03 | |
| Speed governor | ||||
| 17 | 1607233156 | 45.52 | 55.08 | |
| Segmented Ring | ||||
| 18 | 3600460006 | 2.18 | 2.64 | |
| Cover | ||||
| 19 | 3605500153 | 3.48 | 4.21 | |
| Torx Oval-Head Screw | ||||
| 20 | 2914201507 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 21 | 1604613006 | 1.49 | 1.80 | |
| Sealing cap | ||||
| 23 | 3605500063 | 4.21 | 5.09 | |
| Tapping Screw | ||||
| 24 | 2910211019 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 25 | 2910021118 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 26 | 1600502011 | 2.40 | 2.90 | |
| Drilling Spindle | ||||
| 28 | 3606135006 | 67.98 | 82.26 | |
| Rotary shaft lip seal | ||||
| 29 | 3600283042 | 15.61 | 18.89 | |
| Intermediate Ring | ||||
| 30 | 1600300090 | 3.44 | 4.16 | |
| Bearing cover | ||||
| 32 | 3605500156 | 5.27 | 6.38 | |
| Tapping Screw | ||||
| 33 | 2910211018 | 1.00 | 1.21 | |
| Air-Deflector Ring | ||||
| 34 | 3600499016 | 3.71 | 4.49 | |
| Wire Guide | ||||
| 35 | 3601025003 | 1.49 | 1.80 | |
| Lens Head Screw | ||||
| 36 | 3603435024 | 2.00 | 2.42 | |
| Spiral Spring | ||||
| 38 | 3604652001 | 2.18 | 2.64 | |
| Tapping Screw | ||||
| 39 | 2910211239 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 40 | 3604411040 | 2.18 | 2.64 | |
| Connecting Cable | ||||
| 43 | 3604460068 | 2.18 | 2.64 | |
| Connecting Cable | ||||
| 44 | 3604438031 | 1.90 | 2.30 | |
| Earth Conductor | ||||
| 45 | 3604414049 | 11.65 | 14.10 | |
| Blade terminal | ||||
| 47 | 1604477001 | 1.49 | 1.80 | |
| Rotary Knob | ||||
| 48 | 3603231008 | 12.21 | 14.77 | |
| Straight Pin | ||||
| 50 | 2917550099 | 1.32 | 1.60 | |
| Ball | ||||
| 51 | 1903230013 | 2.08 | 2.52 | |
| Needle-Roller Bearing | ||||
| 52 | 2600910001 | 4.18 | 5.06 | |
| Needle bearing | ||||
| 54 | 1600910018 | 4.94 | 5.98 | |
| Shim | ||||
| 55 | 1600100617 | 1.49 | 1.80 | |
| Shim | ||||
| 57 | 3600100083 | 1.32 | 1.60 | |
| Needle bearing | ||||
| 59 | 1610910088 | 5.27 | 6.38 | |
| Cylindrical Gear | ||||
| 61 | 3606317047 | 55.56 | 67.23 | |
| Cylindrical Gear | ||||
| 62 | 3606317048 | 55.56 | 67.23 | |
| Wedge | ||||
| 63 | 3602317037 | 15.61 | 18.89 | |
| Compression Spring | ||||
| 64 | 3604610048 | 1.32 | 1.60 | |
| Seal | ||||
| 65 | 3601015009 | 2.18 | 2.64 | |
| Carrier | ||||
| 66 | 3600101051 | 55.56 | 67.23 | |
| Guide Key | ||||
| 67 | 3602317050 | 4.58 | 5.54 | |
| Compression Spring | ||||
| 68 | 3604610049 | 1.90 | 2.30 | |
| Coiled Spring Pin | ||||
| 69 | 2917800032 | 1.00 | 1.21 | |
| Straight Pin | ||||
| 71 | 2917500121 | 1.00 | 1.21 | |
| groove ball bearing | ||||
| 72 | 1900900273 | 20.39 | 24.67 | |
| Spring retaining ring | ||||
| 73 | 2916650008 | 1.49 | 1.80 | |
| Ratchet Cap | ||||
| 77 | 2600590006 | 1.49 | 1.80 | |
| O-Ring | ||||
| 87 | 3600210028 | 1.90 | 2.30 | |
| O-Ring | ||||
| 88 | 3600210115 | 1.32 | 1.60 | |
| Shrinkable Tube | ||||
| 91 | 3600707022 | 3.44 | 4.16 | |
| Shrinkable Tube | ||||
| 92 | 3600707022 | 3.44 | 4.16 | |
| Spacer Sleeve | ||||
| 93 | 3600400028 | 7.32 | 8.86 | |
| Plain Washer | ||||
| 94 | 3600400025 | 2.52 | 3.05 | |
| Spacer Sleeve | ||||
| 95 | 3600400026 | 8.48 | 10.26 | |
| Socket head cap screw | ||||
| 96 | 3603414022 | 7.32 | 8.86 | |
| Contact Sheet | ||||
| 97 | 3601016003 | 20.39 | 24.67 | |
| Bolt | ||||
| 98 | 3603100033 | 2.52 | 3.05 | |
| Toothed lock washer | ||||
| 99 | 2916031006 | 1.00 | 1.21 | |
| Threaded Insert | ||||
| 100 | 3603100034 | 1.32 | 1.60 | |
| Socket-Terminal Strip | ||||
| 101 | 3602319041 | 1.32 | 1.60 | |
| Reference Plate | ||||
| 102 | 3601119070 | 3.04 | 3.68 | |
| Protective Cap | ||||
| 201 | 3605500152 | 2.52 | 3.05 | |
| Retaining ring | ||||
| 202 | 3600224046 | 1.32 | 1.60 | |
| Sleeve | ||||
| 204 | 3600400023 | 2.38 | 2.88 | |
| Retaining Washer | ||||
| 205 | 3600100079 | 2.18 | 2.64 | |
| groove ball bearing | ||||
| 206 | 3600905114 | 30.08 | 36.40 | |
| Carrier | ||||
| 207 | 3606319030 | 50.23 | 60.78 | |
| Hollow Shaft | ||||
| 208 | 3603130004 | 146.07 | 176.74 | |
| Compression Spring | ||||
| 209 | 3604610155 | 2.18 | 2.64 | |
| Spring retaining ring | ||||
| 212 | 2916650017 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 213 | 3600224050 | 1.32 | 1.60 | |
| Sealing disk | ||||
| 214 | 3600109013 | 1.32 | 1.60 | |
| Compression Spring | ||||
| 215 | 3604610053 | 4.58 | 5.54 | |
| Stop Ring | ||||
| 216 | 3600300056 | 17.22 | 20.84 | |
| Driver Disc | ||||
| 217 | 3600113021 | 10.68 | 12.92 | |
| Retaining ring | ||||
| 218 | 3600224051 | 1.24 | 1.50 | |
| Retaining ring | ||||
| 219 | 3600224047 | 1.32 | 1.60 | |
| Rotary shaft lip seal | ||||
| 220 | 3600283041 | 10.68 | 12.92 | |
| Supporting Disc | ||||
| 221 | 3600190021 | 5.96 | 7.21 | |
| Retaining Pin | ||||
| 224 | 3603100037 | 50.23 | 60.78 | |
| Housing | ||||
| 225 | 3605102084 | 166.62 | 201.61 | |
| Sight Glass | ||||
| 226 | 3600700053 | 11.65 | 14.10 | |
| Impeller Wheel | ||||
| 227 | 3605510041 | 1.90 | 2.30 | |
| O-Ring | ||||
| 228 | 3600210112 | 1.32 | 1.60 | |
| O-Ring | ||||
| 229 | 3600210114 | 1.32 | 1.60 | |
| Plain Washer | ||||
| 230 | 3600100082 | 1.90 | 2.30 | |
| Isolating Valve | ||||
| 231 | 3602380011 | 22.88 | 27.68 | |
| Flexible Connection | ||||
| 232 | 3600760107 | 45.52 | 55.08 | |
| O-Ring | ||||
| 232/60 | 1609351000 | 1.49 | 1.80 | |
| Straight Pin | ||||
| 235 | 2917550077 | 1.00 | 1.21 | |
| Self-locking nut | ||||
| 236 | 3603386057 | 1.90 | 2.30 | |
| Sealing Disc | ||||
| 237 | 3600109014 | 2.52 | 3.05 | |
| Spring retaining ring | ||||
| 238 | 3600224056 | 1.32 | 1.60 | |
| Retaining snap ring | ||||
| 240 | 3600300057 | 17.22 | 20.84 | |
| Auxiliary Handle | ||||
| 651 | 3602025014 | 3.71 | 4.49 | |
| Carrying Case | ||||
| 654 | 1615438373 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 715 | 2608598112 | |||
| No longer available, no replacement | ||||
| 725 | 2609390317 | |||
| No longer available, no replacement | ||||
| 725/1 | 2609390318 | |||
| No longer available, no replacement | ||||
| 726 | 0601190025 | |||
| No longer available, no replacement | ||||
| 727 | 2609390313 | |||
| No longer available, no replacement | ||||
| 734/8 | 3603386050 | |||
| Water pressure vessel | ||||
| 758 | 2609390308 | 0.83 | 1.00 | |
| No longer available, no replacement | ||||
| 759 | 2609390315 | |||
| Air Hose | ||||
| 760 | 1609202230 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 761 | 0601989108 | |||
| Motor Housing | ||||
| 801 | 3605108181 | 55.56 | 67.23 | |
| Field | ||||
| 802 | 3604220154 | 45.52 | 55.08 | |
| No longer available, no replacement | ||||
| 803 | 3604010088 | |||
| Power supply cord | ||||
| 805 | 3604460120 | 166.62 | 201.61 | |
| End Splice | ||||
| 806 | 3604477009 | 2.40 | 2.90 | |
| Nameplate | ||||
| 808 | 160111A3H7 | 2.18 | 2.64 | |
| Carbon-Brush Set | ||||
| 810 | 3607014003 | 30.08 | 36.40 | |
| Star Knob | ||||
| 811 | 3603349003 | 17.60 | 21.30 | |
| Segmented Ring | ||||
| 818 | 3600460005 | 1.24 | 1.50 | |
| Fastener | ||||
| 820/03 | 3602319043 | 17.22 | 20.84 | |
| Spindle Bearing | ||||
| 822 | 3605806184 | 146.07 | 176.74 | |
| Clamp Bushing | ||||
| 823 | 3600300055 | 11.65 | 14.10 | |
| Socket head cap screw | ||||
| 825/01 | 2910021118 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 827 | 3605133019 | |||
| Rotary shaft lip seal | ||||
| 831 | 3600290070 | 10.68 | 12.92 | |
| Bearing cover | ||||
| 832 | 3605500043 | 3.71 | 4.49 | |
| Wire Guide | ||||
| 835 | 1601025001 | 1.32 | 1.60 | |
| Intermediate Bearing | ||||
| 837 | 3607030438 | 146.07 | 176.74 | |
| Flyweight | ||||
| 841 | 3602329031 | 33.33 | 40.33 | |
| Connecting Cable | ||||
| 844 | 3604438017 | 3.48 | 4.21 | |
| Connecting Cable | ||||
| 846 | 3604441010 | 1.90 | 2.30 | |
| Spring Washer | ||||
| 851 | 2916060005 | 1.00 | 1.21 | |
| Spur Wheel Clutch | ||||
| 856 | 3606309054 | 383.36 | 463.87 | |
| Tab Washer | ||||
| 890 | 1601030022 | 1.49 | 1.80 | |
