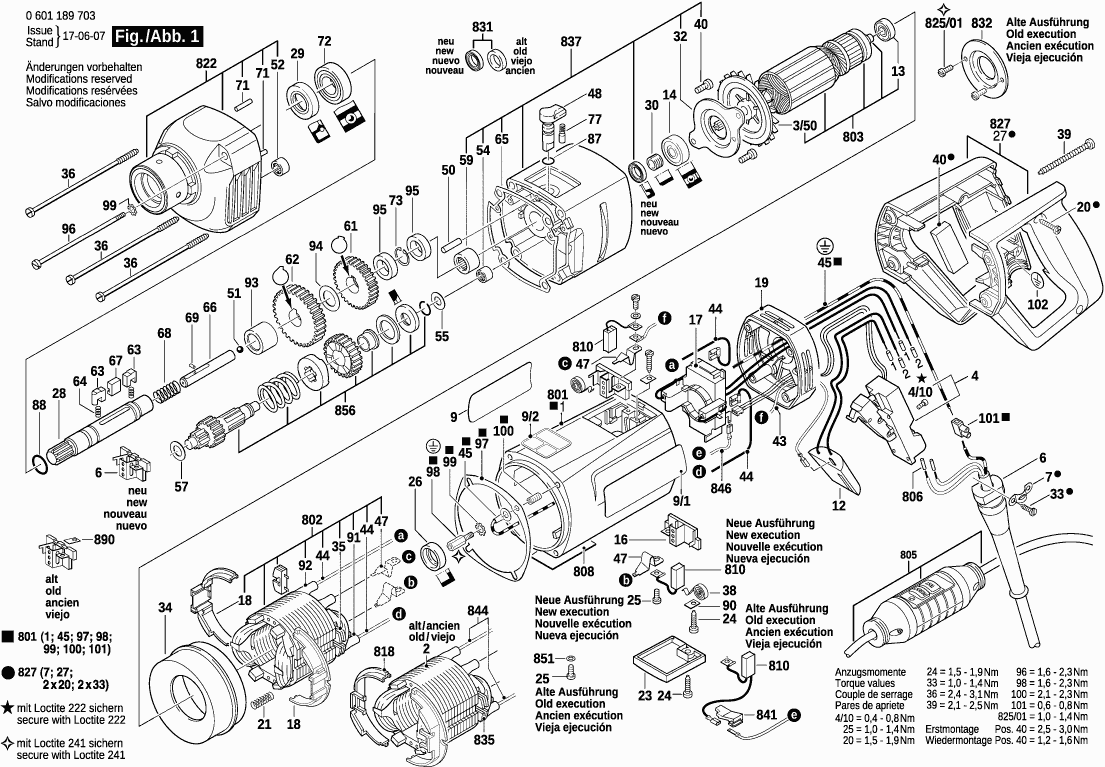

Technical drawing of model Bosch 0601189703 ( GDB1600WE )

Spare parts list of model Bosch 0601189703 ( GDB1600WE )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
No longer available, no replacement
3/50 3606610002
Switch
4 3607200074 36.85 44.59
Socket head cap screw DIN 84-AM3,5x6-5.8
4/10 2910011082 0.83 1.00
Grommet Ø9,2-Ø12x120 MM
6 3600703011 2.24 2.71
Fastening Clamp
7 1601302013 1.18 1.43
Manufacturer's nameplate
9 3601110511 1.18 1.43
Reference Plate SHADOW SIDE
9/1 3601110434 1.70 2.06
Reference Plate
9/2 3601110513 1.18 1.43
No longer available, no replacement
12 3607328013
Ball Bearing 7x19x6
13 2600905032 4.10 4.96
groove ball bearing
14 1619P00290 5.33 6.45
Brush Holder
16 3604336012 4.70 5.69
Speed governor 220-240V
17 1607233156 40.61 49.14
Segmented Ring
18 3600460006 1.94 2.35
Cover
19 3605500153 3.31 4.01
Torx Oval-Head Screw
20 2914201507 0.83 1.00
Compression Spring
21 1604613006 1.18 1.43
Sealing cap BLUE
23 3605500063 3.31 4.01
Tapping Screw DIN 7971-ST3,9x16-F
24 2910211019 0.83 1.00
Socket head cap screw DIN 84-AM4x8-8.8
25 2910021118 0.83 1.00
Intermediate Ring
26 1600502011 1.94 2.35
Drilling Spindle
28 3606135006 60.65 73.39
Rotary shaft lip seal 17X32X7
29 3600283042 13.93 16.86
Intermediate Ring
30 1600300090 2.71 3.28
Bearing cover
32 3605500156 4.70 5.69
Tapping Screw DIN 7971-ST3,9x13-F
33 2910211018 0.83 1.00
Air-Deflector Ring
34 3600499016 3.31 4.01
Wire Guide
35 3601025003 1.18 1.43
Lens Head Screw
36 3603435024 1.94 2.35
Spiral Spring
38 3604652001 1.94 2.35
Tapping Screw DIN 79-4,8x45-C-ST
39 2910211239 0.83 1.00
Thread-forming tap. Screw
40 3604411040 1.94 2.35
Connecting Cable L=160 MM
43 3604460068 1.94 2.35
Connecting Cable
44 3604438031 1.70 2.06
Earth Conductor L=415 MM
45 3604414049 10.73 12.98
Blade terminal
47 1604477001 1.18 1.43
Rotary Knob
48 3603231008 11.88 14.37
Straight Pin DIN 6325-4m6x20
50 2917550099 1.18 1.43
Ball DIN 5401-Ø7MM-III-ST
51 1903230013 1.70 2.06
Needle-Roller Bearing Ø14 MM
52 2600910001 3.31 4.01
Needle bearing Ø8xØ12x8 MM
54 1600910018 4.10 4.96
Shim 0,5 MM THICK
55 1600100617 1.18 1.43
Shim
57 3600100083 1.18 1.43
Needle bearing
59 1610910088 4.70 5.69
Cylindrical Gear Z=34
61 3606317047 49.56 59.97
Cylindrical Gear Z=45
62 3606317048 49.56 59.97
Wedge
63 3602317037 13.93 16.86
Compression Spring
64 3604610048 1.18 1.43
Seal
65 3601015009 1.94 2.35
Carrier
66 3600101051 49.56 59.97
Thin Melt Safety
67 3602317050 4.10 4.96
Compression Spring
68 3604610049 1.70 2.06
Coiled Spring Pin DIN 7343-4x2
69 2917800032 0.83 1.00
Straight Pin 5 H 8x18 DIN 7
71 2917500121 0.83 1.00
groove ball bearing 6003 Y DIN 625
72 1900900273 18.19 22.01
Spring retaining ring DIN 471 17x1 MM
73 2916650008 1.18 1.43
Ratchet Cap
77 2600590006 1.18 1.43
O-Ring 6,0x2,0 MM
87 3600210028 1.70 2.06
O-Ring 12,5x2,5 MM
88 3600210115 1.18 1.43
Shrinkable Tube
91 3600707022 2.71 3.28
Shrinkable Tube
92 3600707022 2.71 3.28
Spacer Sleeve
93 3600400028 6.54 7.91
Plain Washer
94 3600400025 2.24 2.71
Spacer Sleeve
95 3600400026 7.58 9.17
Socket head cap screw M4x103 MM
96 3603414022 6.54 7.91
Contact Sheet
97 3601016003 18.19 22.01
Bolt
98 3603100033 2.24 2.71
Toothed lock washer
99 2916031006 0.83 1.00
Threaded Insert
100 3603100034 1.18 1.43
Socket-Terminal Strip 1x1,5 MM
101 3602319041 1.18 1.43
Reference Plate
102 3601119070 2.71 3.28
Protective Cap
201 3605500152 2.24 2.71
Retaining ring
202 3600224046 1.18 1.43
Sleeve
204 3600400023 2.24 2.71
Retaining Washer
205 3600100079 1.94 2.35
groove ball bearing 30x47x9
206 3600905114 26.84 32.48
Carrier
207 3606319030 44.82 54.23
Hollow Shaft
208 3603130004 130.32 157.69
Compression Spring
209 3604610155 1.94 2.35
Spring retaining ring DIN 471 30x1,5 MM
212 2916650017 1.18 1.43
Retaining ring
213 3600224050 1.18 1.43
Sealing disk
214 3600109013 1.18 1.43
Compression Spring
215 3604610053 4.10 4.96
Stop Ring
216 3600300056 15.71 19.01
Driver Disc
217 3600113021 9.53 11.53
Retaining ring
218 3600224051 1.18 1.43
Retaining ring
219 3600224047 1.18 1.43
Rotary shaft lip seal 30X42X6
220 3600283041 9.53 11.53
Supporting Disc
221 3600190021 5.33 6.45
Retaining Pin
224 3603100037 44.82 54.23
Housing
225 3605102084 148.65 179.87
Sight Glass
226 3600700053 10.73 12.98
Impeller Wheel
227 3605510041 1.70 2.06
O-Ring 25,0x2,65 MM
228 3600210112 1.18 1.43
O-Ring 33,0x2,5 MM
229 3600210114 1.18 1.43
Plain Washer
230 3600100082 1.70 2.06
Isolating Valve
231 3602380011 20.42 24.71
Flexible Connection
232 3600760107 40.61 49.14
O-Ring 11x2,5 MM
232/60 1609351000 1.18 1.43
Straight Pin DIN 6325-3M6x12
235 2917550077 0.83 1.00
Self-locking nut M5
236 3603386057 1.70 2.06
Sealing Disc
237 3600109014 2.24 2.71
Spring retaining ring
238 3600224056 1.18 1.43
Retaining snap ring
240 3600300057 15.71 19.01
Auxiliary Handle M14 BLACK
651 3602025014 3.31 4.01
Carrying Case
654 1615438373 0.83 1.00
No longer available, no replacement
715 2608598112
No longer available, no replacement
725 2609390317
No longer available, no replacement
725/1 2609390318
No longer available, no replacement
726 0601190025
No longer available, no replacement
727 2609390313
No longer available, no replacement
734/8 3603386050
No information available, not orderable
758 2609390308
No longer available, no replacement
759 2609390315
No information available, not orderable
760 1609202230
No longer available, no replacement
761 0601989103
Motor Housing BLUE
801 3605108181 49.56 59.97
Field 220-240V
802 3604220154 40.61 49.14
No longer available, no replacement
803 3604010088
Power supply cord
805 3604460120 148.65 179.87
End Splice
806 3604477009 1.18 1.43
Nameplate
808 160111A3H7 1.94 2.35
Carbon-Brush Set
810 3607014003 26.84 32.48
Star Knob
811 3603349003 15.71 19.01
Segmented Ring
818 3600460005 1.18 1.43
Fastener
820/03 3602319043 15.71 19.01
Spindle Bearing
822 3605806184 130.32 157.69
Clamp Bushing
823 3600300055 10.73 12.98
Socket head cap screw DIN 84-AM4x8-8.8
825/01 2910021118 0.83 1.00
No longer available, no replacement
827 3605133019
Rotary shaft lip seal
831 3600290070 9.53 11.53
Bearing cover
832 3605500043 3.31 4.01
Wire Guide
835 1601025001 1.10 1.33
Intermediate Bearing
837 3607030438 130.32 157.69
Flyweight
841 3602329031 29.75 36.00
Connecting Cable L=330 MM GRAY
844 3604438017 3.31 4.01
Connecting Cable L=170 MM WHITE
846 3604441010 1.70 2.06
Spring Washer DIN 137-A 4-ST
851 2916060005 0.83 1.00
Spur Wheel Clutch
856 3606309054 342.01 413.83
Tab Washer
890 1601030022 1.18 1.43
