Here you will find all available parts and drawings of the 'Bosch 3601JK8000 ( GCU18V-30 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

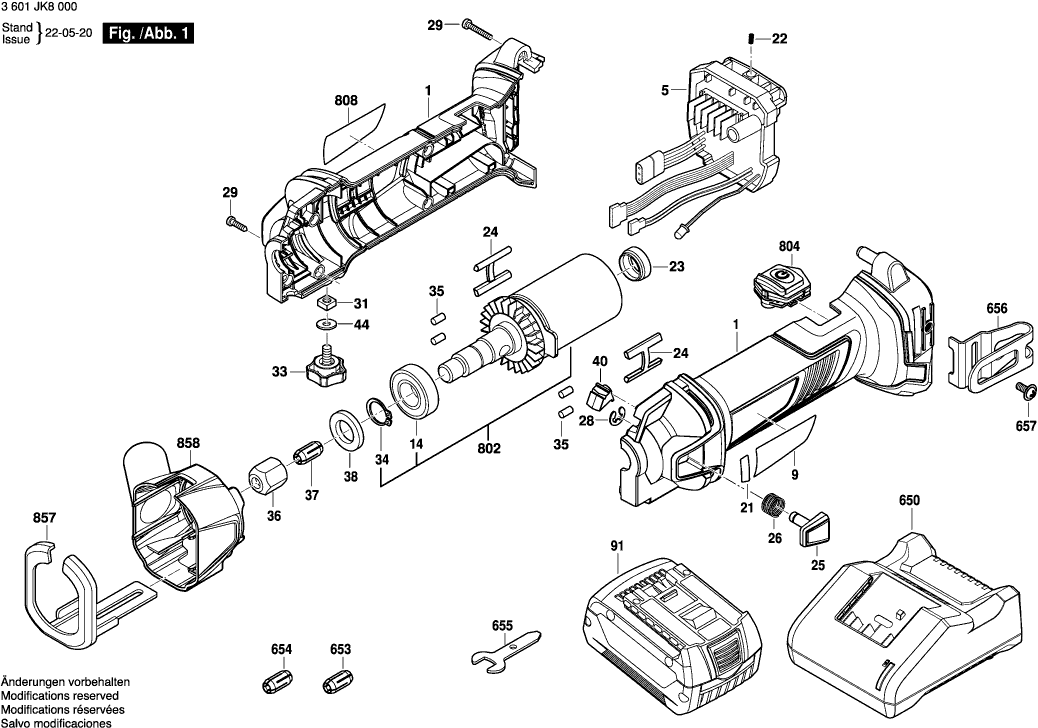

Technical drawing of model Bosch 3601JK8000 ( GCU18V-30 )
Spare parts list of model Bosch 3601JK8000 ( GCU18V-30 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Assembly | ||||
| 1 | 1619PB9219 | 5.33 | 6.45 | |
| Electronic Module | ||||
| 5 | 1619PB7423 | 60.65 | 73.39 | |
| Manufacturer's nameplate | ||||
| 9 | 1619PB9208 | 2.71 | 3.28 | |
| Bearing | ||||
| 14 | 1619PB7442 | 7.58 | 9.17 | |
| Label | ||||
| 21 | 1619PB9209 | 4.10 | 4.96 | |
| Spring | ||||
| 22 | 1619PB7433 | 0.83 | 1.00 | |
| Rubber Cap | ||||
| 23 | 1619PB7419 | 0.83 | 1.00 | |
| Rubber Pad | ||||
| 24 | 1619PB7412 | 0.83 | 1.00 | |
| Locking Element | ||||
| 25 | 1619PB7404 | 0.83 | 1.00 | |
| Lock Spring | ||||
| 26 | 1619PB7430 | 0.83 | 1.00 | |
| Collar | ||||
| 28 | 1619PB7441 | 0.83 | 1.00 | |
| Tapping Screw | ||||
| 29 | 1619PB7443 | 0.83 | 1.00 | |
| Square Nut | ||||
| 31 | 1619PB7453 | 0.83 | 1.00 | |
| Knob | ||||
| 33 | 1619PB7411 | 1.18 | 1.43 | |
| Collar | ||||
| 34 | 1619PB7440 | 0.83 | 1.00 | |
| Rubber Pad | ||||
| 35 | 1619PB7414 | 1.18 | 1.43 | |
| Nut | ||||
| 36 | 2610909203 | 5.83 | 7.05 | |
| Collet | ||||
| 37 | 1619PC0020 | 7.58 | 9.17 | |
| Felt | ||||
| 38 | 1619PB7438 | 0.83 | 1.00 | |
| Cover | ||||
| 40 | 1619PB7405 | 0.83 | 1.00 | |
| Washer | ||||
| 44 | 1619PB9244 | 0.83 | 1.00 | |
| Battery Pack GBA 18V 4.0Ah ProCore SCM | ||||
| 91 | 1607A350AN | 113.29 | 137.08 | |
| Fast Charger EU GAL 18V-40, 230V/10,8V – 18V | ||||
| 650 | 2607226251 | 67.25 | 81.37 | |
| Collet 1/4" | ||||
| 653 | 2615295091 | 8.45 | 10.22 | |
| Collet 5/32" | ||||
| 654 | 2610924080 | 5.83 | 7.05 | |
| Assembly Wrench | ||||
| 655 | 2610925591 | 1.18 | 1.43 | |
| Clip | ||||
| 656 | 2609111584 | 2.71 | 3.28 | |
| Screw | ||||
| 657 | 1619PB9292 | 0.83 | 1.00 | |
| Motor assembly | ||||
| 802 | 1619PB9291 | 73.72 | 89.20 | |
| Switch Assembly | ||||
| 804 | 1619PB9296 | 5.33 | 6.45 | |
| Nameplate | ||||
| 808 | 1619PB9214 | 2.71 | 3.28 | |
| Holding Plate | ||||
| 857 | 1619PB7458 | 4.10 | 4.96 | |
| Cover | ||||
| 858 | 1619PB7418 | 1.94 | 2.35 | |
