Here you will find all available parts and drawings of the 'Bosch 3601C91000 ( GCT-115 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

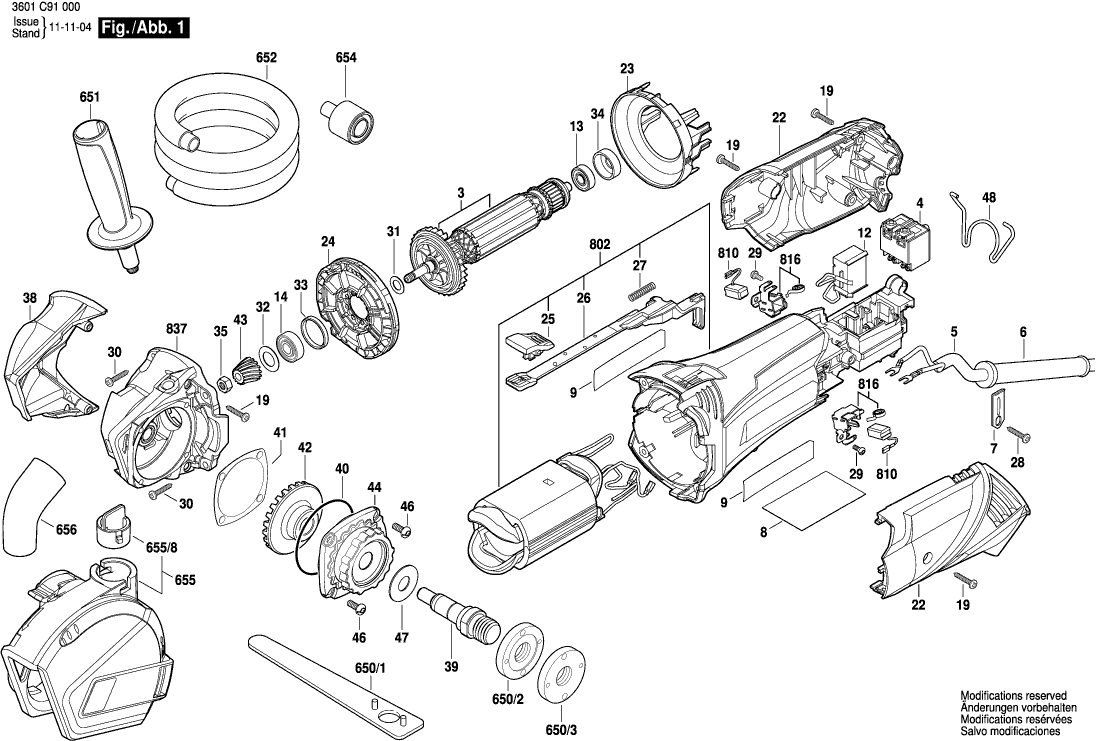

Technical drawing of model Bosch 3601C91000 ( GCT-115 )
Spare parts list of model Bosch 3601C91000 ( GCT-115 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Armature 230V | ||||
| 3 | 2610015717 | 55.25 | 66.85 | |
| On-Off Switch | ||||
| 4 | 1607200179 | 6.54 | 7.91 | |
| Power supply cord EU 2,6m 2 x 1,0 mm | ||||
| 5 | 1607000385 | 11.88 | 14.37 | |
| Cord guard | ||||
| 6 | 2610014651 | 1.70 | 2.06 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 0.83 | 1.00 | |
| Nameplate | ||||
| 8 | 2610012427 | 2.24 | 2.71 | |
| Adhesive Label | ||||
| 9 | 2610012428 | 2.24 | 2.71 | |
| Suppression Filter | ||||
| 12 | 1619P02827 | 4.70 | 5.69 | |
| Ball Bearing 7x19x6 MM | ||||
| 13 | 1619P00456 | 2.24 | 2.71 | |
| Ball Bearing | ||||
| 14 | 1619P00455 | 2.71 | 3.28 | |
| Cross Recessed-Head Screw | ||||
| 19 | 2615294035 | 1.18 | 1.43 | |
| Housing Set | ||||
| 22 | 2610012423 | 12.41 | 15.02 | |
| Baffle | ||||
| 23 | 2610008412 | 2.71 | 3.28 | |
| Air Distributor | ||||
| 24 | 2610008411 | 2.71 | 3.28 | |
| Button | ||||
| 25 | 2610008406 | 1.18 | 1.43 | |
| Adjusting Slide | ||||
| 26 | 2610008422 | 0.83 | 1.00 | |
| Compression Spring | ||||
| 27 | 1604611031 | 2.24 | 2.71 | |
| Torx Oval-Head Screw 4x12 | ||||
| 28 | 2603490021 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 3x8 | ||||
| 29 | 1619P02849 | 0.83 | 1.00 | |
| Torx Oval-Head Screw 4x20 | ||||
| 30 | 2603490023 | 0.83 | 1.00 | |
| Washer | ||||
| 31 | 1619P00987 | 0.83 | 1.00 | |
| Cover Disc | ||||
| 32 | 1600100033 | 1.94 | 2.35 | |
| Rubber Ring | ||||
| 33 | 1600206025 | 1.70 | 2.06 | |
| Intermediate Ring | ||||
| 34 | 1600502023 | 1.70 | 2.06 | |
| Hex Nut DIN 934-M6-8-A | ||||
| 35 | 2915011007 | 0.83 | 1.00 | |
| Housing Cover | ||||
| 38 | 2610012426 | 6.54 | 7.91 | |
| Grinding Spindle M 14, SW 17 | ||||
| 39 | 1619P06419 | 8.45 | 10.22 | |
| O-Ring 44,0x1,0 MM | ||||
| 40 | 1619P02820 | 1.18 | 1.43 | |
| Shim 0,2 MM | ||||
| 41 | 1619P02822 | 1.18 | 1.43 | |
| Shim 0,1 MM | ||||
| 41 | 1619P02821 | 0.83 | 1.00 | |
| Crown Gear | ||||
| 42 | 1619P02823 | 6.54 | 7.91 | |
| Bevel Gear | ||||
| 43 | 1619P02825 | 4.10 | 4.96 | |
| No longer available, no replacement | ||||
| 44 | 2610014653 | |||
| Thread-forming tap. Screw DIN 7500, M4x10, SR10.2 | ||||
| 46 | 1603435068 | 1.18 | 1.43 | |
| Cover Disc | ||||
| 47 | 1619P09390 | 1.70 | 2.06 | |
| Clip | ||||
| 48 | 2610007229 | 1.70 | 2.06 | |
| Pin-Type Face-Wrench | ||||
| 650/1 | 2610008421 | 5.33 | 6.45 | |
| Clamping Flange Ø22,3xØ42 MM | ||||
| 650/2 | 2605703014 | 4.10 | 4.96 | |
| Round Nut M14 | ||||
| 650/3 | 1603345043 | 6.54 | 7.91 | |
| Assembly Kit | ||||
| 652 | 2610013421 | 20.42 | 24.71 | |
| Adapter | ||||
| 654 | 2610004454 | 9.53 | 11.53 | |
| Guard | ||||
| 655 | 2610014664 | 23.75 | 28.74 | |
| Plug | ||||
| 655/8 | 2610001537 | 1.70 | 2.06 | |
| Elbow | ||||
| 656 | 2610001533 | 3.31 | 4.01 | |
| Motor Housing | ||||
| 802 | 2610014655 | 73.72 | 89.20 | |
| No longer available, no replacement | ||||
| 810 | 2610013288 | |||
| Brush Holder | ||||
| 816 | 1619P02845 | 2.24 | 2.71 | |
| Gear Housing | ||||
| 837 | 2610013289 | 33.45 | 40.47 | |
