Here you will find all available parts and drawings of the 'Bosch 3601L17200 (GCO2000)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

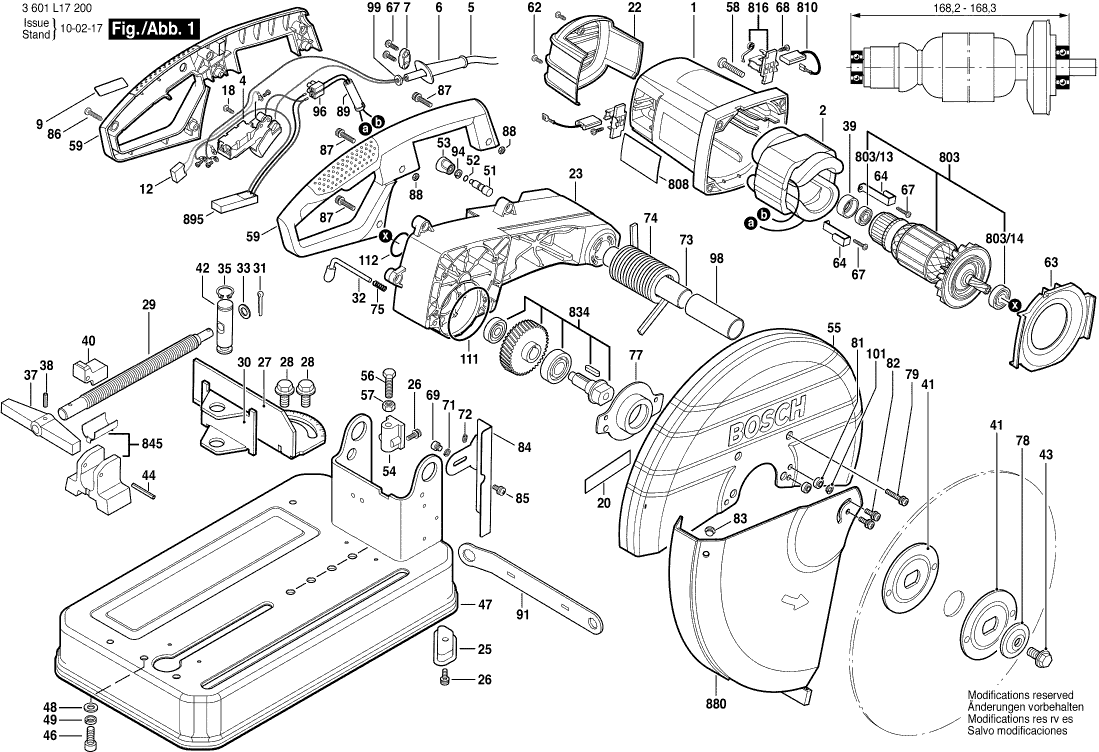

Technical drawing of model Bosch 3601L17200 (GCO2000)
Spare parts list of model Bosch 3601L17200 (GCO2000)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1609B00028 | 31.42 | 38.02 | |
| Field | ||||
| 2 | 1609B00001 | 71.68 | 86.73 | |
| Switch | ||||
| 4 | 1609B00002 | 16.79 | 20.32 | |
| Power supply cord | ||||
| 5 | 1609B00003 | 21.30 | 25.77 | |
| Grommet | ||||
| 6 | 1619P03807 | 1.49 | 1.80 | |
| Cable Clip | ||||
| 7 | 1619P03808 | 1.00 | 1.21 | |
| Sticker | ||||
| 9 | 1609B00038 | 2.40 | 2.90 | |
| Suppression Capacitor | ||||
| 12 | 1619P03883 | 4.18 | 5.06 | |
| Raised ctsunk head tap sc | ||||
| 18 | 1619P03837 | 1.00 | 1.21 | |
| Warning Plate | ||||
| 20 | 1609B00006 | 2.40 | 2.90 | |
| End cap | ||||
| 22 | 1619P03741 | 4.18 | 5.06 | |
| Arm | ||||
| 23 | 1609B00008 | 64.67 | 78.25 | |
| Rubber Bar | ||||
| 25 | 1619P03814 | 2.08 | 2.52 | |
| Screw and washer assembly | ||||
| 26 | 1619P03825 | 1.00 | 1.21 | |
| Stop Bracket | ||||
| 27 | 1609B00031 | 16.79 | 20.32 | |
| Flange Bolt | ||||
| 28 | 1619P03826 | 1.49 | 1.80 | |
| Clamp Screw | ||||
| 29 | 1619P03753 | 8.35 | 10.10 | |
| Clamp Bracket | ||||
| 30 | 1609B00032 | 12.82 | 15.51 | |
| Rivet Pin | ||||
| 31 | 1619P03756 | 1.00 | 1.21 | |
| Locking Pin | ||||
| 32 | 1619P03748 | 3.44 | 4.16 | |
| Plain Washer | ||||
| 33 | 1619P03757 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 35 | 1619P03755 | 1.00 | 1.21 | |
| Clamp Handle | ||||
| 37 | 1619P03751 | 4.94 | 5.98 | |
| Spring Pin | ||||
| 38 | 1619P03752 | 1.00 | 1.21 | |
| Rubber Ring | ||||
| 39 | 1600206030 | 1.49 | 1.80 | |
| Clamping Block | ||||
| 40 | 1609B03576 | 7.46 | 9.03 | |
| Flange | ||||
| 41 | 1609B00009 | 8.35 | 10.10 | |
| Connecting Rod | ||||
| 42 | 1609B00033 | 4.94 | 5.98 | |
| Flange Bolt | ||||
| 43 | 1619P03735 | 1.00 | 1.21 | |
| Spring Pin | ||||
| 44 | 1619P03762 | 1.00 | 1.21 | |
| Socket head cap screw | ||||
| 46 | 1619P03827 | 1.00 | 1.21 | |
| Base | ||||
| 47 | 1609B00010 | 110.30 | 133.46 | |
| Plain Washer | ||||
| 48 | 1619P03828 | 2.40 | 2.90 | |
| Spring Washer | ||||
| 49 | 1619P03829 | 1.00 | 1.21 | |
| Shaft | ||||
| 51 | 1619P03811 | 3.44 | 4.16 | |
| O-Ring | ||||
| 52 | 1619P03810 | 1.00 | 1.21 | |
| Cap Nut | ||||
| 53 | 1619P03809 | 3.44 | 4.16 | |
| Holding Bracket | ||||
| 54 | 1619P03818 | 7.46 | 9.03 | |
| Protective Cover | ||||
| 55 | 1609B00021 | 43.12 | 52.18 | |
| Hexagon Bolt | ||||
| 56 | 1619P03830 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 57 | 1619P03831 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 58 | 1619P03835 | 1.00 | 1.21 | |
| Handle | ||||
| 59 | 1619P03868 | 14.94 | 18.08 | |
| Screw | ||||
| 62 | 1619P03832 | 1.00 | 1.21 | |
| Air-Deflector Ring | ||||
| 63 | 1619P03822 | 4.18 | 5.06 | |
| Pickup Clip | ||||
| 64 | 1619P03823 | 2.08 | 2.52 | |
| Screw | ||||
| 67 | 1619P03833 | 1.00 | 1.21 | |
| Screw | ||||
| 68 | 1619P03834 | 1.00 | 1.21 | |
| Screw | ||||
| 69 | 1619P03840 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 71 | 1619P03841 | 1.90 | 2.30 | |
| Stop Screw | ||||
| 72 | 1619P03839 | 1.00 | 1.21 | |
| Pivot Shaft | ||||
| 73 | 1619P03816 | 9.67 | 11.70 | |
| Torsion Spring | ||||
| 74 | 1609B00024 | 8.35 | 10.10 | |
| Compression Spring | ||||
| 75 | 1619P03817 | 1.00 | 1.21 | |
| Gear Cover | ||||
| 77 | 1619P03806 | 6.73 | 8.14 | |
| Plain Washer | ||||
| 78 | 1619P03815 | 2.08 | 2.52 | |
| Screw and washer assembly | ||||
| 79 | 1619P03825 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 81 | 1619P03856 | 1.49 | 1.80 | |
| Shoulder Screw | ||||
| 82 | 1619P03857 | 1.00 | 1.21 | |
| Rubber Gasket | ||||
| 83 | 1619P03871 | 1.00 | 1.21 | |
| Protection cover | ||||
| 84 | 1609B00023 | 2.86 | 3.46 | |
| Screw | ||||
| 85 | 1619P03842 | 1.00 | 1.21 | |
| Raised ctsunk head tap sc | ||||
| 86 | 1619P03824 | 1.00 | 1.21 | |
| Screw | ||||
| 87 | 1619P03821 | 1.00 | 1.21 | |
| Nut | ||||
| 88 | 1619P03819 | 1.00 | 1.21 | |
| Insulating Tube | ||||
| 89 | 1619P03855 | 1.00 | 1.21 | |
| Adjusting Wrench | ||||
| 91 | 1619P03812 | 8.35 | 10.10 | |
| Spring Washer | ||||
| 94 | 1619P03866 | 1.00 | 1.21 | |
| Connection Block | ||||
| 96 | 1609BP7059 | 1.49 | 1.80 | |
| Bushing | ||||
| 98 | 1609B00039 | 1.49 | 1.80 | |
| Ring | ||||
| 99 | 1619P03931 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 101 | 1609B00018 | 1.00 | 1.21 | |
| O-Ring | ||||
| 111 | 1609B00060 | 1.00 | 1.21 | |
| O-Ring | ||||
| 112 | 1609B00061 | 1.00 | 1.21 | |
| Armature | ||||
| 803 | 1609B00046 | 110.30 | 133.46 | |
| Bearing | ||||
| 803/13 | 1619P03850 | 4.94 | 5.98 | |
| groove ball bearing | ||||
| 803/14 | 1619P03937 | 7.46 | 9.03 | |
| Nameplate | ||||
| 808 | 1609BN0167 | 1.49 | 1.80 | |
| Carbon-Brush Set | ||||
| 810 | 1607000480 | 114.26 | 138.25 | |
| Carbon-Brush Set | ||||
| 810 | 1607014171 | 12.82 | 15.51 | |
| Brush Holder | ||||
| 816 | 1604336048 | 6.53 | 7.90 | |
| Gear Shaft | ||||
| 834 | 1619P03912 | 27.81 | 33.65 | |
| Bearing Block | ||||
| 845 | 1609B03533 | 7.46 | 9.03 | |
| Flap Guard | ||||
| 880 | 1609B00041 | 23.90 | 28.92 | |
| Soft Start-Up Module | ||||
| 895 | 1609B00017 | 34.82 | 42.13 | |
