Here you will find all available parts and drawings of the 'Bosch 3601M380K1 (GCO200)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

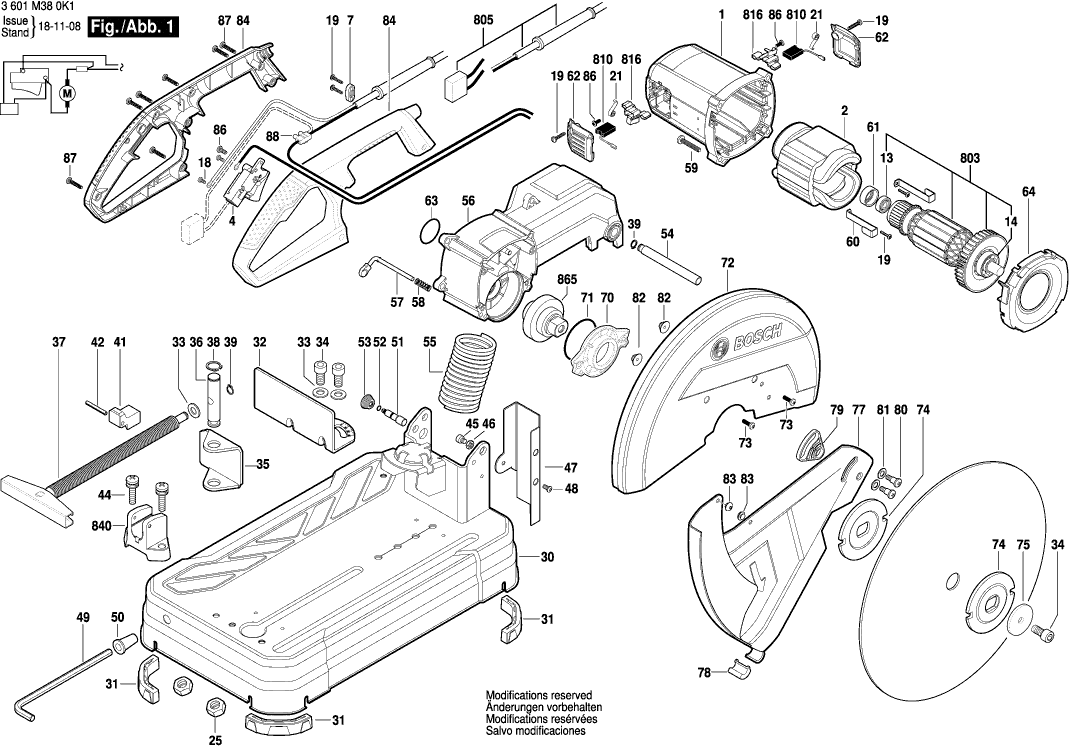

Technical drawing of model Bosch 3601M380K1 (GCO200)
Spare parts list of model Bosch 3601M380K1 (GCO200)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1609B03601 | 13.90 | 16.82 | |
| Field 220-240V | ||||
| 2 | 1609B00135 | 55.56 | 67.23 | |
| Switch | ||||
| 4 | 1609B02146 | 13.13 | 15.89 | |
| Cable Clip | ||||
| 7 | 1609B02153 | 1.00 | 1.21 | |
| Bearing | ||||
| 13 | 1619P03850 | 4.94 | 5.98 | |
| Bearing | ||||
| 14 | 1609B00057 | 9.67 | 11.70 | |
| Screw | ||||
| 18 | 1609B03644 | 1.00 | 1.21 | |
| Screw ECO-SYN St 3,5x16 | ||||
| 19 | 1609B02357 | 1.00 | 1.21 | |
| Spiral Spring | ||||
| 21 | 1604652019 | 1.49 | 1.80 | |
| Hex Nut | ||||
| 25 | 1619P03831 | 1.00 | 1.21 | |
| Base | ||||
| 30 | 1609B02358 | 71.68 | 86.73 | |
| Supporting foot | ||||
| 31 | 1609B03594 | 1.00 | 1.21 | |
| Stop Bracket | ||||
| 32 | 1609B03667 | 9.47 | 11.46 | |
| Plain Washer | ||||
| 33 | 1609BP7045 | 1.00 | 1.21 | |
| Screw | ||||
| 34 | 1609B03630 | 1.32 | 1.60 | |
| Clamp Bracket | ||||
| 35 | 1609B03674 | 5.81 | 7.03 | |
| Connecting Rod | ||||
| 36 | 1609B03675 | 14.94 | 18.08 | |
| Clamp Screw | ||||
| 37 | 1609B03598 | 10.90 | 13.19 | |
| Spring retaining ring | ||||
| 38 | 1619P03755 | 1.00 | 1.21 | |
| Clip | ||||
| 39 | 1609B03628 | 1.00 | 1.21 | |
| Clamping Block | ||||
| 41 | 1609B03576 | 7.46 | 9.03 | |
| Spring Pin | ||||
| 42 | 1619P03762 | 1.00 | 1.21 | |
| Screw and washer assembly | ||||
| 44 | 1609B03629 | 1.00 | 1.21 | |
| Screw | ||||
| 45 | 1609B03686 | 1.00 | 1.21 | |
| Nut | ||||
| 46 | 1609B01654 | 1.00 | 1.21 | |
| Protective Guard | ||||
| 47 | 1609B00497 | 4.58 | 5.54 | |
| Thread-Forming Screw | ||||
| 48 | 1609B06426 | 1.00 | 1.21 | |
| Hexagon Socket Wrench | ||||
| 49 | 1609B03622 | 2.52 | 3.05 | |
| Key Holder | ||||
| 50 | 1609B03617 | 1.00 | 1.21 | |
| Shaft | ||||
| 51 | 1609B03623 | 1.49 | 1.80 | |
| O-Ring | ||||
| 52 | 1619P03810 | 1.00 | 1.21 | |
| Cap | ||||
| 53 | 1609B03624 | 1.00 | 1.21 | |
| Pivot Shaft | ||||
| 54 | 1609B03618 | 2.40 | 2.90 | |
| Contact strap | ||||
| 55 | 1609B03619 | 10.90 | 13.19 | |
| Arm | ||||
| 56 | 1609B03591 | 58.03 | 70.22 | |
| Locking Pin | ||||
| 57 | 1609B03610 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 58 | 1619P03864 | 1.00 | 1.21 | |
| Thread-forming tap. Screw | ||||
| 59 | 1619P03835 | 1.00 | 1.21 | |
| Pickup Clip | ||||
| 60 | 1619P03823 | 2.08 | 2.52 | |
| Rubber Ring | ||||
| 61 | 1600206030 | 1.49 | 1.80 | |
| Brush-Cover | ||||
| 62 | 1609B03627 | 1.00 | 1.21 | |
| O-Ring | ||||
| 63 | 1609B00068 | 1.00 | 1.21 | |
| Air-Deflector Ring | ||||
| 64 | 1609B03604 | 2.08 | 2.52 | |
| Gear Cover | ||||
| 70 | 1609B03612 | 4.94 | 5.98 | |
| Safety Guard | ||||
| 72 | 1609B06429 | 31.42 | 38.02 | |
| Screw | ||||
| 73 | 1609B01483 | 1.00 | 1.21 | |
| Flange | ||||
| 74 | 1609B03592 | 6.73 | 8.14 | |
| Plain Washer | ||||
| 75 | 1609B03625 | 1.49 | 1.80 | |
| Flap Guard | ||||
| 77 | 1609B03608 | 16.79 | 20.32 | |
| Cover | ||||
| 78 | 1609B03631 | 1.49 | 1.80 | |
| Supporting Plate | ||||
| 79 | 1609B03642 | 1.32 | 1.60 | |
| Shoulder Screw | ||||
| 80 | 1609B03641 | 1.49 | 1.80 | |
| Washer | ||||
| 81 | 1609B03513 | 1.00 | 1.21 | |
| Nut | ||||
| 82 | 1609B06545 | 1.32 | 1.60 | |
| Rubber Gasket | ||||
| 83 | 1619P03871 | 1.00 | 1.21 | |
| Handle | ||||
| 84 | 1609B01785 | 11.37 | 13.76 | |
| Screw | ||||
| 86 | 1609B02356 | 1.00 | 1.21 | |
| Screw | ||||
| 87 | 1609B02355 | 1.00 | 1.21 | |
| Connection Block | ||||
| 88 | 1609BP7059 | 1.49 | 1.80 | |
| Armature assembly 220-240V | ||||
| 803 | 1609B03639 | 75.38 | 91.21 | |
| Power supply cord | ||||
| 805 | 1609B00500 | 15.61 | 18.89 | |
| Carbon-Brush Set | ||||
| 810 | 1607014171 | 12.82 | 15.51 | |
| Brush Holder | ||||
| 816 | 1604336053 | 5.81 | 7.03 | |
| Clamping Holder | ||||
| 840 | 1609B03626 | 12.82 | 15.51 | |
| Set Of Gears | ||||
| 865 | 1609B03640 | 27.81 | 33.65 | |
