Here you will find all available parts and drawings of the 'Bosch 3601D91C00 (GCN45-15)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

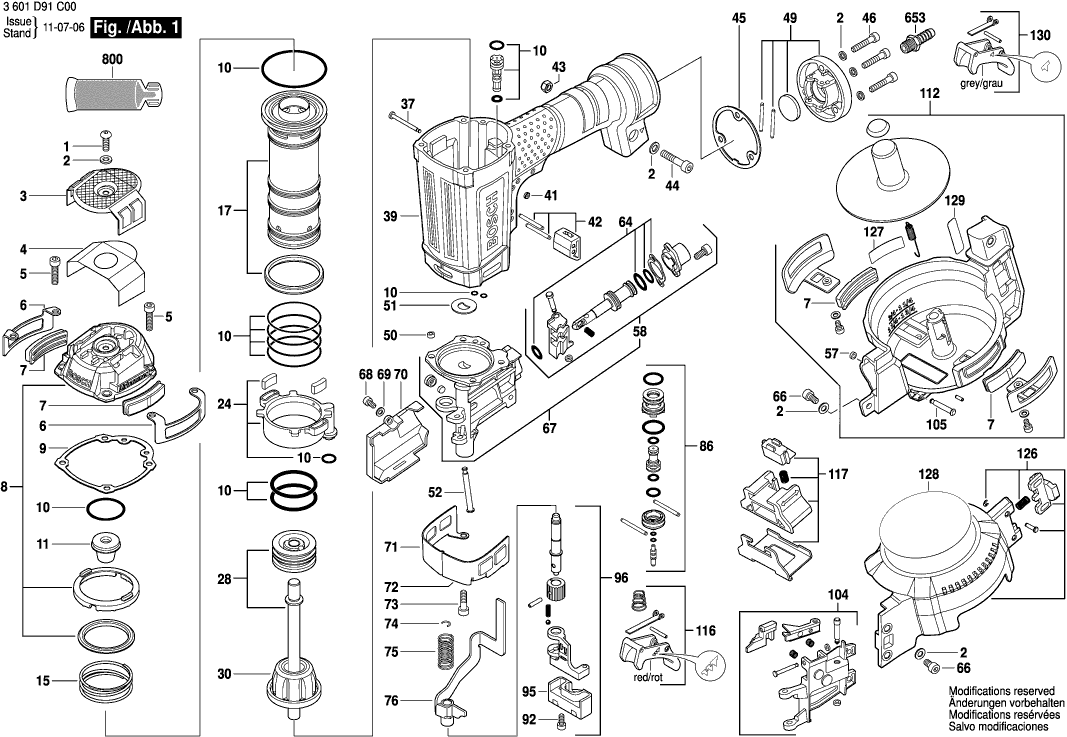

Technical drawing of model Bosch 3601D91C00 (GCN45-15)
Spare parts list of model Bosch 3601D91C00 (GCN45-15)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Screw | ||||
| 1 | 2610001664 | 1.00 | 1.21 | |
| Washer | ||||
| 2 | 2610001665 | 1.00 | 1.21 | |
| Cover Plate | ||||
| 3 | 2610006300 | 8.48 | 10.26 | |
| mat seal | ||||
| 4 | 2610006301 | 5.27 | 6.38 | |
| Screw | ||||
| 5 | 2610005311 | 1.00 | 1.21 | |
| Protector | ||||
| 6 | 2610006302 | 6.53 | 7.90 | |
| Pad | ||||
| 7 | 2610006303 | 5.27 | 6.38 | |
| No information available, not orderable | ||||
| 8 | 2610006304 | |||
| mat seal | ||||
| 9 | 2610006305 | 8.48 | 10.26 | |
| O-Ring | ||||
| 10 | 2610006306 | 22.88 | 27.68 | |
| No information available, not orderable | ||||
| 11 | 2610006307 | |||
| Coil Spring | ||||
| 15 | 2610006308 | 5.96 | 7.21 | |
| Piston Cylinder | ||||
| 17 | 2610006309 | 82.63 | 99.98 | |
| Cylinder Support | ||||
| 24 | 2610006310 | 16.66 | 20.16 | |
| Piston | ||||
| 28 | 2610006311 | 45.52 | 55.08 | |
| No information available, not orderable | ||||
| 30 | 2610006312 | |||
| No information available, not orderable | ||||
| 37 | 2610005337 | |||
| Housing | ||||
| 39 | 2610006313 | 126.98 | 153.65 | |
| O-Ring | ||||
| 41 | 2610005338 | 1.00 | 1.21 | |
| Guide Block | ||||
| 42 | 2610001687 | 6.73 | 8.14 | |
| Lock Nut | ||||
| 43 | 2610005245 | 1.00 | 1.21 | |
| Screw | ||||
| 44 | 2610006314 | 1.32 | 1.60 | |
| mat seal | ||||
| 45 | 2610005326 | 1.90 | 2.30 | |
| Screw | ||||
| 46 | 2610006315 | 1.00 | 1.21 | |
| End cap | ||||
| 49 | 2610005327 | 26.62 | 32.21 | |
| End cap | ||||
| 50 | 2610006316 | 1.32 | 1.60 | |
| Lead-Seal Plate | ||||
| 51 | 2610006317 | 1.90 | 2.30 | |
| Pin | ||||
| 52 | 2610006318 | 5.27 | 6.38 | |
| O-Ring | ||||
| 57 | 2610006319 | 1.32 | 1.60 | |
| No information available, not orderable | ||||
| 58 | 2610006320 | |||
| Gasket | ||||
| 64 | 2610013695 | 8.48 | 10.26 | |
| Screw | ||||
| 66 | 2610006321 | 1.32 | 1.60 | |
| Nose | ||||
| 67 | 2610006322 | 234.56 | 283.82 | |
| Screw | ||||
| 68 | 2610005335 | 1.32 | 1.60 | |
| Washer | ||||
| 69 | 2610005300 | 1.00 | 1.21 | |
| Cover | ||||
| 70 | 2610006323 | 6.53 | 7.90 | |
| Cover | ||||
| 71 | 2610006324 | 6.53 | 7.90 | |
| Cover | ||||
| 72 | 2610006325 | 6.53 | 7.90 | |
| Screw | ||||
| 73 | 2610006326 | 1.00 | 1.21 | |
| Spring Clip | ||||
| 74 | 2610001684 | 1.00 | 1.21 | |
| Coil Spring | ||||
| 75 | 2610006327 | 1.90 | 2.30 | |
| Safety Lever | ||||
| 76 | 2610006328 | 26.62 | 32.21 | |
| Trigger | ||||
| 86 | 2610001706 | 14.94 | 18.08 | |
| Screw | ||||
| 92 | 2610006329 | 1.90 | 2.30 | |
| Block | ||||
| 95 | 2610006330 | 33.33 | 40.33 | |
| Safety Lever | ||||
| 96 | 2610006331 | 50.23 | 60.78 | |
| Cover | ||||
| 104 | 2610006332 | 45.52 | 55.08 | |
| Pin | ||||
| 105 | 2610006333 | 1.32 | 1.60 | |
| nail cartridge | ||||
| 112 | 2610006334 | 61.93 | 74.94 | |
| Triggering Rod | ||||
| 116 | 2610006335 | 16.66 | 20.16 | |
| Slider | ||||
| 117 | 2610006336 | 17.60 | 21.30 | |
| nail cartridge | ||||
| 126 | 2610006337 | 26.62 | 32.21 | |
| Nameplate | ||||
| 127 | 2610015521 | 2.18 | 2.64 | |
| Warning Label | ||||
| 128 | 2610005263 | 3.04 | 3.68 | |
| No information available, not orderable | ||||
| 129 | 2610005264 | |||
| Triggering Rod | ||||
| 130 | 2610006338 | 13.02 | 15.75 | |
| Fitting | ||||
| 653 | 1600A00079 | 6.53 | 7.90 | |
| Grease | ||||
| 800 | 2610005257 | 7.46 | 9.03 | |
