Here you will find all available parts and drawings of the 'Bosch 3601M19002 (GCM8000SJ)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

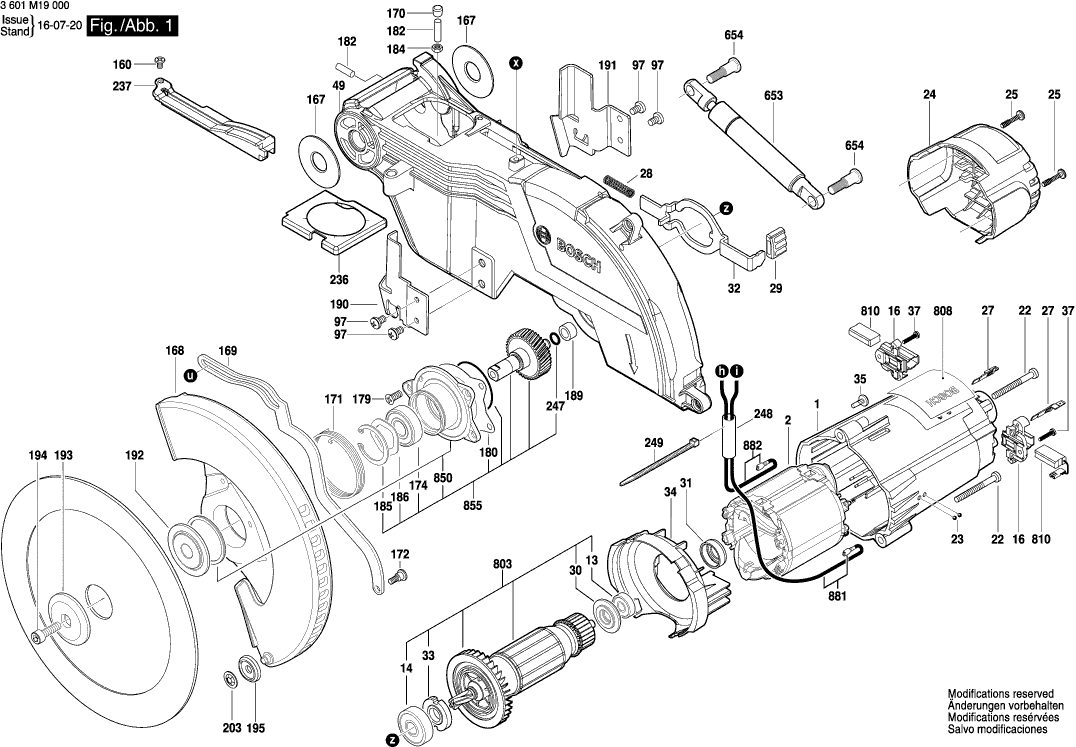

Technical drawing of model Bosch 3601M19002 (GCM8000SJ)
Spare parts list of model Bosch 3601M19002 (GCM8000SJ)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1609B04181 | 18.94 | 22.92 | |
| Pole shoe | ||||
| 2 | 1619PS6522 | 19.60 | 23.72 | |
| On-Off Switch | ||||
| 4 | 1609B04211 | 11.37 | 13.76 | |
| Power supply cord EU | ||||
| 5 | 1609B04245 | 12.82 | 15.51 | |
| Cord guard | ||||
| 6 | 1609B01533 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 1609B00821 | 1.00 | 1.21 | |
| Suppression Capacitor | ||||
| 12 | 1609B02210 | 1.49 | 1.80 | |
| Ball Bearing | ||||
| 13 | 1609B04083 | 2.40 | 2.90 | |
| Bearing Cover Plate | ||||
| 14 | 1619P06374 | 8.35 | 10.10 | |
| Brush Holder | ||||
| 16 | 1619P06212 | 8.35 | 10.10 | |
| Screw | ||||
| 19 | 1619P03833 | 1.00 | 1.21 | |
| Screw | ||||
| 22 | 1609B04117 | 1.00 | 1.21 | |
| Ball | ||||
| 23 | 1619P00291 | 64.67 | 78.25 | |
| End cap | ||||
| 24 | 1609B04008 | 6.73 | 8.14 | |
| Special Screw | ||||
| 25 | 1609B00921 | 1.00 | 1.21 | |
| Right Angle Plug | ||||
| 27 | 1619P06213 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 28 | 1619P01642 | 1.00 | 1.21 | |
| Cap | ||||
| 29 | 1609B04070 | 1.49 | 1.80 | |
| Sealing washer | ||||
| 30 | 1609B04071 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 31 | 1609B04072 | 1.00 | 1.21 | |
| Guide Bracket | ||||
| 32 | 1609B04073 | 5.81 | 7.03 | |
| Lock Nut | ||||
| 33 | 1609B04074 | 1.49 | 1.80 | |
| Baffle | ||||
| 34 | 1609B04075 | 1.49 | 1.80 | |
| Cover | ||||
| 35 | 1609B04200 | 1.00 | 1.21 | |
| Screw | ||||
| 37 | 1609B04208 | 1.00 | 1.21 | |
| Warning Label | ||||
| 38 | 1609B02218 | 2.40 | 2.90 | |
| Bushing | ||||
| 41 | 1609B02204 | 2.86 | 3.46 | |
| Bushing | ||||
| 42 | 1609B02205 | 1.49 | 1.80 | |
| Mitre Fence | ||||
| 43 | 1609B04242 | 16.79 | 20.32 | |
| Mitre Fence | ||||
| 44 | 1609B04243 | 16.79 | 20.32 | |
| Screw | ||||
| 45 | 1609B02206 | 1.00 | 1.21 | |
| Table | ||||
| 46 | 1609B05238 | 80.26 | 97.11 | |
| Pivot | ||||
| 47 | 1609B02202 | 52.45 | 63.46 | |
| Arm | ||||
| 49 | 1609B02223 | 52.45 | 63.46 | |
| End cap | ||||
| 51 | 1609B03746 | 6.73 | 8.14 | |
| Switch Handle | ||||
| 52 | 1609B05243 | 12.82 | 15.51 | |
| Cover | ||||
| 53 | 1609B02200 | 2.40 | 2.90 | |
| Cover | ||||
| 54 | 1609B02214 | 1.00 | 1.21 | |
| Bolt | ||||
| 57 | 1609B05203 | 1.00 | 1.21 | |
| Plate | ||||
| 59 | 1609B05296 | 1.00 | 1.21 | |
| Cover | ||||
| 60 | 1609B05298 | 1.00 | 1.21 | |
| Pointer | ||||
| 62 | 1609B00717 | 1.00 | 1.21 | |
| Wear Plate | ||||
| 63 | 1609B03714 | 4.18 | 5.06 | |
| Clamping Bar | ||||
| 64 | 1609B05236 | 2.86 | 3.46 | |
| Screw | ||||
| 65 | 1609B05268 | 1.00 | 1.21 | |
| Nut | ||||
| 66 | 1609B01949 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 68 | 1609B00703 | 1.32 | 1.60 | |
| Washer | ||||
| 69 | 1609B00662 | 1.49 | 1.80 | |
| Stop Plate | ||||
| 71 | 1609B04244 | 1.00 | 1.21 | |
| Screw | ||||
| 72 | 1609B02220 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 74 | 1609B00704 | 1.00 | 1.21 | |
| Washer | ||||
| 75 | 1609B00670 | 1.49 | 1.80 | |
| Rubber Bushing | ||||
| 77 | 1609B00705 | 1.00 | 1.21 | |
| Screw | ||||
| 78 | 1609B03722 | 1.00 | 1.21 | |
| Rubber Ring | ||||
| 80 | 1609BP7098 | 1.00 | 1.21 | |
| Hexagon Socket Screw Key | ||||
| 81 | 1609BP7026 | 2.86 | 3.46 | |
| Support Plate | ||||
| 84 | 1609B05242 | 3.44 | 4.16 | |
| Rod | ||||
| 86 | 1609B05240 | 2.08 | 2.52 | |
| Knob | ||||
| 87 | 1609B04079 | 7.46 | 9.03 | |
| Lever | ||||
| 88 | 1609B05241 | 2.08 | 2.52 | |
| Spring | ||||
| 89 | 1609B02211 | 1.00 | 1.21 | |
| Contact strap | ||||
| 93 | 1609BP7341 | 1.00 | 1.21 | |
| Supporting foot | ||||
| 94 | 1609B03727 | 2.08 | 2.52 | |
| Wear Plate | ||||
| 95 | 1609B03729 | 1.00 | 1.21 | |
| Pivot Shaft | ||||
| 96 | 1609B04108 | 4.18 | 5.06 | |
| Screw | ||||
| 97 | 1609B04086 | 2.08 | 2.52 | |
| Screw | ||||
| 98 | 1609B03723 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 99 | 1609B01324 | 1.00 | 1.21 | |
| Set screw | ||||
| 105 | 1609BP7143 | 1.00 | 1.21 | |
| Washer | ||||
| 111 | 1609B01668 | 1.00 | 1.21 | |
| Wear Plate | ||||
| 118 | 1609B01457 | 1.00 | 1.21 | |
| Pointer | ||||
| 119 | 1609B03758 | 1.49 | 1.80 | |
| Hex Socket Head Cap Screw | ||||
| 122 | 1609B03749 | 1.00 | 1.21 | |
| Contact strap | ||||
| 123 | 1609BP7343 | 1.00 | 1.21 | |
| Knob | ||||
| 124 | 1609B03755 | 1.49 | 1.80 | |
| Rotor | ||||
| 125 | 1609B03762 | 7.46 | 9.03 | |
| Felt Washer | ||||
| 126 | 1609B03763 | 1.00 | 1.21 | |
| Bolt | ||||
| 127 | 1609B03769 | 3.44 | 4.16 | |
| Lever | ||||
| 128 | 1609B02215 | 1.49 | 1.80 | |
| Screw | ||||
| 129 | 1609BP7081 | 1.00 | 1.21 | |
| Friction Plate | ||||
| 130 | 1609B03773 | 7.46 | 9.03 | |
| Hex Nut | ||||
| 131 | 1609B01041 | 1.00 | 1.21 | |
| Stop bolt | ||||
| 132 | 1609B03776 | 1.00 | 1.21 | |
| Pivot Pin | ||||
| 133 | 1609B03771 | 6.73 | 8.14 | |
| Shoulder Screw | ||||
| 134 | 1609B03779 | 1.49 | 1.80 | |
| Bushing | ||||
| 135 | 1609B03754 | 1.00 | 1.21 | |
| Detent Pin | ||||
| 136 | 1609B03767 | 2.86 | 3.46 | |
| Clip | ||||
| 137 | 1609B03757 | 1.49 | 1.80 | |
| O-Ring | ||||
| 138 | 1609B00601 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 140 | 1609BP7053 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 141 | 1609BP7045 | 1.00 | 1.21 | |
| Slide Stop | ||||
| 143 | 1609B03753 | 1.49 | 1.80 | |
| Special Nut | ||||
| 144 | 1609B03752 | 3.44 | 4.16 | |
| Spring Washer | ||||
| 145 | 1609B00660 | 1.00 | 1.21 | |
| Retaining Plate | ||||
| 150 | 1609B02203 | 1.49 | 1.80 | |
| Retaining Plate | ||||
| 151 | 1609B03766 | 1.49 | 1.80 | |
| Dust Extraction | ||||
| 152 | 1609B03775 | 7.46 | 9.03 | |
| Set screw | ||||
| 153 | 1609B03777 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 154 | 1609B02213 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 155 | 1609B01512 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 156 | 1609B00339 | 2.08 | 2.52 | |
| Support bracket | ||||
| 159 | 1609B04204 | 1.49 | 1.80 | |
| Screw | ||||
| 160 | 1609B01561 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 161 | 1609B05201 | 1.49 | 1.80 | |
| Screw | ||||
| 162 | 1609B00623 | 1.00 | 1.21 | |
| Thread-Forming Screw | ||||
| 163 | 1609B01168 | 1.00 | 1.21 | |
| Screw | ||||
| 164 | 1609B01690 | 1.00 | 1.21 | |
| Torsion Spring | ||||
| 165 | 1609B02209 | 12.82 | 15.51 | |
| Sleeve | ||||
| 166 | 1609B02222 | 1.00 | 1.21 | |
| Wear Plate | ||||
| 167 | 1609B01602 | 1.00 | 1.21 | |
| Lower guard | ||||
| 168 | 1609B04188 | 13.13 | 15.89 | |
| Linkage | ||||
| 169 | 1609B04001 | 11.37 | 13.76 | |
| Cover | ||||
| 170 | 1609B04002 | 1.00 | 1.21 | |
| Spring | ||||
| 171 | 1609B04004 | 1.49 | 1.80 | |
| Screw | ||||
| 172 | 1609BP7145 | 1.00 | 1.21 | |
| Ball Bearing | ||||
| 174 | 1609B01255 | 5.81 | 7.03 | |
| Soft Start-Up Module | ||||
| 175 | 1609B02201 | 27.81 | 33.65 | |
| Lock Nut | ||||
| 178 | 1609B00974 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 179 | 1609BP7134 | 1.00 | 1.21 | |
| Seal | ||||
| 180 | 1609B04248 | 1.49 | 1.80 | |
| Set screw | ||||
| 182 | 1609B04205 | 1.00 | 1.21 | |
| Nut | ||||
| 184 | 1609BT4033 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 185 | 1609BP7068 | 1.49 | 1.80 | |
| Washer | ||||
| 186 | 1609BP7050 | 2.40 | 2.90 | |
| Ball Bearing | ||||
| 187 | 1609B03774 | 11.37 | 13.76 | |
| Spacer | ||||
| 188 | 1609B03780 | 1.00 | 1.21 | |
| Plain bearing | ||||
| 189 | 1600200029 | 3.71 | 4.49 | |
| Deflector | ||||
| 190 | 1609B04017 | 4.18 | 5.06 | |
| Deflector | ||||
| 191 | 1609B04028 | 6.73 | 8.14 | |
| Clamping Flange | ||||
| 192 | 1609B04018 | 7.46 | 9.03 | |
| Clamping Flange | ||||
| 193 | 1609B06289 | 4.18 | 5.06 | |
| Flange Bolt | ||||
| 194 | 1609BP7061 | 2.08 | 2.52 | |
| Wheel | ||||
| 195 | 1609B04020 | 1.00 | 1.21 | |
| Trigger | ||||
| 197 | 1609B04029 | 1.49 | 1.80 | |
| Locking Bar | ||||
| 198 | 1609B04021 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 199 | 1609B04022 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 200 | 1609B00637 | 1.00 | 1.21 | |
| Screw | ||||
| 201 | 1609B00973 | 1.00 | 1.21 | |
| Screw | ||||
| 202 | 1609B00627 | 2.08 | 2.52 | |
| Quick-Lock | ||||
| 203 | 1609B00458 | 1.00 | 1.21 | |
| Shrinkable Tube | ||||
| 214 | 1609B00583 | 1.00 | 1.21 | |
| Cable Tape | ||||
| 216 | 1609B01538 | 1.00 | 1.21 | |
| Nut | ||||
| 232 | 1609B00691 | 2.08 | 2.52 | |
| rubber lip | ||||
| 234 | 1609B03791 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 235 | 1609B04225 | 1.00 | 1.21 | |
| Rubber Strip | ||||
| 236 | 1609B04220 | 1.49 | 1.80 | |
| Cover | ||||
| 237 | 1609B02221 | 1.00 | 1.21 | |
| Rubber Strip | ||||
| 238 | 1609B04222 | 1.49 | 1.80 | |
| Screw | ||||
| 239 | 1609B00633 | 1.00 | 1.21 | |
| Connection Block | ||||
| 240 | 1609BP7059 | 1.49 | 1.80 | |
| O-Ring | ||||
| 247 | 1609B04228 | 4.18 | 5.06 | |
| Bushing | ||||
| 248 | 1609B00799 | 1.49 | 1.80 | |
| Clip | ||||
| 249 | 1609B05329 | 1.00 | 1.21 | |
| Clamp | ||||
| 652 | 1609B04224 | 16.79 | 20.32 | |
| Damper | ||||
| 653 | 1609B02225 | 16.79 | 20.32 | |
| Shoulder Screw | ||||
| 654 | 1609B02418 | 1.49 | 1.80 | |
| Armature assembly | ||||
| 803 | 1609B03793 | 91.33 | 110.51 | |
| Nameplate | ||||
| 808 | 1609B02491 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1609B06661 | 14.94 | 18.08 | |
| Assembly Base | ||||
| 840 | 1609B02472 | 98.18 | 118.80 | |
| Yoke | ||||
| 848 | 1609B02471 | 98.18 | 118.80 | |
| Gear cover | ||||
| 850 | 1609B05349 | 11.37 | 13.76 | |
| Output Shaft | ||||
| 855 | 1609B03789 | 41.30 | 49.97 | |
| Connecting Wire | ||||
| 881 | 1609B02207 | 1.49 | 1.80 | |
| Connecting Wire | ||||
| 882 | 1609B02208 | 1.49 | 1.80 | |
