Here you will find all available parts and drawings of the 'Bosch 3601M43000 (GCM18V-305GDC)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

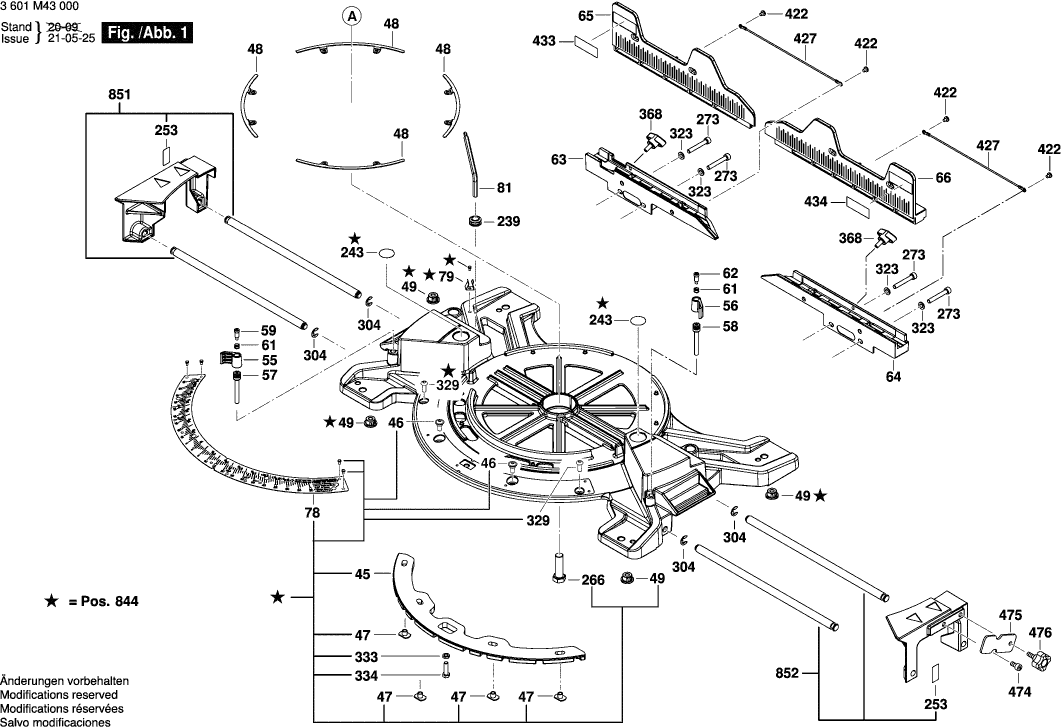

Technical drawing of model Bosch 3601M43000 (GCM18V-305GDC)
Spare parts list of model Bosch 3601M43000 (GCM18V-305GDC)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Brushless DC motor | ||||
| 2 | 160702267D | 173.95 | 210.48 | |
| Switch | ||||
| 4 | 2607202510 | 13.13 | 15.89 | |
| Electronic Module | ||||
| 17 | 16072335FM | 197.62 | 239.12 | |
| Insulating Foil | ||||
| 18 | 1609B06759 | 1.00 | 1.21 | |
| Support bracket | ||||
| 19 | 1609B06449 | 1.00 | 1.21 | |
| Warning Label | ||||
| 20 | 1609B06748 | 2.40 | 2.90 | |
| Electronic Module | ||||
| 21 | 16072335GD | 31.42 | 38.02 | |
| Electronics Module | ||||
| 22 | 1600A016CZ | 9.67 | 11.70 | |
| Electronics Module | ||||
| 23 | 1600A013WF | 34.82 | 42.13 | |
| Rubber Sponge | ||||
| 24 | 1609B06287 | 1.00 | 1.21 | |
| Box Cover | ||||
| 25 | 1609B06433 | 2.86 | 3.46 | |
| Box Cover | ||||
| 26 | 1609B06434 | 2.86 | 3.46 | |
| Box Cover | ||||
| 27 | 1609B06435 | 2.86 | 3.46 | |
| Battery Holder | ||||
| 28 | 1609B06440 | 3.44 | 4.16 | |
| Housing | ||||
| 29 | 1609B06444 | 1.00 | 1.21 | |
| Cover | ||||
| 30 | 1609B06445 | 1.00 | 1.21 | |
| Wear Plate | ||||
| 31 | 1609B00201 | 5.81 | 7.03 | |
| Pivot Pin | ||||
| 32 | 1609B06456 | 2.40 | 2.90 | |
| Torsion Spring | ||||
| 33 | 1609B06457 | 2.08 | 2.52 | |
| Bushing | ||||
| 34 | 1609B06487 | 1.00 | 1.21 | |
| Wear Plate | ||||
| 35 | 1609B00206 | 1.90 | 2.30 | |
| Chain | ||||
| 36 | 1609B05166 | 14.94 | 18.08 | |
| Flange | ||||
| 37 | 1609B06557 | 9.67 | 11.70 | |
| Flange | ||||
| 39 | 1609B00210 | 3.44 | 4.16 | |
| Flange Bolt | ||||
| 41 | 1609B00211 | 4.18 | 5.06 | |
| Washer | ||||
| 42 | 1609B00212 | 1.00 | 1.21 | |
| Detent plate | ||||
| 45 | 1609B04487 | 8.35 | 10.10 | |
| Screw | ||||
| 46 | 1609B00223 | 1.49 | 1.80 | |
| Nut | ||||
| 47 | 1609B00225 | 3.44 | 4.16 | |
| Sliding Plate | ||||
| 48 | 1609B04471 | 1.49 | 1.80 | |
| Supporting foot | ||||
| 49 | 1609B01431 | 2.08 | 2.52 | |
| Locking Lever | ||||
| 55 | 1609B00232 | 1.49 | 1.80 | |
| Locking Lever | ||||
| 56 | 1609B00233 | 1.00 | 1.21 | |
| Screw | ||||
| 57 | 1609B00234 | 4.18 | 5.06 | |
| Screw | ||||
| 58 | 1609B00235 | 4.18 | 5.06 | |
| Shoulder Screw | ||||
| 59 | 1609B00236 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 61 | 1609B00237 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 62 | 1609B00238 | 1.49 | 1.80 | |
| Mitre Fence | ||||
| 63 | 1609B04462 | 21.30 | 25.77 | |
| Mitre Fence | ||||
| 64 | 1609B04463 | 23.90 | 28.92 | |
| Mitre Fence | ||||
| 65 | 1609B04493 | 23.90 | 28.92 | |
| Mitre Fence | ||||
| 66 | 1609B04494 | 23.90 | 28.92 | |
| Support bracket | ||||
| 67 | 1609B06468 | 1.00 | 1.21 | |
| Cable Set | ||||
| 68 | 1609B06831 | 14.94 | 18.08 | |
| Cable Set | ||||
| 68 | 1609B06470 | 2.18 | 2.64 | |
| LED lamp | ||||
| 69 | 1609B06471 | 2.86 | 3.46 | |
| Ribbon cable | ||||
| 70 | 1609B06472 | 4.94 | 5.98 | |
| Ribbon cable | ||||
| 71 | 1609B06473 | 4.94 | 5.98 | |
| Ribbon cable | ||||
| 72 | 1609B06474 | 2.86 | 3.46 | |
| Protective Glass | ||||
| 74 | 1609B06478 | 2.08 | 2.52 | |
| Plate | ||||
| 75 | 1609B06486 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 76 | 1609280477 | 1.49 | 1.80 | |
| Scale | ||||
| 78 | 1609B00254 | 23.90 | 28.92 | |
| No longer available, no replacement | ||||
| 79 | 1609B00255 | |||
| Ferrite | ||||
| 80 | 1609B06758 | 7.46 | 9.03 | |
| Wrench Socket | ||||
| 81 | 1609B00256 | 2.08 | 2.52 | |
| Support Plate | ||||
| 83 | 1609B04470 | 2.86 | 3.46 | |
| Shaft | ||||
| 84 | 1609B00273 | 4.18 | 5.06 | |
| Knob | ||||
| 85 | 1609B04725 | 4.94 | 5.98 | |
| Knob | ||||
| 96 | 1609B00284 | 2.40 | 2.90 | |
| Support bracket | ||||
| 97 | 1609B00285 | 2.86 | 3.46 | |
| Cam | ||||
| 98 | 1609B00286 | 6.73 | 8.14 | |
| Linkage | ||||
| 99 | 1609B04488 | 7.46 | 9.03 | |
| Guide Bracket | ||||
| 101 | 1609B00289 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 103 | 1609B00291 | 1.00 | 1.21 | |
| Locking Lever | ||||
| 104 | 1609B00292 | 11.37 | 13.76 | |
| Lever Shaft | ||||
| 105 | 1609B00293 | 5.81 | 7.03 | |
| Cam | ||||
| 106 | 1609B00294 | 1.49 | 1.80 | |
| Support bracket | ||||
| 107 | 1609B00295 | 8.35 | 10.10 | |
| Support bracket | ||||
| 108 | 1609B00296 | 5.81 | 7.03 | |
| Tension Rod | ||||
| 109 | 1609B00297 | 11.37 | 13.76 | |
| Tube | ||||
| 111 | 1609B00298 | 13.13 | 15.89 | |
| Guide Bracket | ||||
| 112 | 1609B00299 | 1.00 | 1.21 | |
| Cover | ||||
| 114 | 1609B04380 | 1.00 | 1.21 | |
| Detent Pin | ||||
| 115 | 1609B00302 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 116 | 1609B00303 | 1.00 | 1.21 | |
| Bolt | ||||
| 118 | 1609B00305 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 119 | 1609B00306 | 1.00 | 1.21 | |
| Pointer | ||||
| 124 | 1609B04480 | 1.49 | 1.80 | |
| Scale | ||||
| 125 | 1609B02988 | 2.86 | 3.46 | |
| Plate | ||||
| 126 | 1609B00312 | 2.40 | 2.90 | |
| Hinge | ||||
| 129 | 1609B06734 | 58.03 | 70.22 | |
| Hinge | ||||
| 134 | 1609B00335 | 47.53 | 57.51 | |
| Shaft | ||||
| 136 | 1609B00337 | 11.37 | 13.76 | |
| Shaft | ||||
| 137 | 1609B00338 | 10.90 | 13.19 | |
| Bolt | ||||
| 142 | 1609B00342 | 2.40 | 2.90 | |
| Bushing | ||||
| 143 | 1609B00343 | 4.94 | 5.98 | |
| Locking Lever | ||||
| 144 | 1609B00345 | 10.90 | 13.19 | |
| Clamp Spring | ||||
| 145 | 1609B00346 | 1.49 | 1.80 | |
| Adjusting bolt | ||||
| 146 | 1609B00347 | 1.00 | 1.21 | |
| Plate | ||||
| 147 | 1609B06447 | 1.49 | 1.80 | |
| Locking Pin | ||||
| 149 | 1609B06448 | 1.49 | 1.80 | |
| Shoulder Screw | ||||
| 151 | 1609B00351 | 1.00 | 1.21 | |
| Detent | ||||
| 152 | 1609B02371 | 18.94 | 22.92 | |
| Retaining Plate | ||||
| 153 | 1609B00353 | 1.49 | 1.80 | |
| Retaining Plate | ||||
| 154 | 1609B00354 | 1.49 | 1.80 | |
| Brake Plate | ||||
| 155 | 1609B00355 | 1.49 | 1.80 | |
| Spacer | ||||
| 156 | 1609B00356 | 1.00 | 1.21 | |
| Pointer | ||||
| 157 | 1609B00357 | 2.08 | 2.52 | |
| Pointer | ||||
| 158 | 1609B00358 | 2.08 | 2.52 | |
| Adjusting bolt | ||||
| 159 | 1609B00359 | 2.08 | 2.52 | |
| Support | ||||
| 161 | 1609B06480 | 2.08 | 2.52 | |
| Bumper | ||||
| 162 | 1609B00362 | 2.08 | 2.52 | |
| Shaft | ||||
| 164 | 1609B00364 | 7.46 | 9.03 | |
| Rubber Plug | ||||
| 168 | 1609B00368 | 1.49 | 1.80 | |
| Rubber Plug | ||||
| 169 | 1609B00369 | 1.49 | 1.80 | |
| Arm | ||||
| 171 | 1609B06464 | 52.45 | 63.46 | |
| Knob | ||||
| 172 | 1609B00382 | 4.94 | 5.98 | |
| Plate | ||||
| 174 | 1609B04810 | 1.49 | 1.80 | |
| Output Shaft | ||||
| 175 | 1609B04809 | 9.67 | 11.70 | |
| Gasket | ||||
| 179 | 1609B06459 | 2.40 | 2.90 | |
| Spindle | ||||
| 182 | 1609B04811 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 183 | 1609B04838 | 2.08 | 2.52 | |
| Switch Handle | ||||
| 184 | 1609B06431 | 8.35 | 10.10 | |
| Button | ||||
| 185 | 1609B00390 | 1.49 | 1.80 | |
| Filler | ||||
| 186 | 1609B06482 | 1.00 | 1.21 | |
| Label | ||||
| 191 | 1609B06747 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 194 | 1609B00417 | 1.00 | 1.21 | |
| Safety Cover | ||||
| 203 | 1609B06462 | 2.40 | 2.90 | |
| Linkage | ||||
| 204 | 1609B06446 | 2.40 | 2.90 | |
| Shoulder Screw | ||||
| 205 | 1609B00448 | 2.86 | 3.46 | |
| Bushing | ||||
| 206 | 1609B00449 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 211 | 1609B04876 | 1.00 | 1.21 | |
| Screw | ||||
| 212 | 1609B00454 | 1.00 | 1.21 | |
| Bumper | ||||
| 214 | 1609B02467 | 1.00 | 1.21 | |
| Washer | ||||
| 215 | 1609B00457 | 1.00 | 1.21 | |
| Quick-Lock | ||||
| 216 | 1609B00458 | 1.00 | 1.21 | |
| Screw | ||||
| 219 | 1609B03361 | 1.00 | 1.21 | |
| Screw | ||||
| 220 | 1609B04117 | 1.00 | 1.21 | |
| Rubber Pad | ||||
| 235 | 1609B00523 | 2.40 | 2.90 | |
| Rubber Bushing | ||||
| 239 | 1609B00533 | 1.00 | 1.21 | |
| Screw | ||||
| 240 | 1609B01483 | 1.00 | 1.21 | |
| Warning Plate | ||||
| 243 | 1609B00543 | 2.40 | 2.90 | |
| Sticker | ||||
| 244 | 1609B02120 | 2.08 | 2.52 | |
| Label | ||||
| 245 | 1609B06749 | 2.40 | 2.90 | |
| Warning Plate | ||||
| 247 | 1609B00549 | 2.40 | 2.90 | |
| Bolt | ||||
| 248 | 1609B06483 | 1.00 | 1.21 | |
| Sticker | ||||
| 253 | 1609B02122 | 2.40 | 2.90 | |
| Key | ||||
| 258 | 1609B00592 | 1.49 | 1.80 | |
| Bearing | ||||
| 262 | 1609B00597 | 9.67 | 11.70 | |
| Bearing | ||||
| 263 | 1609B00596 | 12.82 | 15.51 | |
| O-Ring | ||||
| 265 | 1609B02941 | 1.00 | 1.21 | |
| Bolt | ||||
| 266 | 1609B00602 | 1.49 | 1.80 | |
| Lock Nut | ||||
| 267 | 1609B00603 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 268 | 1609B00604 | 1.49 | 1.80 | |
| Lock Nut | ||||
| 269 | 1609B00605 | 1.00 | 1.21 | |
| Bolt | ||||
| 272 | 1609B00609 | 1.00 | 1.21 | |
| Screw | ||||
| 273 | 1609B00610 | 1.49 | 1.80 | |
| Screw | ||||
| 274 | 1609B00612 | 1.00 | 1.21 | |
| Set screw | ||||
| 275 | 1609B00614 | 1.00 | 1.21 | |
| Set screw | ||||
| 277 | 1609B00616 | 1.00 | 1.21 | |
| Set screw | ||||
| 279 | 1609B00618 | 1.49 | 1.80 | |
| Set screw | ||||
| 281 | 1609B00620 | 1.00 | 1.21 | |
| Set screw | ||||
| 282 | 1609B00621 | 1.49 | 1.80 | |
| Screw | ||||
| 285 | 1609B00624 | 1.00 | 1.21 | |
| Screw | ||||
| 288 | 1609B00627 | 2.08 | 2.52 | |
| Screw | ||||
| 289 | 1609B00630 | 1.00 | 1.21 | |
| Screw | ||||
| 294 | 1609B03179 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 297 | 1609B00637 | 1.00 | 1.21 | |
| Spring Pin | ||||
| 298 | 1609B00638 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 301 | 1609B00641 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 303 | 1609B00643 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 304 | 1609B00644 | 2.08 | 2.52 | |
| Screw | ||||
| 306 | 1609B00647 | 1.49 | 1.80 | |
| Screw | ||||
| 311 | 1609B06469 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 315 | 1609B00658 | 1.00 | 1.21 | |
| Washer | ||||
| 316 | 1609BP7042 | 1.00 | 1.21 | |
| Washer | ||||
| 320 | 1609B00664 | 1.00 | 1.21 | |
| Washer | ||||
| 321 | 1609B00665 | 1.00 | 1.21 | |
| Washer | ||||
| 322 | 1609B00667 | 1.00 | 1.21 | |
| Washer | ||||
| 323 | 1609B00669 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 325 | 1609B00672 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 326 | 1609B00673 | 1.00 | 1.21 | |
| Washer | ||||
| 327 | 1609B00674 | 1.00 | 1.21 | |
| Washer | ||||
| 328 | 1609B00675 | 1.00 | 1.21 | |
| Screw | ||||
| 329 | 1609B00678 | 1.00 | 1.21 | |
| Screw | ||||
| 330 | 1609B00680 | 1.00 | 1.21 | |
| Thrust Bearing | ||||
| 331 | 1609B00681 | 5.81 | 7.03 | |
| Screw | ||||
| 332 | 1609B00682 | 1.00 | 1.21 | |
| Adjusting Nut | ||||
| 333 | 1609B04227 | 1.00 | 1.21 | |
| Hexagon Bolt | ||||
| 334 | 1609B02145 | 1.00 | 1.21 | |
| Washer | ||||
| 336 | 1609B00688 | 1.00 | 1.21 | |
| Screw | ||||
| 337 | 1609B00689 | 1.49 | 1.80 | |
| Brake Plate | ||||
| 338 | 2610919073 | 8.35 | 10.10 | |
| Washer | ||||
| 339 | 2610919281 | 3.44 | 4.16 | |
| Roller | ||||
| 340 | 1609BP7124 | 1.49 | 1.80 | |
| Shaft | ||||
| 341 | 1609B00370 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 342 | 1609B00690 | 1.00 | 1.21 | |
| Washer | ||||
| 345 | 1609B00288 | 1.00 | 1.21 | |
| Bushing | ||||
| 347 | 1609B01607 | 2.08 | 2.52 | |
| Screw | ||||
| 348 | 1609B02178 | 1.00 | 1.21 | |
| Screw | ||||
| 349 | 1609B05179 | 2.40 | 2.90 | |
| Screw | ||||
| 350 | 1609B06479 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 351 | 1609BP7137 | 1.00 | 1.21 | |
| Screw | ||||
| 352 | 1609B00623 | 1.00 | 1.21 | |
| Washer | ||||
| 354 | 1609B00676 | 1.49 | 1.80 | |
| Lower guard | ||||
| 358 | 1609B04872 | 13.13 | 15.89 | |
| Screw | ||||
| 362 | 1609B01693 | 1.00 | 1.21 | |
| Knob | ||||
| 368 | 1609B02991 | 1.00 | 1.21 | |
| Screw | ||||
| 385 | 1609B06455 | 1.00 | 1.21 | |
| Cover | ||||
| 388 | 1609B06458 | 1.49 | 1.80 | |
| Cover | ||||
| 398 | 1609B06460 | 1.00 | 1.21 | |
| T-Nut | ||||
| 411 | 1609B02468 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 412 | 1609B04477 | 1.00 | 1.21 | |
| Rod | ||||
| 414 | 1609B04479 | 2.86 | 3.46 | |
| Plate | ||||
| 415 | 1609B04481 | 1.00 | 1.21 | |
| Support bracket | ||||
| 418 | 1609B06443 | 1.00 | 1.21 | |
| Set screw | ||||
| 419 | 1609B03777 | 1.00 | 1.21 | |
| Button | ||||
| 420 | 1609B06441 | 1.00 | 1.21 | |
| Screw | ||||
| 422 | 1609B00780 | 1.00 | 1.21 | |
| Cable | ||||
| 427 | 1609B05115 | 2.08 | 2.52 | |
| Stop bolt | ||||
| 428 | 1609B03776 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 429 | 1609B01041 | 1.00 | 1.21 | |
| Warning Label | ||||
| 433 | 1609B06743 | 1.00 | 1.21 | |
| Warning Label | ||||
| 434 | 1609B06744 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 435 | 1609B01530 | 1.00 | 1.21 | |
| Screw | ||||
| 474 | 1609B00678 | 1.00 | 1.21 | |
| Stop Plate | ||||
| 475 | 1609B02365 | 1.49 | 1.80 | |
| Screw | ||||
| 476 | 1609B00263 | 2.08 | 2.52 | |
| Detent Pin | ||||
| 802 | 1609B02310 | 4.18 | 5.06 | |
| Nameplate | ||||
| 808 | 1609BN0389 | 2.40 | 2.90 | |
| Detent | ||||
| 813 | 1609B02966 | 4.18 | 5.06 | |
| Chute | ||||
| 828 | 1609B06772 | 13.13 | 15.89 | |
| Hinge | ||||
| 831 | 1609B02303 | 88.83 | 107.48 | |
| Hinge | ||||
| 832 | 1609B02304 | 71.68 | 86.73 | |
| Hinge | ||||
| 833 | 1609B02305 | 58.03 | 70.22 | |
| Adjustable screw clamp | ||||
| 834 | 1609B06203 | 12.82 | 15.51 | |
| Hinge | ||||
| 835 | 1609B06755 | 47.53 | 57.51 | |
| Base | ||||
| 844 | 1609B02968 | 197.62 | 239.12 | |
| Extension Stand | ||||
| 851 | 1609B02964 | 23.90 | 28.92 | |
| Extension Stand | ||||
| 852 | 1609B02965 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 853 | 1609B05025 | |||
| Bolt | ||||
| 869 | 1609B05017 | 16.79 | 20.32 | |
| Chain Cover | ||||
| 873 | 1609B06754 | 39.14 | 47.36 | |
| Gear | ||||
| 876 | 1609B06756 | 31.42 | 38.02 | |
| Table | ||||
| 882 | 1609B02967 | 173.95 | 210.48 | |
| Laser module | ||||
| 887 | 1609B06753 | 43.12 | 52.18 | |
| Dust Bag | ||||
| 888 | 1609B05010 | 6.73 | 8.14 | |
