Here you will find all available parts and drawings of the 'Bosch 0601B21003 ( GCM12 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

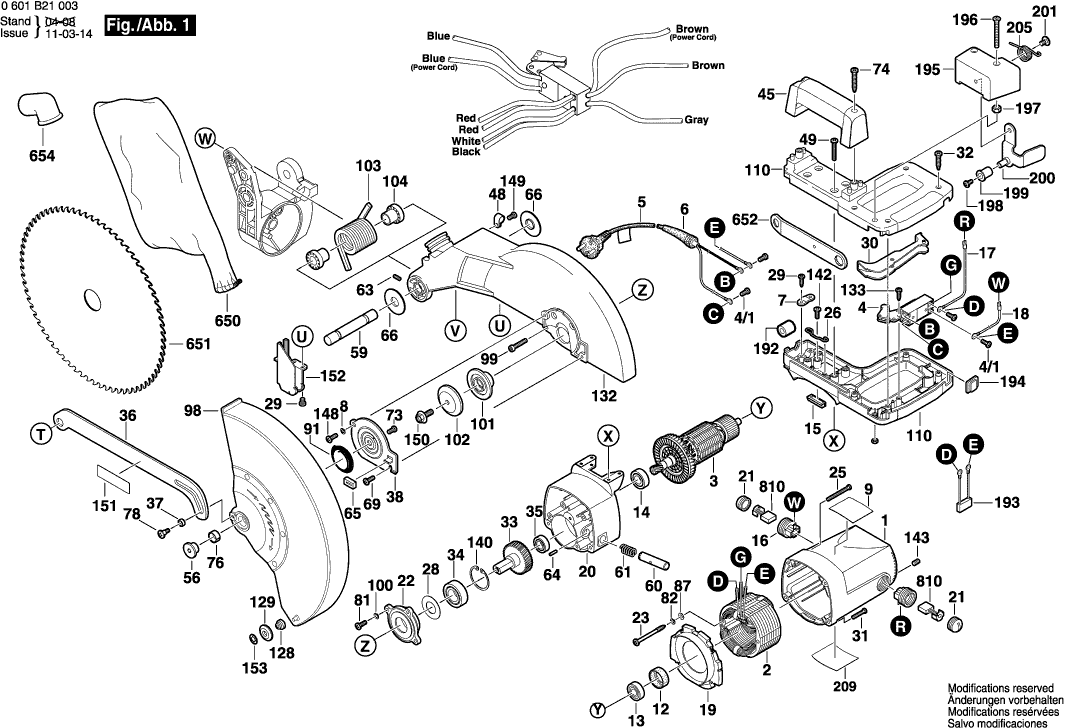

Technical drawing of model Bosch 0601B21003 ( GCM12 )

Spare parts list of model Bosch 0601B21003 ( GCM12 )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Motor Housing
1 2610967440 29.75 36.00
Stator
2 2610020976 113.29 137.08
Rotor
3 2610020934 233.78 282.87
No longer available, no replacement
4 1609902612
Screw
4/1 2610358901 1.18 1.43
Power supply cord
5 1609203G66 20.42 24.71
Grommet
6 2610911464 2.24 2.71
Cable Clip
7 2610910756 1.18 1.43
Washer
8 2610911450 0.83 1.00
Manufacturer's nameplate
9 1609902621 1.70 2.06
No longer available, no replacement
12 2610911485
groove ball bearing 6200-2Z DIN 625
13 1900905232 18.19 22.01
groove ball bearing
14 1609902600 5.33 6.45
Protractor
15 2610911486 2.24 2.71
Brush Holder
16 2610911488 10.73 12.98
Cable
17 1609203H39 5.83 7.05
Cable
18 2610910780 6.54 7.91
Air-Deflector Ring
19 2610911477 5.33 6.45
Gear Housing
20 2610911474 23.75 28.74
Cover
21 2610911487 1.70 2.06
Bearing Flange
22 2610911479 10.73 12.98
Screw
23 2610911452 0.83 1.00
Screw
25 2610910785 0.83 1.00
Spring Wire
26 2610910754 0.83 1.00
Spring Washer
28 2610910046 0.83 1.00
Screw
29 2615296765 1.18 1.43
Switch Button
30 2610910827 4.70 5.69
Screw
31 2610355337 2.71 3.28
Screw
32 2610911458 1.70 2.06
No longer available, no replacement
33 1609203G68
Ball Bearing
34 2610910789 9.53 11.53
Ball Bearing
35 2610910787 8.45 10.22
Lever
36 2610990525 5.33 6.45
Collar
37 2610910849 0.83 1.00
No longer available, no replacement
38 2610910821
Washer
40 2610908270 0.83 1.00
Angle Joint
44 1609902604 40.61 49.14
Handle
45 2610967445 12.41 15.02
Cover Pin
46 2610910761 2.71 3.28
Self-locking nut
47 1609203G71 1.18 1.43
Cable Clip
48 2610990504 0.83 1.00
Screw
49 2610355338 1.18 1.43
Base Plate
50 1609902605 73.72 89.20
Bar
51 2610910757 4.10 4.96
Retaining Pin
52 2610910768 3.31 4.01
Compression Spring
53 2610910765 0.83 1.00
No longer available, no replacement
54 2610910838
Toothed lock washer
55 1609203G72 5.83 7.05
Pivot
56 2610910848 0.83 1.00
Intermediate Plate
57 2610910837 6.54 7.91
Bolt
58 2610910769 4.70 5.69
Pivot
59 2610910842 3.31 4.01
Locking Pin
60 2610911484 4.70 5.69
Spring
61 2610910770 0.83 1.00
Screw
62 2610910781 1.18 1.43
Screw
63 1609203G73 0.83 1.00
Bolt
64 2610910796 2.24 2.71
End stop
65 2610910750 0.83 1.00
Washer
66 2610911465 1.94 2.35
O-Ring
67 2610910788 0.83 1.00
Nut
68 2610910783 0.83 1.00
Screw
69 2615297323 0.83 1.00
Screw
71 2610910790 0.83 1.00
Nut
72 2610910791 2.24 2.71
Screw
73 2610911451 0.83 1.00
Screw
74 2610911460 0.83 1.00
Set screw
75 2610910786 0.83 1.00
Sleeve
76 2610910751 2.24 2.71
Nut
77 2610910760 1.70 2.06
Screw
78 2610910797 0.83 1.00
Nut
79 1609203G74 0.83 1.00
Screw
80 1609203G75 1.18 1.43
Screw
81 2610910784 0.83 1.00
Spring Washer
82 2610911455 0.83 1.00
Washer
83 2610910779 0.83 1.00
Washer
84 1609902582 0.83 1.00
Screw M 8x0.8-10
86 2610911466 0.83 1.00
Plain Washer
87 2610355304 2.71 3.28
Screw
88 2610910762 3.31 4.01
Sleeve
89 2610910766 4.10 4.96
Plain Washer
90 2610355264 1.94 2.35
No longer available, no replacement
91 2610910752
Stud bolt
93 1609902584 0.83 1.00
Stud bolt
94 1609902585 2.24 2.71
Stud bolt
95 1609902586 1.94 2.35
Spring
96 2610910758 0.83 1.00
Hex Nut
97 1609203G76 5.83 7.05
Safety Cover
98 1609902606 26.84 32.48
Screw
99 2610911461 1.70 2.06
Spring Washer
100 2610990503 0.83 1.00
No longer available, no replacement
101 1609203G77
No longer available, no replacement
102 1609203G78
Torsion Spring
103 2610910755 11.88 14.37
Sleeve
104 2610910753 0.83 1.00
Inset Plate
105 1619P03783 5.33 6.45
End Plate
106 2610910833 4.70 5.69
Gusset plate
107 2610910835 4.10 4.96
Pivot
109 2610910839 7.58 9.17
Handle
110 1609203G79 33.45 40.47
Saw Table
111 2610967449 130.32 157.69
Clamping Lever
112 2610910822 7.58 9.17
Indicator Rail
113 2610910831 4.10 4.96
Stop Rail
114 1609902607 44.82 54.23
Plate
115 2610916122 5.33 6.45
Stop Rail
116 1609902608 15.71 19.01
Socket head cap screw
118 2610358055 4.70 5.69
Washer
119 2610309996 0.83 1.00
No longer available, no replacement
120 2610910775
Sliding Plate
121 2610910830 2.71 3.28
Warning Plate
122 2610911658 1.18 1.43
Mounting Bracket
123 1609902609 6.54 7.91
Set Of Keys
124 2610911470 3.31 4.01
Hexagon Socket Wrench
125 2610355577 2.71 3.28
Threaded Plate
126 2610910844 0.83 1.00
No longer available, no replacement
128 2610990522
Roller
129 2610990518 0.83 1.00
No longer available, no replacement
130 1619P03548
Protecting Cover
132 2610907783 67.25 81.37
Screw
133 2610911459 0.83 1.00
Screw
136 2610910777 0.83 1.00
Screw
137 1609902588 1.18 1.43
Screw
138 1609203G80 0.83 1.00
Screw
139 2610911469 0.83 1.00
Retaining snap ring
140 2610355320 4.70 5.69
Hex Nut
141 2610910794 0.83 1.00
Screw
142 2610320345 0.83 1.00
Screw
143 2610911456 1.94 2.35
Screw
144 2610910782 0.83 1.00
No longer available, no replacement
145 2610910774
Screw
146 2610910776 0.83 1.00
Screw
148 2610910799 0.83 1.00
Screw
149 2610355293 2.71 3.28
No longer available, no replacement
150 2610911467
Protective Cover
152 1609203G95 6.54 7.91
Spring retaining ring
153 2610990521 0.83 1.00
Clamping Plate
154 2610967433 2.24 2.71
Plain Washer
155 2610358439 0.83 1.00
Spring retaining ring
156 2610967438 0.83 1.00
Nut
157 2610967439 0.83 1.00
Stud bolt
158 2610992372 0.83 1.00
Seal
159 2615303020 0.83 1.00
Ring
160 2610992366 0.83 1.00
Clamp
191 2610967432 2.24 2.71
Ferrite Core
192 1609902592 3.31 4.01
Condenser
193 1609902610 4.10 4.96
Insert
194 1609203G83 1.70 2.06
Cover
195 1609203G84 8.45 10.22
Screw
196 1609203G86 0.83 1.00
Hex Nut
197 1609902594 0.83 1.00
Screw
198 1609902474 0.83 1.00
Roller
199 1609902475 0.83 1.00
Locking Lever
200 1609902476 5.33 6.45
Bearing bolt
201 1609203G91 0.83 1.00
Cover Plate
202 1609203G92 2.24 2.71
Screw
203 1609203G94 0.83 1.00
Screw
204 1609203H34 0.83 1.00
Coiled Spring
205 1609203G93 1.70 2.06
No information available, not orderable
206 1609902377
No information available, not orderable
207 1609902477
No information available, not orderable
208 1609902478
Nameplate
209 1609902646 0.83 1.00
Dust Bag
650 1609902596 26.84 32.48
Key
652 2610910828 4.70 5.69
Suction Tube
654 2610910845 4.10 4.96
Fitting
670 2610919256 11.68 14.13
No longer available, no replacement
810 1619P04451
