Here you will find all available parts and drawings of the 'Bosch 3601M23101 (GCM12SDE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

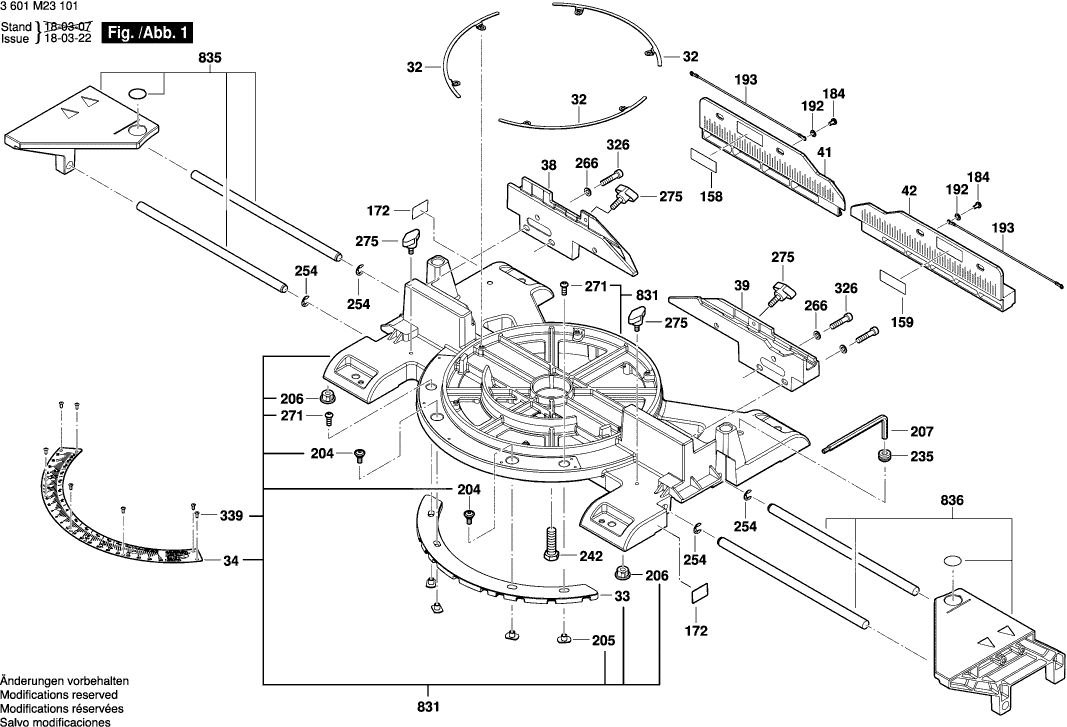

Technical drawing of model Bosch 3601M23101 (GCM12SDE)
Spare parts list of model Bosch 3601M23101 (GCM12SDE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field 230V | ||||
| 2 | 1609B04898 | 71.68 | 86.73 | |
| Switch | ||||
| 4 | 2610950336 | 16.79 | 20.32 | |
| Power supply cord | ||||
| 5 | 1609B00372 | 18.94 | 22.92 | |
| Label | ||||
| 9 | 1609B00695 | 2.40 | 2.90 | |
| Bearing | ||||
| 13 | 1609B00597 | 9.67 | 11.70 | |
| Sliding Plate | ||||
| 32 | 1609B04702 | 6.73 | 8.14 | |
| Detent plate | ||||
| 33 | 1609B04703 | 7.46 | 9.03 | |
| Scale | ||||
| 34 | 1609B04704 | 5.81 | 7.03 | |
| Mitre Fence | ||||
| 38 | 1609B04991 | 27.81 | 33.65 | |
| Mitre Fence | ||||
| 39 | 1609B04992 | 23.90 | 28.92 | |
| Mitre Fence | ||||
| 41 | 1609B04993 | 27.81 | 33.65 | |
| Mitre Fence | ||||
| 42 | 1609B04994 | 27.81 | 33.65 | |
| Table | ||||
| 44 | 1609B04721 | 219.55 | 265.66 | |
| Shaft | ||||
| 45 | 1609B04722 | 4.18 | 5.06 | |
| Knob | ||||
| 47 | 1609B04725 | 4.94 | 5.98 | |
| Rod | ||||
| 48 | 1609B04726 | 2.86 | 3.46 | |
| Cover | ||||
| 49 | 1609B04727 | 2.86 | 3.46 | |
| Supporting foot | ||||
| 51 | 1609B04728 | 2.86 | 3.46 | |
| Detent | ||||
| 52 | 1609B04743 | 12.82 | 15.51 | |
| Shoulder Screw | ||||
| 53 | 1609B04744 | 1.00 | 1.21 | |
| Contact strap | ||||
| 54 | 1609B04745 | 1.00 | 1.21 | |
| Ball | ||||
| 55 | 1609B04746 | 1.00 | 1.21 | |
| Detent | ||||
| 56 | 1609B04747 | 2.86 | 3.46 | |
| Detent | ||||
| 57 | 1609B04748 | 9.67 | 11.70 | |
| Contact strap | ||||
| 58 | 1609B04749 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 59 | 1609B04750 | 1.49 | 1.80 | |
| Pointer | ||||
| 61 | 1609B04751 | 1.49 | 1.80 | |
| Scale | ||||
| 62 | 1609B04752 | 18.94 | 22.92 | |
| Sliding Plate | ||||
| 63 | 1609B04754 | 2.08 | 2.52 | |
| Cover | ||||
| 64 | 1609B04755 | 1.00 | 1.21 | |
| Contact strap | ||||
| 65 | 1609B04756 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 66 | 1609B04758 | 1.00 | 1.21 | |
| Post | ||||
| 67 | 1609B04761 | 80.26 | 97.11 | |
| Pointer | ||||
| 68 | 1609B04773 | 1.00 | 1.21 | |
| Pointer | ||||
| 69 | 1609B04774 | 1.00 | 1.21 | |
| Bearing | ||||
| 71 | 1609B04775 | 43.12 | 52.18 | |
| Wear Plate | ||||
| 72 | 1609B04776 | 2.08 | 2.52 | |
| Plate | ||||
| 73 | 1609B04778 | 3.44 | 4.16 | |
| Felt | ||||
| 74 | 1609B04780 | 2.52 | 3.05 | |
| Knob | ||||
| 75 | 1609B04781 | 4.18 | 5.06 | |
| Contact strap | ||||
| 76 | 1609BP7343 | 1.00 | 1.21 | |
| Locking Lever | ||||
| 77 | 1609B04794 | 14.94 | 18.08 | |
| Lever Shaft | ||||
| 78 | 1609B04795 | 14.94 | 18.08 | |
| Cover | ||||
| 79 | 1609B04798 | 2.08 | 2.52 | |
| Arm | ||||
| 81 | 1609B04995 | 110.30 | 133.46 | |
| Belt Cover | ||||
| 83 | 1609B04803 | 9.67 | 11.70 | |
| Transmission Shaft | ||||
| 84 | 1609B04804 | 9.67 | 11.70 | |
| Pulley | ||||
| 85 | 1609B04805 | 13.13 | 15.89 | |
| Sprocket | ||||
| 86 | 1609B04806 | 12.82 | 15.51 | |
| Washer | ||||
| 87 | 1609B04807 | 1.49 | 1.80 | |
| Chain | ||||
| 88 | 1609B04808 | 14.94 | 18.08 | |
| Output Shaft | ||||
| 89 | 1609B04809 | 9.67 | 11.70 | |
| Plate | ||||
| 91 | 1609B04810 | 1.49 | 1.80 | |
| Spindle | ||||
| 92 | 1609B04811 | 1.49 | 1.80 | |
| Cover | ||||
| 93 | 1609B04812 | 1.00 | 1.21 | |
| Channel | ||||
| 94 | 1609B04813 | 1.00 | 1.21 | |
| Chip Deflector | ||||
| 95 | 1609B04821 | 2.08 | 2.52 | |
| Chip Deflector | ||||
| 96 | 1609B04820 | 2.08 | 2.52 | |
| Pivot Pin | ||||
| 97 | 1609B04816 | 3.44 | 4.16 | |
| Gasket | ||||
| 102 | 1609B04822 | 2.86 | 3.46 | |
| Clip | ||||
| 103 | 1609B05177 | 2.08 | 2.52 | |
| Wear Plate | ||||
| 104 | 1609B04826 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 105 | 1609B04827 | 1.00 | 1.21 | |
| Carrying Handle | ||||
| 106 | 1609B04828 | 3.44 | 4.16 | |
| Screw | ||||
| 107 | 1609B04829 | 1.00 | 1.21 | |
| Torsion Spring | ||||
| 109 | 1609B04831 | 11.37 | 13.76 | |
| Screw | ||||
| 111 | 1609B04832 | 12.82 | 15.51 | |
| Screw | ||||
| 115 | 1609B04836 | 1.00 | 1.21 | |
| Torsion Spring | ||||
| 116 | 1609B04837 | 3.44 | 4.16 | |
| Compression Spring | ||||
| 117 | 1609B04838 | 2.08 | 2.52 | |
| Wire | ||||
| 118 | 1609B04839 | 3.44 | 4.16 | |
| End cap | ||||
| 122 | 1609B04843 | 9.67 | 11.70 | |
| Trap door | ||||
| 123 | 1609B05131 | 2.08 | 2.52 | |
| Dust Extraction | ||||
| 126 | 1609B04847 | 4.18 | 5.06 | |
| Support bracket | ||||
| 127 | 1609B04848 | 2.08 | 2.52 | |
| Switch Handle | ||||
| 129 | 1609B05031 | 14.94 | 18.08 | |
| Wire | ||||
| 132 | 1609B04881 | 1.49 | 1.80 | |
| Wire | ||||
| 133 | 1609B04882 | 1.49 | 1.80 | |
| Power Supply Board | ||||
| 134 | 1609B05144 | 16.79 | 20.32 | |
| Linkage | ||||
| 141 | 1609B04875 | 9.67 | 11.70 | |
| Shoulder Screw | ||||
| 142 | 1609B04876 | 1.00 | 1.21 | |
| Intermediate Flange | ||||
| 143 | 1609B04891 | 11.37 | 13.76 | |
| End cap | ||||
| 144 | 1609B04902 | 4.18 | 5.06 | |
| Baffle | ||||
| 145 | 1609B04904 | 2.86 | 3.46 | |
| Screw | ||||
| 146 | 1609B04911 | 3.44 | 4.16 | |
| Speed governor | ||||
| 147 | 1609B04913 | 27.81 | 33.65 | |
| Wire | ||||
| 148 | 1609B04915 | 2.86 | 3.46 | |
| Wire | ||||
| 149 | 1609B04916 | 1.49 | 1.80 | |
| Wire | ||||
| 151 | 1609B04917 | 2.08 | 2.52 | |
| Wire | ||||
| 152 | 1609B04918 | 2.40 | 2.90 | |
| Wire | ||||
| 153 | 1609B04919 | 1.49 | 1.80 | |
| Sleeve | ||||
| 154 | 1609B04921 | 1.00 | 1.21 | |
| Clip | ||||
| 156 | 1609B04923 | 1.00 | 1.21 | |
| Label | ||||
| 158 | 1609B04949 | 2.40 | 2.90 | |
| Label | ||||
| 159 | 1609B04950 | 2.40 | 2.90 | |
| Label | ||||
| 161 | 1609B05073 | 4.18 | 5.06 | |
| Label | ||||
| 171 | 1609B04937 | 2.40 | 2.90 | |
| Label | ||||
| 172 | 1609B04960 | 2.40 | 2.90 | |
| Plate | ||||
| 173 | 1609B04782 | 2.08 | 2.52 | |
| Shoulder Screw | ||||
| 174 | 1609B04783 | 1.00 | 1.21 | |
| Safety Guard | ||||
| 175 | 1609B04823 | 3.44 | 4.16 | |
| Torsion Spring | ||||
| 176 | 1609B04824 | 1.00 | 1.21 | |
| Washer | ||||
| 183 | 1609B04757 | 1.00 | 1.21 | |
| Screw | ||||
| 184 | 1609B00780 | 1.00 | 1.21 | |
| Leaf Spring | ||||
| 186 | 1609B04762 | 1.00 | 1.21 | |
| Label | ||||
| 187 | 1609B04959 | 2.40 | 2.90 | |
| Plain Washer | ||||
| 192 | 1609B04225 | 1.00 | 1.21 | |
| Cable | ||||
| 193 | 1609B05115 | 2.08 | 2.52 | |
| Washer | ||||
| 198 | 1609B05158 | 4.18 | 5.06 | |
| Screw | ||||
| 199 | 1609BP7139 | 1.00 | 1.21 | |
| Belt | ||||
| 201 | 1609B00207 | 27.81 | 33.65 | |
| Flange Bolt | ||||
| 202 | 1609B00211 | 4.18 | 5.06 | |
| Flange Bolt | ||||
| 203 | 1609B00213 | 1.00 | 1.21 | |
| Screw | ||||
| 204 | 1609B00223 | 1.49 | 1.80 | |
| Nut | ||||
| 205 | 1609B00225 | 3.44 | 4.16 | |
| Supporting foot | ||||
| 206 | 1609B01431 | 2.08 | 2.52 | |
| Wrench Socket | ||||
| 207 | 1609B00256 | 2.08 | 2.52 | |
| Bolt | ||||
| 208 | 1609B00305 | 2.40 | 2.90 | |
| Knob | ||||
| 209 | 1609B00350 | 1.49 | 1.80 | |
| Shaft | ||||
| 212 | 1609B00370 | 1.49 | 1.80 | |
| Knob | ||||
| 213 | 1609B00382 | 4.94 | 5.98 | |
| Button | ||||
| 214 | 1609B00390 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 215 | 1609B00417 | 1.00 | 1.21 | |
| Sleeve | ||||
| 216 | 1609B00418 | 1.00 | 1.21 | |
| Connector | ||||
| 217 | 1609B00430 | 1.00 | 1.21 | |
| Bushing | ||||
| 218 | 1609B00449 | 1.00 | 1.21 | |
| Screw | ||||
| 222 | 1609B00454 | 1.00 | 1.21 | |
| Washer | ||||
| 224 | 1609B00457 | 1.00 | 1.21 | |
| Quick-Lock | ||||
| 225 | 1609B00458 | 1.00 | 1.21 | |
| Brush-Cover | ||||
| 227 | 1609B00478 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 228 | 1609B01670 | 1.49 | 1.80 | |
| Rubber Bushing | ||||
| 235 | 1609B00533 | 1.00 | 1.21 | |
| Key | ||||
| 237 | 1609B00592 | 1.49 | 1.80 | |
| Key | ||||
| 238 | 1609B00593 | 1.49 | 1.80 | |
| Bearing | ||||
| 239 | 1609B00596 | 12.82 | 15.51 | |
| O-Ring | ||||
| 241 | 1609B00601 | 1.49 | 1.80 | |
| Bolt | ||||
| 242 | 1609B00602 | 1.49 | 1.80 | |
| Lock Nut | ||||
| 243 | 1609B00603 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 244 | 1609B00605 | 1.00 | 1.21 | |
| Set screw | ||||
| 245 | 1609B00617 | 1.49 | 1.80 | |
| Screw | ||||
| 246 | 1609B00627 | 2.08 | 2.52 | |
| Screw | ||||
| 247 | 1609B00630 | 1.00 | 1.21 | |
| Screw | ||||
| 248 | 1609B00633 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 249 | 1609B00636 | 2.18 | 2.64 | |
| Tapping Screw | ||||
| 251 | 1609B00637 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 252 | 1609B00641 | 1.49 | 1.80 | |
| Retaining ring | ||||
| 253 | 1609B00643 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 254 | 1609B00644 | 2.08 | 2.52 | |
| Screw | ||||
| 255 | 1609B00649 | 1.00 | 1.21 | |
| Screw | ||||
| 256 | 1609B00650 | 1.00 | 1.21 | |
| Screw | ||||
| 257 | 1609B00652 | 1.00 | 1.21 | |
| Screw | ||||
| 258 | 1609B00654 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 259 | 1609B00658 | 1.00 | 1.21 | |
| Washer | ||||
| 262 | 1609B00662 | 1.49 | 1.80 | |
| Washer | ||||
| 264 | 1609B00665 | 1.00 | 1.21 | |
| Washer | ||||
| 265 | 1609B00667 | 1.00 | 1.21 | |
| Washer | ||||
| 266 | 1609B00669 | 1.00 | 1.21 | |
| Washer | ||||
| 268 | 1609B00674 | 1.00 | 1.21 | |
| Washer | ||||
| 269 | 1609B00675 | 1.00 | 1.21 | |
| Screw | ||||
| 271 | 1609B00678 | 1.00 | 1.21 | |
| Retaining ring | ||||
| 273 | 1609B00690 | 1.00 | 1.21 | |
| Ring | ||||
| 274 | 1609B05354 | 1.00 | 1.21 | |
| Knob | ||||
| 275 | 1609B02991 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 277 | 1609B01041 | 1.00 | 1.21 | |
| Screw | ||||
| 278 | 1609B04799 | 1.00 | 1.21 | |
| Tapping Screw | ||||
| 279 | 1609B01194 | 1.00 | 1.21 | |
| Cyl Head tapping screw | ||||
| 281 | 1609B01356 | 1.00 | 1.21 | |
| Screw | ||||
| 282 | 1609B01388 | 1.00 | 1.21 | |
| Strain-Relief Clamp | ||||
| 283 | 1609B04869 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 284 | 1609B01462 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 285 | 1609B01512 | 1.00 | 1.21 | |
| Trigger | ||||
| 287 | 1609B01531 | 2.08 | 2.52 | |
| Cord guard | ||||
| 288 | 1609B01533 | 1.00 | 1.21 | |
| Cable Tape | ||||
| 289 | 1609B01538 | 1.00 | 1.21 | |
| Control Screw | ||||
| 292 | 1609B01599 | 1.49 | 1.80 | |
| Bushing | ||||
| 293 | 1609B01605 | 1.49 | 1.80 | |
| Screw | ||||
| 295 | 1609B01660 | 1.00 | 1.21 | |
| Screw | ||||
| 296 | 1609B01664 | 1.49 | 1.80 | |
| Washer | ||||
| 297 | 1609B01668 | 1.00 | 1.21 | |
| Screw | ||||
| 298 | 1609B01665 | 1.00 | 1.21 | |
| Screw | ||||
| 299 | 1609B01693 | 1.00 | 1.21 | |
| End Clip | ||||
| 300 | 1609B01992 | 1.00 | 1.21 | |
| Screw | ||||
| 304 | 1609B00653 | 1.00 | 1.21 | |
| Washer | ||||
| 305 | 1609BP7042 | 1.00 | 1.21 | |
| Washer | ||||
| 307 | 1609B02191 | 2.40 | 2.90 | |
| Screw | ||||
| 308 | 1609B05179 | 2.40 | 2.90 | |
| Flange | ||||
| 309 | 1609B02350 | 11.37 | 13.76 | |
| Flange | ||||
| 310 | 1609B02352 | 10.90 | 13.19 | |
| Screw | ||||
| 314 | 1609B00414 | 4.94 | 5.98 | |
| Grooved Washer | ||||
| 315 | 1609B02438 | 1.00 | 1.21 | |
| Bumper | ||||
| 317 | 1609B02467 | 1.00 | 1.21 | |
| Wrench Socket | ||||
| 319 | 1609B00415 | 2.40 | 2.90 | |
| Screw | ||||
| 325 | 1609B03179 | 1.00 | 1.21 | |
| Screw | ||||
| 326 | 1609B03722 | 1.00 | 1.21 | |
| Control Lever | ||||
| 327 | 1609B03733 | 4.18 | 5.06 | |
| Lock Plate | ||||
| 329 | 1609B03741 | 2.40 | 2.90 | |
| Adjusting bolt | ||||
| 330 | 1609B03742 | 1.00 | 1.21 | |
| Slide Stop | ||||
| 331 | 1609B03753 | 1.49 | 1.80 | |
| Friction Plate | ||||
| 332 | 1609B03770 | 7.46 | 9.03 | |
| Stop bolt | ||||
| 333 | 1609B03776 | 1.00 | 1.21 | |
| Screw | ||||
| 334 | 1609B04086 | 2.08 | 2.52 | |
| Adjusting Nut | ||||
| 335 | 1609B04227 | 1.00 | 1.21 | |
| Connection Block | ||||
| 336 | 1609BP7059 | 1.49 | 1.80 | |
| Roller | ||||
| 338 | 1609BP7124 | 1.49 | 1.80 | |
| Rivet | ||||
| 339 | 1609B00622 | 1.00 | 1.21 | |
| Switch | ||||
| 340 | 1609B05392 | 3.71 | 4.49 | |
| Warning Plate | ||||
| 342 | 1609B04936 | 2.40 | 2.90 | |
| connecting terminal | ||||
| 345 | 1609B01397 | 1.00 | 1.21 | |
| Shoulder Screw | ||||
| 351 | 1609B01463 | 1.00 | 1.21 | |
| Button | ||||
| 352 | 1609B04865 | 1.00 | 1.21 | |
| Linkage | ||||
| 354 | 1609B01529 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 355 | 1609B01530 | 1.00 | 1.21 | |
| Housing Assembly | ||||
| 801 | 1609B05013 | 18.94 | 22.92 | |
| Armature assembly 230V | ||||
| 803 | 1609B04912 | 136.48 | 165.14 | |
| Nameplate | ||||
| 808 | 1609BN0206 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2610021311 | 15.61 | 18.89 | |
| Mounting Plate | ||||
| 812 | 1609B05189 | 2.86 | 3.46 | |
| Support Plate | ||||
| 813 | 1609B02434 | 14.94 | 18.08 | |
| Bearing | ||||
| 814 | 1609B02316 | 14.94 | 18.08 | |
| Condenser | ||||
| 815 | 1609B05030 | 1.49 | 1.80 | |
| Laser | ||||
| 816 | 1609B05188 | 71.68 | 86.73 | |
| Sprocket | ||||
| 818 | 1609B05020 | 12.82 | 15.51 | |
| Carrier | ||||
| 819 | 1609B05035 | 71.68 | 86.73 | |
| Adjustable screw clamp | ||||
| 824 | 1609B06203 | 12.82 | 15.51 | |
| Rubber Pad | ||||
| 824/232 | 1609B00523 | 2.40 | 2.90 | |
| Dust Extraction | ||||
| 825 | 1609B05018 | 11.37 | 13.76 | |
| Base Unit | ||||
| 831 | 1609B05022 | 219.55 | 265.66 | |
| Extension Stand | ||||
| 835 | 1609B05023 | 43.12 | 52.18 | |
| Extension Stand | ||||
| 836 | 1609B05024 | 43.12 | 52.18 | |
| No longer available, no replacement | ||||
| 837 | 1609B05025 | |||
| Plate | ||||
| 846 | 1609B05028 | 9.67 | 11.70 | |
| Chain Cover | ||||
| 882 | 1609B05026 | 31.42 | 38.02 | |
| Bolt | ||||
| 885 | 1609B05017 | 16.79 | 20.32 | |
