Here you will find all available parts and drawings of the 'Bosch 3601M21100 ( GCM12JL )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

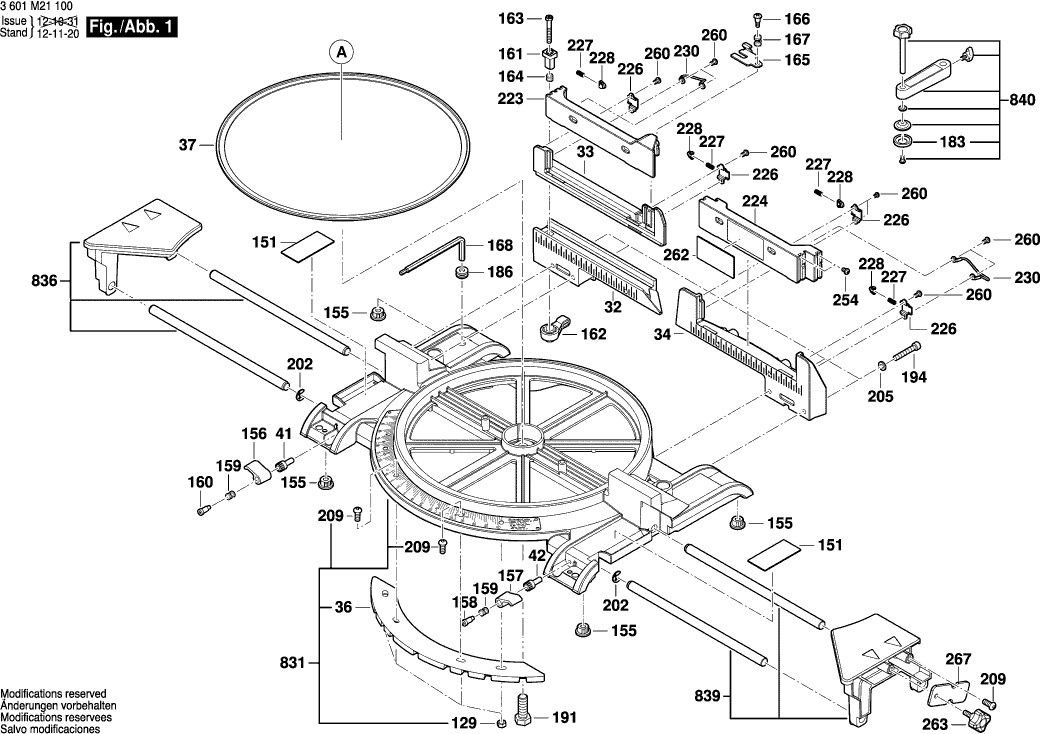

Technical drawing of model Bosch 3601M21100 ( GCM12JL )

Spare parts list of model Bosch 3601M21100 ( GCM12JL )

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Field 230V
2 1609B01577 81.47 98.58
Switch
4 2610950336 13.93 16.86
Power supply cord EU 3m 2x1mm H05 RN-F
5 1609B02952 12.41 15.02
Nameplate
8 1609BN0170 1.94 2.35
Suppression Capacitor
12 1609B01587 1.94 2.35
Bearing
13 1609B00812 4.70 5.69
Bearing
14 1609B01672 5.33 6.45
Washer
30 1609B01499 0.83 1.00
Mitre Fence
32 1609B01442 23.75 28.74
No longer available, no replacement
33 1609B01443
Mitre Fence
34 1609B01444 18.19 22.01
Detent plate
36 1609B01427 7.58 9.17
Sliding Plate
37 1609B01428 1.94 2.35
Lock Screw
41 1609B01435 1.18 1.43
Lock Screw
42 1609B01436 1.18 1.43
Table
44 1609B01452 113.29 137.08
Support Plate
45 1609B01453 2.71 3.28
Shaft
46 1609B01454 4.10 4.96
Wear Plate
47 1609B01457 0.83 1.00
Slider
48 1609B01458 0.83 1.00
Shoulder Screw
49 1609B01459 0.83 1.00
Scale Plate
50 1609B01460 9.53 11.53
Detent
51 1609B01461 5.83 7.05
Shoulder Screw
52 1609B01462 0.83 1.00
Shoulder Screw
53 1609B01463 0.83 1.00
Sliding Block
54 1609B01464 0.83 1.00
Pointer
55 1609B01465 1.18 1.43
Bracket
56 1609B01466 7.58 9.17
Pin
58 1609B01469 0.83 1.00
Knob
59 1609B01470 5.33 6.45
Clamp
60 1609B01472 1.70 2.06
Compression Spring
61 1609B01473 0.83 1.00
Pin
62 1609B01474 0.83 1.00
Trigger
63 1609B01475 3.31 4.01
Spring
64 1609B01476 1.18 1.43
Collar bolt
65 1609B01477 0.83 1.00
Compression Spring
66 1609B01479 0.83 1.00
Handle
67 1609B01482 7.58 9.17
Flange
69 1609B01585 7.58 9.17
Flange
70 1609B01586 6.54 7.91
O-Ring Seal
71 1609B01674 0.83 1.00
Bearing box
74 1609B01501 6.54 7.91
Bearing Cover
77 1609B01504 1.70 2.06
Baffle
78 1609B01507 2.71 3.28
End cap
79 1609B01508 6.54 7.91
Shoulder Screw
80 1609B01509 0.83 1.00
Cable Clip
81 1609B01512 0.83 1.00
Shoulder Screw
82 1609B01513 1.18 1.43
Chip Deflector
83 1609B01541 1.18 1.43
Chip Deflector
84 1609B01542 1.18 1.43
Nut Holder
90 1609B01522 0.83 1.00
Trigger
97 1609B01531 1.70 2.06
Cord guard
98 1609B01533 0.83 1.00
Connection Block
99 1609BP7059 1.18 1.43
Cable Tape
101 1609B01538 0.83 1.00
Pad
102 1609B01539 0.83 1.00
Screw
103 1609B01561 0.83 1.00
Cover
104 1609B01570 1.94 2.35
Pointer
106 1609B01592 2.24 2.71
Control Lever
107 1609B01593 4.70 5.69
Clamp Pin
108 1609B01594 6.54 7.91
Clamp
109 1609B01595 11.88 14.37
Pad
110 1609B01596 3.31 4.01
Pad
111 1609B01597 5.33 6.45
Backing Plate
112 1609B01598 0.83 1.00
Control Screw
113 1609B01599 1.18 1.43
Locking Pin
114 1609B01600 1.94 2.35
Shoulder Screw
115 1609B01601 0.83 1.00
Wear Plate
116 1609B01602 0.83 1.00
Shaft
117 1609B01603 3.31 4.01
No longer available, no replacement
118 1609B01604
Bushing
119 1609B01605 1.18 1.43
Linkage
120 1609B01606 9.53 11.53
Dust container
121 1609B01611 8.45 10.22
Rubber Plate
122 1609B01612 1.70 2.06
Adapter
123 1609B01613 8.45 10.22
Collar bolt
127 1609B01651 1.18 1.43
Collar bolt
128 1609B01652 1.18 1.43
Nut
129 1609B01654 0.83 1.00
Nut
130 1609B01655 0.83 1.00
Screw
131 1609B01656 0.83 1.00
Cyl Head tapping screw
132 1609B01356 0.83 1.00
Screw
133 1609B01660 0.83 1.00
Screw
134 1609B01664 1.18 1.43
Screw
135 1609B01665 0.83 1.00
Washer
137 1609B01668 0.83 1.00
Screw
139 1609B00654 0.83 1.00
Screw
140 1609B01680 0.83 1.00
Screw
141 1609B01689 0.83 1.00
Screw
142 1609B01690 0.83 1.00
Screw
143 1609B00655 0.83 1.00
Screw
144 1609B01692 0.83 1.00
Screw
145 1609B01576 0.83 1.00
Shaft
146 1609B00370 1.18 1.43
Washer
147 1609B01696 0.83 1.00
Screw
148 1609B01701 0.83 1.00
Label
151 1609B01730 1.94 2.35
Supporting foot
155 1609B01431 1.70 2.06
Locking Lever
156 1609B00232 1.18 1.43
Locking Lever
157 1609B00233 0.83 1.00
Shoulder Screw
158 1609B00236 1.18 1.43
Compression Spring
159 1609B00237 0.83 1.00
Shoulder Screw
160 1609B00238 1.18 1.43
Clamping Sleeve
161 1609B00244 2.71 3.28
Locking Lever
162 1609B00245 1.70 2.06
Bolt
163 1609B00247 1.18 1.43
Compression Spring
164 1609B00249 1.18 1.43
Plate
165 1609B01447 1.18 1.43
Shoulder Screw
166 1609B00252 1.18 1.43
Compression Spring
167 1609B00253 1.18 1.43
Wrench Socket
168 1609B00256 1.70 2.06
Torsion Spring
170 1609B00309 0.83 1.00
Retaining ring
172 1609B00690 0.83 1.00
Screw
175 1609B00454 0.83 1.00
Quick-Lock
177 1609B00458 0.83 1.00
Brush-Cover
179 1609B00478 0.83 1.00
Rubber Bushing
180 1609B01670 1.18 1.43
Rubber Pad
183 1609B00523 1.94 2.35
Rubber Bushing
186 1609B00533 0.83 1.00
Warning Plate
187 1609B00543 1.94 2.35
Bearing
189 1609B00600 2.24 2.71
O-Ring
190 1609B00601 1.18 1.43
Bolt
191 1609B00602 1.18 1.43
Lock Nut
192 1609B00603 0.83 1.00
Lock Nut
193 1609B00605 0.83 1.00
Screw
194 1609B00610 1.18 1.43
Screw
195 1609B00627 1.70 2.06
Tapping Screw
196 1609B00636 1.94 2.35
Tapping Screw
197 1609B00637 0.83 1.00
Screw
198 1609B00647 1.18 1.43
Spring Washer
199 1609B00658 0.83 1.00
Washer
200 1609B00662 1.18 1.43
Retaining ring
202 1609B00644 1.70 2.06
Washer
203 1609B00665 0.83 1.00
Washer
204 1609B00667 0.83 1.00
Washer
205 1609B00669 0.83 1.00
Washer
206 1609B00670 1.18 1.43
Lock Nut
207 1609B00673 0.83 1.00
Washer
208 1609B00675 0.83 1.00
Screw
209 1609B00678 0.83 1.00
groove ball bearing
211 1609B00779 5.83 7.05
Roller
212 1609B00811 1.18 1.43
Flange Bolt
213 1609B00960 3.31 4.01
Roller
216 1609BP7124 1.18 1.43
Bushing
218 1609B01607 1.70 2.06
Mitre Fence
223 1609B01445 15.71 19.01
Mitre Fence
224 1609B01446 15.71 19.01
Cover Plate
226 1609B01448 0.83 1.00
Compression Spring
227 1609B01449 0.83 1.00
Detent
228 1609B01440 0.83 1.00
Connecting Wire
230 1609B01481 1.70 2.06
Electronic Module
231 1609B01547 20.42 24.71
Connecting Cable
232 1609B01549 1.70 2.06
Torsion Spring
237 1609B01560 2.24 2.71
Shoulder Screw
244 1609B01575 0.83 1.00
Channel
248 1609B01584 1.70 2.06
Connecting Cable
251 1609B01588 0.83 1.00
Connecting Cable
252 1609B01589 1.18 1.43
Screw
254 1609B01661 0.83 1.00
Screw
257 1609B01667 0.83 1.00
Screw
260 1609B01681 0.83 1.00
Manufacturer's nameplate GCM 12 JL
261 1609B01746 1.94 2.35
Sticker
262 1609B01752 0.83 1.00
Screw
263 1609B00263 1.70 2.06
Ring
264 1609B00813 0.83 1.00
Stop Plate
267 1609B02365 1.18 1.43
Connector
269 1609B02406 0.83 1.00
Switch
274 1609B05392 3.31 4.01
Warning Plate
275 1609B02129 1.94 2.35
connecting terminal
277 1609B01397 0.83 1.00
Warning Label
278 1609B01767 1.94 2.35
Motor Housing
801 1609B01713 40.61 49.14
Armature 230V
803 1609B01723 130.32 157.69
Yoke
805 1609B01717 55.25 66.85
Carbon-Brush Set
810 2610021311 13.93 16.86
Dust Bag
825 1609B01716 11.88 14.37
Gear
830 1609B01710 44.82 54.23
Base
831 1609B01715 187.62 227.02
Handle
835 1609B01708 7.58 9.17
Feed Table
836 1609B01720 36.85 44.59
Feed Table
839 1609B01721 33.45 40.47
Adjustable screw clamp
840 1609B06203 10.73 12.98
No longer available, no replacement
841 1609B01726
Button
857 1609B01722 2.71 3.28
Arm
868 1609B01727 101.94 123.35
Soft Start-Up Module
870 1609B01709 23.75 28.74
Protection
886 1609B01719 44.82 54.23
Handle
892 1609B01642 11.88 14.37
