Here you will find all available parts and drawings of the 'Bosch 0601B20003 (GCM10)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

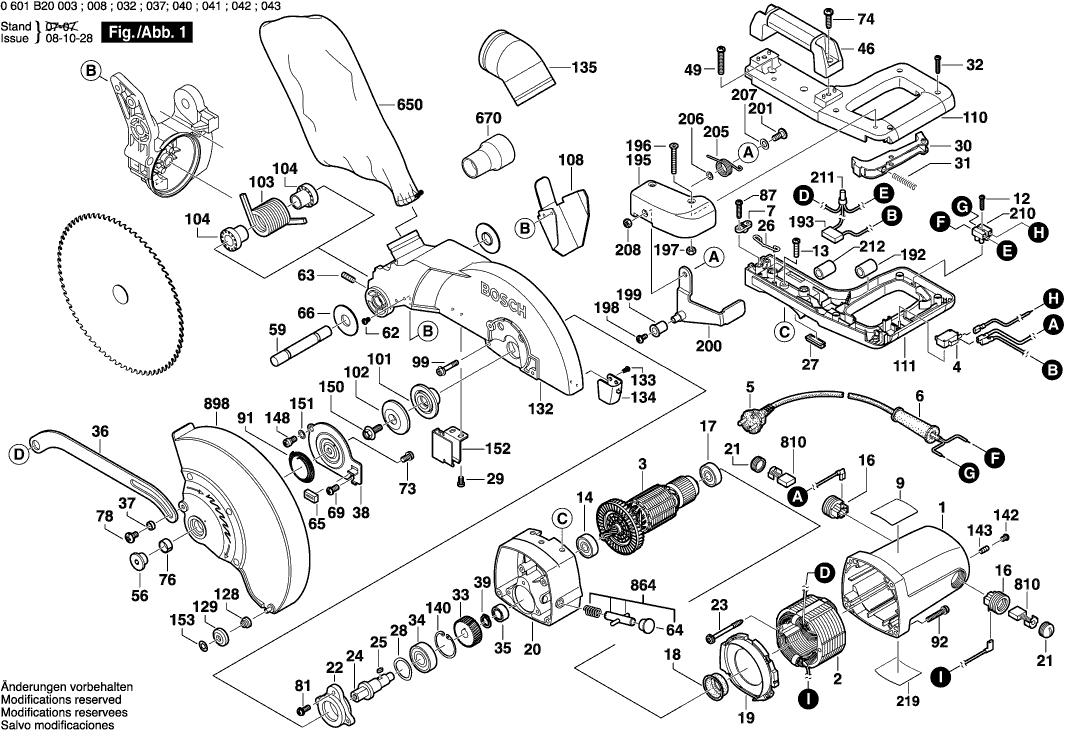

Technical drawing of model Bosch 0601B20003 (GCM10)
Spare parts list of model Bosch 0601B20003 (GCM10)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1609203J10 | 21.73 | 26.29 | |
| Stator | ||||
| 2 | 1609203J05 | 52.75 | 63.83 | |
| No longer available, no replacement | ||||
| 3 | 1609203J08 | |||
| On-Off Switch | ||||
| 4 | 1609203H99 | 11.65 | 14.10 | |
| Power supply cord | ||||
| 5 | 1609203J04 | 10.68 | 12.92 | |
| Cord guard | ||||
| 6 | 1609203J00 | 1.49 | 1.80 | |
| Fastening Clamp | ||||
| 7 | 1609203J01 | 1.00 | 1.21 | |
| Nameplate | ||||
| 9 | 1609902641 | 3.04 | 3.68 | |
| Screw | ||||
| 12 | 1609902007 | 0.83 | 1.00 | |
| Screw | ||||
| 13 | 1609902006 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 14 | 1609902079 | |||
| Cable Clip | ||||
| 15 | 1609203J03 | 0.83 | 1.00 | |
| Brush Holder | ||||
| 16 | 1609203J12 | 2.87 | 3.47 | |
| No longer available, no replacement | ||||
| 17 | 1609902080 | |||
| Bearing Cap | ||||
| 18 | 1609902002 | 1.73 | 2.09 | |
| Air-Deflector Ring | ||||
| 19 | 1609203J06 | 8.06 | 9.75 | |
| Gear Housing | ||||
| 20 | 1609203J11 | 52.75 | 63.83 | |
| No longer available, no replacement | ||||
| 21 | 1609203J14 | |||
| Bearing Flange | ||||
| 22 | 1609203J22 | 19.36 | 23.43 | |
| Screw and washer assembly | ||||
| 23 | 1609203J09 | 1.00 | 1.21 | |
| Grinding Spindle | ||||
| 24 | 1609203J25 | 21.73 | 26.29 | |
| No longer available, no replacement | ||||
| 25 | 1609203J24 | |||
| Spring Wire | ||||
| 26 | 2610910754 | 1.00 | 1.21 | |
| Cover | ||||
| 27 | 1609203J26 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 28 | 1609203J21 | 1.00 | 1.21 | |
| Screw | ||||
| 29 | 2615296765 | 1.49 | 1.80 | |
| Switch Button | ||||
| 30 | 1609902177 | 1.73 | 2.09 | |
| Spring | ||||
| 31 | 1609203H98 | 1.00 | 1.21 | |
| Screw | ||||
| 32 | 2610911458 | 1.73 | 2.09 | |
| Toothed Gear | ||||
| 33 | 1609203J19 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 34 | 1609203J20 | |||
| Bearing | ||||
| 35 | 1609203J18 | 5.27 | 6.38 | |
| Lever | ||||
| 36 | 1609203H79 | 9.08 | 10.99 | |
| Collar | ||||
| 37 | 2610910849 | 1.00 | 1.21 | |
| Cover | ||||
| 38 | 1619P05836 | 3.48 | 4.21 | |
| Retaining snap ring | ||||
| 39 | 1609902000 | 0.83 | 1.00 | |
| Washer | ||||
| 40 | 2610908270 | 1.00 | 1.21 | |
| Screw | ||||
| 41 | 2610912548 | 2.86 | 3.46 | |
| Hex Nut | ||||
| 42 | 2610912549 | 1.00 | 1.21 | |
| Angle Joint | ||||
| 44 | 1609203H94 | 47.68 | 57.69 | |
| Screw | ||||
| 45 | 2610355267 | 1.00 | 1.21 | |
| Handle | ||||
| 46 | 1609203H96 | 10.68 | 12.92 | |
| Nut | ||||
| 47 | 2610358172 | 1.00 | 1.21 | |
| Nut | ||||
| 48 | 2610912551 | 1.00 | 1.21 | |
| Screw | ||||
| 49 | 2610355338 | 1.32 | 1.60 | |
| Base Plate | ||||
| 50 | 2610907816 | 136.48 | 165.14 | |
| O-Ring | ||||
| 51 | 2610912553 | 1.00 | 1.21 | |
| Retaining Pin | ||||
| 52 | 1619P05835 | 1.24 | 1.50 | |
| Compression Spring | ||||
| 53 | 2610910765 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 54 | 2610910838 | |||
| Washer | ||||
| 55 | 2615297329 | 1.00 | 1.21 | |
| Pivot | ||||
| 56 | 2610910848 | 1.00 | 1.21 | |
| Knob | ||||
| 57 | 2610912554 | 1.00 | 1.21 | |
| Locking Bolt | ||||
| 58 | 2610907847 | 2.40 | 2.90 | |
| Pivot | ||||
| 59 | 2610910842 | 4.18 | 5.06 | |
| Screw | ||||
| 62 | 2610910781 | 1.49 | 1.80 | |
| Screw | ||||
| 63 | 2610328605 | 1.00 | 1.21 | |
| Knob | ||||
| 64 | 1619P04100 | 1.00 | 1.21 | |
| Bumper | ||||
| 65 | 1619P05837 | 1.24 | 1.50 | |
| Washer | ||||
| 66 | 2610911465 | 2.40 | 2.90 | |
| O-Ring | ||||
| 67 | 2610910788 | 1.00 | 1.21 | |
| Screw | ||||
| 69 | 2615297323 | 1.00 | 1.21 | |
| Screw | ||||
| 71 | 2610910790 | 1.00 | 1.21 | |
| Washer | ||||
| 72 | 2610910792 | 1.00 | 1.21 | |
| Screw | ||||
| 73 | 2610911451 | 1.00 | 1.21 | |
| Screw | ||||
| 74 | 2610911460 | 1.00 | 1.21 | |
| Set screw | ||||
| 75 | 2610910786 | 1.00 | 1.21 | |
| Sleeve | ||||
| 76 | 2610910751 | 2.38 | 2.88 | |
| Nut | ||||
| 77 | 2610910760 | 2.08 | 2.52 | |
| Screw | ||||
| 78 | 2610910797 | 1.00 | 1.21 | |
| Cross Recessed-Head Screw | ||||
| 81 | 1609203J23 | 0.83 | 1.00 | |
| Washer | ||||
| 83 | 2610910779 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 85 | 1609203L65 | |||
| Screw | ||||
| 86 | 2610911466 | 1.00 | 1.21 | |
| Screw | ||||
| 87 | 1609203L64 | 1.00 | 1.21 | |
| Screw | ||||
| 88 | 2610910762 | 4.18 | 5.06 | |
| Sleeve | ||||
| 89 | 2610910766 | 4.94 | 5.98 | |
| Plain Washer | ||||
| 90 | 2610355264 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 91 | 2610910752 | |||
| Screw and washer assembly | ||||
| 92 | 1609902003 | 1.00 | 1.21 | |
| Stud bolt | ||||
| 93 | 2610992377 | 1.00 | 1.21 | |
| Stud bolt | ||||
| 94 | 2610910778 | 1.49 | 1.80 | |
| Stud bolt | ||||
| 95 | 2610967437 | 2.00 | 2.42 | |
| Screw | ||||
| 99 | 2610911461 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 101 | 1609203H80 | |||
| No longer available, no replacement | ||||
| 102 | 1609203H81 | |||
| Torsion Spring | ||||
| 103 | 2610912560 | 4.94 | 5.98 | |
| Sleeve | ||||
| 104 | 2610910753 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 105 | 1619P03782 | |||
| End Plate | ||||
| 106 | 2610910833 | 5.81 | 7.03 | |
| Pointer | ||||
| 107 | 2610907852 | 1.49 | 1.80 | |
| Reflector | ||||
| 108 | 2610912561 | 7.46 | 9.03 | |
| Shaft | ||||
| 109 | 2610908288 | 1.00 | 1.21 | |
| Handle | ||||
| 110 | 1609203H83 | 17.22 | 20.84 | |
| Handle | ||||
| 111 | 1609203H85 | 11.94 | 14.45 | |
| Knob | ||||
| 112 | 2610907850 | 3.44 | 4.16 | |
| Scale Plate | ||||
| 113 | 2610907846 | 1.49 | 1.80 | |
| Stop Rail | ||||
| 114 | 1609203H90 | 47.68 | 57.69 | |
| Plate | ||||
| 115 | 2610916122 | 6.73 | 8.14 | |
| No longer available, no replacement | ||||
| 116 | 2610907824 | |||
| Saw Table | ||||
| 117 | 2610907813 | 122.80 | 148.59 | |
| Washer | ||||
| 119 | 2610309996 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 120 | 2610910775 | |||
| Wear Plate | ||||
| 121 | 2610907854 | 1.49 | 1.80 | |
| Warning Label | ||||
| 122 | 2610909006 | 3.44 | 4.16 | |
| Extension Stand | ||||
| 123 | 2610907826 | 11.37 | 13.76 | |
| Set Of Keys | ||||
| 124 | 2610911470 | 4.18 | 5.06 | |
| Hexagon Socket Wrench | ||||
| 125 | 2610355777 | 1.00 | 1.21 | |
| Threaded Plate | ||||
| 126 | 2610910844 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 128 | 2610990522 | |||
| Roller | ||||
| 129 | 2610990518 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 130 | 1619P03548 | |||
| Safety Cover | ||||
| 132 | 1609203H91 | 58.79 | 71.14 | |
| Screw | ||||
| 133 | 1609203H93 | 1.24 | 1.50 | |
| Safety Cover | ||||
| 134 | 1609203H92 | 1.00 | 1.21 | |
| Suction Socket | ||||
| 135 | 2608601171 | 0.83 | 1.00 | |
| Screw | ||||
| 136 | 2610910777 | 1.00 | 1.21 | |
| Screw | ||||
| 137 | 2610910793 | 2.86 | 3.46 | |
| Screw | ||||
| 138 | 2610356733 | 1.00 | 1.21 | |
| Screw | ||||
| 139 | 2615303029 | 1.00 | 1.21 | |
| Retaining snap ring | ||||
| 140 | 2610912562 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 141 | 2610910794 | 1.00 | 1.21 | |
| Screw | ||||
| 142 | 1609902005 | 0.83 | 1.00 | |
| Set screw | ||||
| 143 | 1609902004 | 1.00 | 1.21 | |
| Screw | ||||
| 144 | 2610910782 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 145 | 2610910774 | |||
| Screw | ||||
| 146 | 2610910776 | 1.00 | 1.21 | |
| Screw | ||||
| 148 | 2610910799 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 150 | 2610911467 | |||
| Washer | ||||
| 151 | 2610911450 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 152 | 1609203H95 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 153 | 2610990521 | 1.00 | 1.21 | |
| Clamping Plate | ||||
| 154 | 2610967433 | 2.86 | 3.46 | |
| Plain Washer | ||||
| 155 | 2610358439 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 156 | 2610967438 | 1.00 | 1.21 | |
| Nut | ||||
| 157 | 2610967439 | 1.00 | 1.21 | |
| Stud bolt | ||||
| 158 | 2610992372 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 159 | 2610027372 | 1.00 | 1.21 | |
| Screw | ||||
| 160 | 2610951118 | 0.83 | 1.00 | |
| Clamp | ||||
| 191 | 2610967432 | 2.86 | 3.46 | |
| Ferrite Core | ||||
| 192 | 1609203G81 | 1.32 | 1.60 | |
| Condenser | ||||
| 193 | 1609203G82 | 10.68 | 12.92 | |
| Cover | ||||
| 195 | 1609203H82 | 7.32 | 8.86 | |
| Screw | ||||
| 196 | 1609203G86 | 0.83 | 1.00 | |
| Hex Nut | ||||
| 197 | 1609902594 | 1.00 | 1.21 | |
| Screw | ||||
| 198 | 1609203G88 | 1.00 | 1.21 | |
| Roller | ||||
| 199 | 1619P05834 | 1.00 | 1.21 | |
| Locking Lever | ||||
| 200 | 1619P05833 | 5.27 | 6.38 | |
| Bearing bolt | ||||
| 201 | 1609203G91 | 1.00 | 1.21 | |
| Cover Plate | ||||
| 202 | 1609203G92 | 2.86 | 3.46 | |
| Coiled Spring | ||||
| 205 | 1609203H86 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 206 | 1609203H87 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 207 | 1609203H88 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 208 | 1609203H89 | 1.00 | 1.21 | |
| Connection Block | ||||
| 210 | 1609902081 | 1.00 | 1.21 | |
| Cable Connector | ||||
| 211 | 1609902082 | 1.24 | 1.50 | |
| Ferrite Core | ||||
| 212 | 1609902083 | 2.00 | 2.42 | |
| Washer | ||||
| 215 | 1609902470 | 2.00 | 2.42 | |
| Washer | ||||
| 216 | 1609902471 | 2.00 | 2.42 | |
| Lock Bolt | ||||
| 217 | 1609902472 | 0.83 | 1.00 | |
| Nut | ||||
| 218 | 1609902473 | 2.87 | 3.47 | |
| Nameplate | ||||
| 219 | 1609902627 | 2.00 | 2.42 | |
| Dust Bag | ||||
| 650 | 2610911939 | 15.61 | 18.89 | |
| Key | ||||
| 652 | 1609203J02 | 4.58 | 5.54 | |
| No longer available, no replacement | ||||
| 670 | 2610919255 | |||
| No longer available, no replacement | ||||
| 810 | 1619P04451 | |||
| Locking Pin | ||||
| 864 | 1619P04162 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 898 | 1619P03786 | |||
