Here you will find all available parts and drawings of the 'Bosch 3601M29020 (GCM10MX)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

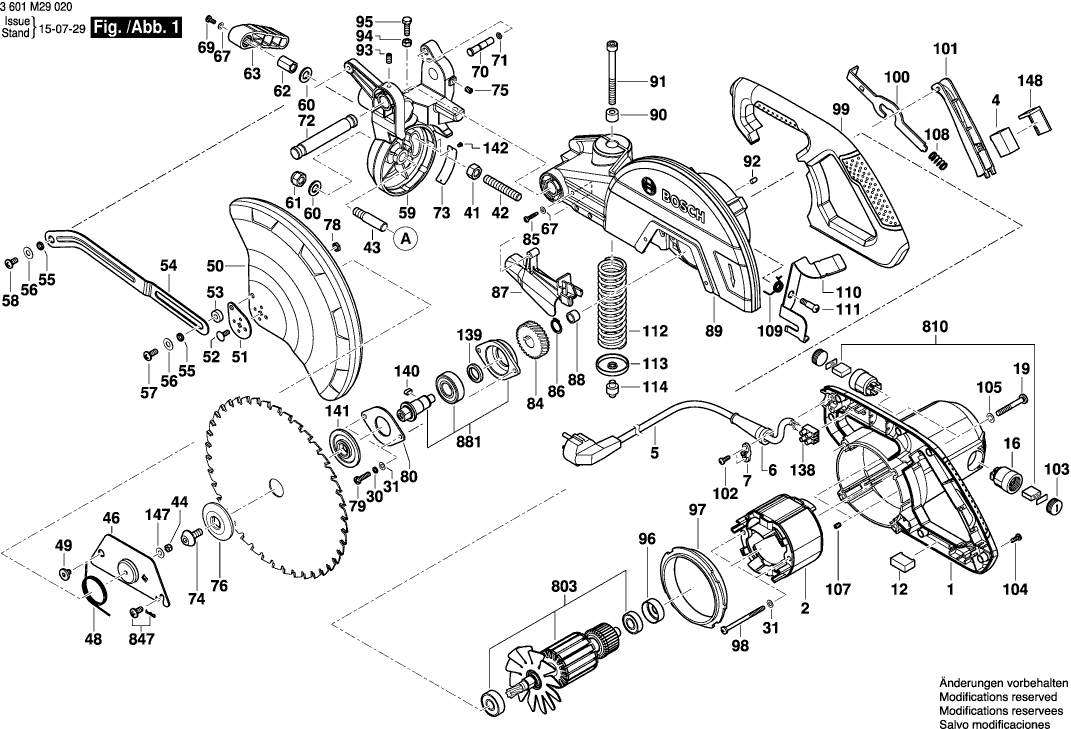

Technical drawing of model Bosch 3601M29020 (GCM10MX)
Spare parts list of model Bosch 3601M29020 (GCM10MX)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1619PA7071 | 39.14 | 47.36 | |
| Field 220-240V | ||||
| 2 | 1619PA6835 | 80.26 | 97.11 | |
| Switch | ||||
| 4 | 1619PA6703 | 12.82 | 15.51 | |
| Power supply cord | ||||
| 5 | 1619PA9471 | 12.82 | 15.51 | |
| Grommet | ||||
| 6 | 1619PA7081 | 1.49 | 1.80 | |
| Fastening Clamp | ||||
| 7 | 1609203J01 | 1.00 | 1.21 | |
| Nameplate | ||||
| 8 | 1619PA9473 | 2.18 | 2.64 | |
| Suppression Capacitor | ||||
| 12 | 1619PA7095 | 2.08 | 2.52 | |
| Brush Holder | ||||
| 16 | 1619PA6920 | 6.73 | 8.14 | |
| Pan head screw | ||||
| 19 | 1619PA7002 | 3.44 | 4.16 | |
| Mitre Fence | ||||
| 22 | 1619PA6924 | 14.94 | 18.08 | |
| Mitre Fence | ||||
| 23 | 1619PA6925 | 34.82 | 42.13 | |
| Wing Screw | ||||
| 24 | 1619PA6926 | 1.00 | 1.21 | |
| Set screw | ||||
| 25 | 1619PA6927 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 26 | 1619PA6928 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 27 | 1619PA6929 | 2.86 | 3.46 | |
| Table | ||||
| 28 | 1619PA6930 | 110.30 | 133.46 | |
| Pan head screw | ||||
| 29 | 1619PA6931 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 30 | 1619PA6932 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 31 | 1619PA6933 | 1.49 | 1.80 | |
| Cover | ||||
| 32 | 1619PA6934 | 1.00 | 1.21 | |
| Knob | ||||
| 33 | 1619PA6935 | 5.81 | 7.03 | |
| Spring Washer | ||||
| 34 | 1619PA6921 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 35 | 1619PA6936 | 1.00 | 1.21 | |
| Self-locking nut | ||||
| 36 | 1619PA6937 | 1.00 | 1.21 | |
| Insert | ||||
| 37 | 1619PA6938 | 3.44 | 4.16 | |
| Countersunk-Head Screw | ||||
| 38 | 1619PA6939 | 1.49 | 1.80 | |
| Nut | ||||
| 39 | 1619PA6940 | 1.49 | 1.80 | |
| Pointer | ||||
| 40 | 1619PA6941 | 1.00 | 1.21 | |
| Nut | ||||
| 41 | 1619PA6942 | 1.00 | 1.21 | |
| Set screw | ||||
| 42 | 1619PA6943 | 1.49 | 1.80 | |
| Pivot Shaft | ||||
| 43 | 1619PA6944 | 2.08 | 2.52 | |
| Self-locking nut | ||||
| 44 | 1619PA6945 | 1.00 | 1.21 | |
| Scale | ||||
| 45 | 1619PA6922 | 1.00 | 1.21 | |
| Guard Plate | ||||
| 46 | 1619PA6946 | 4.18 | 5.06 | |
| Torsion Spring | ||||
| 48 | 1619PA6948 | 1.00 | 1.21 | |
| Special Screw | ||||
| 49 | 1619PA6949 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 50 | 1619PA6950 | 14.94 | 18.08 | |
| Guard Plate | ||||
| 51 | 1619PA6951 | 1.49 | 1.80 | |
| Special Screw | ||||
| 52 | 1619PA6952 | 1.49 | 1.80 | |
| Bushing | ||||
| 53 | 1619PA6953 | 1.00 | 1.21 | |
| Linkage | ||||
| 54 | 1619PA6954 | 4.94 | 5.98 | |
| Bushing | ||||
| 55 | 1619PA6955 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 56 | 1619PA6956 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 57 | 1619PA6957 | 1.00 | 1.21 | |
| Special Screw | ||||
| 58 | 1619PA6958 | 1.00 | 1.21 | |
| Bearing Block | ||||
| 59 | 1619PA6959 | 31.42 | 38.02 | |
| Plain Washer | ||||
| 60 | 1619PA6960 | 1.00 | 1.21 | |
| Self-locking nut | ||||
| 61 | 1619PA6961 | 1.00 | 1.21 | |
| Locking nut | ||||
| 62 | 1619PA6962 | 2.08 | 2.52 | |
| Lever | ||||
| 63 | 1619PA6963 | 2.08 | 2.52 | |
| Hex Screw | ||||
| 64 | 1619PA6964 | 2.08 | 2.52 | |
| Base | ||||
| 65 | 1619PA6965 | 110.30 | 133.46 | |
| Sliding Plate | ||||
| 66 | 1619PA6923 | 4.18 | 5.06 | |
| Plain Washer | ||||
| 67 | 1619PA6966 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 68 | 1619PA6967 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 69 | 1619PA6968 | 1.00 | 1.21 | |
| Detent Pin | ||||
| 70 | 1619PA6969 | 1.49 | 1.80 | |
| O-Ring | ||||
| 71 | 1619PA6970 | 1.00 | 1.21 | |
| Pivot Shaft | ||||
| 72 | 1619PA6971 | 3.44 | 4.16 | |
| Scale | ||||
| 73 | 1619PA6972 | 2.86 | 3.46 | |
| Bolt | ||||
| 74 | 1619P03482 | 2.08 | 2.52 | |
| Set screw | ||||
| 75 | 1619PA7349 | 1.00 | 1.21 | |
| Clamping Flange | ||||
| 76 | 1619PA6973 | 3.44 | 4.16 | |
| Nut | ||||
| 78 | 1619PA7034 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 79 | 1619PA6975 | 1.00 | 1.21 | |
| Bearing cover | ||||
| 80 | 1619PA6976 | 1.49 | 1.80 | |
| Helical Gear | ||||
| 84 | 1619PA6980 | 14.94 | 18.08 | |
| Pan head screw | ||||
| 85 | 1619PA6981 | 1.00 | 1.21 | |
| Spring retaining ring | ||||
| 86 | 1619PA6982 | 1.00 | 1.21 | |
| Dust Separator | ||||
| 87 | 1619PA6983 | 1.00 | 1.21 | |
| Needle bearing | ||||
| 88 | 1619PA6984 | 2.08 | 2.52 | |
| Safety Guard | ||||
| 89 | 1619PA6985 | 64.67 | 78.25 | |
| Bushing | ||||
| 90 | 1619PA6986 | 1.00 | 1.21 | |
| Hex Screw | ||||
| 91 | 1619PA6987 | 1.00 | 1.21 | |
| Spacer Pin | ||||
| 92 | 1619PA6988 | 1.00 | 1.21 | |
| Set screw | ||||
| 93 | 1619PA6989 | 1.00 | 1.21 | |
| Nut | ||||
| 94 | 1619PA6990 | 1.00 | 1.21 | |
| Hex Screw | ||||
| 95 | 1619PA6991 | 1.00 | 1.21 | |
| Rubber Ring | ||||
| 96 | 1619PA6992 | 1.49 | 1.80 | |
| Air-Deflector Ring | ||||
| 97 | 1619PA6993 | 2.08 | 2.52 | |
| Pan head screw | ||||
| 98 | 1619PA6994 | 3.44 | 4.16 | |
| Handle | ||||
| 99 | 1619PA6995 | 11.37 | 13.76 | |
| Shaft lock | ||||
| 100 | 1619PA6996 | 2.08 | 2.52 | |
| Trigger | ||||
| 101 | 1619PA6997 | 2.08 | 2.52 | |
| Pan head screw | ||||
| 102 | 1619PA6998 | 1.00 | 1.21 | |
| Brush-Cover | ||||
| 103 | 1619PA6999 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 104 | 1619PA7000 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 105 | 1619PA7001 | 1.00 | 1.21 | |
| Set screw | ||||
| 107 | 1619PA7003 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 108 | 1619PA7004 | 1.00 | 1.21 | |
| Torsion Spring | ||||
| 109 | 1619PA7005 | 1.00 | 1.21 | |
| Locking Lever | ||||
| 110 | 1619PA7006 | 3.44 | 4.16 | |
| Special Screw | ||||
| 111 | 1619PA7007 | 1.00 | 1.21 | |
| Compression Spring | ||||
| 112 | 1619PA7008 | 11.37 | 13.76 | |
| Spring Holder | ||||
| 113 | 1619PA7009 | 1.49 | 1.80 | |
| Positioning Pin | ||||
| 114 | 1619PA7010 | 1.00 | 1.21 | |
| Angle Plate | ||||
| 129 | 1619PA7011 | 3.44 | 4.16 | |
| Spring Washer | ||||
| 130 | 1619PA7012 | 1.00 | 1.21 | |
| Hex Socket Head Cap Screw | ||||
| 131 | 1619PA7013 | 1.00 | 1.21 | |
| Locking Plate | ||||
| 132 | 1619PA7014 | 1.00 | 1.21 | |
| Bracket | ||||
| 133 | 1619PA7015 | 2.40 | 2.90 | |
| Push rod | ||||
| 134 | 1619PA7016 | 1.49 | 1.80 | |
| Locking Bar | ||||
| 135 | 1619PA7017 | 1.49 | 1.80 | |
| Locking pin | ||||
| 136 | 1619PA7018 | 2.08 | 2.52 | |
| Compression Spring | ||||
| 137 | 1619PA7019 | 1.00 | 1.21 | |
| Plug Connector | ||||
| 138 | 1619PA7020 | 1.49 | 1.80 | |
| Bushing | ||||
| 139 | 1619PA7021 | 1.00 | 1.21 | |
| Parallel Key | ||||
| 140 | 1619PA7022 | 1.00 | 1.21 | |
| Clamping Flange | ||||
| 141 | 1619PA9477 | 5.81 | 7.03 | |
| Clamping Flange | ||||
| 141 | 1619PA7023 | 4.58 | 5.54 | |
| Rivet | ||||
| 142 | 1619PA7024 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 144 | 1619PA7026 | 1.00 | 1.21 | |
| Pan head screw | ||||
| 145 | 1619PA7027 | 1.00 | 1.21 | |
| Holder | ||||
| 146 | 1619PA7028 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 147 | 1619PA7029 | 1.00 | 1.21 | |
| Spacer | ||||
| 148 | 1619PA7030 | 1.00 | 1.21 | |
| Cable Set | ||||
| 149 | 1619PA7031 | 3.44 | 4.16 | |
| Hexagon Socket Wrench | ||||
| 651 | 1619PA7036 | 2.08 | 2.52 | |
| Clamp | ||||
| 652 | 1619PA7037 | 11.37 | 13.76 | |
| Support Plate | ||||
| 653 | 1619PA7046 | 3.44 | 4.16 | |
| Dust Bag | ||||
| 654 | 1619PA7051 | 6.73 | 8.14 | |
| Extension Stand | ||||
| 655 | 1619PA6916 | 14.94 | 18.08 | |
| Armature 220-240V | ||||
| 803 | 1619PA7056 | 122.80 | 148.59 | |
| Carbon-Brush Set | ||||
| 810 | 1619PA7057 | 23.90 | 28.92 | |
| Special Screw | ||||
| 847 | 1619PA7058 | 1.00 | 1.21 | |
| Base | ||||
| 865 | 1619PA9488 | 122.80 | 148.59 | |
| Spindle | ||||
| 881 | 1619PA7032 | 14.94 | 18.08 | |
