Here you will find all available parts and drawings of the 'Bosch 3601M20200 (GCM10J)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

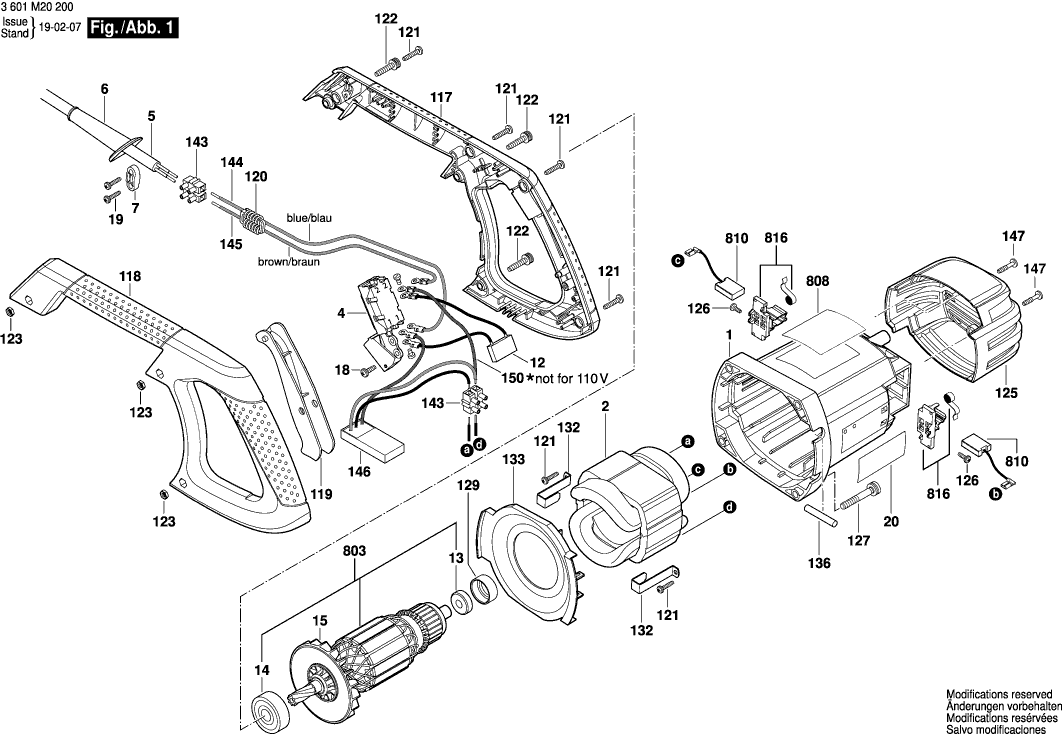

Technical drawing of model Bosch 3601M20200 (GCM10J)
Spare parts list of model Bosch 3601M20200 (GCM10J)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 1609B00910 | 18.94 | 22.92 | |
| Field | ||||
| 2 | 1609B00001 | 71.68 | 86.73 | |
| On-Off Switch | ||||
| 4 | 1609B00882 | 11.37 | 13.76 | |
| Power supply cord | ||||
| 5 | 1609B02952 | 14.94 | 18.08 | |
| Grommet | ||||
| 6 | 1609B00820 | 1.00 | 1.21 | |
| Cable Clip | ||||
| 7 | 1609B00821 | 1.00 | 1.21 | |
| Suppression Capacitor | ||||
| 12 | 1609B00749 | 2.86 | 3.46 | |
| Bearing | ||||
| 13 | 1609B00812 | 5.81 | 7.03 | |
| No longer available, no replacement | ||||
| 14 | 1609B00835 | |||
| Fan | ||||
| 15 | 1609B00105 | 4.94 | 5.98 | |
| Raised ctsunk head tap sc | ||||
| 18 | 1619P03837 | 1.00 | 1.21 | |
| Screw | ||||
| 19 | 1619P03833 | 1.00 | 1.21 | |
| Warning Plate | ||||
| 20 | 1609B00911 | 2.40 | 2.90 | |
| Base | ||||
| 22 | 1609B00700 | 136.48 | 165.14 | |
| Screw | ||||
| 23 | 1609B00702 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 24 | 1609B00703 | 1.32 | 1.60 | |
| Lock Nut | ||||
| 25 | 1609B00704 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 26 | 1609B00705 | 1.00 | 1.21 | |
| Rubber Bushing | ||||
| 27 | 1609B00706 | 1.00 | 1.21 | |
| Offset Screwdriver | ||||
| 28 | 1609B00707 | 3.44 | 4.16 | |
| Scale | ||||
| 29 | 1609B00709 | 6.73 | 8.14 | |
| Screw | ||||
| 30 | 1609B00710 | 1.00 | 1.21 | |
| Table | ||||
| 31 | 1609B00711 | 155.51 | 188.17 | |
| Scale | ||||
| 32 | 1609B00713 | 1.00 | 1.21 | |
| Sliding Plate | ||||
| 33 | 1609B00715 | 2.86 | 3.46 | |
| Pointer | ||||
| 34 | 1609B00717 | 1.00 | 1.21 | |
| Screw | ||||
| 35 | 1609B00718 | 1.00 | 1.21 | |
| Stud bolt | ||||
| 36 | 1609B00719 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 37 | 1609B00720 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 38 | 1609B00721 | 1.00 | 1.21 | |
| Screw | ||||
| 39 | 1609B00722 | 1.00 | 1.21 | |
| Stud bolt | ||||
| 40 | 1609B00723 | 2.08 | 2.52 | |
| Rivet | ||||
| 41 | 1609B00724 | 1.00 | 1.21 | |
| Locking Lever | ||||
| 42 | 1609B00725 | 2.08 | 2.52 | |
| Spring | ||||
| 43 | 1609B00726 | 1.00 | 1.21 | |
| Tube | ||||
| 44 | 1609B00727 | 1.00 | 1.21 | |
| Block | ||||
| 45 | 1609B00728 | 2.86 | 3.46 | |
| Screw | ||||
| 46 | 1609B00729 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 47 | 1609B00731 | 1.00 | 1.21 | |
| Screw | ||||
| 48 | 1609B00732 | 1.00 | 1.21 | |
| Plain Washer | ||||
| 49 | 1609B00733 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 50 | 1609B00734 | 1.00 | 1.21 | |
| Knob | ||||
| 51 | 1609B00735 | 7.46 | 9.03 | |
| Pressure Plate | ||||
| 52 | 1609B00736 | 1.00 | 1.21 | |
| Screw | ||||
| 53 | 1609B00740 | 1.00 | 1.21 | |
| Nut | ||||
| 54 | 1609B00741 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 55 | 1609B00742 | |||
| Plastic Insert | ||||
| 56 | 1609B00754 | 2.08 | 2.52 | |
| Safety Cover | ||||
| 58 | 1609B00744 | 2.40 | 2.90 | |
| Screw | ||||
| 59 | 1609B00745 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 60 | 1609B00985 | |||
| Screw | ||||
| 61 | 1609B00748 | 1.00 | 1.21 | |
| Pivot | ||||
| 62 | 1609B00751 | 58.03 | 70.22 | |
| Lever | ||||
| 63 | 1609B00753 | 4.94 | 5.98 | |
| Plain Washer | ||||
| 64 | 1609B00757 | 1.00 | 1.21 | |
| Pointer | ||||
| 65 | 1609B00758 | 1.00 | 1.21 | |
| Detent Pin | ||||
| 66 | 1609B00760 | 2.86 | 3.46 | |
| O-Ring | ||||
| 67 | 1609B00714 | 1.00 | 1.21 | |
| Spring Pin | ||||
| 68 | 1609B00761 | 1.00 | 1.21 | |
| Knob | ||||
| 69 | 1609B00762 | 1.00 | 1.21 | |
| Screw | ||||
| 70 | 1609B00763 | 1.00 | 1.21 | |
| Pivot Shaft | ||||
| 71 | 1609B00764 | 6.73 | 8.14 | |
| Torsion Spring | ||||
| 72 | 1609B00765 | 13.13 | 15.89 | |
| Sleeve | ||||
| 73 | 1609B00766 | 1.00 | 1.21 | |
| Dust Separator | ||||
| 74 | 1609B00767 | 6.73 | 8.14 | |
| Arm | ||||
| 75 | 1609B00769 | 88.83 | 107.48 | |
| Screw | ||||
| 76 | 1609B00771 | 1.00 | 1.21 | |
| Wear Plate | ||||
| 77 | 1609B00772 | 1.00 | 1.21 | |
| Knob | ||||
| 78 | 1609B00773 | 1.00 | 1.21 | |
| Locking Pin | ||||
| 79 | 1609B00774 | 8.35 | 10.10 | |
| Compression Spring | ||||
| 80 | 1609B00775 | 1.00 | 1.21 | |
| Spring Pin | ||||
| 81 | 1609B00716 | 1.00 | 1.21 | |
| Needle-Roller Bearing | ||||
| 83 | 1609B00777 | 4.94 | 5.98 | |
| Screw | ||||
| 86 | 1609B00780 | 1.00 | 1.21 | |
| Pin | ||||
| 87 | 1609B00781 | 1.00 | 1.21 | |
| Cover Plate | ||||
| 89 | 1609B00784 | 2.08 | 2.52 | |
| Screw | ||||
| 90 | 1609B00785 | 1.00 | 1.21 | |
| Flange | ||||
| 91 | 1609B00786 | 6.73 | 8.14 | |
| Inner Disc | ||||
| 92 | 1609B00925 | 10.90 | 13.19 | |
| Flange Bolt | ||||
| 94 | 1609B00960 | 4.18 | 5.06 | |
| Safety Cover | ||||
| 95 | 1609B00986 | 47.53 | 57.51 | |
| Chip Deflector | ||||
| 96 | 1609B00918 | 2.40 | 2.90 | |
| Chip Deflector | ||||
| 97 | 1609B00919 | 2.40 | 2.90 | |
| Guard Plate | ||||
| 98 | 1609B00920 | 7.46 | 9.03 | |
| Shoulder Screw | ||||
| 99 | 1609B00930 | 1.00 | 1.21 | |
| Screw | ||||
| 100 | 1609B00798 | 1.00 | 1.21 | |
| Protective Cover | ||||
| 101 | 1609B00987 | 18.94 | 22.92 | |
| Torsion Spring | ||||
| 103 | 1609B00802 | 1.00 | 1.21 | |
| Screw | ||||
| 104 | 1609B00803 | 1.00 | 1.21 | |
| Table top | ||||
| 105 | 1609B00804 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 106 | 1609B00730 | 1.49 | 1.80 | |
| Washer | ||||
| 107 | 1609B00738 | 1.00 | 1.21 | |
| Roller | ||||
| 108 | 1609B00806 | 1.00 | 1.21 | |
| Impeller | ||||
| 109 | 1609B00807 | 1.00 | 1.21 | |
| Retaining snap ring | ||||
| 110 | 1609B00750 | 1.00 | 1.21 | |
| Linkage | ||||
| 111 | 1609B00917 | 4.18 | 5.06 | |
| Screw | ||||
| 112 | 1609B00810 | 1.00 | 1.21 | |
| Roller | ||||
| 113 | 1609B00811 | 1.49 | 1.80 | |
| Lever | ||||
| 114 | 1609B00990 | 4.94 | 5.98 | |
| Torsion Spring | ||||
| 115 | 1609B00815 | 1.00 | 1.21 | |
| Screw | ||||
| 116 | 1609B00816 | 1.00 | 1.21 | |
| Handle | ||||
| 117 | 1609B00988 | 16.79 | 20.32 | |
| Handle Cover | ||||
| 118 | 1609B00989 | 16.79 | 20.32 | |
| Trigger | ||||
| 119 | 1609B00822 | 2.86 | 3.46 | |
| Ring | ||||
| 120 | 1609B00813 | 1.00 | 1.21 | |
| Raised ctsunk head tap sc | ||||
| 121 | 1619P03824 | 1.00 | 1.21 | |
| Screw | ||||
| 122 | 1609B00823 | 1.00 | 1.21 | |
| Lock Nut | ||||
| 123 | 1609B00824 | 1.00 | 1.21 | |
| Housing Cover | ||||
| 125 | 1609B00992 | 11.37 | 13.76 | |
| Screw | ||||
| 126 | 1619P03834 | 1.00 | 1.21 | |
| Screw | ||||
| 127 | 1609B00828 | 1.00 | 1.21 | |
| Rubber Ring | ||||
| 129 | 1600206030 | 1.49 | 1.80 | |
| Warning Plate | ||||
| 131 | 1609B00708 | 1.00 | 1.21 | |
| Pickup Clip | ||||
| 132 | 1619P03823 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 133 | 1609B00838 | 3.44 | 4.16 | |
| Rivet | ||||
| 134 | 1609B00739 | 1.00 | 1.21 | |
| Bushing | ||||
| 135 | 1609B00800 | 1.00 | 1.21 | |
| Bushing | ||||
| 136 | 1609B00799 | 1.49 | 1.80 | |
| Screw | ||||
| 137 | 1609B00829 | 1.00 | 1.21 | |
| Holder | ||||
| 139 | 1609B00872 | 1.00 | 1.21 | |
| Connection Block | ||||
| 143 | 1609BP7059 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 144 | 1609B00887 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 145 | 1609B00888 | 1.00 | 1.21 | |
| Soft Start-Up Module | ||||
| 146 | 1609B00909 | 39.14 | 47.36 | |
| Special Screw | ||||
| 147 | 1609B00921 | 1.00 | 1.21 | |
| Connecting Cable | ||||
| 150 | 1609B00927 | 1.00 | 1.21 | |
| Spring Washer | ||||
| 151 | 1609B00929 | 1.00 | 1.21 | |
| Anti-friction washer | ||||
| 152 | 1609B00950 | 1.00 | 1.21 | |
| Dust Bag | ||||
| 651 | 1609B00840 | 6.73 | 8.14 | |
| Clamp | ||||
| 652 | 1609B00839 | 13.13 | 15.89 | |
| Extension Stand | ||||
| 653 | 1609B00797 | 10.90 | 13.19 | |
| Armature | ||||
| 803 | 1609B00981 | 110.30 | 133.46 | |
| Nameplate | ||||
| 808 | 1609B00943 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607000480 | 114.26 | 138.25 | |
| Carbon-Brush Set | ||||
| 810 | 1607014171 | 12.82 | 15.51 | |
| Brush Holder | ||||
| 816 | 1604336048 | 6.53 | 7.90 | |
| Special Screw | ||||
| 828 | 1609B00983 | 1.00 | 1.21 | |
| Drive Shaft | ||||
| 882 | 1609B00982 | 43.12 | 52.18 | |
