Here you will find all available parts and drawings of the 'Bosch 3601K66H10 (GCL100-80CG)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

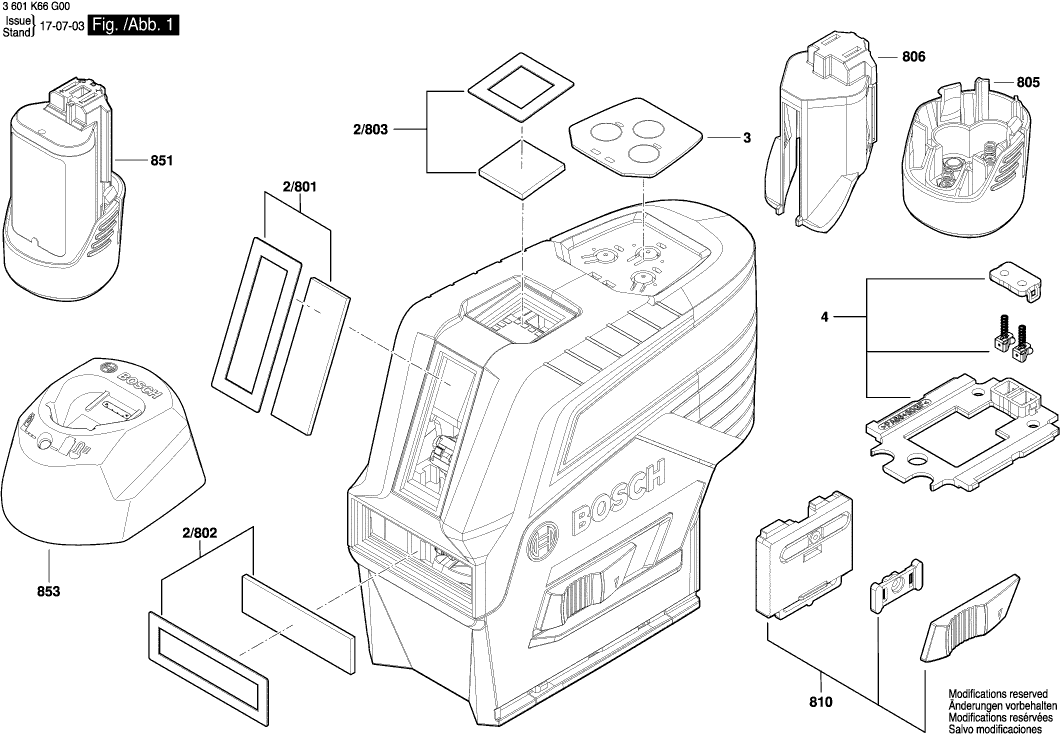

Technical drawing of model Bosch 3601K66H10 (GCL100-80CG)
Spare parts list of model Bosch 3601K66H10 (GCL100-80CG)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Green Cover | ||||
| 2/801 | 1607000CA0 | 7.32 | 8.86 | |
| Green Cover | ||||
| 2/802 | 1607000C9Z | 8.48 | 10.26 | |
| Window | ||||
| 2/803 | 1607000C9U | 5.96 | 7.21 | |
| Rubber Pad GCL2-50CG | ||||
| 3 | 1600A01175 | 2.52 | 3.05 | |
| Adaptor plate | ||||
| 4 | 1600A00MS2 | 8.48 | 10.26 | |
| Battery Cover | ||||
| 805 | 2609199769 | 13.13 | 15.89 | |
| Battery Holder | ||||
| 806 | 2609199766 | 7.46 | 9.03 | |
| Slide Switch | ||||
| 810 | 1607000CD6 | 3.71 | 4.49 | |
| Battery Pack | ||||
| 851 | 1607A350C8 | 71.68 | 86.73 | |
| Fast Charger USA 120/3,6-10,8V,1h | ||||
| 853 | 2607225519 | 58.03 | 70.22 | |
| Charger USA/CAN GAL 12V-20 | ||||
| 853 | 2607226193 | 30.08 | 36.40 | |
