Here you will find all available parts and drawings of the 'Bosch 3601B747A0 (GBS75AE)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

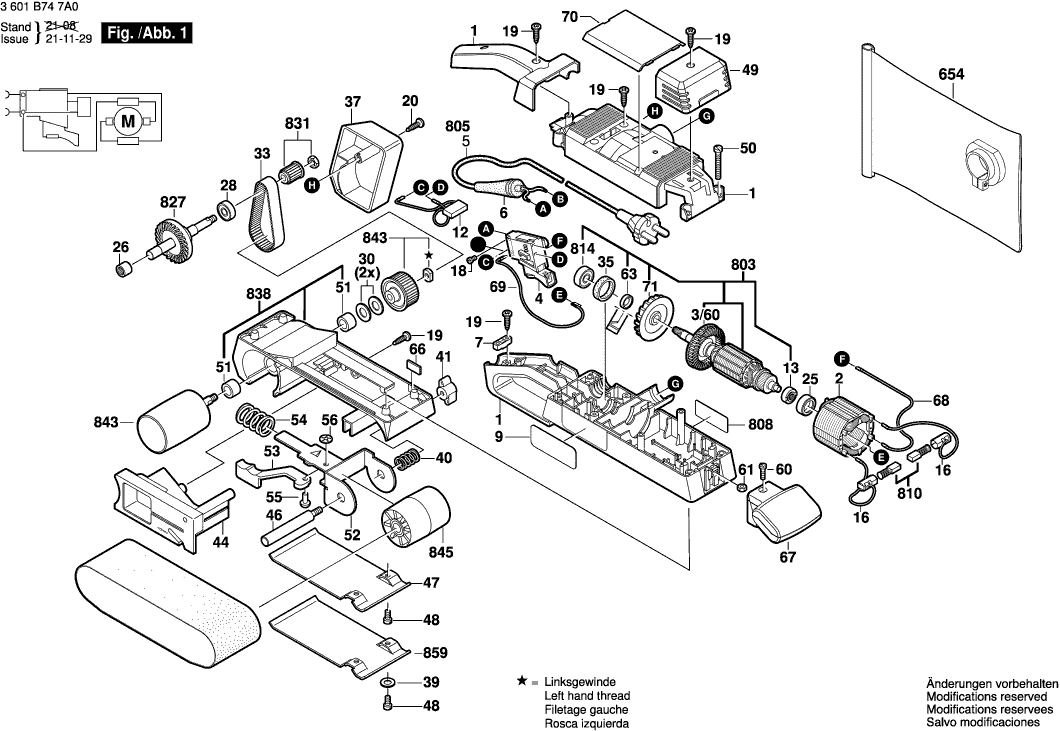

Technical drawing of model Bosch 3601B747A0 (GBS75AE)
Spare parts list of model Bosch 3601B747A0 (GBS75AE)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Motor Housing | ||||
| 1 | 2605104549 | 34.82 | 42.13 | |
| Field | ||||
| 2 | 2604220480 | 20.39 | 24.67 | |
| Fan | ||||
| 3/60 | 2606610049 | 2.08 | 2.52 | |
| Switch | ||||
| 4 | 2607200384 | 39.14 | 47.36 | |
| Grommet | ||||
| 6 | 2600703017 | 2.40 | 2.90 | |
| Cable Clip | ||||
| 7 | 2601035001 | 1.49 | 1.80 | |
| Manufacturer's nameplate | ||||
| 9 | 2601112057 | 2.40 | 2.90 | |
| Suppression Filter | ||||
| 12 | 1600A0086Z | 4.18 | 5.06 | |
| Flanged Bearing | ||||
| 13 | 2605805008 | 4.94 | 5.98 | |
| Brush Holder | ||||
| 16 | 2604449026 | 1.49 | 1.80 | |
| Socket head cap screw | ||||
| 18 | 2603410001 | 1.49 | 1.80 | |
| Screw | ||||
| 19 | 2603490022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 20 | 2603490023 | 1.00 | 1.21 | |
| Intermediate Ring | ||||
| 25 | 1600502011 | 2.40 | 2.90 | |
| Needle-Roller Bearing | ||||
| 26 | 2600910001 | 4.18 | 5.06 | |
| groove ball bearing | ||||
| 28 | 1900905041 | 12.82 | 15.51 | |
| Shim | ||||
| 30 | 2600100099 | 2.08 | 2.52 | |
| Toothed Belt | ||||
| 33 | 2604736010 | 9.47 | 11.46 | |
| Intermediate Ring | ||||
| 35 | 1600206024 | 1.49 | 1.80 | |
| Covering hood | ||||
| 37 | 1605510150 | 4.18 | 5.06 | |
| Plain Washer | ||||
| 39 | 2918650007 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 40 | 2604630002 | 1.49 | 1.80 | |
| Wing Nut | ||||
| 41 | 2603339005 | 2.86 | 3.46 | |
| Base | ||||
| 44 | 1608005004 | 12.82 | 15.51 | |
| Axle | ||||
| 46 | 1603521027 | 9.67 | 11.70 | |
| Base Plate | ||||
| 47 | 2601098040 | 7.46 | 9.03 | |
| Socket head cap screw | ||||
| 48 | 2603410045 | 2.08 | 2.52 | |
| Brush-Cover | ||||
| 49 | 1605500122 | 5.81 | 7.03 | |
| Socket head cap screw | ||||
| 50 | 2910011170 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 51 | 2600301089 | 4.18 | 5.06 | |
| Bearing Bracket | ||||
| 52 | 1605807013 | 8.35 | 10.10 | |
| Tensioning Lever | ||||
| 53 | 1602098006 | 2.40 | 2.90 | |
| Compression Spring | ||||
| 54 | 1604619017 | 2.08 | 2.52 | |
| No longer available, no replacement | ||||
| 55 | 2917030110 | |||
| Locking washer | ||||
| 56 | 1600146001 | 1.49 | 1.80 | |
| Sliding Plate | ||||
| 59 | 2601098037 | 4.58 | 5.54 | |
| Socket head cap screw | ||||
| 60 | 2910021126 | 1.00 | 1.21 | |
| Hex Nut | ||||
| 61 | 2915011005 | 1.00 | 1.21 | |
| Seal Ring | ||||
| 63 | 2600290033 | 3.44 | 4.16 | |
| Shim | ||||
| 64 | 1600101618 | 2.40 | 2.90 | |
| Ceramic Plate | ||||
| 66 | 1601010007 | 2.40 | 2.90 | |
| Handle | ||||
| 67 | 1605133036 | 7.46 | 9.03 | |
| Connecting Cable | ||||
| 68 | 1604438018 | 1.49 | 1.80 | |
| Connecting Cable | ||||
| 69 | 1604448000 | 2.08 | 2.52 | |
| Housing Cover | ||||
| 70 | 1605500120 | 2.40 | 2.90 | |
| Fan | ||||
| 71 | 1606610120 | 2.40 | 2.90 | |
| Dust Bag | ||||
| 654 | 2605411170 | 23.90 | 28.92 | |
| Armature | ||||
| 803 | 2604010935 | 64.67 | 78.25 | |
| Power supply cord | ||||
| 805 | 1607000386 | 18.94 | 22.92 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 2604321905 | 9.67 | 11.70 | |
| groove ball bearing | ||||
| 814 | 1610905011 | 13.13 | 15.89 | |
| Crown Gear | ||||
| 827 | 2606333900 | 18.94 | 22.92 | |
| Armature | ||||
| 830 | 2604010935 | 64.67 | 78.25 | |
| Toothed Belt Wheel | ||||
| 831 | 2606625907 | 2.86 | 3.46 | |
| Housing | ||||
| 838 | 2605190900 | 52.45 | 63.46 | |
| Roller | ||||
| 843 | 2606625904 | 39.14 | 47.36 | |
| Roller | ||||
| 845 | 2606625908 | 37.50 | 45.38 | |
| Sliding Plate | ||||
| 859 | 2601098037 | 4.58 | 5.54 | |
