Here you will find all available parts and drawings of the 'Bosch 0601273903 (GBS100A)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

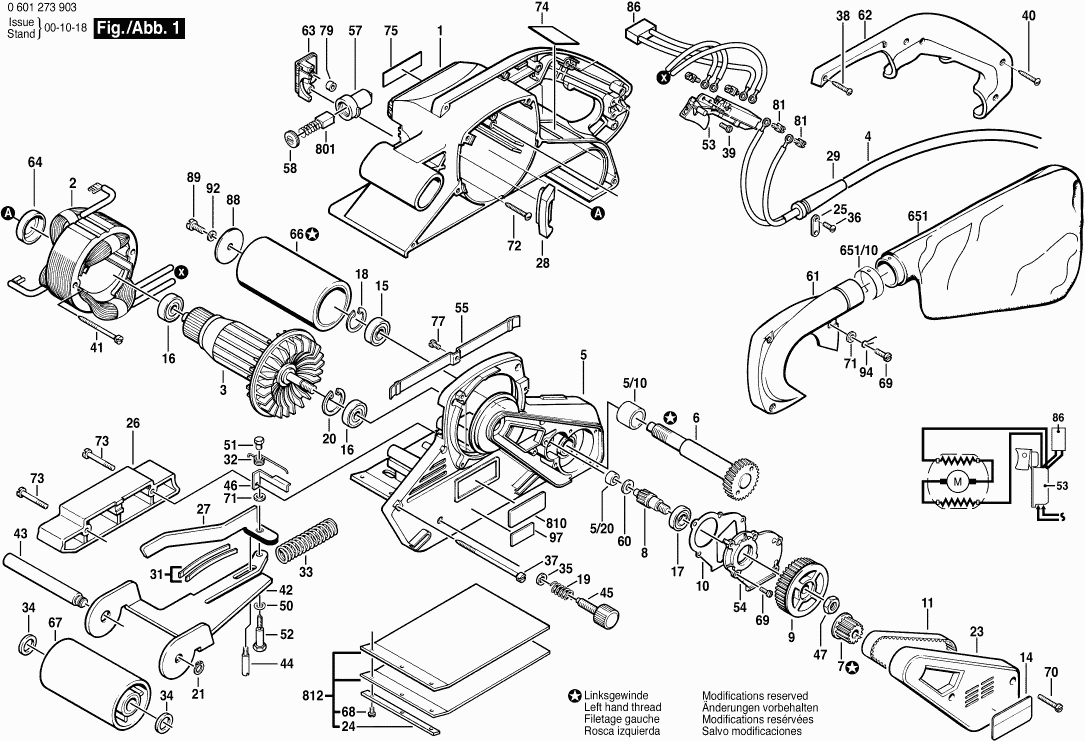

Technical drawing of model Bosch 0601273903 (GBS100A)
Spare parts list of model Bosch 0601273903 (GBS100A)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| 1 | 3605108565 | |||
| No longer available, no replacement | ||||
| 2 | 3604220518 | |||
| No longer available, no replacement | ||||
| 3 | 3604011523 | |||
| No longer available, no replacement | ||||
| 4 | 3604460526 | |||
| No longer available, no replacement | ||||
| 5 | 3605806508 | |||
| No longer available, no replacement | ||||
| 5/10 | 3600301501 | |||
| Bushing | ||||
| 5/20 | 3600301502 | 2.86 | 3.46 | |
| No longer available, no replacement | ||||
| 6 | 3606100511 | |||
| Pinion | ||||
| 7 | 3606625531 | 20.39 | 24.67 | |
| No longer available, no replacement | ||||
| 8 | 3606302500 | |||
| Toothed Belt Wheel | ||||
| 9 | 3606625529 | 20.39 | 24.67 | |
| No information available, not orderable | ||||
| 10 | 3601015503 | |||
| No longer available, no replacement | ||||
| 11 | 3604736505 | |||
| No longer available, no replacement | ||||
| 14 | 3601119674 | |||
| No information available, not orderable | ||||
| 15 | 1600905007 | |||
| No longer available, no replacement | ||||
| 16 | 2610904891 | |||
| groove ball bearing | ||||
| 17 | 1900905161 | 21.30 | 25.77 | |
| No longer available, no replacement | ||||
| 18 | 3600119509 | |||
| No longer available, no replacement | ||||
| 19 | 3604625500 | |||
| No longer available, no replacement | ||||
| 20 | 3600119503 | |||
| Spring retaining ring | ||||
| 21 | 2916650001 | 2.40 | 2.90 | |
| Gear Cover | ||||
| 23 | 2610990025 | 9.67 | 11.70 | |
| Strap | ||||
| 24 | 3601036500 | 2.18 | 2.64 | |
| Fastening Clamp | ||||
| 25 | 3601032500 | 7.46 | 9.03 | |
| Guard Plate | ||||
| 26 | 3605510525 | 12.82 | 15.51 | |
| Lever | ||||
| 27 | 3601923502 | 14.94 | 18.08 | |
| No longer available, no replacement | ||||
| 28 | 3605108566 | |||
| Grommet | ||||
| 29 | 3600707503 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 31 | 3601254500 | |||
| No longer available, no replacement | ||||
| 32 | 3604651500 | |||
| No longer available, no replacement | ||||
| 33 | 3604619500 | |||
| No longer available, no replacement | ||||
| 34 | 3600101501 | |||
| Shim | ||||
| 35 | 2610992475 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 36 | 2910611011 | |||
| Tapping Screw | ||||
| 37 | 2610991306 | 1.49 | 1.80 | |
| No longer available, no replacement | ||||
| 38 | 2910611013 | |||
| No longer available, no replacement | ||||
| 39 | 2910611424 | |||
| No longer available, no replacement | ||||
| 40 | 2910611028 | |||
| Screw | ||||
| 41 | 3603415560 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 42 | 3601321524 | |||
| Pivot Shaft | ||||
| 43 | 3603004501 | 14.82 | 17.93 | |
| Swivelling Axis | ||||
| 44 | 3603405509 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 45 | 3603481507 | |||
| Mounting Bracket | ||||
| 46 | 3601230500 | 2.18 | 2.64 | |
| No information available, not orderable | ||||
| 47 | 2915051108 | |||
| Spring Washer | ||||
| 50 | 3600150505 | 2.40 | 2.90 | |
| Spring Retainer | ||||
| 51 | 3603315500 | 2.40 | 2.90 | |
| Hex Screw | ||||
| 52 | 3603453500 | 3.44 | 4.16 | |
| No longer available, no replacement | ||||
| 53 | 3607200507 | |||
| Gear Cover | ||||
| 54 | 2610993630 | 23.90 | 28.92 | |
| Housing | ||||
| 55 | 3601321527 | 13.02 | 15.75 | |
| Brush Holder | ||||
| 57 | 3600492504 | 14.82 | 17.93 | |
| No longer available, no replacement | ||||
| 58 | 2610994437 | |||
| No information available, not orderable | ||||
| 60 | 3600100504 | |||
| Fan Cover | ||||
| 61 | 3605500579 | 6.73 | 8.14 | |
| No information available, not orderable | ||||
| 62 | 2610994470 | |||
| No longer available, no replacement | ||||
| 63 | 3605500578 | |||
| Bushing | ||||
| 64 | 3600206502 | 1.90 | 2.30 | |
| No longer available, no replacement | ||||
| 66 | 3606625540 | |||
| No longer available, no replacement | ||||
| 67 | 3606625533 | |||
| Oval-Head Screw | ||||
| 68 | 2910641082 | 1.00 | 1.21 | |
| Screw | ||||
| 69 | 3603415540 | 2.40 | 2.90 | |
| Screw | ||||
| 70 | 3603429514 | 1.49 | 1.80 | |
| Plain Washer | ||||
| 71 | 2916011010 | 1.00 | 1.21 | |
| No information available, not orderable | ||||
| 72 | 3603435507 | |||
| Screw | ||||
| 73 | 3603429513 | 1.49 | 1.80 | |
| Reference Plate | ||||
| 74 | 3601119576 | 1.00 | 1.21 | |
| No longer available, no replacement | ||||
| 75 | 3601119679 | |||
| No longer available, no replacement | ||||
| 77 | 3603429512 | |||
| No longer available, no replacement | ||||
| 79 | 3600305500 | |||
| No information available, not orderable | ||||
| 81 | 3603433506 | |||
| No longer available, no replacement | ||||
| 86 | 3607328501 | |||
| No longer available, no replacement | ||||
| 88 | 3600100516 | |||
| No information available, not orderable | ||||
| 89 | 3603410502 | |||
| Plain Washer | ||||
| 92 | 2916011011 | 1.49 | 1.80 | |
| Wire Guide | ||||
| 94 | 3604680500 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 97 | 1601110265 | |||
| No information available, not orderable | ||||
| 651 | 2610997000 | |||
| No longer available, no replacement | ||||
| 651/10 | 3601253503 | |||
| No longer available, no replacement | ||||
| 801 | 3607014507 | |||
| Nameplate | ||||
| 810 | 160111A3H3 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 812 | 3601010516 | |||
