Here you will find all available parts and drawings of the 'Bosch 0601773708 ( GBR14CA )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

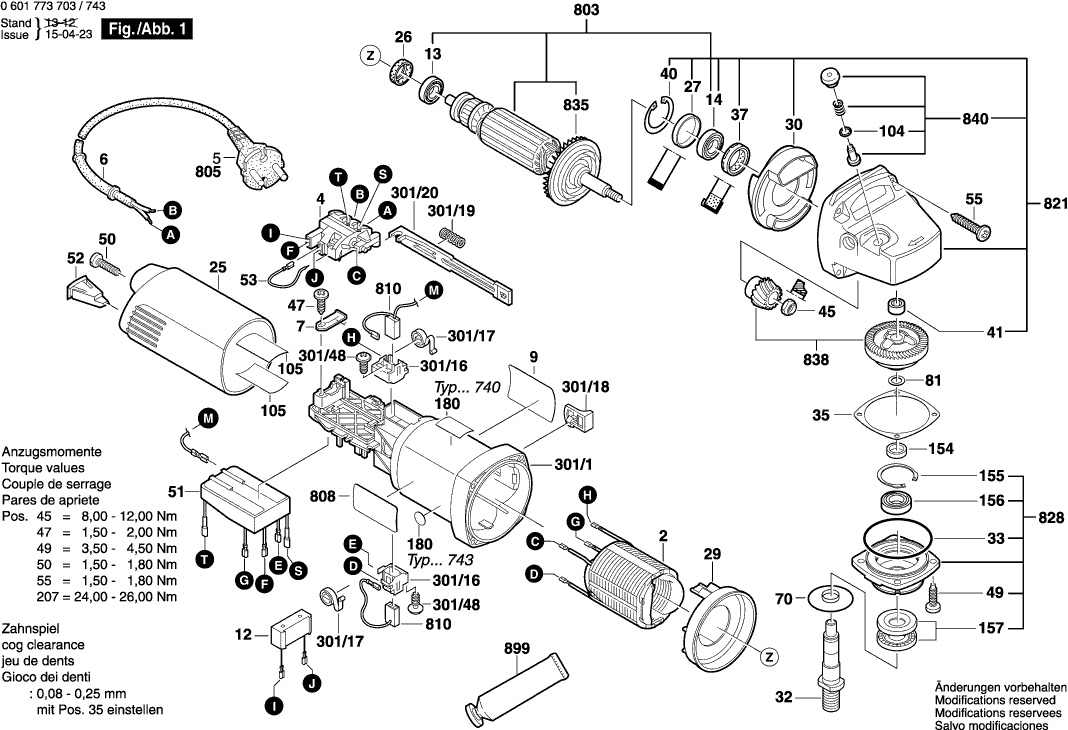

Technical drawing of model Bosch 0601773708 ( GBR14CA )
Spare parts list of model Bosch 0601773708 ( GBR14CA )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Field | ||||
| 2 | 1607000F0S | 34.82 | 42.13 | |
| Switch | ||||
| 4 | 1607200150 | 18.94 | 22.92 | |
| Power supply cord | ||||
| 5 | 3604460185 | 23.90 | 28.92 | |
| Grommet | ||||
| 6 | 2600703011 | 2.86 | 3.46 | |
| Fastening Clamp | ||||
| 7 | 1601302017 | 1.00 | 1.21 | |
| Manufacturer's nameplate | ||||
| 9 | 1601118891 | 3.71 | 4.49 | |
| Suppression Filter | ||||
| 12 | 1607328042 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 13 | 1610905025 | 6.73 | 8.14 | |
| groove ball bearing | ||||
| 14 | 1600905032 | 5.81 | 7.03 | |
| Housing Cover | ||||
| 25 | 1600508016 | 6.73 | 8.14 | |
| Rubber Ring | ||||
| 26 | 1600206036 | 1.49 | 1.80 | |
| Rubber Ring | ||||
| 27 | 1600206025 | 2.08 | 2.52 | |
| Air-Deflector Ring | ||||
| 29 | 1600591025 | 2.40 | 2.90 | |
| Air-Deflector Ring | ||||
| 30 | 1600591014 | 2.40 | 2.90 | |
| Grinding Spindle | ||||
| 32 | 3603523041 | 43.12 | 52.18 | |
| O-Ring | ||||
| 33 | 3600210124 | 2.86 | 3.46 | |
| Shim | ||||
| 35 | 1600136020 | 3.44 | 4.16 | |
| Shim | ||||
| 35 | 1600136013 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136014 | 2.40 | 2.90 | |
| Shim | ||||
| 35 | 1600136015 | 2.40 | 2.90 | |
| Rotary shaft lip seal | ||||
| 37 | 1600290016 | 2.40 | 2.90 | |
| Gear Unit | ||||
| 38 | 1607000D4Y | 14.94 | 18.08 | |
| No information available, not orderable | ||||
| 39 | 1606333259 | |||
| Retaining clip | ||||
| 40 | 1600119011 | 2.08 | 2.52 | |
| Needle bearing | ||||
| 41 | 1600910018 | 4.94 | 5.98 | |
| Hex Nut | ||||
| 45 | 1619P17544 | 1.00 | 1.21 | |
| Plastic-Cutting Screw | ||||
| 47 | 1603435042 | 1.49 | 1.80 | |
| Torx Oval-Head Screw | ||||
| 49 | 3603435047 | 2.40 | 2.90 | |
| Tapping Screw | ||||
| 50 | 2912401420 | 1.00 | 1.21 | |
| Speed governor | ||||
| 51 | 1607233148 | 58.03 | 70.22 | |
| Light Conductor | ||||
| 52 | 3604460117 | 2.86 | 3.46 | |
| Connecting Cable | ||||
| 53 | 3604438020 | 3.44 | 4.16 | |
| Tapping Screw | ||||
| 55 | 2912401022 | 1.00 | 1.21 | |
| Torx Oval-Head Screw | ||||
| 55 | 1603435078 | 1.00 | 1.21 | |
| Cover Disc | ||||
| 70 | 3600150023 | 2.86 | 3.46 | |
| Shim | ||||
| 81 | 2600101022 | 1.49 | 1.80 | |
| O-Ring | ||||
| 104 | 1600210034 | 1.49 | 1.80 | |
| Insulating Plate | ||||
| 105 | 1601008005 | 4.94 | 5.98 | |
| Distance Pipe | ||||
| 154 | 3600913010 | 5.27 | 6.38 | |
| Retaining clip | ||||
| 155 | 2916660013 | 2.08 | 2.52 | |
| groove ball bearing | ||||
| 156 | 160090003C | 4.94 | 5.98 | |
| Seal Ring | ||||
| 157 | 3600105009 | 6.73 | 8.14 | |
| Clamping Flange | ||||
| 202 | 2605703014 | 7.53 | 9.11 | |
| Round Nut | ||||
| 203 | 1603345043 | 8.35 | 10.10 | |
| Reference Plate | ||||
| 205 | 3601119236 | 3.44 | 4.16 | |
| Strap-Shaped Handle | ||||
| 206 | 3601303016 | 67.98 | 82.26 | |
| Hex Screw | ||||
| 207 | 2911061285 | 1.90 | 2.30 | |
| Plain Washer | ||||
| 208 | 2916011017 | 1.49 | 1.80 | |
| Motor Housing | ||||
| 301/1 | 1605108208 | 10.90 | 13.19 | |
| Brush Holder | ||||
| 301/16 | 1601323025 | 3.44 | 4.16 | |
| Spiral Spring | ||||
| 301/17 | 1604652013 | 1.49 | 1.80 | |
| Switch Handle | ||||
| 301/18 | 1602026057 | 1.49 | 1.80 | |
| Compression Spring | ||||
| 301/19 | 1619P09932 | 1.28 | 1.55 | |
| Adjusting Slide | ||||
| 301/20 | 1602319011 | 1.49 | 1.80 | |
| Tapping Screw | ||||
| 301/48 | 2912401005 | 1.00 | 1.21 | |
| Pin-Type Face-Wrench | ||||
| 650 | 3607950017 | 0.83 | 1.00 | |
| Diamond Cup Wheel | ||||
| 651 | 3608600014 | 52.45 | 63.46 | |
| Armature With Fan | ||||
| 803 | 1604010650 | 98.18 | 118.80 | |
| Nameplate | ||||
| 808 | 160111A3H3 | 2.40 | 2.90 | |
| Carbon-Brush Set | ||||
| 810 | 1607000500 | 136.48 | 165.14 | |
| Carbon-Brush Set | ||||
| 810 | 3607014010 | 21.30 | 25.77 | |
| Gear Housing | ||||
| 821 | 16058065B1 | 37.50 | 45.38 | |
| Suction Hood | ||||
| 824 | 3605510040 | 30.08 | 36.40 | |
| Bearing Flange | ||||
| 828 | 3605700158 | 64.67 | 78.25 | |
| Strip brush | ||||
| 829 | 3600290054 | 10.68 | 12.92 | |
| Fan | ||||
| 835 | 1616B00064 | 2.08 | 2.52 | |
| Gear Unit | ||||
| 838 | 1607000D4Y | 14.94 | 18.08 | |
| Push-Button | ||||
| 840 | 1607000253 | 2.08 | 2.52 | |
| Strap-Shaped Handle | ||||
| 866 | 3607031584 | 61.93 | 74.94 | |
| O-Ring | ||||
| 890 | 1600210039 | 2.08 | 2.52 | |
| Silicone Sealing | ||||
| 899 | 3605430011 | 23.90 | 28.92 | |
