Here you will find all available parts and drawings of the 'Bosch 0601931627 ( GBM9,6VES )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

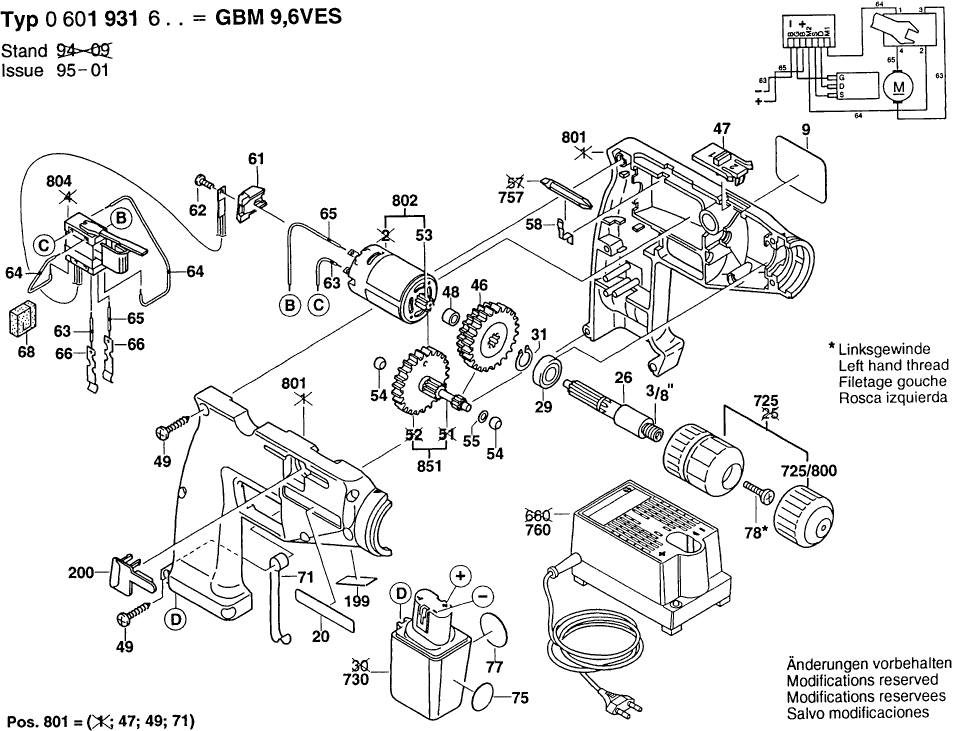

Technical drawing of model Bosch 0601931627 ( GBM9,6VES )
Spare parts list of model Bosch 0601931627 ( GBM9,6VES )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Sticker SUNNY SIDE | ||||
| 9 | 2601118180 | 1.70 | 2.06 | |
| Sticker SHADOW SIDE | ||||
| 20 | 2601110606 | 1.18 | 1.43 | |
| Drilling Spindle 3/8" | ||||
| 26 | 2606309026 | 8.45 | 10.22 | |
| groove ball bearing | ||||
| 29 | 1900905127 | 22.36 | 27.06 | |
| Spring retaining ring DIN 471-10x1MM-FSt | ||||
| 31 | 2916650001 | 1.94 | 2.35 | |
| Cylindrical Gear Z=58/67 | ||||
| 46 | 1609340007 | 11.88 | 14.37 | |
| Adjusting Slide BLACK | ||||
| 47 | 2601099027 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 48 | 2600301011 | 1.18 | 1.43 | |
| Screw 4x16 | ||||
| 49 | 2603490022 | 0.83 | 1.00 | |
| Pinion Z=11 | ||||
| 53 | 2606316112 | 3.31 | 4.01 | |
| Sintered-Metal Bushing | ||||
| 54 | 2600302002 | 1.18 | 1.43 | |
| Shim 0,3 MM THICK | ||||
| 55 | 2600100636 | 1.18 | 1.43 | |
| Holding Spring | ||||
| 58 | 2601250002 | 1.18 | 1.43 | |
| Heat Sink | ||||
| 61 | 2605715000 | 3.31 | 4.01 | |
| Oval-Head Screw DIN 7985-M3x8-4.8 | ||||
| 62 | 2910641050 | 0.83 | 1.00 | |
| Connecting Cable L=52 MM WHITE | ||||
| 63 | 2604413005 | 1.18 | 1.43 | |
| Connecting Cable L=79 MM WHITE | ||||
| 64 | 2604413004 | 1.18 | 1.43 | |
| Contact Spring | ||||
| 66 | 2601324012 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 68 | 2601010038 | |||
| No longer available, no replacement | ||||
| 71 | 2601251003 | |||
| Countersunk-Head Screw M5x20 | ||||
| 78 | 2609110721 | 1.70 | 2.06 | |
| Filler Piece BLUE | ||||
| 200 | 2605510027 | 1.18 | 1.43 | |
| No longer available, no replacement | ||||
| 725 | 2608572010 | |||
| Protective Flap | ||||
| 725/800 | 2600591006 | 10.73 | 12.98 | |
| No longer available, no replacement | ||||
| 730 | 2607335203 | |||
| Screwdriver Blade 6 MM | ||||
| 757 | 1609200147 | 2.71 | 3.28 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 760 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 760 | 2607224701 | 101.94 | 123.35 | |
| Housing Section BLUE | ||||
| 801 | 2605104776 | 18.19 | 22.01 | |
| DC motor 9,6V | ||||
| 802 | 2607022902 | 15.71 | 19.01 | |
| On-Off Switch | ||||
| 804 | 2607200302 | 40.61 | 49.14 | |
| Toothed Shaft Z=10/19/81 | ||||
| 851 | 1609340005 | 12.41 | 15.02 | |
| No information available, not orderable | ||||
| 899 | 0601931627 | |||
