Here you will find all available parts and drawings of the 'Bosch 0601938627 ( GBM9,6VES-2 )'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

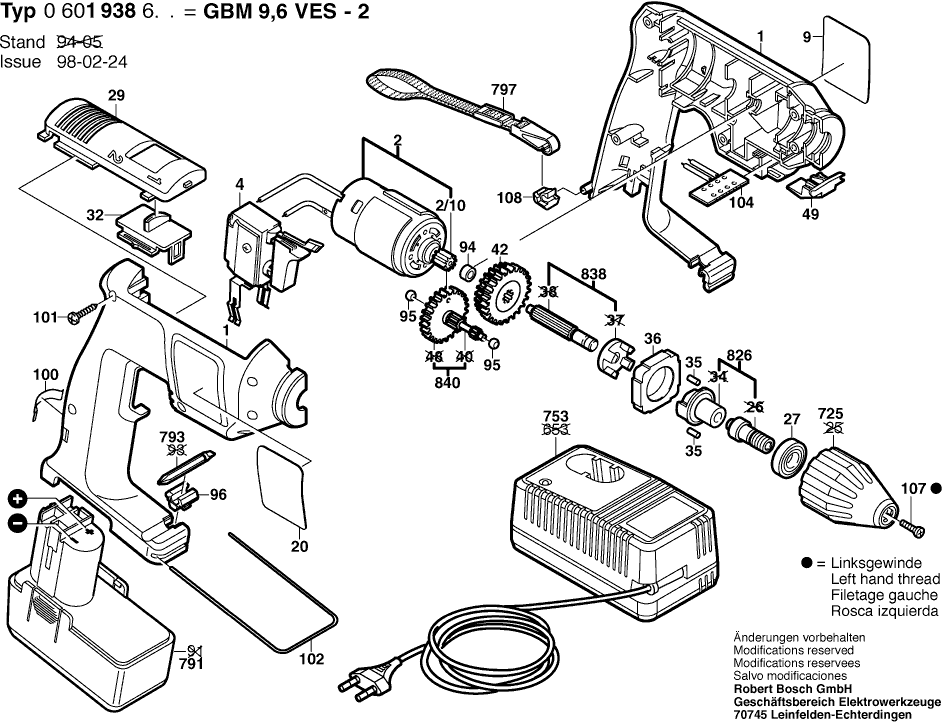

Technical drawing of model Bosch 0601938627 ( GBM9,6VES-2 )
Spare parts list of model Bosch 0601938627 ( GBM9,6VES-2 )
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104497 | 12.41 | 15.02 | |
| DC motor 9,6-12V | ||||
| 2 | 2607022928 | 36.85 | 44.59 | |
| Pinion Z=11 | ||||
| 2/10 | 2606316112 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 4 | 2607200309 | |||
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118760 | 2.71 | 3.28 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118761 | 2.71 | 3.28 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 22.36 | 27.06 | |
| Insert Piece BLACK | ||||
| 29 | 2605510136 | 2.24 | 2.71 | |
| Adjusting Slide BLACK | ||||
| 32 | 2601099056 | 1.18 | 1.43 | |
| Roller Body | ||||
| 35 | 2602329024 | 1.18 | 1.43 | |
| Retaining snap ring | ||||
| 36 | 2600202025 | 4.70 | 5.69 | |
| Cylindrical Gear Z=58/67 | ||||
| 42 | 1609340007 | 11.88 | 14.37 | |
| Insert Piece BLACK | ||||
| 49 | 2605510117 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.18 | 1.43 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302013 | 2.24 | 2.71 | |
| Support | ||||
| 96 | 2608040131 | 1.70 | 2.06 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 1.70 | 2.06 | |
| Screw 4x16 | ||||
| 101 | 2603490022 | 0.83 | 1.00 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.18 | 1.43 | |
| Contact retainer | ||||
| 104 | 2608018004 | 4.70 | 5.69 | |
| Countersunk-Head Screw M5x20 | ||||
| 107 | 2609110721 | 1.70 | 2.06 | |
| Support | ||||
| 108 | 2602180001 | 0.83 | 1.00 | |
| Keyless Chuck | ||||
| 725 | 2608572214 | 40.61 | 49.14 | |
| Fast Charger EU 230/7,2-24V, 1h | ||||
| 753 | 2607224425 | 130.32 | 157.69 | |
| Fast Charger EU 230/7,2-14,4V, 30 MIN. | ||||
| 753 | 2607224701 | 101.94 | 123.35 | |
| Slide-In Accu Package 9,6V, 1,5 Ah, NiCd | ||||
| 791 | 2607336143 | 101.94 | 123.35 | |
| Screwdriver Blade | ||||
| 793 | 2608521018 | 3.31 | 4.01 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| Drilling Spindle 3/8" | ||||
| 826 | 2606135917 | 15.71 | 19.01 | |
| Splined Shaft | ||||
| 838 | 2606309914 | 8.45 | 10.22 | |
| Toothed Shaft Z=10/19/81 | ||||
| 840 | 1609340005 | 12.41 | 15.02 | |
| No information available, not orderable | ||||
| 899 | 0601938627 | |||
