Here you will find all available parts and drawings of the 'Bosch 0601938756 (GBM7,2VES-2)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

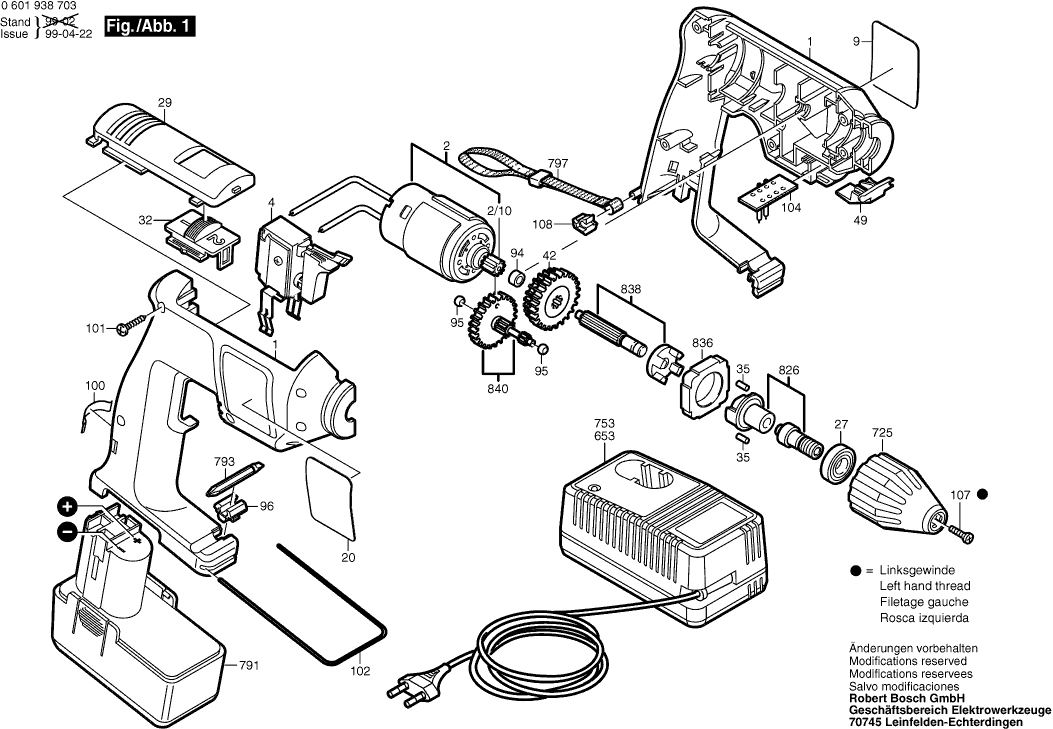

Technical drawing of model Bosch 0601938756 (GBM7,2VES-2)
Spare parts list of model Bosch 0601938756 (GBM7,2VES-2)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104421 | 12.41 | 15.02 | |
| DC motor | ||||
| 2 | 2607022928 | 39.20 | 47.43 | |
| Pinion | ||||
| 2/10 | 2606316112 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 4 | 2607200309 | |||
| Sticker SUNNY SIDE | ||||
| 9 | 2601118536 | 2.24 | 2.71 | |
| Sticker SHADOW SIDE | ||||
| 20 | 2601118537 | 2.24 | 2.71 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 27.81 | 33.65 | |
| Insert Piece | ||||
| 29 | 2605510136 | 2.86 | 3.46 | |
| Adjusting Slide | ||||
| 32 | 2601099056 | 1.49 | 1.80 | |
| Roller Body | ||||
| 35 | 2602329024 | 1.49 | 1.80 | |
| Cylindrical Gear | ||||
| 42 | 1609340007 | 13.13 | 15.89 | |
| Insert Piece | ||||
| 49 | 2605510117 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302002 | 1.49 | 1.80 | |
| Support | ||||
| 96 | 2608040131 | 2.08 | 2.52 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 2.08 | 2.52 | |
| Screw | ||||
| 101 | 2603490022 | 1.00 | 1.21 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.49 | 1.80 | |
| Contact retainer | ||||
| 104 | 2608018004 | 5.81 | 7.03 | |
| Countersunk-Head Screw | ||||
| 107 | 2609110721 | 2.08 | 2.52 | |
| Support | ||||
| 108 | 2602180001 | 1.00 | 1.21 | |
| Keyless Chuck | ||||
| 725 | 2608572214 | 47.53 | 57.51 | |
| Fast Charger | ||||
| 753 | 2607224425 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 753 | 2607224701 | 122.80 | 148.59 | |
| Slide-In Accu Package 7,2V,1,5Ah,NiCd | ||||
| 791 | 2607336141 | 55.25 | 66.85 | |
| Screwdriver Blade | ||||
| 793 | 2608521018 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| Drilling Spindle | ||||
| 826 | 2606135917 | 17.22 | 20.84 | |
| Retaining snap ring | ||||
| 836 | 2600202025 | 5.81 | 7.03 | |
| Splined Shaft | ||||
| 838 | 2606309914 | 9.08 | 10.99 | |
| Toothed Shaft | ||||
| 840 | 1609340005 | 14.94 | 18.08 | |
| No information available, not orderable | ||||
| 899 | 0601938723 | |||
