Here you will find all available parts and drawings of the 'Bosch 06019327B1 (GBM7,2VES-1)'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

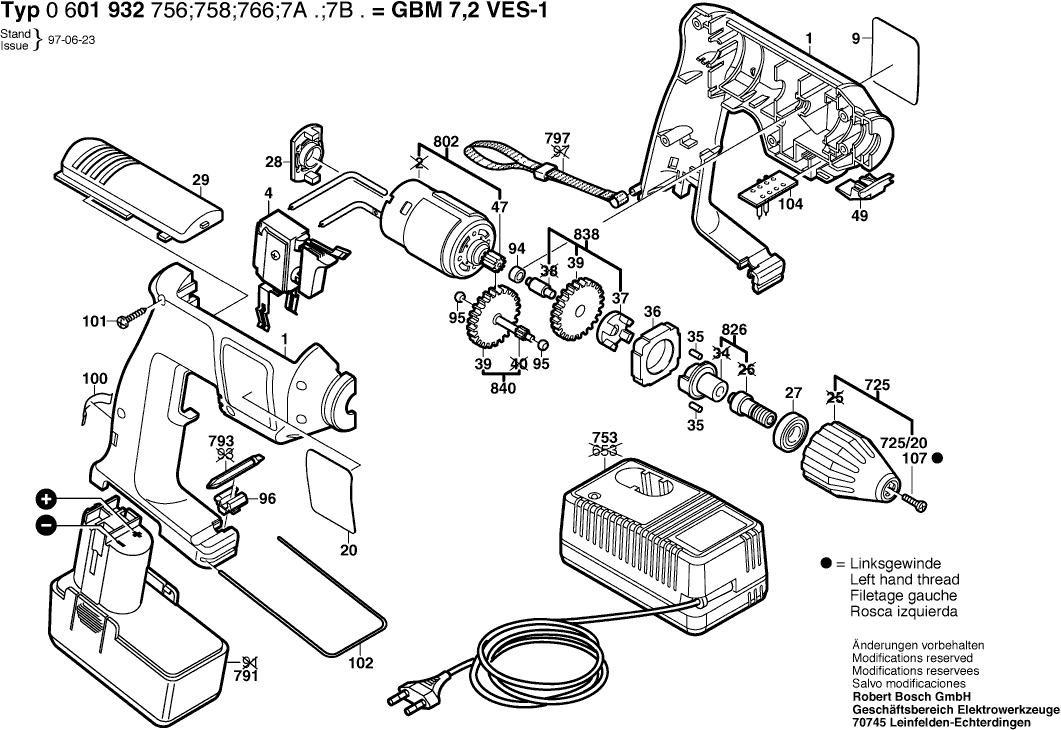

Technical drawing of model Bosch 06019327B1 (GBM7,2VES-1)
Spare parts list of model Bosch 06019327B1 (GBM7,2VES-1)
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing Section BLUE | ||||
| 1 | 2605104611 | 11.88 | 14.37 | |
| On-Off Switch | ||||
| 4 | 2607200393 | 71.68 | 86.73 | |
| Manufacturer's nameplate SUNNY SIDE | ||||
| 9 | 2601118555 | 2.71 | 3.28 | |
| Reference Plate SHADOW SIDE | ||||
| 20 | 2601118556 | 2.71 | 3.28 | |
| groove ball bearing | ||||
| 27 | 1900905127 | 27.81 | 33.65 | |
| Adapter Insert | ||||
| 28 | 2605719007 | 1.49 | 1.80 | |
| Insert Piece | ||||
| 29 | 2605510120 | 1.49 | 1.80 | |
| Roller Body | ||||
| 35 | 2602329024 | 1.49 | 1.80 | |
| Retaining snap ring | ||||
| 36 | 2600202026 | 2.71 | 3.28 | |
| Carrier | ||||
| 37 | 2606440002 | 2.86 | 3.46 | |
| Cylindrical Gear | ||||
| 39 | 2606316128 | 8.06 | 9.75 | |
| Pinion | ||||
| 47 | 2606316120 | 7.46 | 9.03 | |
| Insert Piece | ||||
| 49 | 2605510117 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 94 | 2600301011 | 1.49 | 1.80 | |
| Sintered-Metal Bushing | ||||
| 95 | 2600302002 | 1.49 | 1.80 | |
| Support | ||||
| 96 | 2608040131 | 2.08 | 2.52 | |
| Clamp Spring | ||||
| 100 | 2601322016 | 2.08 | 2.52 | |
| Screw | ||||
| 101 | 2603490022 | 1.00 | 1.21 | |
| Retaining Bracket | ||||
| 102 | 2601329041 | 1.49 | 1.80 | |
| Contact retainer | ||||
| 104 | 2608018004 | 5.81 | 7.03 | |
| Countersunk-Head Screw | ||||
| 107 | 2609110721 | 2.08 | 2.52 | |
| Support | ||||
| 108 | 2602180001 | 1.00 | 1.21 | |
| Keyless Chuck | ||||
| 725 | 2608572214 | 47.53 | 57.51 | |
| Countersunk-Head Screw | ||||
| 725/20 | 2609110721 | 2.08 | 2.52 | |
| Fast Charger | ||||
| 753 | 2607224425 | 155.51 | 188.17 | |
| Fast Charger | ||||
| 753 | 2607224701 | 122.80 | 148.59 | |
| No longer available, no replacement | ||||
| 791 | 2607335150 | |||
| Screwdriver Blade | ||||
| 793 | 2608521018 | 4.18 | 5.06 | |
| No longer available, no replacement | ||||
| 797 | 2601398009 | |||
| DC motor 7,2V | ||||
| 802 | 2607022917 | 20.42 | 24.71 | |
| Drilling Spindle | ||||
| 826 | 2606135917 | 17.22 | 20.84 | |
| Jack Shaft Z= 65 | ||||
| 838 | 2606100915 | 12.41 | 15.02 | |
| Intmd. Transmission Hsg Z= 12/63 | ||||
| 840 | 2606308916 | 13.93 | 16.86 | |
